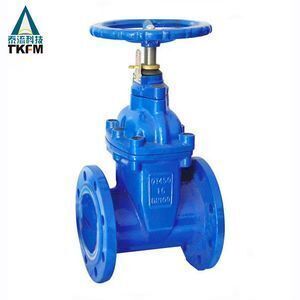

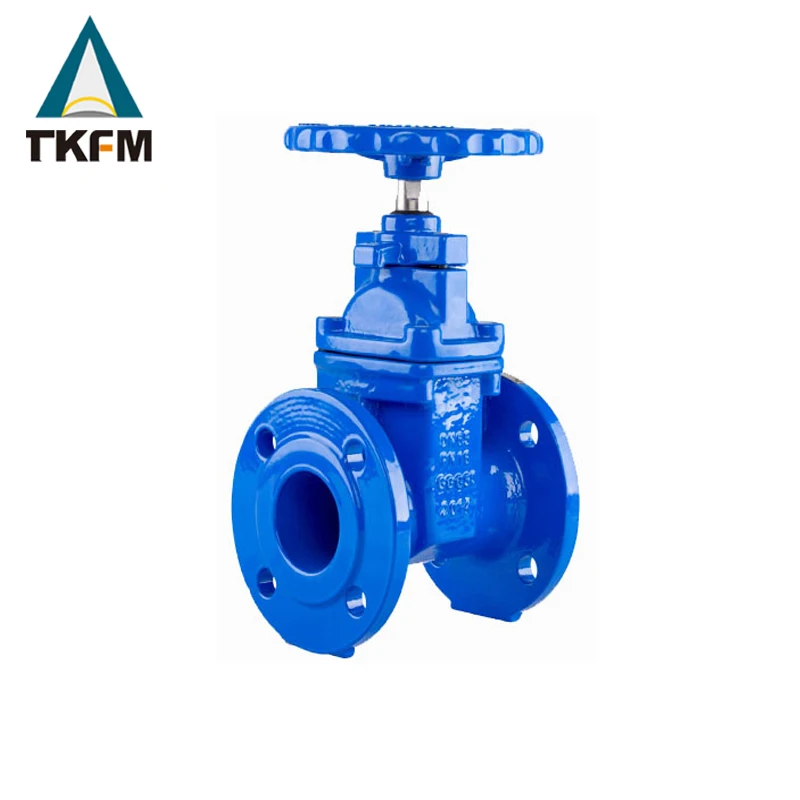

Factory sale water meter a105 wedge gate valve dn300 pn16 12 inch

Supplier: Shenyang Taike Fluid Control Co., Ltd.
Region: Liaoning, China
Contact: Mr China tkfm
Price: $166.50 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Liaoning China (Mainland);	Model Number:	Z41H-16;
Package Type:	Export standard plywood package;	Single package size:	120X52X56 cm;
Media:	Water;	Pressure:	Medium Pressure;
Certificate:	ISO9001;	Material:	Casting;
Port Size:	customizable;	Test standard:	GB/T 13927 API 598;
Flange standard:	GB/T 17241.6 GB/T 9113;	Selling Units:	Single item;
Structure:	Gate;	Brand Name:	TKFM;
Size:	12 inch gate valve;	Delivery Detail:	0 days after payment;
Nominal pressure:	1.0~2.5MPa;	Temperature of Media:	Medium Temperature;
Applicable medium:	water oil gas and so on;	Standard:	Api6d gate valve;
DN:	50~600mm;	Operating temperature:	0~80℃;
Power:	Manual;	Standard or Nonstandard:	Standard;
Single gross weight:	380 KG;	Application:	General;

Product Description

By using rubber coating for the whole gate to produce deformation compensation to achieve good sealing effect. Overcomed other gate valves’ shortcomings such as poorly sealed, leakage or rust. Our gate valve is more effective and save installation space. Widely used in city water supply, sewage treatment, construction industry, petroleum pipe line, chemical industry, foodstuff industry, pharmaceutical industry, textile-industry, power sector, shipbuilding, metallurgical industry, energy system and other fluid pipes as regulator or cut-off equipment.

Technical Parameters

Nominal pressure:1.0~2.5MPa

DN: 50~600mm

Operating temperature :0~80℃

Applicable medium: water oil gas and so on

Flange standard:GB/T 17241.6 GB/T 9113

Test standard: GB/T 13927 API 598

Materials of Main Parts

No.	Name	Material
1	Valve body	Ductile Cast Iron
2	Wedge disc	Ductile Cast Iron with EPDM or NBR rubber coverage
3	Hexagon socket-head cap screws	Carbonization
4	Sealing ring	NBR rubber
5	Bonnet	Ductile Cast Iron Cast Steel
6	Stem	Stainless Steel
7	O-ring	NBR rubber
8	Thrust Bearing	Tin-bronze
9	Bolt	Stainless Steel
10	Gland	Ductile Cast Iron Cast Steel
11	Dust cover	NBR rubber
12	Hand wheel	Cast Iron

Main shape connection dimensions

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	178	190	203	229	254	267	292	330	356	381	406	432	457	508
Ha	313	332	372	424	497	562	680	837	948	1010	1220	1280	1480	1665
Hc	355	375	415	476	540	600	720	875	990	1050	1245	1310	1560	1750
