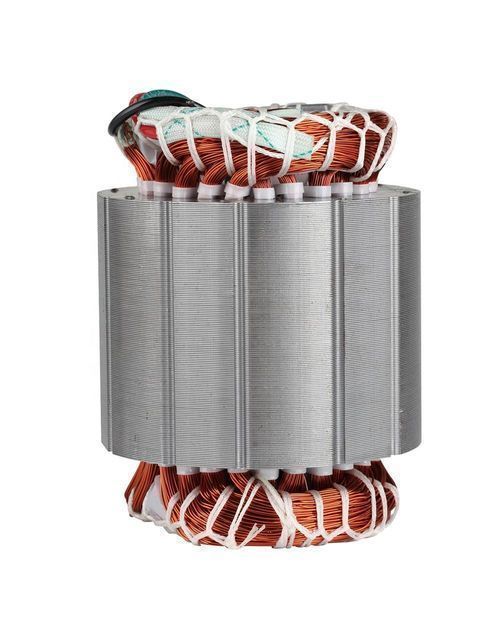

China factory cheap OEM all specifications pump stator winding lamination

Supplier: Fujian Viking Industry Co., Ltd.
Region: Fujian, China
Contact: Mr Ruan
Price: $3.00 / 50 - 999 pieces
$2.80 / >=1000 pieces
Min. Order: 50 pieces

Click here to contact

Product details

process:	Cold rolled/strip	Warranty:	3 months - 1 year
model:	S1	Certification:	ce
brand:	viking flow	MOQ:	100PCS
payment terms:	Western Union, T/T	Model:	63#/71#/80#/90#
Package preview:		product name:	Stator core laminations
technology:	Cold rolled silicon steel	application:	stator
port:	FOB Fuzhou	Material:	Silicon steel
Package:	Carton + wooden box	Color Gold:	Nature
Slot:	custom made	Packaging Details:	Wooden case as your request.
Origin:	Fujian China	Supply capacity:	1,000,000 pieces per month

Product Description

Slots, number of pieces, size need to be customized
In order to let you know our quality, we are willing to provide free samples, but based on the freight collected.
Viking has multiple accessories manufacturers, we provide the best service and price, the least quantity and the most punctual delivery time.

Material:	Silicon steel sheet
Applies to:	pump/generator
measure:	63# / outer diameter: 90MM
		71# / outer diameter: 110MM
		80#/outer diameter: 128MM
	90#/outer diameter 145MM
MOQ:	100PCS
The price varies according to the size, please tell us your needs, we will quote the lowest price according to your size requirements.

Stator working principle

High-speed precision stamping, automatic self-riveting and self-fastening, one-time processing in place, precision molds, equipped with internal and external guide columns, tungsten steel edging, 3 million regular maintenance to ensure stable quality.

The stator is the static part of the motor stator. It is composed of three parts: the stator core and the stator winding frame. The stator is fixed by the stator core coil and other structures of the bracket, this part of the frame is used for the fixed iron core of the suspended generator, and the bracket carries the full weight of the rotating parts; the iron core is part of the magnetic circuit of the generator. The coils form the electrical circuit of the generator.

Stator core: The stator core is the main magnetic circuit of the stator. Together with the stator winding installation and fixing parts, the stator core is composed of fan blanking, ventilation, slots, tooth pressure plates, tension bolts, positioning rods and other components.
