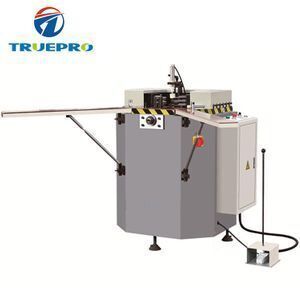

Aluminum window corner crimping machine
-
Supplier: Jinan Truepro International Trading Co., Ltd. -
Region: Shandong, China -
Contact: Mr Michael Ma -
Price: $1260.00 /set -
Min. Order: 1 set
| Dimension(L*W*H): | 1850*1680*1210mm; | Certification: | CE; |
| Production Capacity: | High; | Air Pressure: | 0.6-0.8MPa; |
| Power Supply: | 380V/50Hz; | Profile processing height: | max. 120mm; |
| Applicable Material: | Aluminum; | Weight: | 300kg; |
| Tolerance of connection seam: | ≤0.15mm; | Rating oil pressure: | 15MPa; |
| Adjustable range of main locating block: | 70mm; | Color: | optional; |
| Rating Power: | 1.5kw; | Warranty: | 1 Year; |
| General pressure of corner combining: | 48KN; | Supply Ability: | 15 Set/Sets per Month; |
| Brand Name: | TRUEPRO; | Packaging Detail: | 1, simple stretch film packaging; 2, professional export wooden packing.; |
| Port: | Qingdao Port; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Power(W): | 1.5kw; | After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Voltage: | 380V 50Hz; | Air consumption: | 2L/min; |
\Aluminum window corner crimping machine
| Equipment Description |

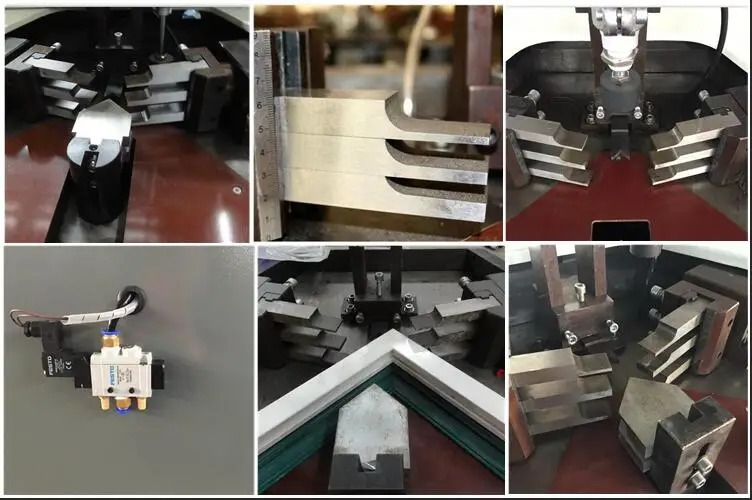

Main Feature:
1.Adopts mechanical linkage structure,realizing completely synchrono corner crimping.
2.Inner corner locating device adopt adjustable locating device.It is suitable for various sections and sizes.
Main Technical Parameter:
Model | CLMB-120 |
Power Supply | 380V 50Hz |
Rating Power | 1.5Kw |
Rating oil pressure | 16MPa |
Air Pressure | 0.5~0.8MPa |
Motor rotational speed | 1400r/min |
Capability of oil box | 20L |
Corner crimping casing movement distance | 85mm |
General pressure of corner combining | 48KN |
Profile processing height | Max.120mm |
The adjustable range of the main locating block | 70mm |
Profile width | 90mm |
Tolerance of connection seam | ≤0.15mm |
Overall Dimension | 1850*1680*1210mm |
Weight | About 300Kg |

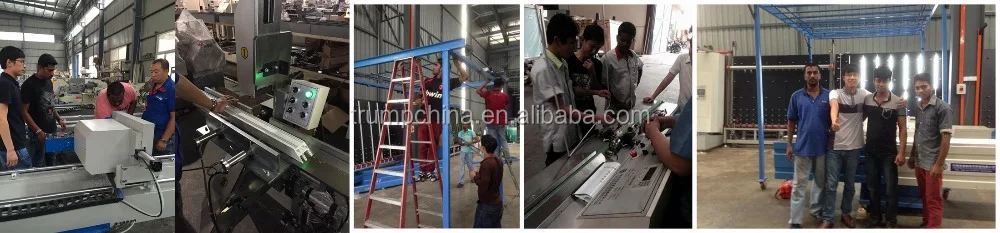

Our engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, we ensure that customers can work smoothly, safety in production.
And then24 hours technical support by phone, email or skype (email or skype) . 12 Months warranty period
Free traning and friendly English verson manual and operation video CD disk.
| Payment terms |
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our main product:
Trump is a manufacturer also trading company of
window machine, insulating glass processing machine and curtain wall machine
Our advantage:
Advance tech,high quality product,competitive price,CE Certification and best service.

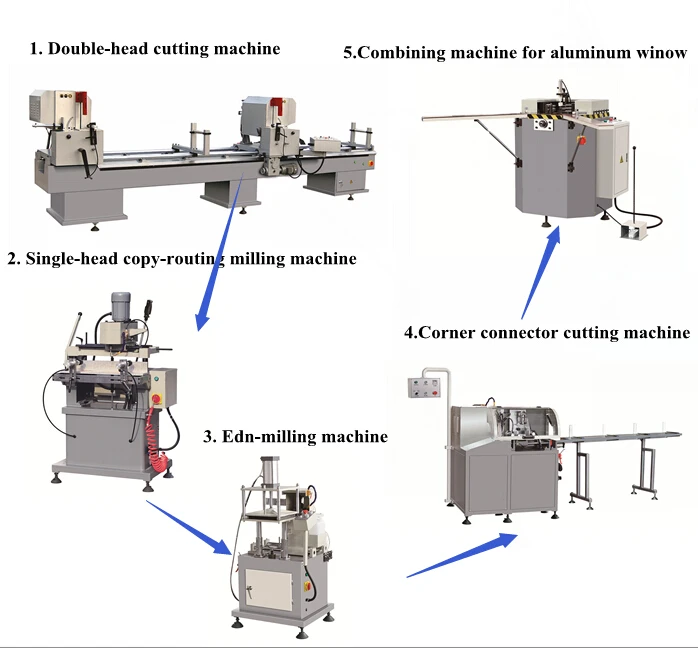

If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
Kindly note:
These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge,
you can tell me your destination port name, then I can tell you the freight charge.
-
