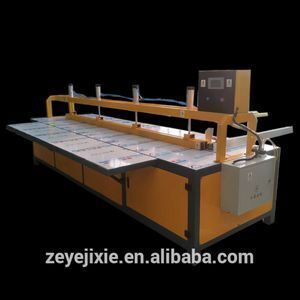

High Precision CBJ - 3030 Acrylic / ABS Plastic Board Table Saw

Supplier: Lianyungang Zeye Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. jian wang
Price: $3020.00 /set
Min. Order: 1 set

Click here to contact

Product details

machine type:	CBJ - 3030;	Delivery Detail:	15 days;
Weight:	800KG;	Model Number:	CBJ - 3030;
Dimension(LWH):	380012001100mm;	machine style:	horizontal type;
Packaging Detail:	Standard wooden export package for High Precision CBJ - 3030 Acrylic / ABS Plastic Board Table Saw.;	maximum forming depth:	1-20mm;
Use:	plastic board cutting;	machine weight:	800kg;
Brand Name:	zeye;	forming width:	3000mm;
After-sales Service Provided:	No overseas service provided;	Port:	lianyungang/qingdao/shanghai;
Supply Ability:	200 Set/Sets per Year table saw;	Type:	pneumatical cutting machine;
work object:	abs, eps, pp, acrylic, pet, ps, petg, hips, apet, pvc;	Usage:	plastic board cutting;
Place of Origin:	Jiangsu China (Mainland);	Certification:	ISO9001;
Warranty:	1 Year;	product name:	table saw;
warranty period:	1 year;	working air pressure:	0.8Mpa;
Condition:	New;	Voltage:	380V;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	production speed:	20s/pcs.;
Style:	Horizontal;	Power(W):	2200w;

Product Description

High Precision CBJ - 3030 Acrylic / ABS Plastic Board Table Saw

machine type	CBJ - 3030	work object	abs, eps, pp, acrylic, pet, ps, petg, hips, apet, pvc
power	2.2kw	voltage	380V
production speed	20s/pcs.	machine weight	800kg
forming width	3000mm	maximum forming depth	1-20mm
working air pressure	0.8Mpa	machine style	horizontal type
sheet thickness	1-20mm	effective cutting length	unlimited
blade diameter	305mm	blade teeth count	120
saw spindle diameter	45mm	saw blade shields	have
slide track length	3800mm	slide track diameter	30mm
speed of mainshaft	2400r/min	lever pressure	300kg
Lever stroke	200mm	max processing speed	1500mm
Machine size	380012001100mm	warranty period	1 year

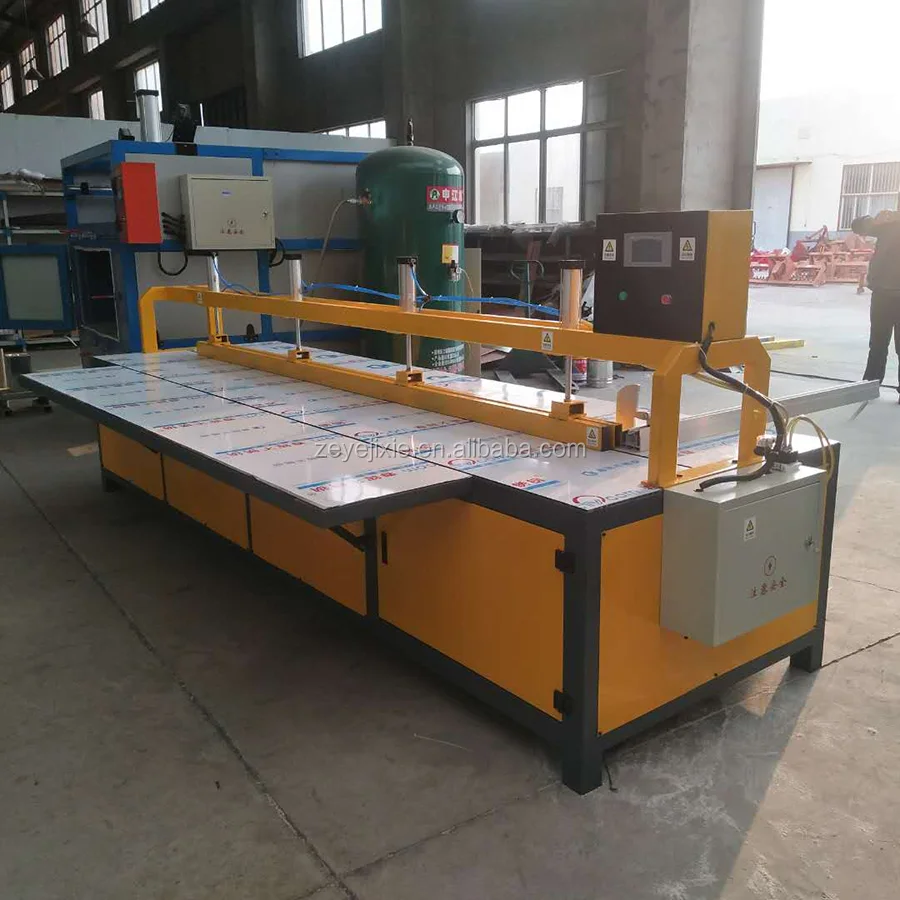

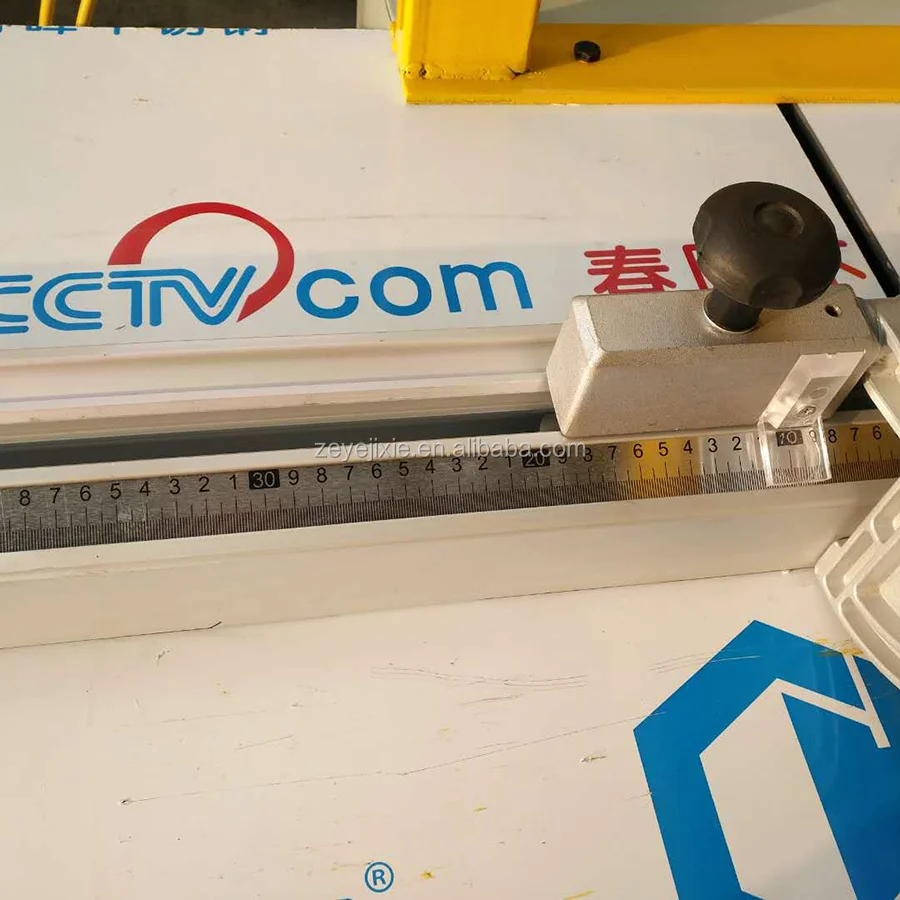

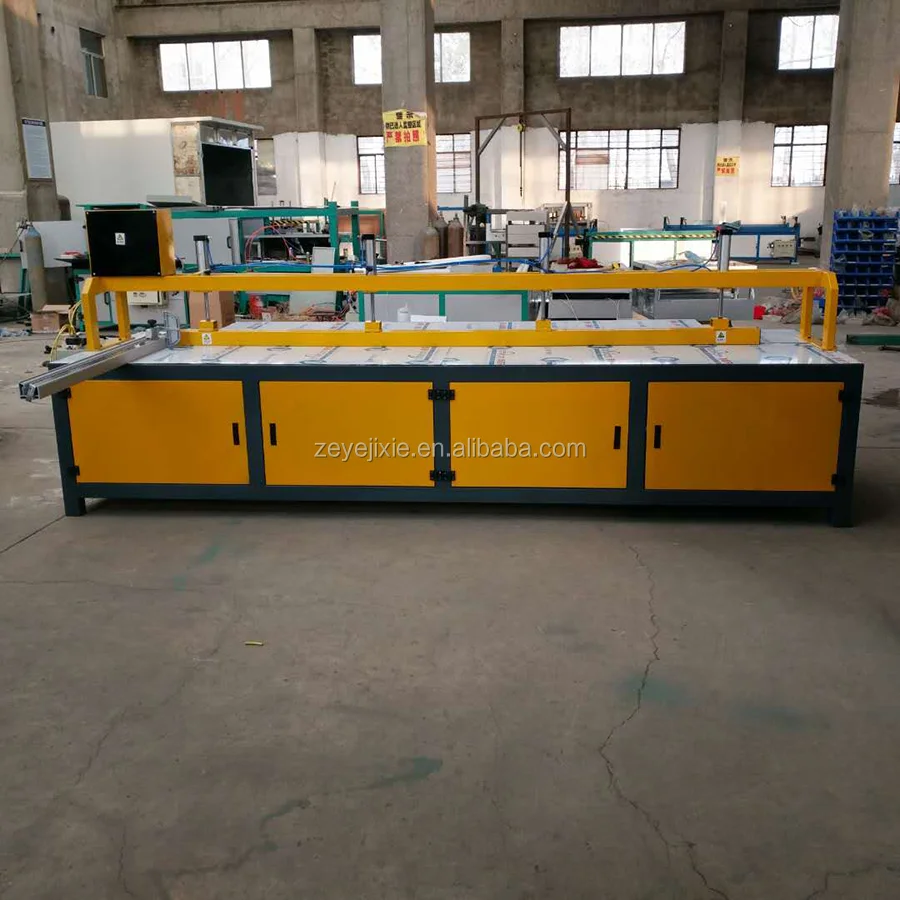

Detailed Image

Product Features

CBJ - 3030 (acrylic) sheet cutting machine is designed for cutting and the design for manufacture of special equipment, suitable for acrylic, organic sheet, wood sheet and so on the many kinds of plank of linear cutting, the equipment is simple to operate, durable, compared with the CNC engraving machine, its efficiency is increased by more than quintuple , and its price is only half of the CNC engraving machine, manufacturing, wood processing industry has been widely used in advertisements.

1. Integrated high strength frame, stable performance, convenient transportation and installation.

2. Adopts the track imported from Taiwan to control the error of the cutting sheet at 0.1 mm.

3. Company develops the pressure lever device on the stage to make the plate press firmly on the surface, the plate will not move when working.

4. Spindle speed is high to ensure the smooth finish of the cutting end.

5. Use wide range: machine can process acrylic sheet; ABS sheet; PVC sheet; Sun sheet and other sheets.

Our Factory

Lianyungang Zeye Machinery Co., Ltd. was established in 2012,Our company specializes in the production of acrylic, pvc, abs, and other plastic pipe bending machine；Specializing in the production of various types of plastic vacuum forming machine , bending machines, ovens and other mechanical equipment,such as acrylic, pvc, abs and so on.Our company undertakes various types of customized mechanical equipment,which is a high-tech enterprise incorporating R&D Production and sales.We will provide you with higher quality services by superb technology, excellent quality!

Our Team

Our company has a professional r&d team, sales team and after-sales service team, closely cooperate with each department, efficient service customers.Comfortable office environment, the team get along well.We can provide you with the most professional services.

Packing & Delivery

1. Packaging Details:Nude package combined with standard export wooden case package or as customer's requirements.

2. Delivery Time:15 days after payment.Custom products are usually shipped in about two months.

FAQ

1. Why do you choose our Machinery?

We have rich experience in the industry of bending machine, can provide high quality product , can be customized according to customer's request.

2. Could you provide OEM service?

Yes, we do have strong technical development and professional designers.

3. What about the payment term?

We can accept T/T, Western Union, L/C.

4. Could you provide samples?

Yes,we can provide bending pipes for free.
