Marine Modular Chiller 72000BTU 6TONS

Supplier: Shanghai Topaire Air Conditioning Co., Ltd.
Region: Shanghai, China
Contact: Ms Tsui Kiki
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Main selling points:	easy to operate
Origin:	China Shanghai	Packaging Details:	strong carton
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
product name:	Marine Chiller	Supply capacity:	5000 sets per year
Local service location:	not any	Cooling capacity:	72000btu
Refrigerant:	R22, R407c, R410A	Warranty:	2 years
Showroom location:	not any	After-sales service provided:	On-site service by overseas engineers, free spare parts, video technical support, on-site installation and commissioning training, on-site maintenance and repair services, online support
Core components:	compressor, blower	brand:	TopAire, ICECOHVAC
Core component warranty:	2 years	Key words:	Titanium, Copper Nickel
Video shipment inspection:	if	port:	Shanghai
air flow:	1000 cubic meters / hour	Install:	Floor type
Operating Voltage:	380/400 VAC	Certification:	ce
Condenser:	B10 coaxial type HX	Function:	cooling/heating
Mechanical test report:	if	cooling method:	seawater cooling
Package preview:		type:	chiller
application:	ocean, boat, yacht, offshore	Applicable industries:	Marine and Offshore
Evaporator:	SUS304 plate	Marketing Type:	2019 New Products

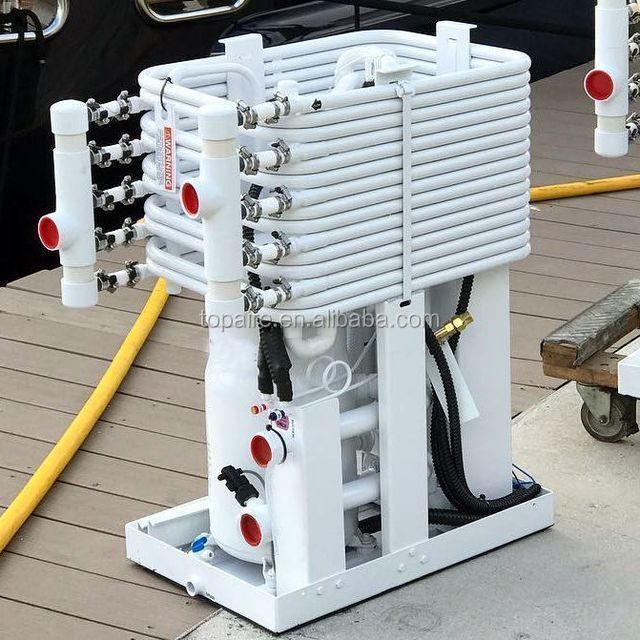

TopAire Marine Modular Chiller with Reverse Cycle Heating and Digital Control

feature
MCW series marine modular chiller adopts titanium condenser, which greatly improves the durability and product life. Titanium is not affected by this. A combination of punishing salt water, invasive sea life and harsh acids. For daily cleaning of condenser coils. Titanium provides extended life and is unaffected by corrosion in harsh marine environments.

1. Titanium coil significantly increases product life.

2. Up to 6 modules can be built.

3. Fully sealed and pre-filled with environmentally friendly R407C and R410A refrigerants.

4. It has the functions of freezing control, high limit switch, high and low meter, etc.

5. Not affected by vibration, humidity or ambient temperature up to 60°C.

6. Digital controller monitors and protects.

Cooling capacity: 24000, 36000, 48000, 60000, 72000, 96000, 120000, 160000, 180000BTU

Combine up to 8 modules.

Install
