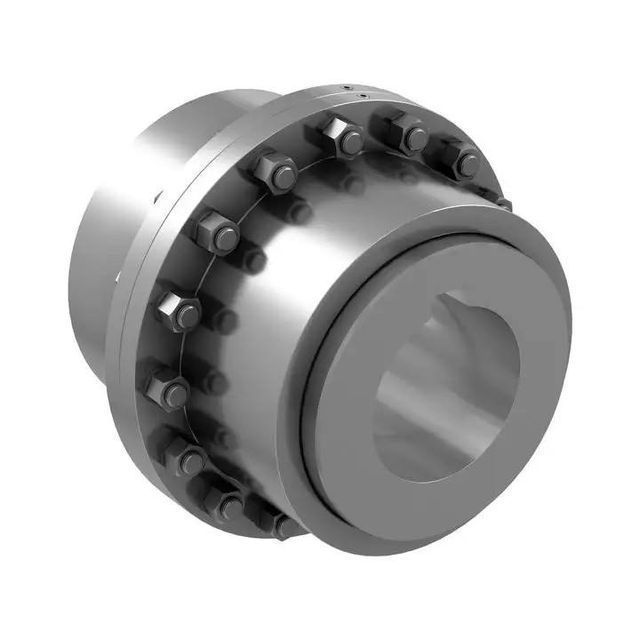

Drum Gear Shaft Coupling For High Speed Turbine Gear Coupling China Factory

Supplier: Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms Sarah Ren
Price: $88.00 / 2 - 99 sets
$79.20 / >=100 sets
Min. Order: 2 sets

Click here to contact

Product details

Material:	steel	Flexible or Rigid:	flexible
Body material:	45 # steel	Warranty:	1 year
MOQ:	1 set	color:	custom requirements
Feature 1:	high torque high rigidity	application:	industrial equipment
product name:	Flexible Couplings Couplings	structure:	gear
Package preview:		place of origin; place of origin:	Hebei china
Package:	wooden box	custom:	yes
Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies	Standard or non-standard:	standard
payment terms:	L/C, T/T	feature:	long lasting
Customization support:	OEM production	size:	Custom dimensions are acceptable
Packaging Details:	wooden case or customized	brand:	Jude

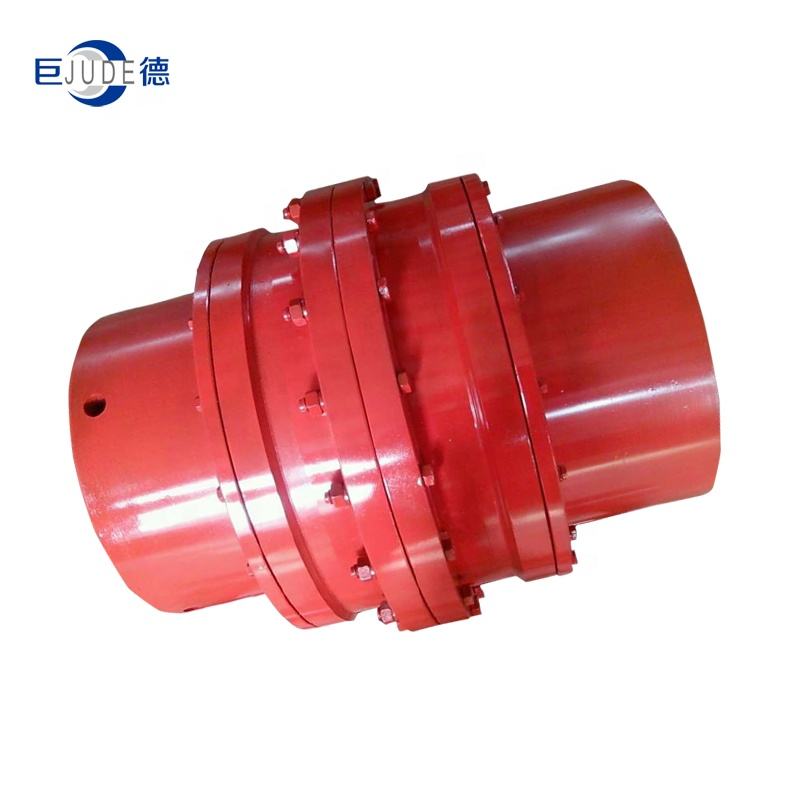

GICL Drum Coupling Drum Gear Coupling Introduction

Product Description

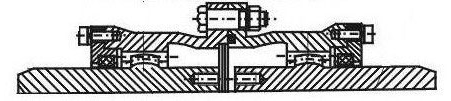

GICL drum gear coupling consists of a half coupling with the same number of teeth, an inner ring and an outer flange. There are two types of external teeth: straight teeth and drum teeth. The tooth is the outer spherical surface of the tooth.

(1) GIICL allows greater angular displacement (compared to straight tooth couplings), which can improve tooth contact conditions, increase torque transmission capacity, and prolong service life. Angular displacement of the contact state along the tooth width direction.

(2) It has the ability to compensate radial, axial, angular and axial deviations, with compact structure, small turning radius, large bearing capacity, high transmission efficiency, low noise and long maintenance period;

(3) It is suitable for low-speed and high-load working conditions such as metallurgy, mining, lifting and transportation, as well as transmission shafts and general machinery in the petrochemical industry.

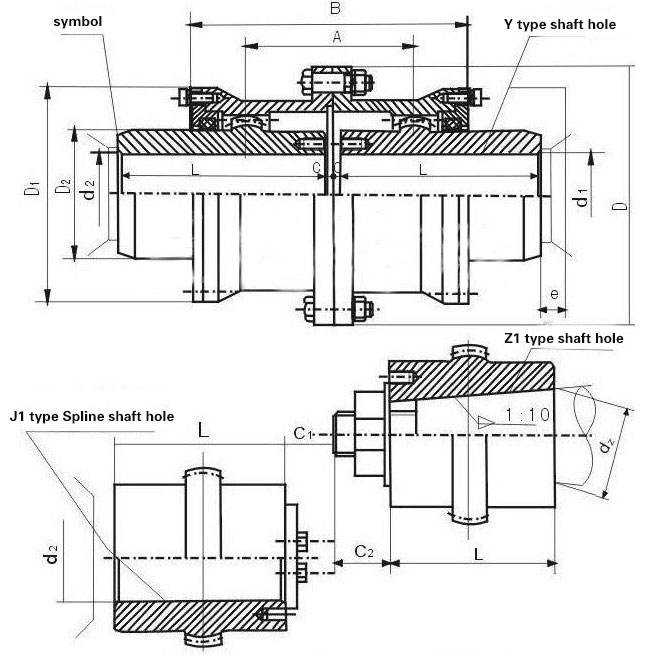

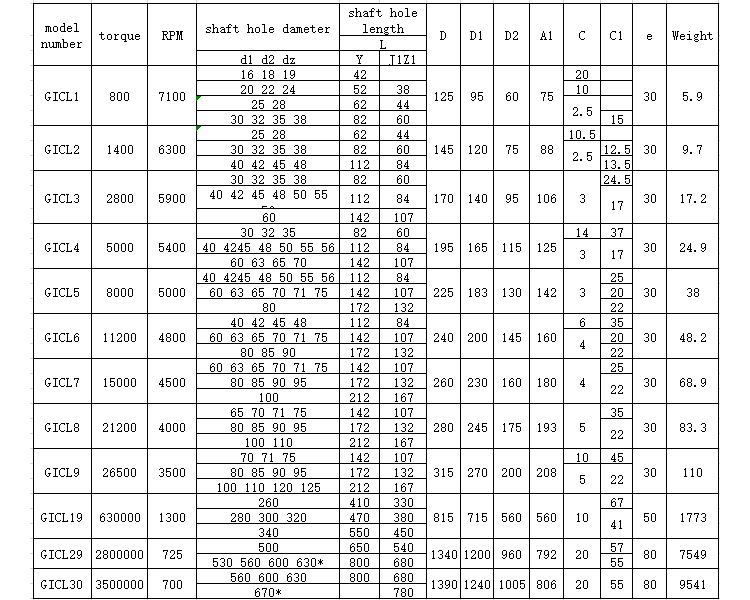

GICL1-GICL14

GICL15-GICL30

Packaging and Shipping

about Us

Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd. is an enterprise specializing in the research and production of couplings. We can also develop new products and mass produce. Rich experience in the field of couplings, a professional R&D team and various equipment, have the superior conditions to meet your different needs.

The company's main products are: radial elastic couplings, tire couplings, universal couplings, drum-shaped gear couplings, plum-shaped elastic couplings, rigid couplings, cross slider couplings, Roller chain couplings, diaphragm couplings, etc. Various couplings used in the global machinery industry, coupling column elastic sleeve pin couplings, elastic positioning pins, elastic positioning pin couplings, pump shaft couplings device etc.

Our company's philosophy is to survive by quality and develop by reputation. Couplings have the advantages of high quality and low price, and complete product models. Our company will be your best choice and look forward to cooperating with you.
