Glass Laminating Machine / Automatic EVA Laminating Machine

Supplier: Haining Lidu Glass Machine Co., Ltd.
Region: Zhejiang, China
Contact: Mr Youyi Huang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Control System:	Computerize;	Packaging Detail:	1) normal package 2) wooden carton 3) according to customers' requirement;
Supply Ability:	30 Set/Sets per Month;	Dimension(LWH):	620018001600;
Payment Terms:	L/C,T/T,Cash;	Warranty:	2 Years;
Production Capacity:	55-133 ㎡/8h;	Certification:	CE;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Power(W):	35kw;
Weight:	2.8t;	Machine Type:	Glass Laminating Machine;
Port:	Shanghai/Ningbo;	Voltage:	380V;
Brand Name:	LIDU;	Condition:	New;
Place of Origin:	Zhejiang China (Mainland);

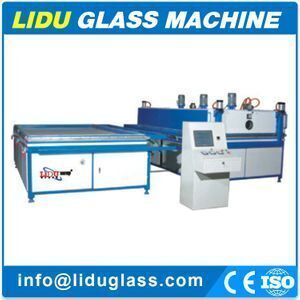

Automatic EVA Colorful Glass Laminating Machine

This EVA film is placed at both sides of the interlayer materials, and the two glass sheets and the interlayer materials will be glued together firmly to form the insulated glass by heating and vacuuming. According to different interlayer materials, the insulated glass is used in different fields.

Model	Max.Glass Size	Machine Size	Power	Weight
LDJ2000	2000×1100×50	6200×1400×1500	25	2.5
LDJ2500	2500×1500×50	6200×1800×1600	35	3.2
LDJ3000-A	3000×1700×50	7500×2200×1700	50	3.5
LDJ3200	3200×2000×50	7700×2300×1600	51	3.6
LDJ3300	3300×2100×50	7800×2400×1600	52	3.8
LDJ3700	3700×2500×50	8700×2800×1600	70	6.1

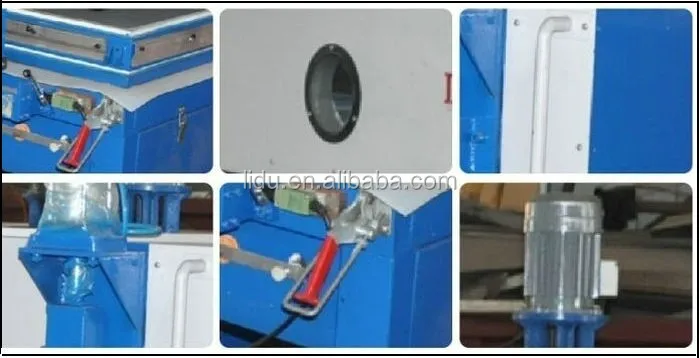

Details

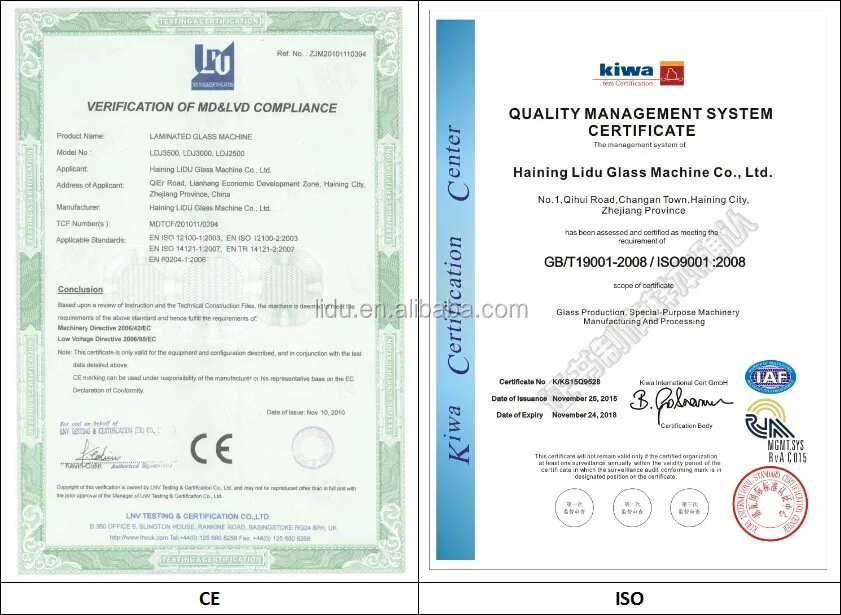

Certificate

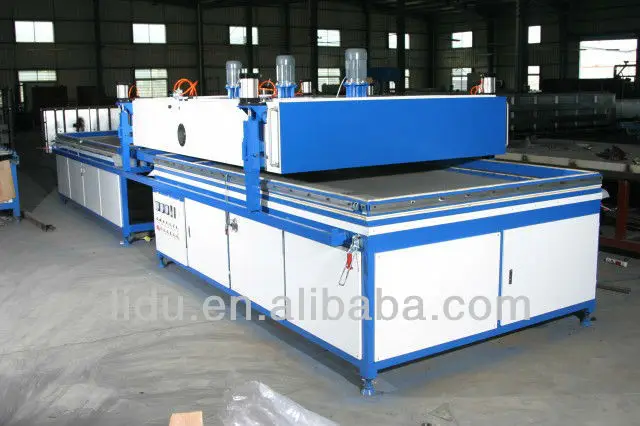

Glass Laminating Machine adopts new technology, new material and makes the laminated glass at one time under heating and vacuuming.
Glass Laminating Machine with excellent quality has got CE approval and been exported to more than 10 countries. We can tailor for customer for different specifications.

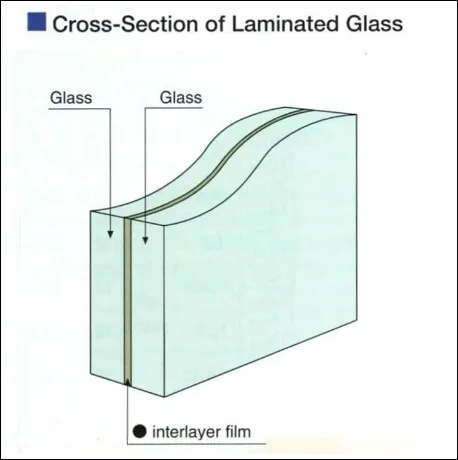

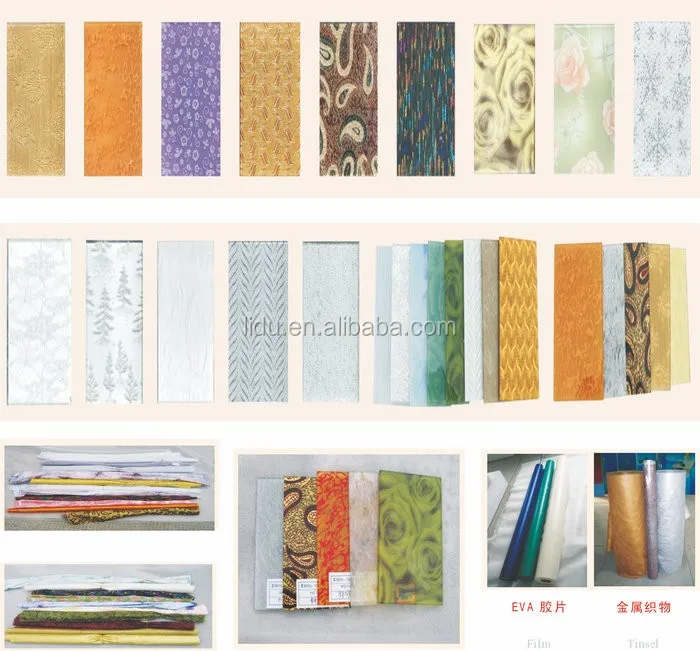

>> The Interlayers of The Glass Laminating Machine

Application

Glass Laminating Machine is used for producing not only the traditional laminated glass made through pre-heating, pre-pressing and autoclave, but also the laminated glass with interlayer materials in, such as, paper, silk, color cloth, metal basketwork, and PET film and so on
This Glass Laminating Machine can also produce multi-functional laminated glass, such as, soundproof,heatproof, and bulletproof glass. It is a new multi-functional device for decorative materials

Trade

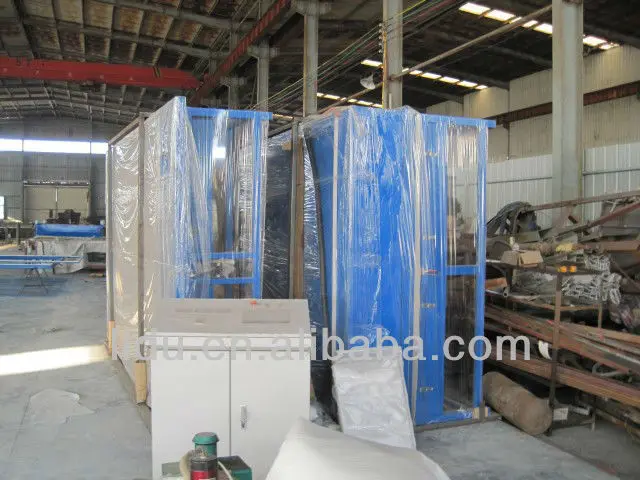

Packing

1) Normal package
2) Wooden carton
3) According to customers' requirement

Glass Laminating Machine Advantage

We’re manufacturer, which have specialized in the line for many years.
We could pick you up to visit our factory,
Best after-sale service.
Competitive price, high quality and quick delivery for long business.

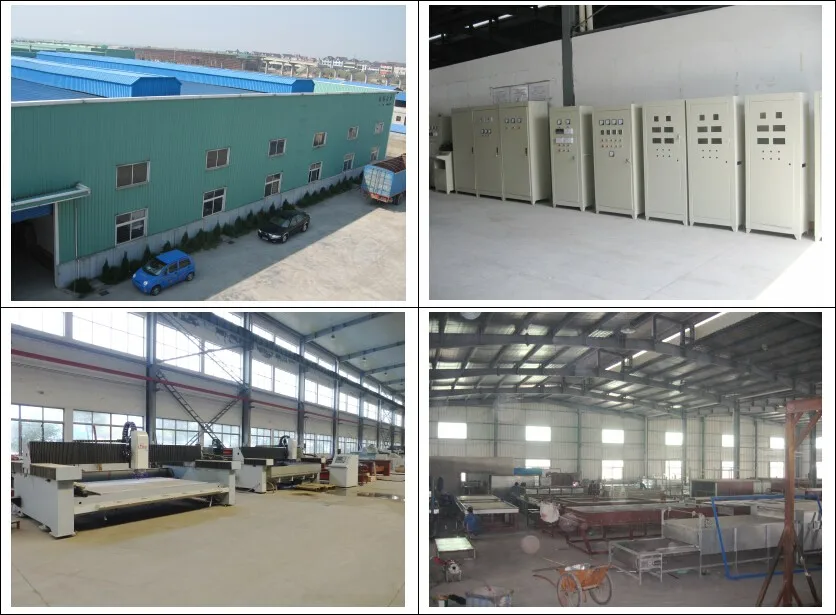

Hainin Lidu Glass Machine Co., Ltd., a high-tech enterprise, is specialized in studying and developing new technology and manufacturing machines for glass deep processing.
Having twenty-year's experience, now LIDU has been the well-known glass machinery manufacturer in China.
LIDU has built the perfect quality guarantee system, and has passed the Standard of Quality Management System of ISO9001:2000.
Parts of Our Products: CNC Glass Working Center, Glass Cutting Machine, Glass Drilling Machine, Glass Washing Machine, Glass Screen Printing Machine and Glass Laminating Machine have got CE Certificate.
The products have been exported to Canada, Australia, Italy, Russia, Saudi Arabia, Libya, Armenia, Vietnam, Thailand, Indonesia, India, Iran and etc. All products are well received.
