Road construction joint cleaning machine Road maintenance machinery joint cleaning device before asphalt pouring

Product details
Unique selling point:High operating efficiencyShowroom location:not any
brand:Pinjiause:Concrete Pavement Gap Cleaning
Type of machine:Corner cleaning machineCleaning process:Alkaline wash
Mechanical test report:ifengine:Honda GX690
Core components:engineapplication:Lane
Supply capacity:200 cases per daystrength:Honda GX390, 5.1KW
Related Products:SealerPackage preview:
Working depth:0-50mmMaterial:metal/coil
cleaning type:Industrial Ultrasonic Cleanerplace of origin; place of origin:Shandong China
brand:PinjiaWeight (kg):55 kg
usage:Road Maintenance ConstructionState of health:new
Packaging Details:Wooden packingVideo shipment inspection:if
Warranty:1 yearVacuum system:effective vacuuming
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramMarketing Type:New Products 2022
Core component warranty:1 yearApplicable industries:construction project
Dimensions (L*W*H):1000*600*850mmport:Qingdao Port
fuel:petrol, electric
Product Description

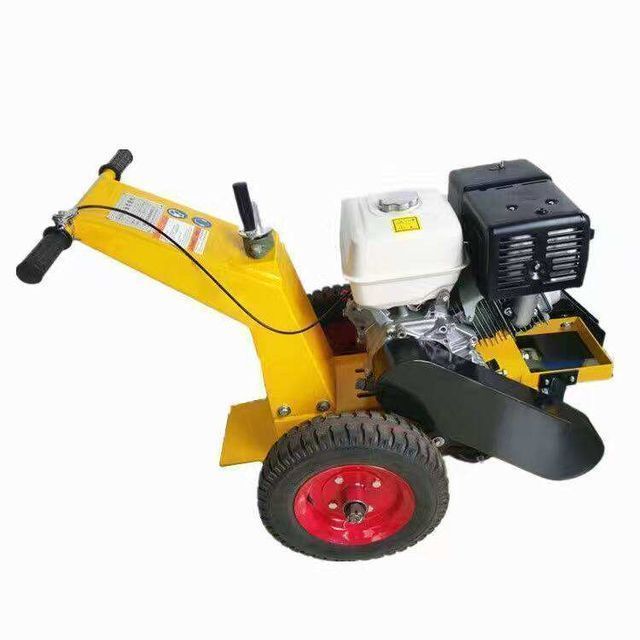

Pavement construction joint cleaning machine
Features of asphalt concrete pavement dry cutting gap cleaning machine: (1) It adopts domestic Biaohan, American Briggs & Stratton, Japan
Honda engine, high power and low fuel consumption; (2) Increase the automatic feeding function, the feeding size is clear at a glance,
It has the best effect on I, T and longitudinal seam processing; (3) The high-pressure fan is used for cooling and purging,
Extend blade life and caulk in no time. 2. Main features (1) The seam cleaning saw blade adopts diamond dry-cut circular saw blade, which can dry-cut and clean the seam without adding coolant; (2) Use high-pressure blower to cool and blow, prolong the life of the blade, and immediately fill the seam; (3) ) Using domestic Biaohan, Briggs & Stratton, Honda, easy to start, small size, flexible movement; (4) Manual walking cleaning and feeding, easy speed adjustmentSeam cleaning, the effect is 5-8 times that of manual seam cleaning.
technical parameter
name
Asphalt concrete pavement dry cutting gap cleaning machine
Cleaning speed
≥5m/min
Cleaning Depth
20-50mm
Supporting power supply
13 hp
rated speed
Cutter shaft 3200r/min Engine 3600r/min
walking mode
hand push
machine weight
100 kg
total measurement
1000*600*850(mm)
