DALI GQ-75 Sewage drain pipe cleaning machine plumbing electric eel

Supplier: Beijing New Asia Dali Machinery Co., Ltd.
Region: Beijing, China
Contact: Ms Yuying yang
Price: $230.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Packaging Detail:	cartons 1pc/cartons N/W:29g G/W:32kg Size:464147cm;	Dimension(LWH):	464147CM;
Supply Ability:	1000 Box/Boxes per Month;	Use:	drain pipe;
Condition:	New;	Port:	Tianjin;
Feature:	Critical Cleaning / Residue Free,Non-Toxic;	Model Number:	GQ-75;
Certification:	CE;	Authentication:	CE;
Machine Type:	Corner Cleaning Machine;	Cleaning Type:	Electric cleaner;
Payment Terms:	L/C,T/T;	After-sales Service Provided:	No overseas service provided;
Delivery Detail:	20-45days;	Power(W):	390W;
Brand Name:	DALI;	Fuel:	Electric;
Material:	Metal / Coil;	Cleaning Process:	Cables;
Industry Used:	Household hotel Municipal Affairs;	Place of Origin:	Beijing China;

Product Description

Product Application

GQ-75 Drain Cleaning Machine is considered by Professional Plumbers to be the perfect all around Sink, Shower, and Floor Drain machine. This Compact Versatile machine is capable of using 5/16" and 5/8" Cables. It cleans drains from 3/4" up to 4" and runs up to 100 feet so it will tackle any job.

SPECIFICATIONS FOR GQ-75
For diameters of pipe	Φ20-100mm
Max. working length	30 M
Input Power	390 W
Speed	400 Rpm
Protection Class	IP44
Rated Voltage	240/230/220/110V optional
Frequency	50Hz/ 60Hz optional
Certification	CE
Machine Weight	12.3 kg

Features

1) Compact, versatile, professional’s machine,Easy to transport, ideal for mobile use.

2) Capable of running three different size cables: 8mm, 15mm and16mm.

3) The machine is driven by a 390W motor that has a grounded electrical system.

4) A toggle switch provides FORWARD/OFF/REVERSE control of the motor.

5) Stable three point edition (rubber feet).Deep-seated main emphasis (engine) for safe stand during the business

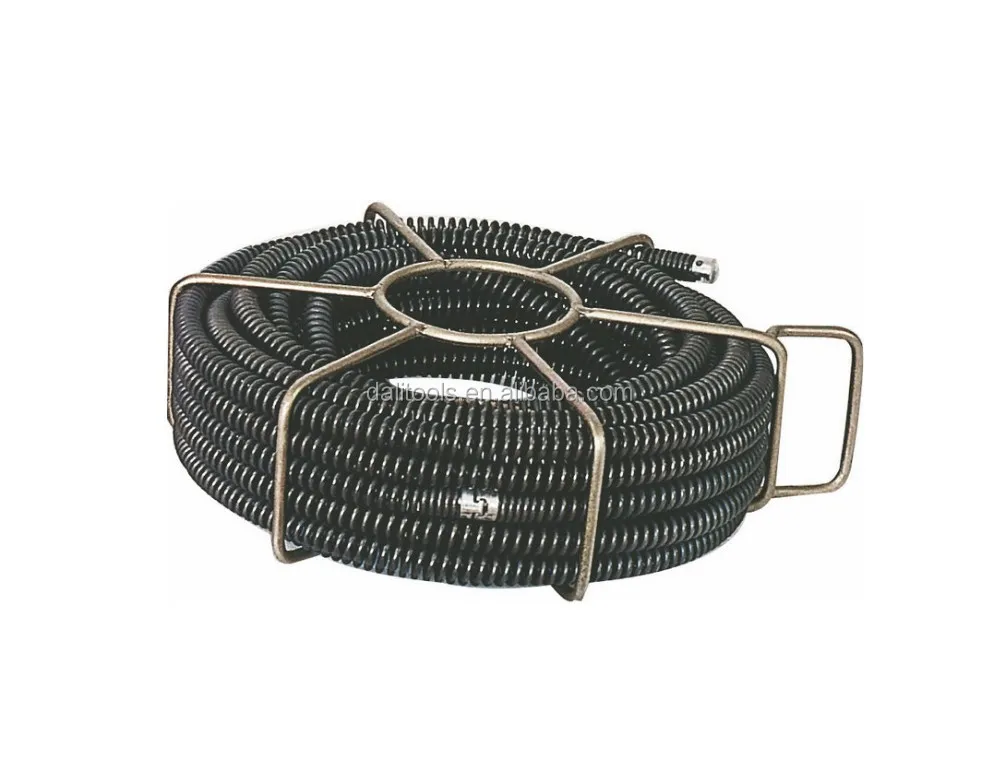

Using Φ16mm Sectional Cables

The GQ-75 is designed to use 5/8″diameter sectional-type cable that has a quick change coupling system for disconnecting tools. The cable is manually fed in and out of the drain and rotates at a speed of 400 RPM. The rotation of the cable is controlled by a clutch handle. The cable stops instantly when the clutch handle is released.

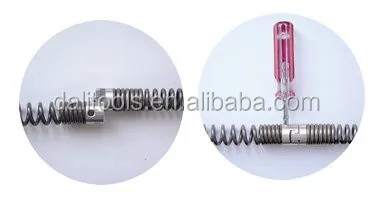

To Couple Cable and Tools

Push the drill along 670 slider slot of the shaft to engage. This makes connection more reliable, easy and fast.

To Uncouple Cable and Tools

Insert the key and push the shaft with both hands in direction opposite to the T slot of the terminal to remove the shaft. It saves time and manpower.

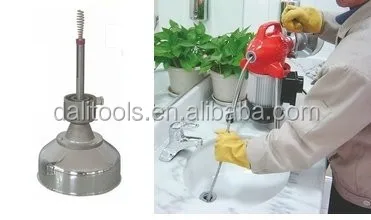

Using Φ8mm soft shaft Combination

The GQ-75 is also designed to use with the Φ8mm soft shaft Combination. Rotation of the adapters is controlled by the clutch handle. the length of the cable 4.6M,It can be use alone in pipes of 20mm-50mm in diameter, especially suitable for small diameter pipes or complex pipes like traps.

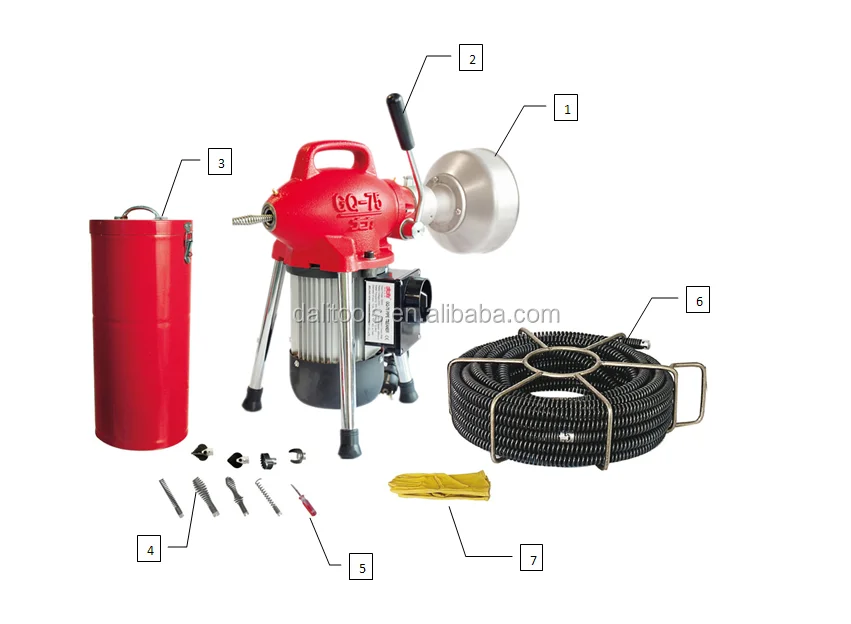

Accessories Features

1. 15Ft Long with 8mm diameter cleaning cable, for 1in-2in pipes.

2. Main Machine with 390w motor.weight 12.3kg.
3. Accessory barrel; container for gimlets, cutters and 15Ft long clearing cable.
4. 8 pieces 16mm diameter drills; cutter, retrieving gimlets and others ( see their uses in next table)
5. Key, use it for changing accessories.
6. 18.4M long with 16mm diameter cleaning cable. for 1-1/2in-4in pipes.
7. Protection gloves

Package Contents

GQ-75	Main machine 1pc
	RH1-1	Including:a Φ15mm2.3M soft shaft, 7 pcs Φ16mm2.3M soft shafts, a Φ430soft shaft holder
	ZHa-1	8 pieces Φ 16 drills and key
	F-2-a	Φ8mm*5M soft shaft combination
	F-5-a	Protection gloves
	F-6-a	Accessory barrel

Our Company

The BEIJING NEW ASIA DALI MACHINERY CO.,LTD is a professional manufacturer of pipe clenaers in China.

The DALI drain cleaner series are applicable to removal of various blockages of pipelines. The series adopt flexible shafts,the combination of high-speed rotating system and manual propelling or automatic feeding system to drive the drill to remove effectively various debris,greases,roots,wastes and chemical deposits etc.stuck on pipeline wlls.

The DALI drain cleaner series including hand ,power type,automatic and pneumatic types,are the choice machines for maitaining and cleaning both indoor and outdoor pipelines.they are selling well both in China and others countries with superb quality and reasonable price
