Used SINOTRUK HOWO 12m3 Concrete Truck for sale

Supplier: Shandong Chengda Auto Sales Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Ji
Price: $4000.00 / 1 - 19 units
$3000.00 / 20 - 49 units
$2000.00 / >=50 units
Min. Order: 1 unit

Click here to contact

Product details

color:	Buyer's Choice	Engine capacity:	9.72L
cabin:	HW76	product name:	Concrete mixer truck
brand:	Sinotruk Howo	place of origin; place of origin:	Shandong China
driving type:	6x4	Dimensions:	856024963800mm
Mixing pump volume:	10 cubic meters	port:	Main ports in China: Qingdao (container, flat rack), Shanghai, Lianyungang, Rizhao, Yantai, Longkou, Tianjin (bulk cargo, roll-on, container, flat rack)
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	500,000 units per year
engine model:	WD615.47	horsepower:	371hp420hp
brand:	HOWO	Package preview:
Packaging Details:	Shipping Trailer - bare, waxed, shipped in bulk carrier or container depending on size.	Gross Vehicle Weight:	13500

truck mixer 10 cubic meters used HOWO truck mixer 10 cubic meters

Product Description

Specification

truck mixer 10 cubic meters used HOWO truck mixer 10 cubic meters

product name	Concrete mixer truck
Chassis model	ZZ1257N3841W
Dimensions	8560x2496x3800mm
volume	10 cubic meters optional
engine	WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, intercooled, The displacement of the rear supercharger is 9.726L. Diesel fuel type, max. The torque is 1350/1300-1600Nm/rpm.
cabin	HW76, one bedroom, two seats, with air conditioning, double lock seat belts, new face, external sun visor, high metal bumper.
clutch	∮430 diaphragm spring clutch, hydraulic control and air assist.
spread	HW19710, 10 F and 2 R, manual type. Maximum torque: 1390N.m
Drive axle	HC16, double reduction (central reduction + hub reduction), speed ratio: standard 5.73, optional 4.8.
front axle	HF9, 9 tons, drum brake
chassis	Frame: U-shaped parallel ladder frame with a cross-section of 300x80x8mm plus reinforced sub-frame, full cold riveted beam, equipped with HW50 power take-off
		Front Suspension: Semi-elliptical leaf springs, hydraulically telescopic double-acting shock absorbers and stabilizers
		Rear Suspension: Semi-elliptical leaf springs and bogie springs, spare wheel
		Fuel tank: 300 L capacity with locking fuel cap
steering	ZF8118, hydraulic steering with power assist, LHD
Brake system	Service brake: double circuit pneumatic brake, parking brake: energy storage spring cut-off brake. Optional ABS and automatic slack adjustment.
fetal	12.00R20 radial plus spare tire 1 (11)
Mixing tank	The effective water tank volume is 10m3, the rotating speed of the mixing barrel is 0-16r/min, the mixing inclination angle is 10°, and the water tank capacity is 400L, max. Hopper size 980mm
other specifications	Adopt Italian brand Bonfiglioli reducer, American brand Eaton oil pump and motor

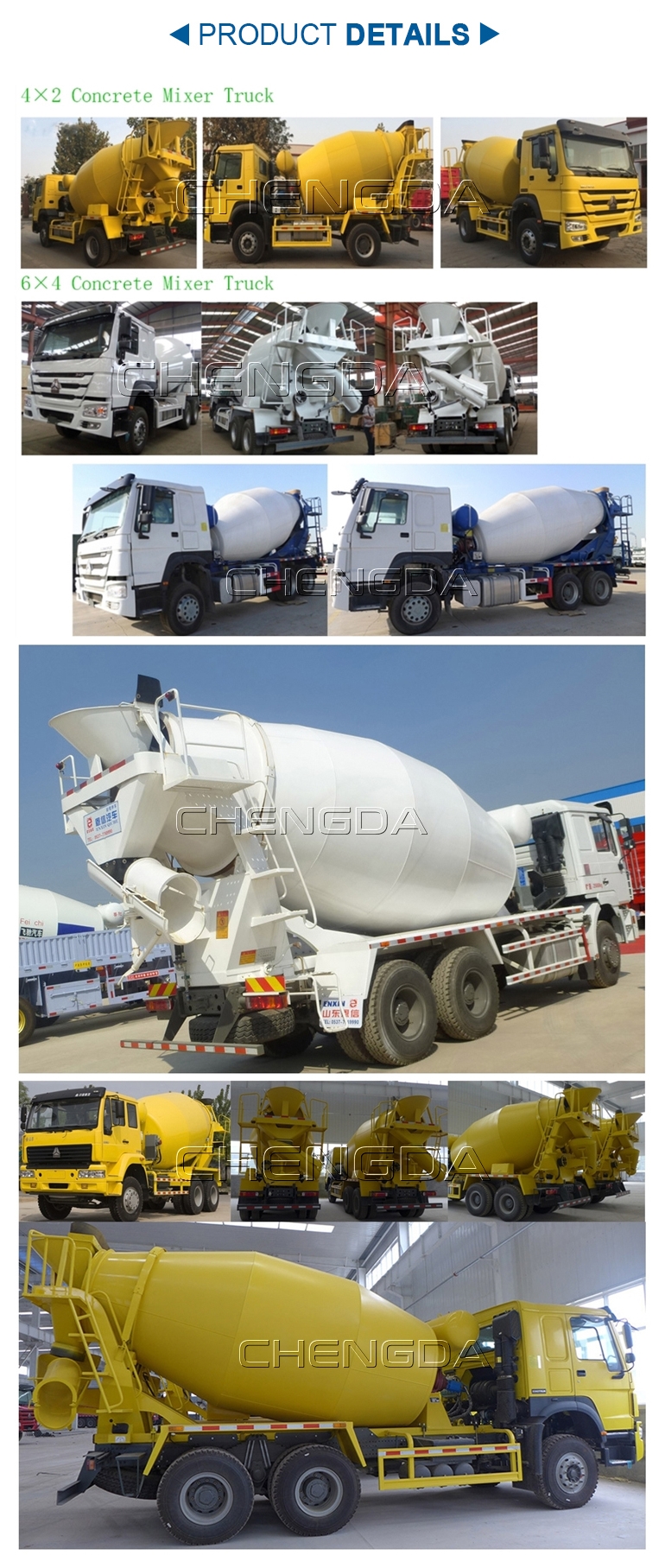

detailed drawing

Our main products

Trailer: bulk cement tanker, low bed trailer, retractable trailer, oil tanker trailer, container semi-trailer, box/cargo/fence Trailer, dump trailer...

Trucks (used and new): dump trucks, tractors, cargo trucks, tank trucks, mixer trucks, truck cranes, sprinklers...
