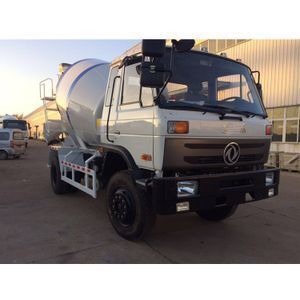

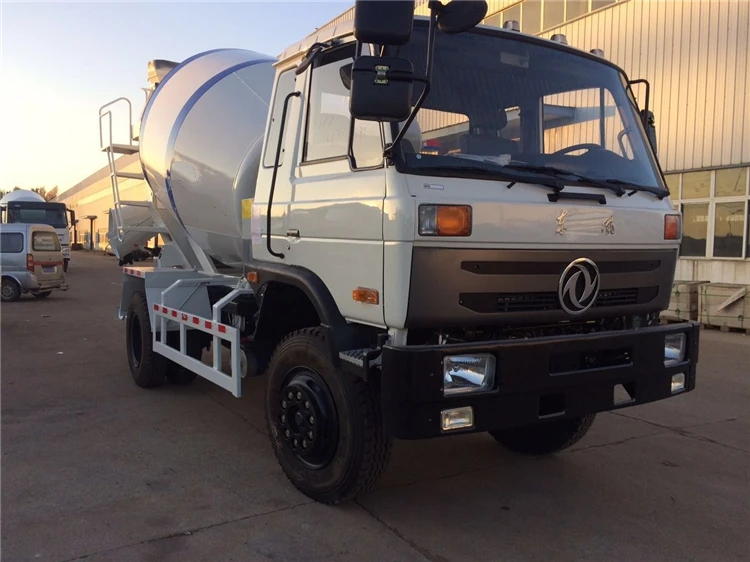

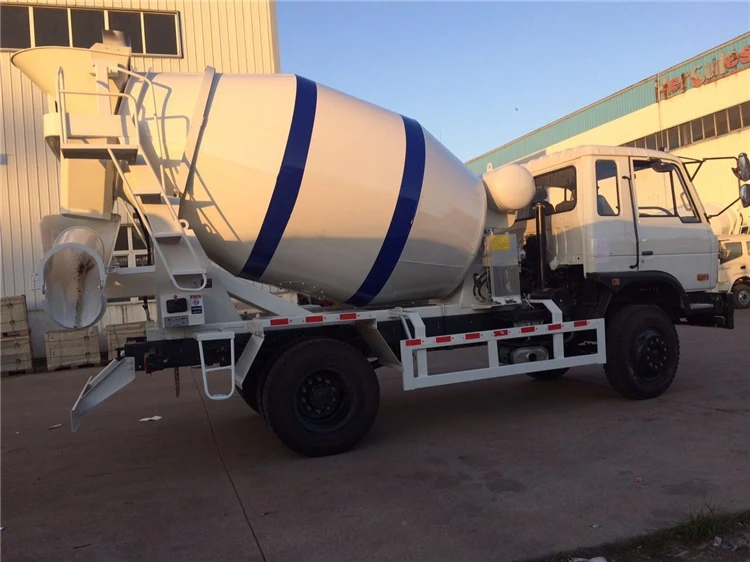

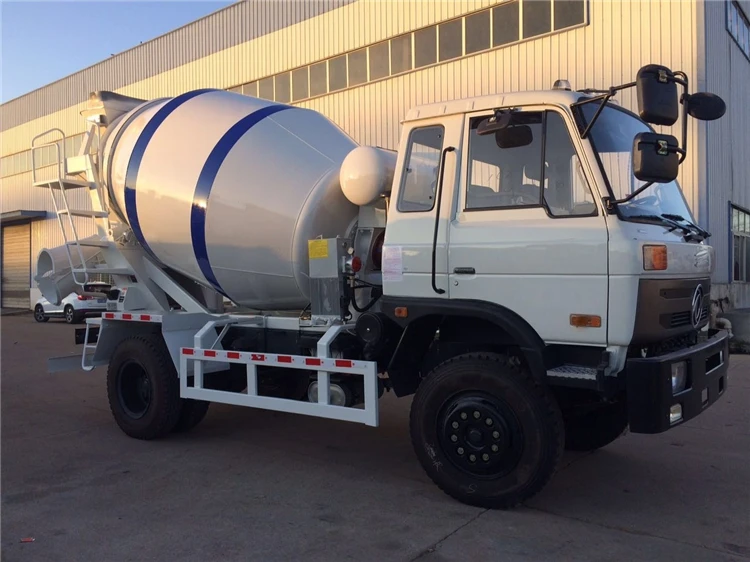

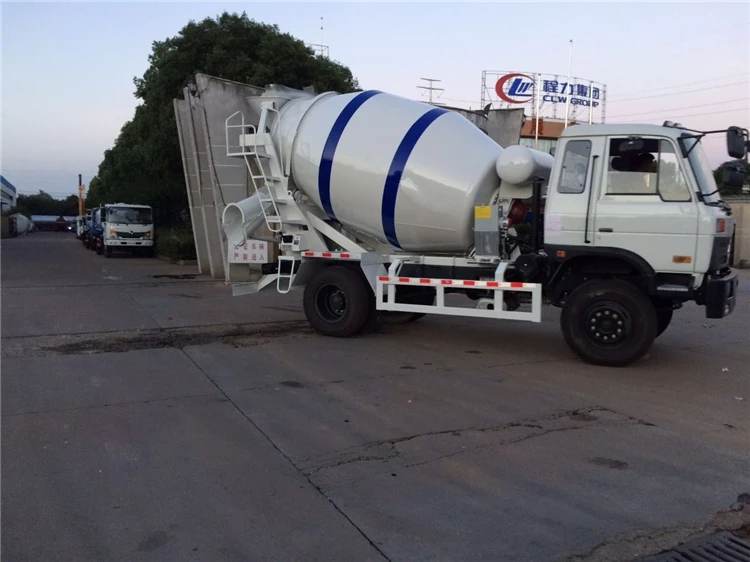

DONGFENG 4*2 CONCRETE TRANSIT MIXER TRUCK

Supplier: Hubei Jiangnan Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms Janet Zhang
Price: $28000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Hubei China;	Color:	chooice;
Supply Ability:	2000 Unit/Units per Year;	Certificate:	CCC IOS;
Packaging Detail:	nude, waxed, etc;	Payment Terms:	L/C,T/T,Bank transfer;
Brand Name:	Dongfeng;	Port:	Any port in China;
Gross Vehicle Weight:	16000;

Product Description

DONGFENG 4*2 CONCRETE TRANSIT MIXER TRUCK

There are 2 cubic mixer truck, 3 cubic mixer truck, 3.5 cubic mixer truck , 4 cubic mixer truck, 5 cubic mixer truck , 6 cubic mixer truck, 8 cubic mixer truck, 9 cubic mixing truck, 10 cubic mixer truck, 12 cubic mixer truck, 14 cubic mixer truck, 16 cubic mixer truck .specifications to meet different customer needs, chassis selection of well-known brands, pumps, hydraulic motors, reducer selection of the United States Eaton, Italy Philips, Italy ARK, Germany ZF Mining and other well-known brands at home and abroad to ensure that the vehicle's performance is stable, safe and reliable, price concessions.

Vehicle technical parameters:
Product Name (Bulletin Batch)		CONCRETE TRANSIT MIXER TRUCK
Stir the tank volume	m3	7
Total mass	Kg	16000
Rated contained mass	Kg	8900
Curb quality	Kg	6906
Overall dimensions (L × W × H)	mm	8300,8500,8900,7250,9000×2462×2740,2850,2950
Approach / departure angle	o	25/22,25/22
Front suspension / rear suspension	mm	1460/2190,1460/2140
The maximum speed	Km/h	80
Chassis technical parameters:
Chassis name (category)		Truck chassis
Chassis model		EQ1168GLJ3
Chassis manufacturer		Dongfeng Motor Co., Ltd.
Chassis dimensions (L × W × H)	mm	7760 × 2500 × 3680
Number of axes		1
Wheelbase	mm	4100
Number of tires		10
Tire specifications		9.00-20,10.00R20
Engine model		Guangxi Yuchai Machinery Co., Ltd. YC6A180-33 / 180 horsepower
Transmission		Shaanxi gear 8 gearbox
Displacement (ml)	mL	7255
Fuel type		Diesel
Emission standards		GB17691-2005 GB3847-2005
Steering Type		steering wheel

Certifications

JDF Company

Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship

Advantages

Product advantage:

1.Factory export department directly sale
2, Export experience more than 12 years
3.Cheap / competitive price. good price high quanlity ,you get more than your paid
4.With CCC,ISO9001
5. The heart of the service, rational design and simple to handle
