Stainless Steel Wheat Mill/Corn Mill/Grain Mill

introduce

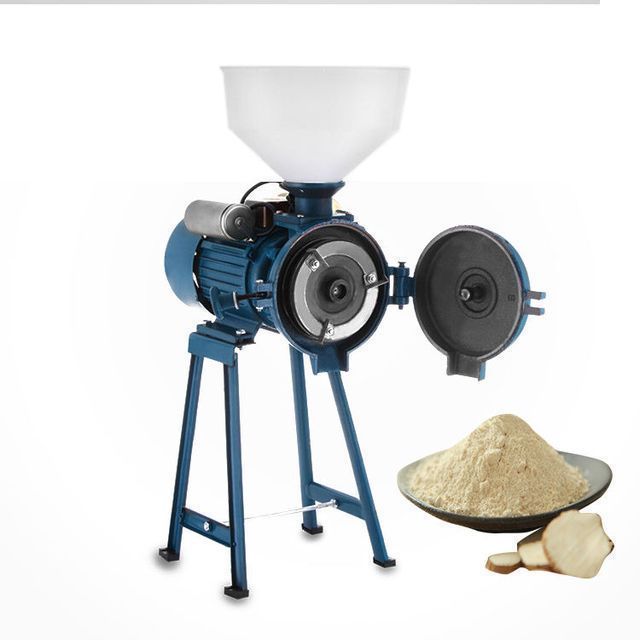

This machine is driven by a single-phase high-speed motor. It can grind various grains, Chinese herbal medicines and other materials into 50-180 mesh uniform powder. When the machine is working, various materials can be crushed evenly through the grinding operation of two all-steel grinding teeth. It has the advantages of compact structure, small size, light weight, high efficiency, convenient operation, power saving and low noise. Especially suitable for supermarket counters, wholemeal shops, clinics and home pharmacies.

application

This machine is suitable for crushing tofu, starch, rice flour, corn and other food industries. It can grind wheat, rice, corn, sorghum, soybean and other crops into dry powder. It is especially suitable for grinding soaked soybeans and rice into pulp, which can be made into soy milk, rice cakes and other foods. It can also be used to crush feed.

Install

The machine should be placed stably, and the tightness and coaxiality of the V-belt should be properly adjusted. The machine combination should work separately.

Check the wires and power switch to ensure the safety of the machine when it is working.

The main shaft of the machine should face in the direction indicated by the arrow.

Please check whether the bolts of each part are tightened before starting the machine. If there is an abnormal sound after starting. You should stop the machine and troubleshoot before restarting.

When the machine is working, it is strictly forbidden to open the machine cover and put your hand into the feed port.

Slowly open the feeding blade, adjust the handle according to the required thickness to grind the material, and tighten the handwheel lock.

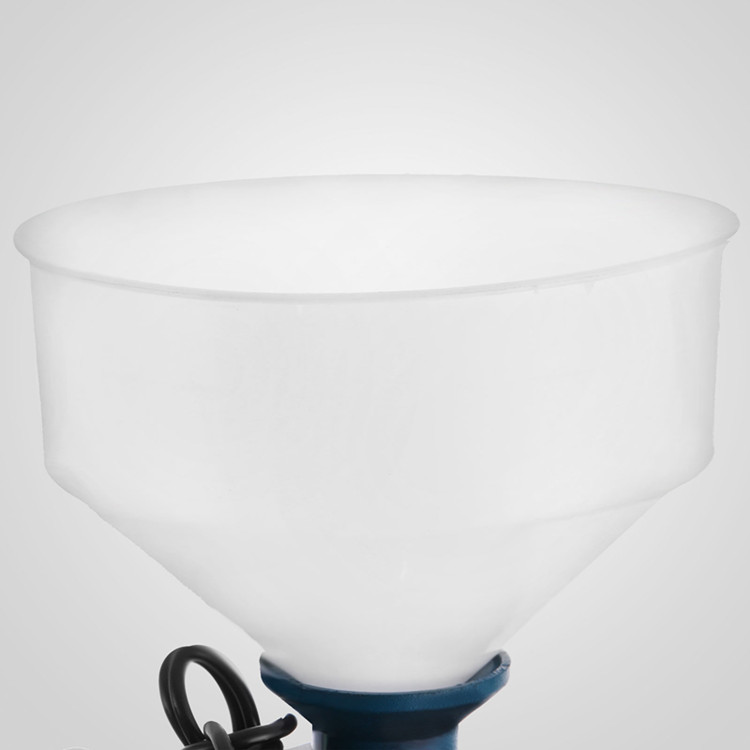

When grinding into a thick liquid, please inject an appropriate amount of water into the hopper.

If the thickness of the material processed at one time does not meet the requirements, please re-grind.

When replacing the grinding disc, align the grinding disc, roller (or grinding block), and the holes of the body, and tighten the bolts to avoid concentricity greater than 0.5mm.

feature

Easy to use and carry

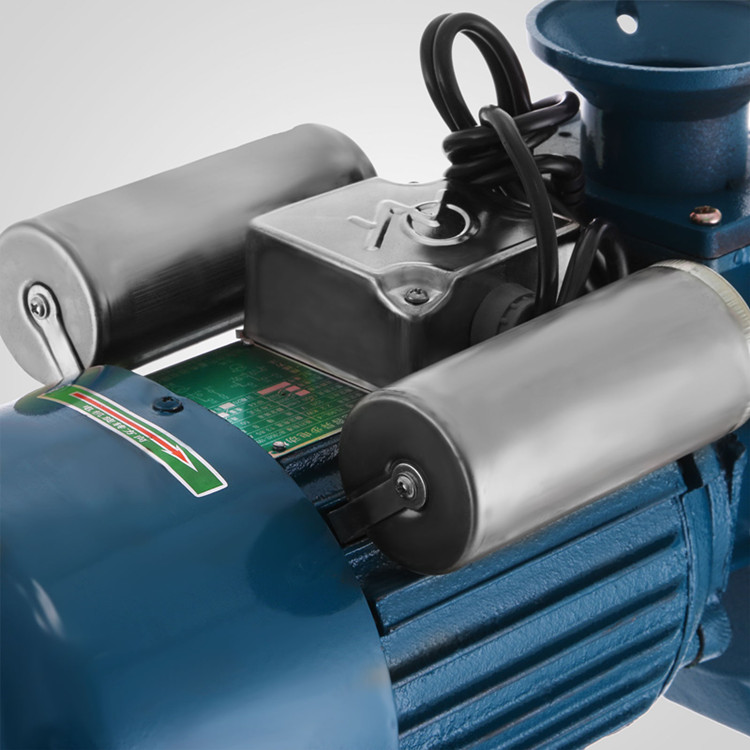

Galvanized capacitor case

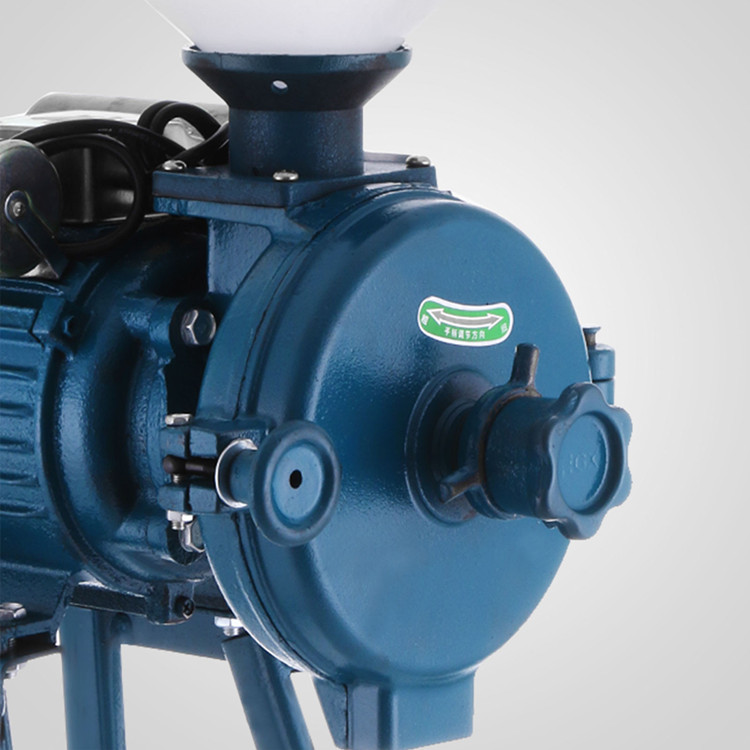

Grinding power and thickness adjustment knobs for grinding into a thick liquid

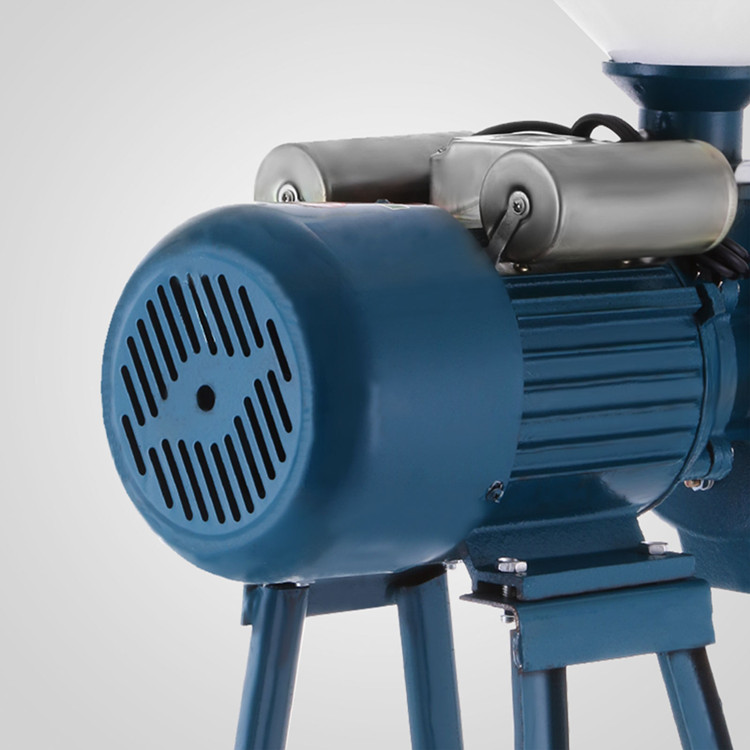

Strengthen the motor fan cover for better heat dissipation

Durable steel discs for fine grinding

Suitable for grinding tofu, starch, rice flour, corn and other food industries

2 years guarantee

technical

color: blue

Voltage: 220V

Power: 2200W

Grinding soybean milk: 45--55kg/h

Grinding powder: 68--75kg/h (fineness: <=0.05mm)

Rice output: 55kg/h

Bean output: 50kg/h

Blade diameter: 150mm

Speed: 1400r/min

Net weight: 25kg
