PVC door and window machinery four-point welding PVC door and window welding machine

Click here to contact

Product details

Main selling points:	high productivity	Welding height:	20~120mm
Input voltage:	380V 50Hz	Applicable industries:	PVC door and window manufacturing industry
Dimensions (LWH):	510035001800mm	Warranty:	2 years
input power:	4.5Kw	Production capacity:	100%
Model:	SHP4-4300B	Dimensions:	510035001800mm
Gas consumption:	280 l/min	weight:	2200KG
brand:	Yue Feng	Packaging Details:	Wooden base or wooden box; can be packed according to your requirements
Welding range:	4001000~25504300mm	After-sales service provided:	Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
payment terms:	L/C, T/T	Applicable materials:	polyvinyl chloride, polyvinyl chloride
Certification:	International Organization for Standardization	port:	Qingdao
Supply capacity:	10 sets per month	Welding width:	≤120mm
strength:	4.5KW	air pressure:	0.5~0.8MPa
Voltage:	380V

Product Description

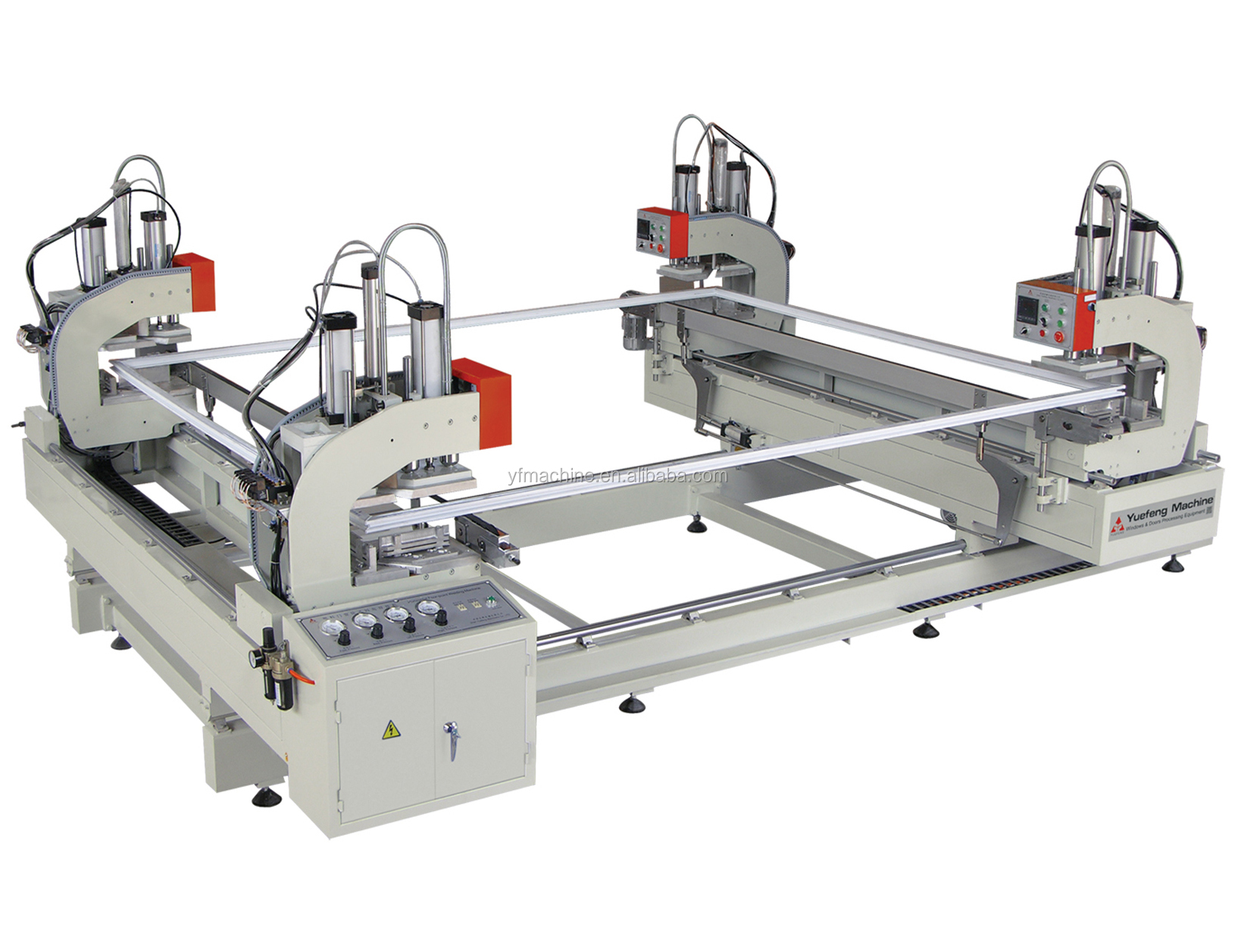

SHP4-4300B horizontal four-point welding machine

feature

1. This machine is suitable for processing PVC doors and windows, and can weld rectangular frames and

Sash completely once.

2. The damper mullion can be welded, which has the characteristics of high reliability, wide working range and convenient operation.

3. The machine adopts PLC control, adopts linear guide rail motion pair, and has high working efficiency. Suitable for mass production.

technical parameter:
