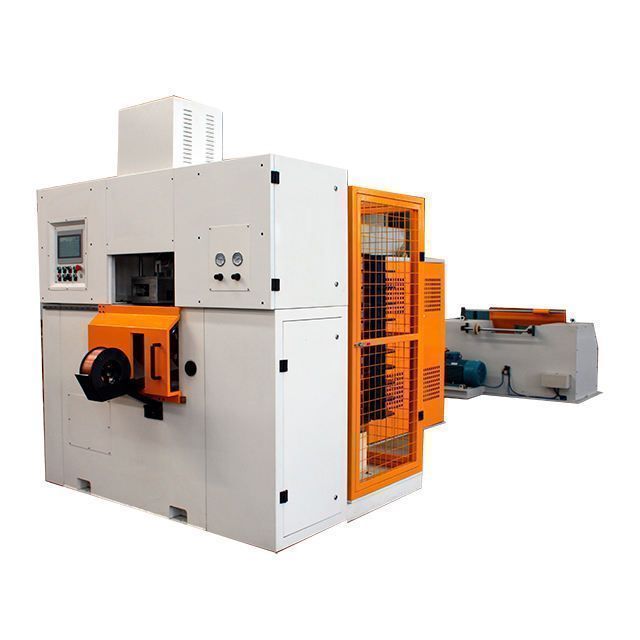

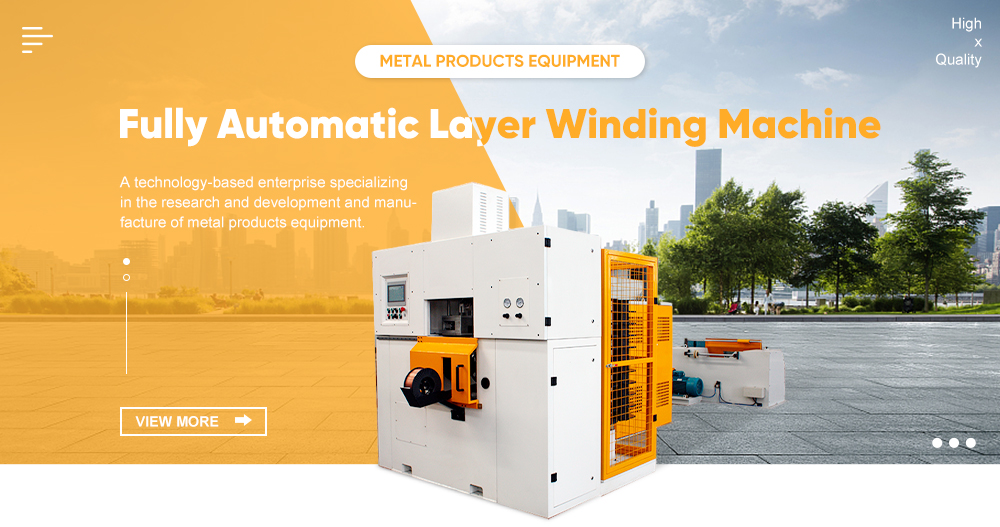

Automatic layer winding machine for automatic quality assurance line change

Product details
Mechanical test report:ifShowroom location:not any
State of health:newplace of origin; place of origin:Henan, China
product name:Automatic winding machineCore components:Pay-off machine, center line machine, host machine
System control mode:PLC program controlCore component warranty:1 year
Wire weight specification:20 kgVideo shipment inspection:if
Main selling points:automaticPlate storage capacity:50
Applicable industries:Mechanical repair shop, manufacturing plantweight:6000
strength:40kwMarketing Type:New Products 2022
application:Gas shielded/stainless steel welding wire packagingWarranty:1 year
payment terms:Western Union, T/T, MoneyGramProduction capacity:30 m/s
Wire specifications:0.80-1.6
Automatic pay-off machine

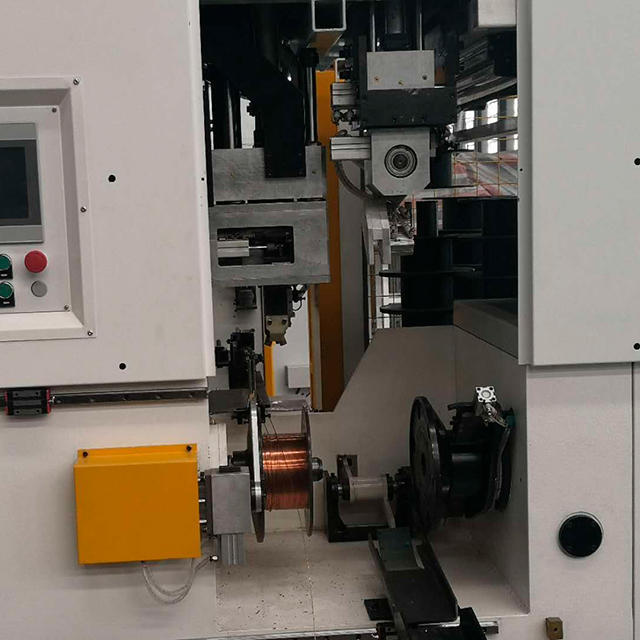

brief introductionThe automatic wire take-up machine is mainly suitable for the take-up and packaging of metal wire products such as gas shielded welding wire and stainless steel welding wire. This machine completes the whole process of wire winding (lower plate) through mechanical (main shaft system, cable arrangement, top row plate mechanism, conveying plate, storage plate shearing and bending mechanism, system, grating mechanism) and electrical automation, reducing Auxiliary time for layer winding can reduce human intervention in the layer winding process, improve coiling efficiency, and reduce labor intensity of workers.
Model
AR-3000
equipment composition
Pay-off machine, center line machine, host machine
System control method
PLC program control
the host
Servo motor drive of the main reel, automatic take-up
Automatic loading and unloading of plastic reels without manual intervention
pay-off machine
Frequency conversion motor active centering, can match Φ630 or Φ800 bobbins
traversal type
The main spool is moved by servo motor movement
Plate storage capacity
50
winding speed
30 m/s
Wire Specifications
Φ0.80-Φ1.6
Reel type
Plastic reel, inner hole Φ52, outer diameter Φ270, 102 wide (slot)
Wire Weight Specifications
20 kg
unit power
40kw
1. How about our quality?We continuously develop and improve our products, which are widely used in many fields such as industry and science and technology, and the quality is at the leading level in the world.2. How about the price?Very low price, don't worry, everything you pay will be used on your machine. The price depends on what you expect from the machine.3. How about our service?Once we receive your inquiry about our products, we will quote within one hour and reply any questions you may have at any time.

4. How about the delivery?
We promise to provide line machine, mold, powder brushing machine trial operation service in the workshop, and then free shipping, you will check carefully before delivery5. How about the delivery time?This is 30 days. According to your specific requirements for the machine.6. How about the after-sales service?When there is a problem with the machine, engineers can repair the machine overseas7. Where is our factory?We can provide pick-up service at the southeast corner of the intersection of Feilong Road and Yuxi Road, Yulong Town, Xingyang City, Zhengzhou City.8. Please provide the following information for direct quotation:1. Wire material: 2. Inlet wire diameter range: 3. Outlet wire diameter range: 4. Use and application of wire rod:
