Wood Debarking Machine for big logs

Supplier: Shandong Zouping Shuanghuan Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Timber Length Range:	4m or 6m	Weight (kg):	5000
Main selling points:	competitive price	Wood Loss Rate:	2% Log debarker
Applicable industries:	Manufacturing plants, energy and mining	payment terms:	wire transfer
Core component warranty:	1 year	Loading rack width:	2500mm
Bark conveyor belt length:	5000MM+3500MM	application:	log peeling
Key words:	Log tree peeling machine	port:	Qingdao
Showroom location:	not any	Package preview:
Video shipment inspection:	if	Mechanical test report:	if
State of health:	new	Dimensions (LWH):	1100016002000mm
Supply capacity:	1000 sets per year	Core components:	engine, bearing
motor:	15KW	strength:	subject to the machine
place of origin; place of origin:	Shandong China	Marketing Type:	normal product
brand:	sawmill world	name:	Log peeling machine
Voltage:	380v, 50HZ, 3 phase or according to customer requirements	feature:	High peeling efficiency
Stripping rate:	98%	maximum. Log length:	6 meters
Loading frame length:	5 meters	Packaging Details:	container loading
Warranty:	1 year	Log diameter:	250-800mm

Product Description

wood debarker for large logs
Model	SHB4000	SHB6000
Loading rack width	2500mm	4500mm
Loading frame length	5000mm	5000mm
Processing log diameter	250-800mm	250-800mm
Handle log length	4 meters	6 meters
Peeling head motor	15 kW	15 kW
Feeding motor	4 kW	4 kW
bark conveyor belt length	5000mm+3500mm	6000mm+3500mm
Exit width	2500mm	4500mm
Exit length	5000mm	5000mm

Log peeling machineUsed for barking logs. Simple operation and high work efficiency. Its peeling rate is as high as 98%.

Single shaft log debarker

Specification

Model	SHBP6000	SHBP9000
Capacity tons/hour	5-10	10-15
main motor power	37 kW	45kw
Log diameter	15-320mm	15-320mm
Peeling rate	98%	98%
maximum. Handle log length	6000mm	9000mm
weight	4000 kg	5000 kg

Double shaft log peeler

Model	SHBP4500	SHBP6000	SHBP9000
Capacity tons/hour	3-6	5-10	10-15
main motor power	7.5KW×2	11KW×2	15KW×2
Stripped log diameter	5-250mm	5-250mm	5-250mm
Peeling rate	98%	98%	98%
Maximum processing log length	4500mm	6000mm	9000mm
Overall size (m)	5.8x1.6x2	7.5x1.6x2	11x1.6x2
Weight (tons)	4	4500	5

Description of application effect
Use effect description

The wood debarker is used to debark the logs while the internal rotation of the rollers is extremely fast. With dual rollers, running efficiency and speed go hand in hand.

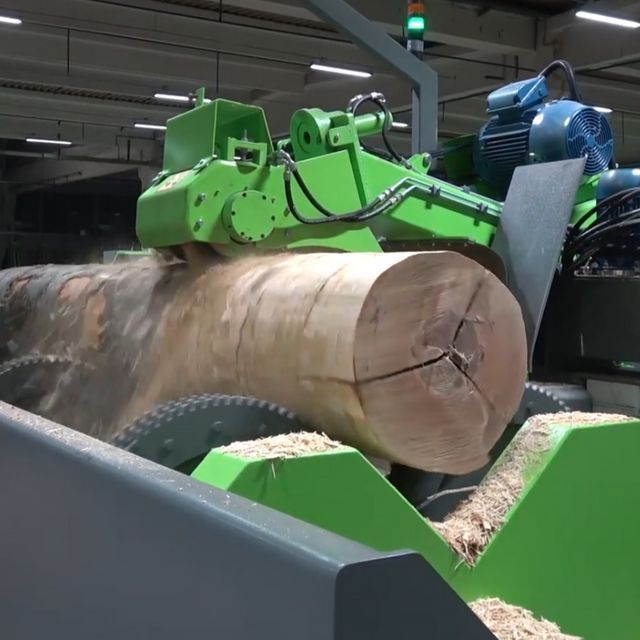

detailed image
