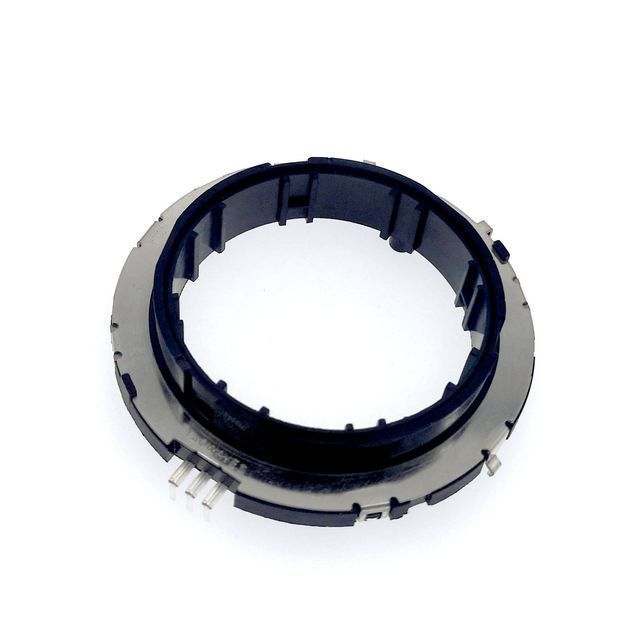

YJ EC56 hollow shaft encoder 56mm 360-degree pulse thin incremental micro-current circuit encoder
- 2.00 3000 - 17999 pieces
- 1.80 18000 - 49999 pieces
- 1.60 >=50000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Ocean Street | theory: | / |
| describe: | YJ EC56 hollow shaft encoder | port: | Shenzhen |
| payment terms: | L/C, D/P, D/P, T/T | place of origin; place of origin: | Guangdong, China |
| output: | / | usage: | car |
| model: | YJ-EC56A00V01-0005-XA115P2H108 | Types of: | Rotary encoder |
| Supply capacity: | 100000 pieces per day |
product specification
the general | ||||||||
Operating temperature | -30℃~+80℃ | |||||||
Storage temperature | -40℃~+85℃ | |||||||
Ratings | ||||||||
related voltage | DC 5V | |||||||
Maximum working current (resistive load) | each lead | 0.5mA (5mA max; 0.5mA min) | ||||||
common lead | 1mA (10mA max; 0.5mA min) | |||||||
electrical characteristics | ||||||||
Insulation resistance | Greater than 100MΩ at 250V DC | |||||||
Dielectric strength (withstanding pressure) | AC 300V for one minute | |||||||
resolution | 15 pulses/360° | |||||||
mechanical properties | ||||||||
completely rational | 360° (endless) | |||||||
Positioning torque (click moment) | Only suitable for CC, equip | 10~40mN.m. (100~400gf.cm) | ||||||
Number and location of brakes (click location) | Only suitable for CC, equip | 30 positioning step angles: 12°±3° | ||||||
Shaft play in rotary oscillation | Corner test | max 5° | ||||||

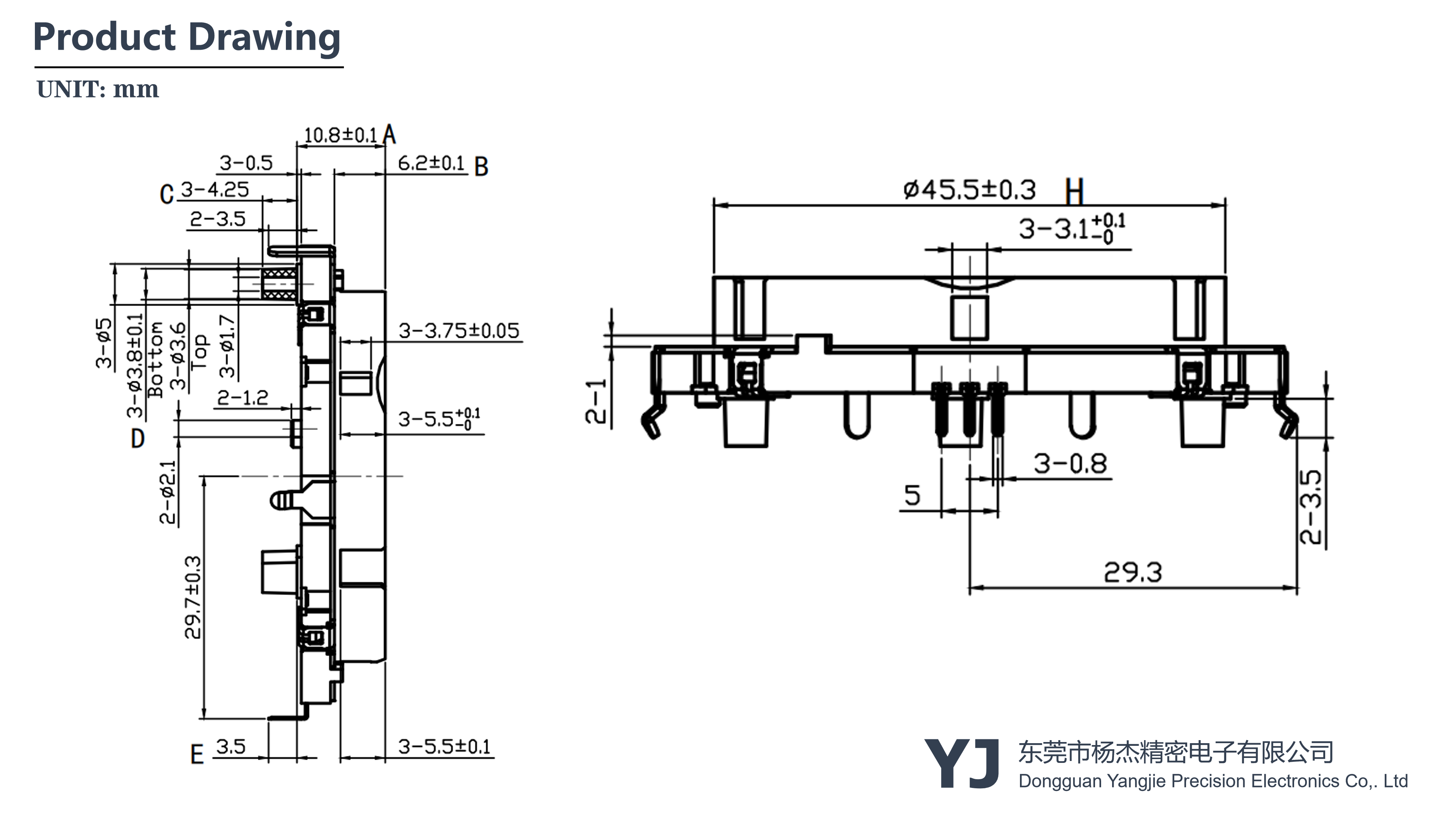

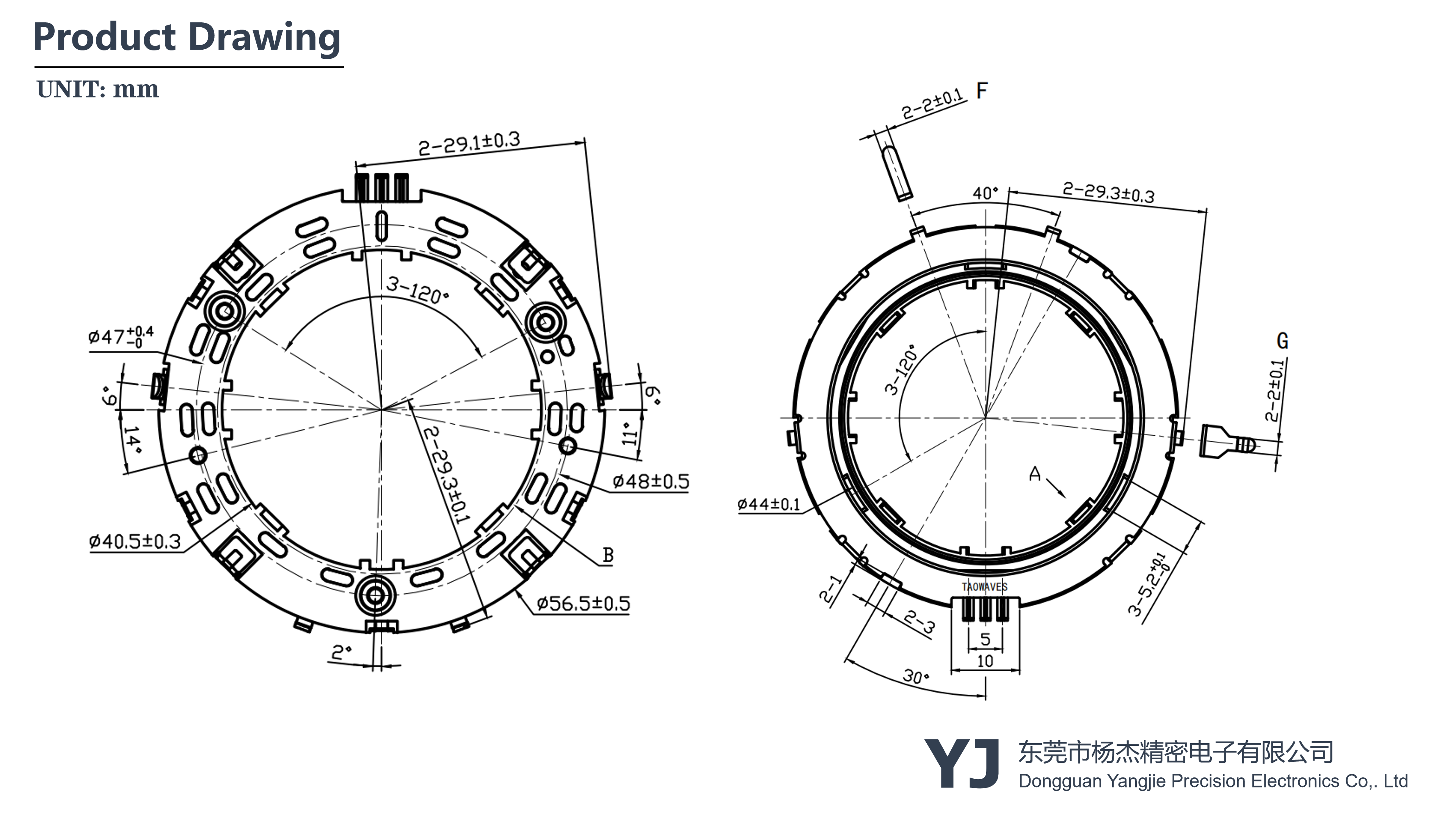

drawing
*[AI] is the focus control size.

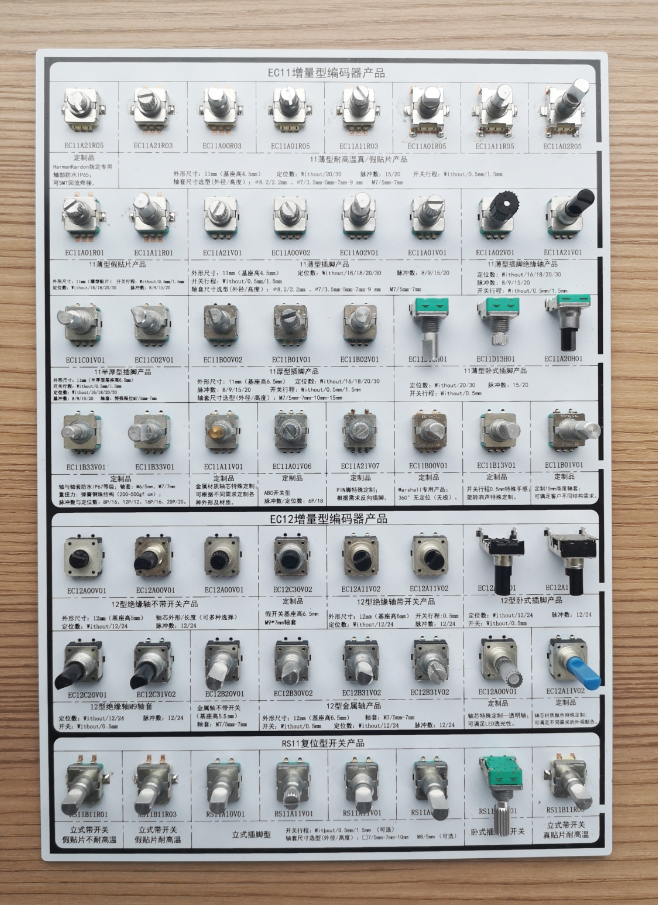

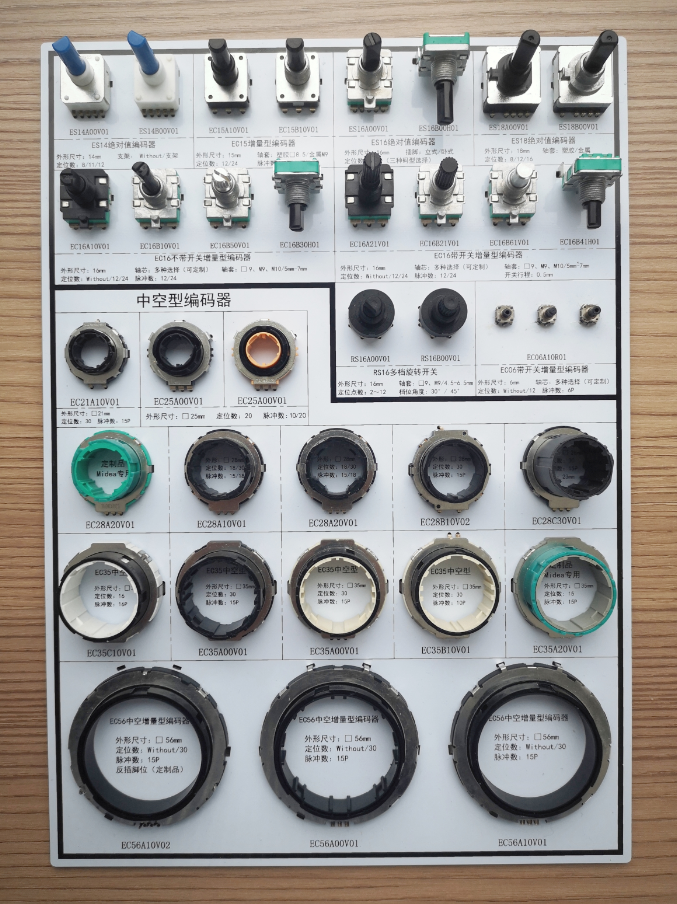

more products
*If you do not find a suitable product, please contact us.>>>> https://yj04121.en.alibaba.com/contactinfo.html?spm=a2700.shop_cp.88.49
