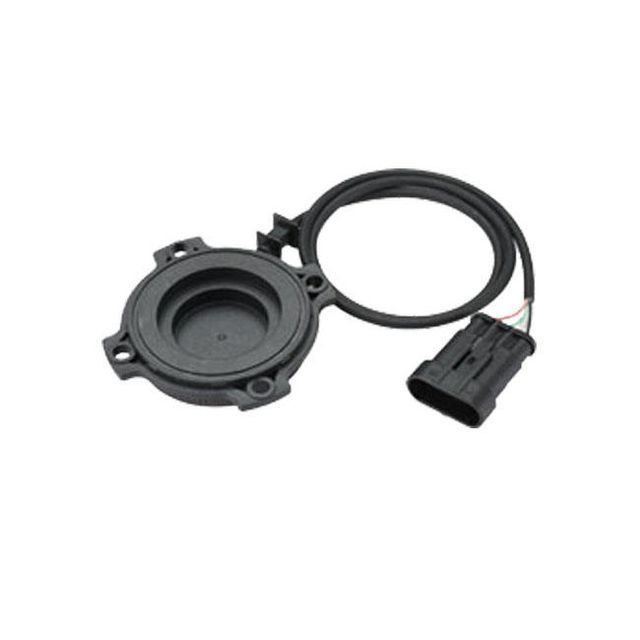

4-Pin AC Motor Hall Effect Sensor, E68EC050A01, 64 Gear Encoder, Forklift Accessories

Supplier: Shenzhen Xinyak Sensor Technology Co., Ltd.
Region: Guangdong, China
Price: $15.00 / 10 - 499 pieces
$13.00 / 500 - 999 pieces
$10.00 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

temperature:	-25~125	usage:	motor parts
Building materials:	plastic	output:	90±20°pulse signal
brand:	new drug	port:	Fuyong Port
Response frequency:	0~15Khz	Warranty:	12 months
Supply capacity:	5000 pieces per day	model:	XYK-Q01-T67-4NF-64P
Package preview:		Distance between sensor heads:	0~2mm
payment terms:	Western Union, T/T	Certificate:	CE/ISO9001/RoHS
metallic line:	4 Nuclear	place of origin; place of origin:	Guangdong, China
Types of:	Hall effect sensor	product name:	AC motor encoder
describe:	speed sensor	Features:	vehicle detection
theory:	Hall Effect	voltage:	5 ~ 24V DC

Product Description

Specification

Fixed gap: 0~2mm, typical fixed gap 1mm	Signal output form: square wave, collector, open collector
Working voltage: DC4.5~24V/DC10~30V	Maximum reverse voltage: 24VDC

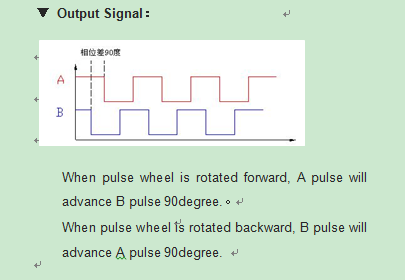

AB phase difference: 90±20 degrees	Working temperature: -40~140℃
Protection class: IP67	Attachment: 1 gear tooth

Company Profile

Shenzhen Xinyake Sensor Technology Co., Ltd. is an independent high-tech enterprise integrating development, production, sales and service. Since its formal establishment in 2011, the company has taken the localization of sensing technology as its own responsibility, and has been committed to magnetic proximity switches, speed sensors, new energy vehicle sensors, special vehicle sensors, angle sensors, encoders, pressure sensors, and air sensors. , Internet of things sensor technology and other product research and development.

With its advanced technical strength and years of experience in speed, positioning, angle control and communication, the company has demonstrated strong competitive strength in the international arena. Our high-quality products such as magnetic sensors and speed sensors are far superior to well-known foreign brands in terms of "appearance". They have been sold well all over the country and are favored by many well-known enterprises, research institutes, universities and other units!

The company attaches great importance to the construction of corporate culture, and advocates the business philosophy of "integrity, focus, service, and win-win"; we will make unremitting efforts to improve the management mechanism, wholeheartedly, and satisfying the needs of customers is our highest pursuit! We sincerely welcome you to establish a long-term partnership with us and ultimately achieve mutual benefits.

application

Products are widely used in vehicles, automatic control, equipment manufacturing, coal mining, Internet of Things, smart home, industrial air conditioning, security and other industries. After years of accumulation and development, the company has a group of professional technical, engineering and management personnel, and has established a senior technical team to design the best solutions and OEM services according to customer needs, and has established a strong reputation in the market. High business reputation.
