Embedded NO/NC reed switch magnetic contact sensor
-
Supplier: Shenzhen Mingqian Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Tony Cen -
Price: $0.73 / 10 - 999 pairs
$0.63 / 1000 - 2999 pairs
$0.59 / >=3000 pairs -
Min. Order: 10 pairs
Product details
| Installation type: | magnetic contact | Function: | Intrusion alarm |
| Packaging details: | Plastic bags, 10 pairs per box, cartons | brand: | SMQT |
| Package preview: | Material: | ABS plastic | |
| Place of origin: | Guangdong, China | feature: | magnetic contact |
| Warranty: | 2 years | model: | NC/NO (optional, NO mode requires OEM) |

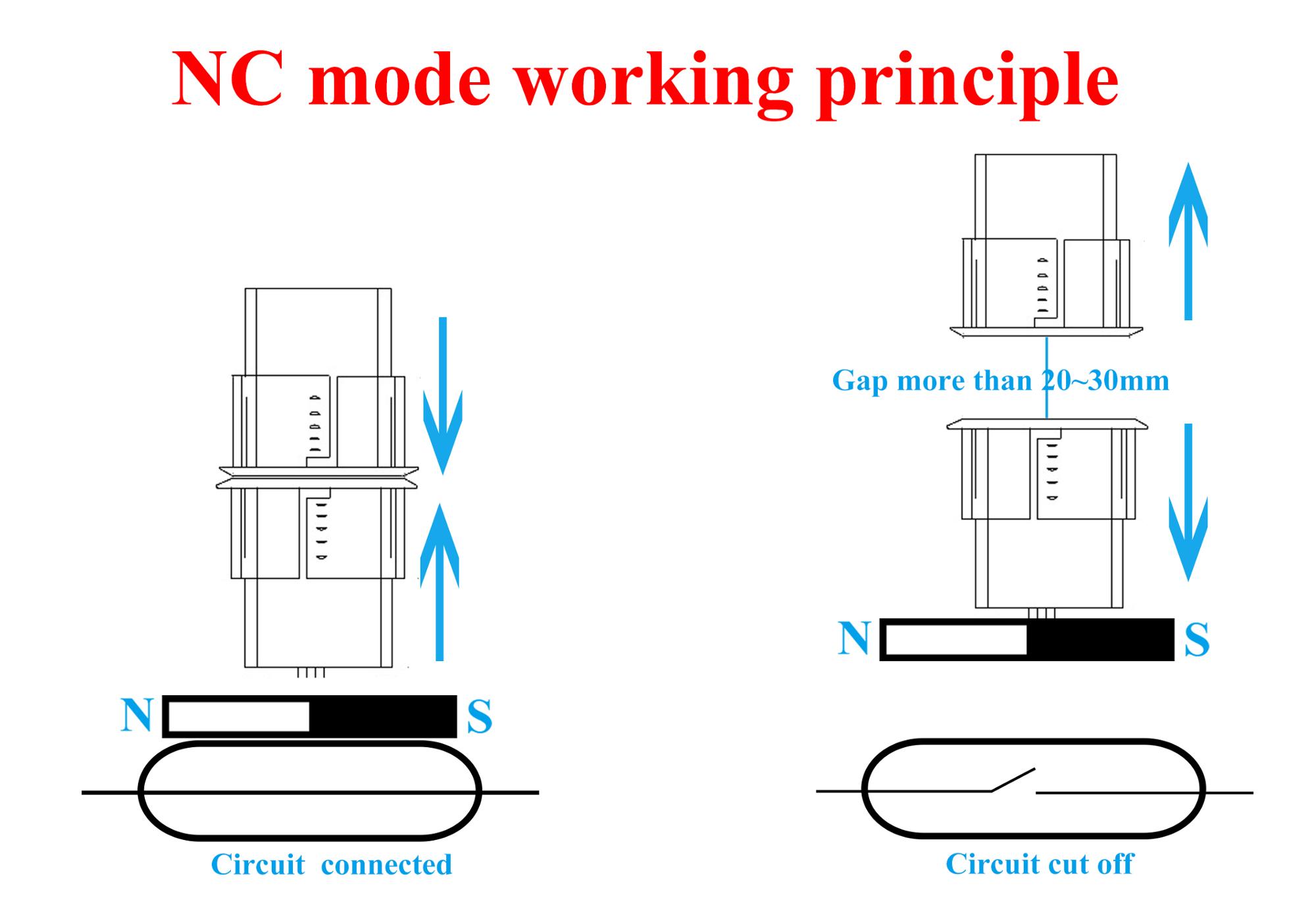

| usage: | security system | theory: | reed pipe |
| product name: | Embedded Reed Magnetic Contact Sensor | feature: | durable |
| gap: | 20±5(mm) | Output: | Normally open/normally closed optional |
| payment terms: | wire transfer | size: | 19(diameter)*25(mm) |
| Supply capacity: | 5000 pairs per month | describe: | magnetic contact |
| model: | EB-136 | series: | magnetic contact |
| port: | Shenzhen | Manufacturing date code: | magnetic contact |
| type: | Alarm system accessories, reed switches | color: | white/brown (optional) |
Embedded magnetic contact sensor EB-136
EB-136 main parameters
| product name: | Hidden normally closed door magnetic sensor |
| model: | EB-136 |
| Operating Voltage: | Maximum DC 100 |
| Working current: | Maximum 0.5A |
| energy consumption: | 10W |
| Interface port: | CNC/communication |
| Sensing gap: | 20~30mm |

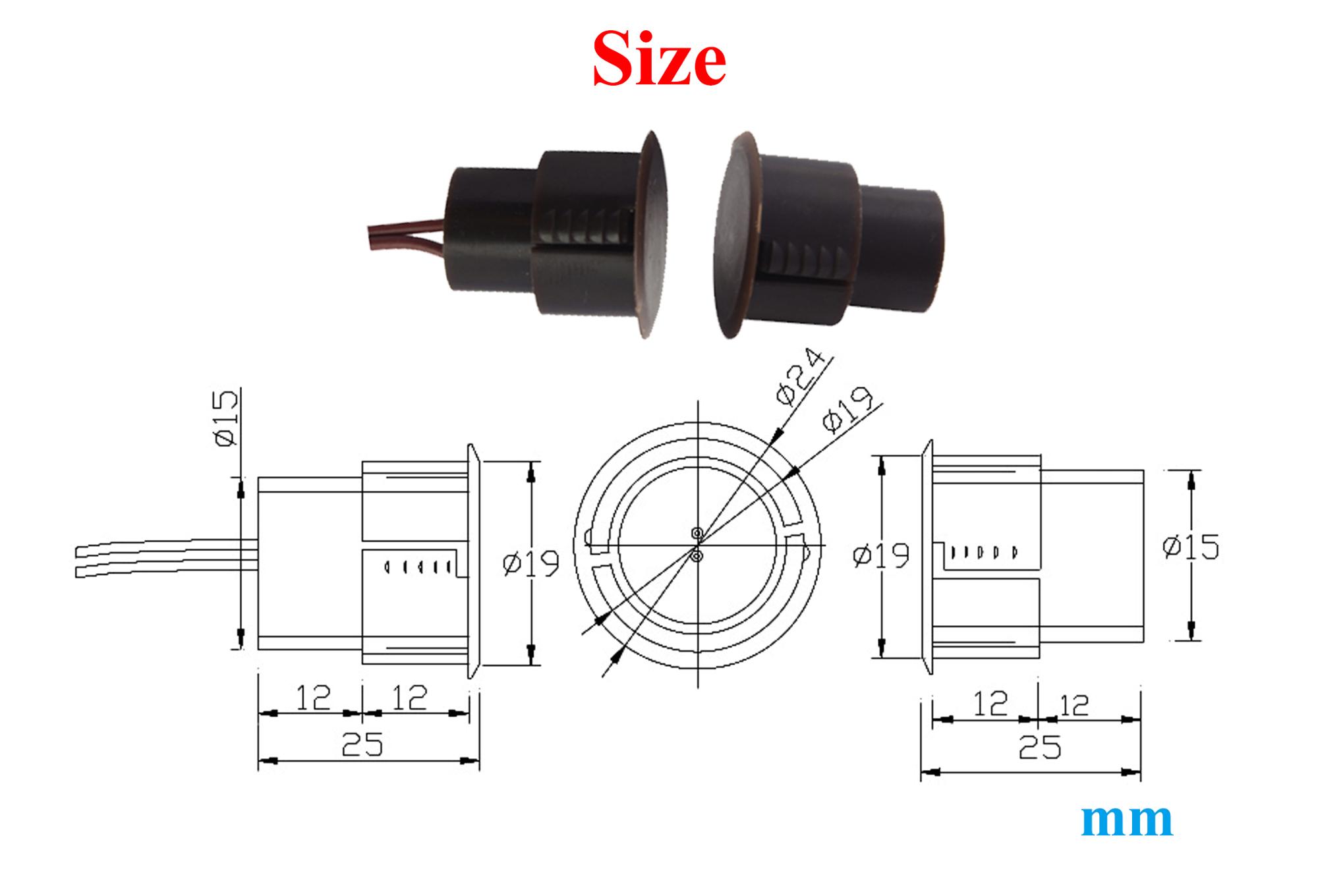

| size: |
Reed part: 19(diameter)*25(height)(mm) Magnet parts: 19(diameter)*25(height)(mm) |

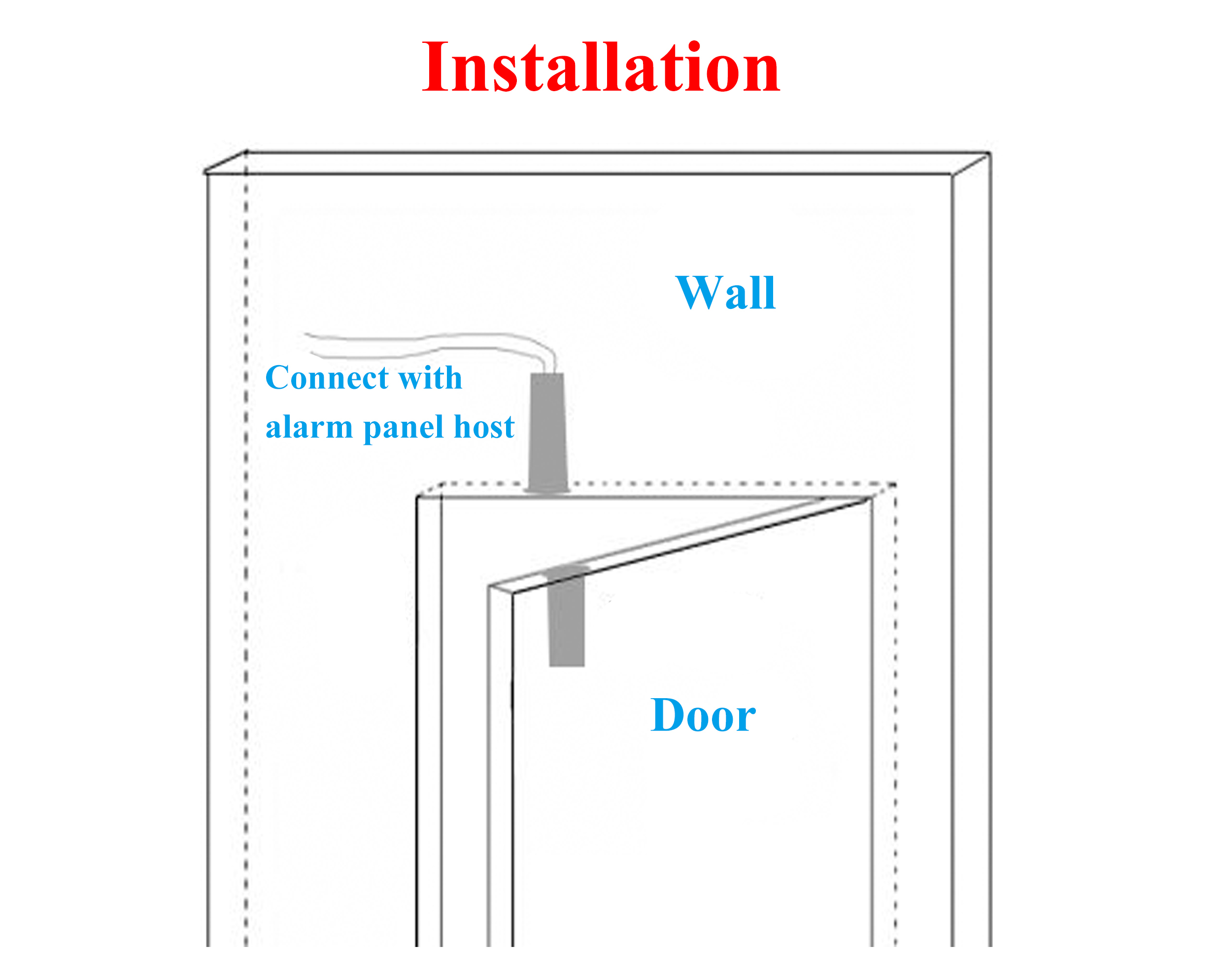

| Installation method: | Embedded installation |
| Suitable: | Various access control systems and anti-theft alarm systems |
| Material: | ABS shell + PCB board + reed switch |

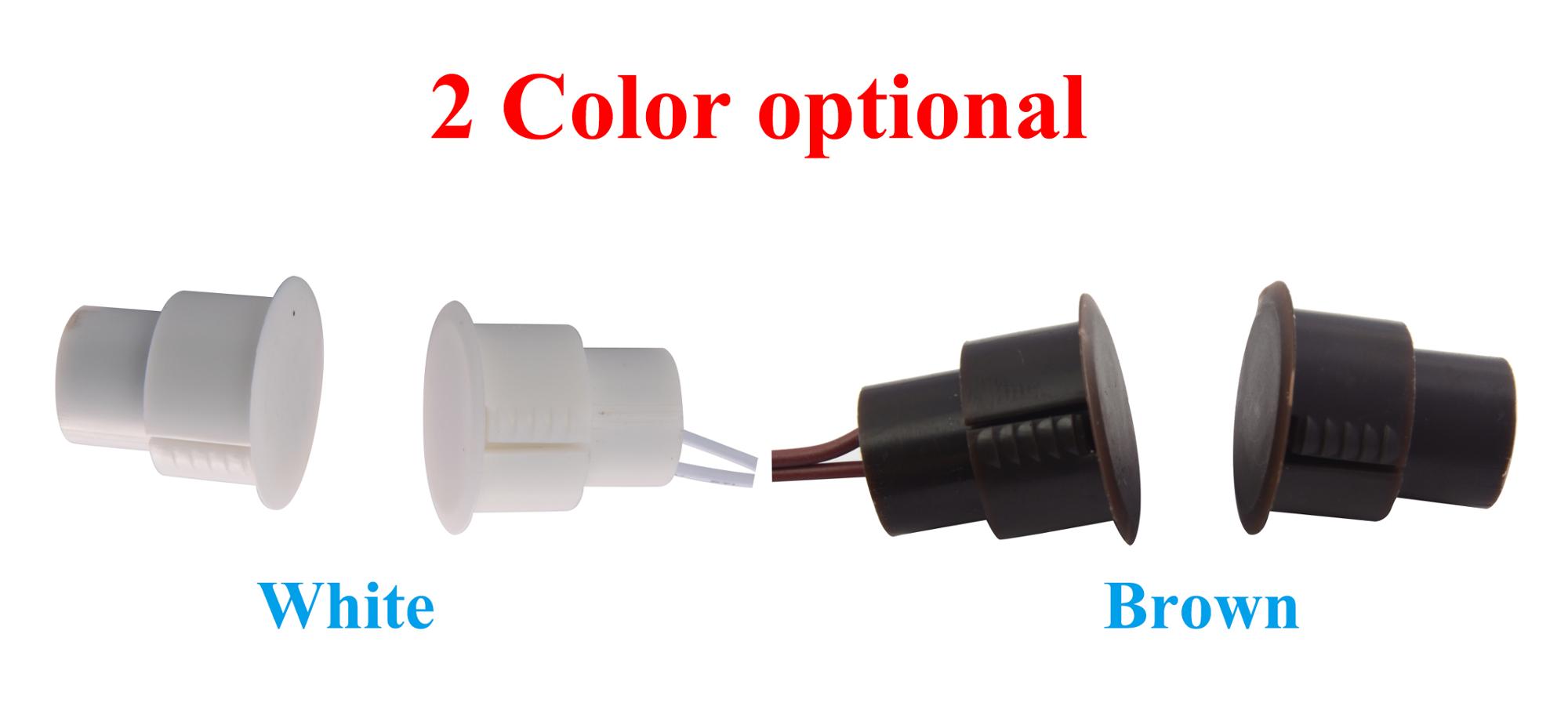

| Shell color: | white/brown (optional) |
| weight: |
Unit: 20 grams 10 pairs per bag, weight 220 grams per bag |
| Warranty: | 2 years warranty |
| OEM: | Welcome to OEM |
1. High sensitivity and durability.
What are the characteristics of EB-136?
What about the alternatives?
Embedded magnetic contact sensor EB-136
Embedded magnetic contact sensor EB-136
Embedded magnetic contact sensor EB-136
