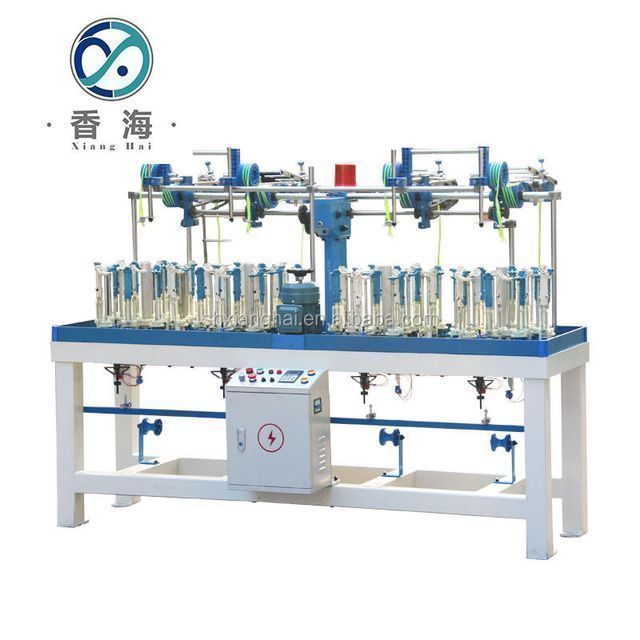

16 load round rope braiding mechanism rope machine 4 heads XH120-16-4
-
Supplier: Shanghai Xianghai Braiding Machine Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Amy Xia -
Price: $3000.00 / 1 - 4 sets
$2800.00 / 5 - 9 sets
$2500.00 / 10 - 19 sets
$2000.00 / >=20 sets -
Min. Order: 1 set
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Spool size: | 60*180MM |
| payment terms: | L/C, Western Union, T/T | strength: | 1.1KW |
| Core component warranty: | 2 years | Max horngear speed(rpm/min): | 280 |
| place of origin; place of origin: | China Shanghai | Core components: | PLC, motor |
| strength: | 1.1KW | Mechanical test report: | if |
| brand: | To the sea | Dimensions (L*W*H): | 2080*620*1750MM |
| port: | Shanghai | Warranty: | 2 years |
| Showroom location: | Turkey, Vietnam, Brazil, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco | Number of spindles: | 16 |
| Applicable industries: | textile machinery | Marketing Type: | normal product |
| product name: | 16-spindle high-speed skipping rope knitting machine | Packaging Details: | 16-load round rope braiding machine wooden box |
| Head count: | 4 | Weight (kg): | 500 kg |
| Dimensions (mm): | 2080*620*1750MM | Local service location: | Turkey, Vietnam, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, Japan, Morocco, Bangladesh |
| After-sales service provided: | On-site service by overseas engineers, free spare parts, video technical support, online support, on-site installation and commissioning training, on-site maintenance and repair services | Supply capacity: | Monthly production of 800 sets of 16-carrying round rope braiding machines |
| State of health: | new | Video shipment inspection: | if |
120 series 16 spindles 4 heads high speed braiding machine
| Model | Number of spindles |
Head count |
Dimensions (mm) |
Motor Power (kilowatt) |
Speaker size(mm) | Max horn speed(rpm/min) |
Spool Size(mm) | Weight(KG) | rope diameter (mm) |
| XH120-16-2 | 16 | 2 | 1500X800X1760 | 0.75 | 120 | 280 | Φ60X180 | 450 | 3-15mm |
| XH120-16-4 | 16 | 4 | 2100X770X1760 | 1.1 | 120 | 280 | Φ60X180 | 650 | 3-15mm |
| XH120-24-2 | twenty four | 2 | 1610X980X1760 | 0.75 | 120 | 280 | Φ60X180 | 500 | 5-18MM |
| XH120-32-2 | 32 | 2 | 1780X1050X1760 | 1.1 | 120 | 280 | Φ60X180 | 550 | 6-20MM |
| XH120-40-1 | 40 | 1 | 1380X1050X1800 | 0.75 | 120 | 280 | Φ60X180 | 500 | 8-25MM |
| XH120-48-1 | 48 years old | 1 | 1450X1250X1800 | 0.75 | 120 | 280 | Φ60X180 | 600 |
main feature
1) The machine is high speed and noiseless.
2) Save space because of compact design.
3) The yarn package is generally conical and can be directly loaded on the creel and fed into the machine.
4) Used to detect the stopping motion of the yarn.
5) The density of the production cord can be adjusted by the variable pitch gear system.
6) Make products of different sizes by changing the pitch gear.
7) Using frequency conversion speed regulation motor, the speed is easy to control.
8) The automatic shutdown system responds sensitively. When the yarn is overrun or broken, the machine will automatically stop to reduce the waste of yarn. So it is also safe when no one is working near the machine. The equipment reduces labor costs and increases output.
-
