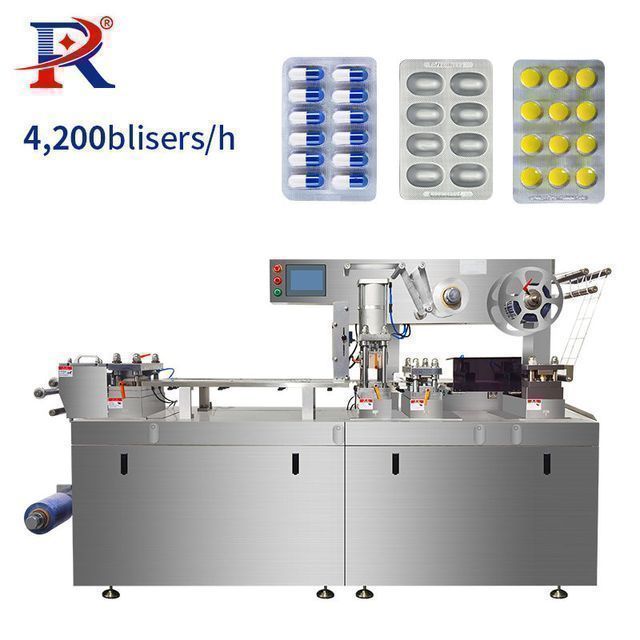

Capsule Blister Packing Machine Price Automatic Tablet Blister Packing Machine

Supplier: Guangdong Rich Packing Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Haoran Fu
Price: $14599.00 / 1 - 2 sets
$13899.00 / 3 - 4 sets
$13199.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Standard board:	80*57mm	PTP thickness and width:	0.02~0.035*120mm
Package preview:		main motor power:	0.75 kW
Core component warranty:	3 years	Packaging Details:	Standard export wooden box
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Colombia, Algeria, Romania, South Africa , Kazakhstan, Kyrgyzstan, Tajikistan, Malaysia, Australia	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Types of:	Blister Packaging Machine	vacuum:	0.6MPa-0.8MPa
Warranty:	3 years	Voltage:	220/380v 50 Hz or customized
brand:	rich packaging	Standard travel range:	30~80mm
Automatic level:	automatic	place of origin; place of origin:	Guangdong, China
maximum. Shaping Diameter and Depth:	Maximum 15012015mm depth 25mm (customized)	Mechanical test report:	if
Production capacity:	4200 trays/hour	Applicable industries:	Manufacturing plants, food and beverage plants, pharmaceuticals, chemicals, electronics
State of health:	new	weight:	1600 kg
port:	Guangzhou/Shenzhen/Shanghai/Ningbo	Video shipment inspection:	if
noise:	<75dBA	PVC thickness and width:	0.15~0.5*120mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Dimensions (LWH):	25107501450 mm
Driver type:	electrical	application:	Food, daily necessities, medicine, chemical industry, machinery and hardware
Blanking:	10~40 times/min	Supply capacity:	167 sets/month blister packaging machine
Main selling points:	easy to operate

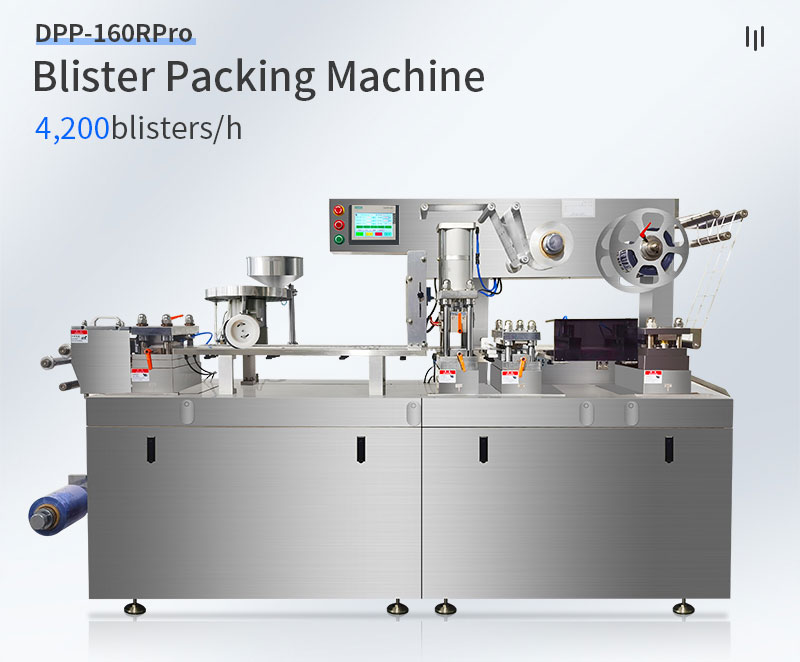

Model	DPP-160RPro Blister Packaging Machine
strength	380V/220V/50Hz (customizable)
weight	Net weight 1600 kg
Overall size	2510×750×1450mm

1. The DPP-160R blister packaging machine adopts the latest high-power transmission mechanism to arrange the chain to drive the main transmission shaft. The error and noise of other gear transmission can be avoided.

2. Blister packaging machine adopts imported control system; it can also be equipped with functional devices for drug quantity detection and rejection according to user requirements.

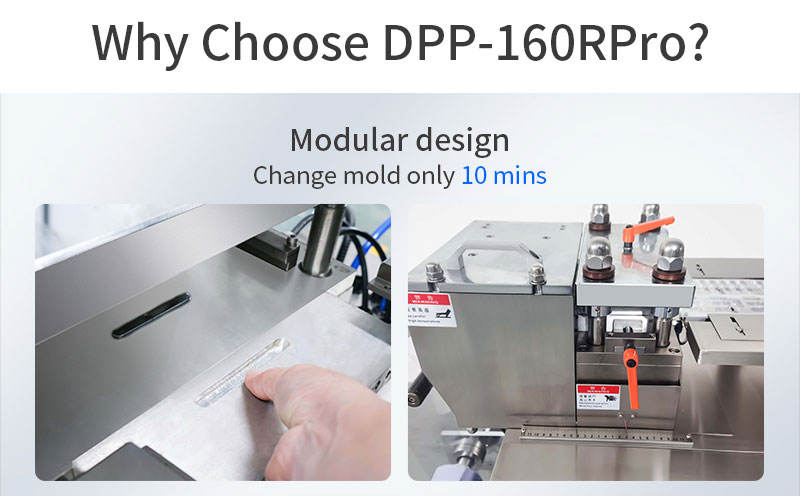

3. Blister packaging machine adopts separate and segmented combination: PVC forming, feeding and heat sealing are one section; tropical cold aluminum forming, heating sealing and cutting the other section for separate packaging.

4. The photoelectric control system is used to automatically cut PVC, PTP and blister packaging machines to ensure the synchronous stability of ultra-long distance and multi-station.
