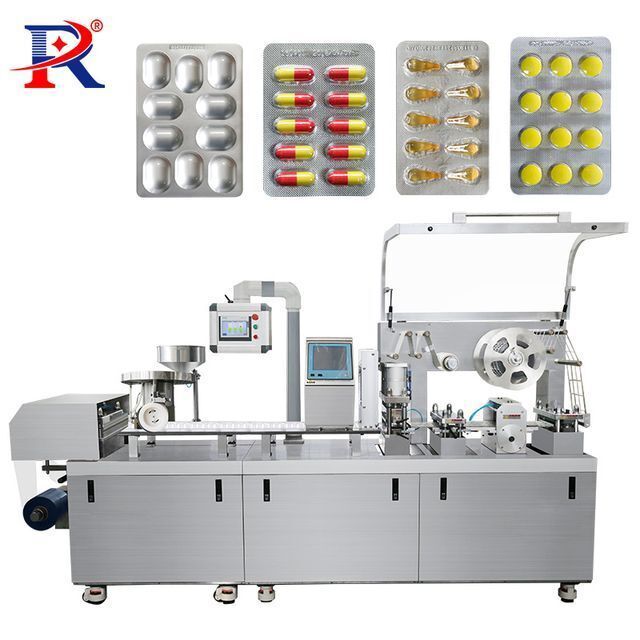

Pharmaceutical Medicine Large 10800 Plates/H Capsule Pill Blister Pack Packing Machine

Supplier: Guangdong Rich Packing Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Haoran Fu
Price: $24784.00 / 1 - 2 sets
$23545.00 / 3 - 4 sets
$22306.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Product Name:	blister pill packaging machine;
Key Selling Points:	Easy to Operate;	Applicable Industries:	Manufacturing Plant,pharmaceutical,Hospital,Healthcare Food;
Package Preview:	;	Video outgoing-inspection:	Provided;
Marketing Type:	New Product 2021;	Warranty:	3years;
Function:	Blister Packaging Machine;	Warranty of core components:	3years;
Weight:	2600 KG;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;
Machinery Test Report:	Provided;	Dialyzing Paper:	50~100g*260mm;
Production Capacity:	10800 plates/h;	Place of Origin:	Guangdong, China;
Thickness and Width of PTP:	260*0.02~0.03mm;	Thickness and Width of PVC:	260*0.15~0.45mm;
Dimension(LWH):	35007401680mm;	Driven Type:	Electric;
Packaging Detail:	Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.;	Port:	Guangzhou/Shanghai;
Type:	Blister Packaging Machine;	Voltage:	220/380 v 50 Hz Or Customized;
Application:	Food,Beverage,Commodity,Medical,Chemical,Tablet Capsule;	Standard Travel Range:	40~110mm;
Brand Name:	Rich Packing;	Standard Plate:	80*57mm;
Supply Ability:	200 Sets per Month;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	After-sales Provided:	Engineers available to service machinery overseas;
Condition:	New;	Blanking:	20~180 blisters/min (aluminum plastic);

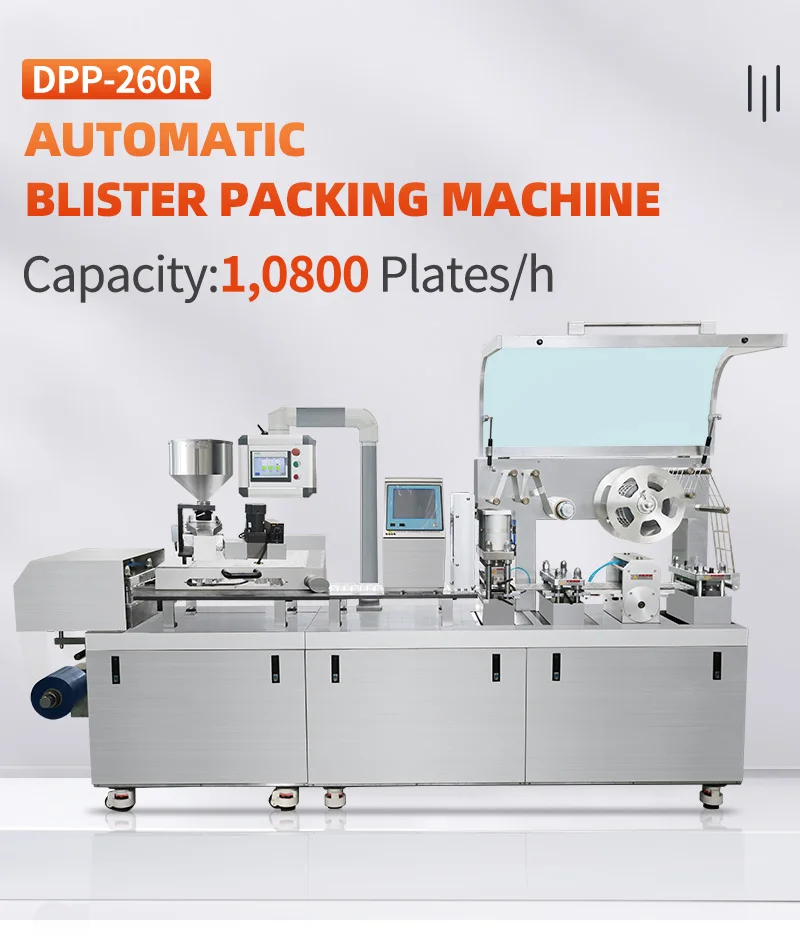

Model	DPP-260R
Production Capacity	18000～236,000 pcs/hour
Max. Shaping Dia. And Depth	25016015mm Max. Depth 26mm（custom-made）
Blanking	20～180 blisters/min (aluminum plastic) 20～120 blisters/min (aluminum aluminum)
Power of Main Motor	1.5kW
Total Power	6.0kW
Power supply	220/380 v 50 Hz Or Customized
Standard Travel Range	40～160mm
Standard Plate	80*57mm

Applications

Our Factory

Product Details

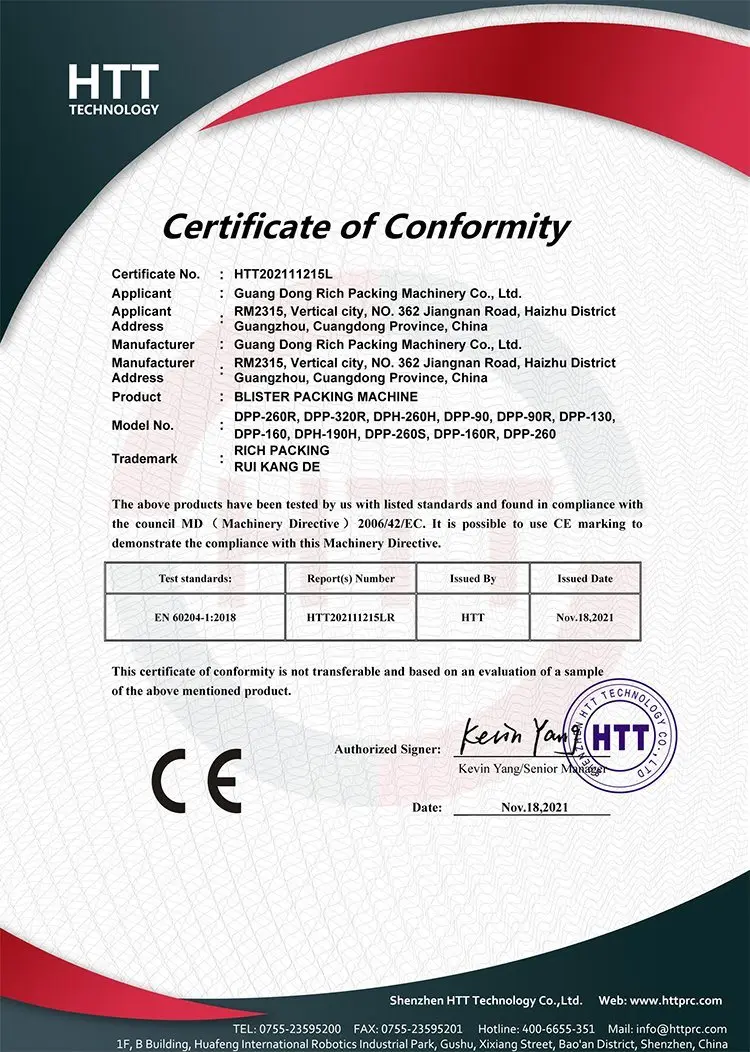

Certifications

About us

DPP 260 R type model is the blister packing machine mainly promoted by our rich pack company.This machine blistering machinery can automatically pack the pharmaceuticals industry and the foods industry, such as tablets, the capsules, the soft capsules, big size honey the pills, candy, electronic of vape cigarettes, and so on.The punching frequency of the DPP 260 R machine is from 20 to 120 times/min, the production high capacity is max 236,000 grains/hour, the maximum of the depth can reach to 26mm, and it can be your customized.This tablet pills blister machine has the large size platform types, and the power transmission and the cam box are built under the DPP machines, which is convenient for the operator to cleaning and maintaining after using.This hot forming blister machine can also add the photoelectric detection function, the image and the text matching function, to upgrade your the packaging.The core parts of 260 R blistering machine are imported products.The servo motor model name is ECMA-C20807RS, from the Taiwan Delta. The model of the servo drive is the ASD-B2-0721-B, from Taiwan Delta. The model of the PLC main modules is theCP1L-M30DR-A, which uses the Omron.The model of the PLC temperature module is the CP1W-TSOO2, which is made by the Omron.
