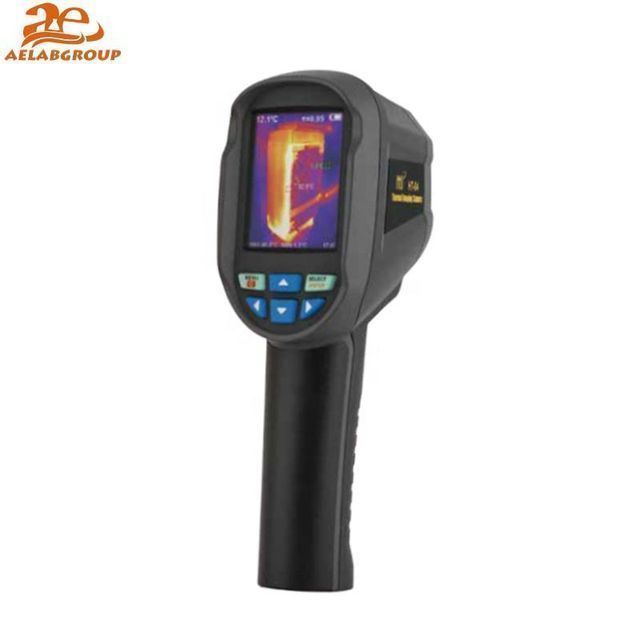

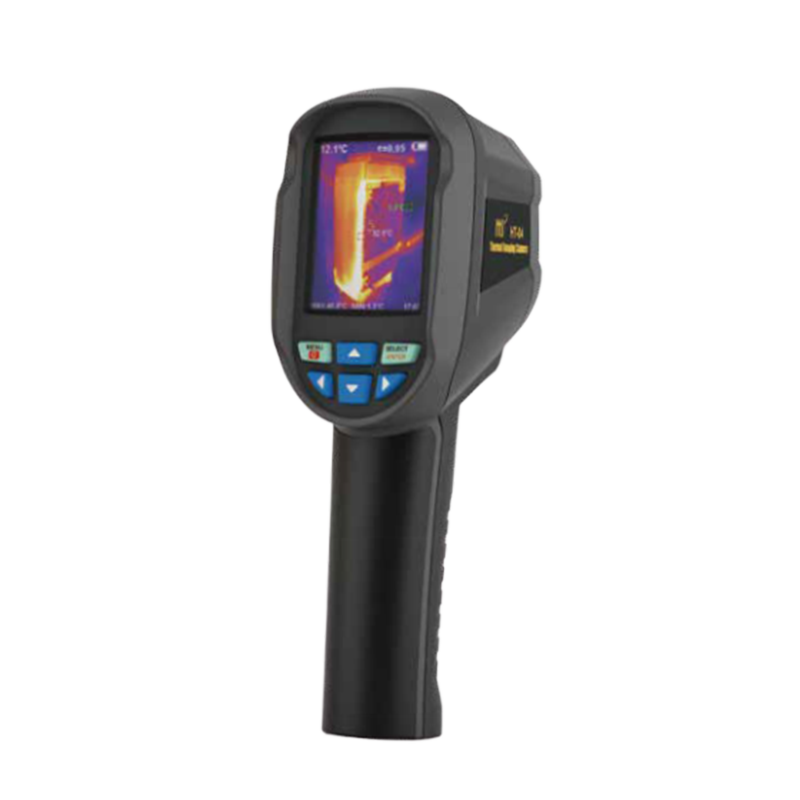

AELAB Thermal Camera Digital infrared thermal imaging camera

Click here to contact

Product details

Packaging Details:	Each piece will be packed in standard packaging along with the manual	model:	HT-03
place of origin; place of origin:	China	brand:	A&ELAB
Emissivity:	0.01-1.0 adjustable	Operating temperature:	0℃~50℃
Supply capacity:	50000 boxes per month	Focus mode:	stable
Resolution:	80x60 pixels	FOV/minimum focal length:	51°x63.5°/0.15m
Wavelength range:	8~14μm	Customization support:	OEM production
Image storage:	97mmx129mmx256mm	Warranty:	1 year
humidity:	<85% relative humidity	temperature range:	20°C~400°C or 20°C~300°C
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	port:	Guangzhou, China
Heat Sensitivity:	<50mK (0.050℃)

Product Description

Features and Specifications

Specifications:

Model	HT-03
exhibit	yes
resolution	80×60
total pixels	4800
FOV/minimum focal length	51°×63.5°/0.15m
heat sensitivity	＜50mK (0.050℃)
image frequency	9 Hz
measurement method	Infrared focal plane temperature measurement
temperature range	HT-03, HT-04D, -20℃~400℃(-4℉~752℉）
temperature range	HT-04, -20℃~300℃(-4℉~572℉）
measurement accuracy	±2% digital/±2℃
wavelength range	8~14μm
emissivity	0.01-1.0 adjustable
focus mode	stable
palette	iron, iridescent, black and white
image storage	97mm×129mm×256mm
file format	picture
set controls	Unit Adjustment/Language/Date Time
set controls	Format/Auto Shutdown
power supply	Built-in rechargeable 18650 battery
Operating temperature	0℃~50℃
Storage temperature	-20℃~60℃
humidity	<85% relative humidity
vibration	2G, IEC 60068-2-6
waterproof level	IP54
size	226×91.5×71.6mm
weight	410 grams
