Thermal Imaging MSX Enhancement

FLIR E4, E5, E6, E8 and
MSX® enhanced

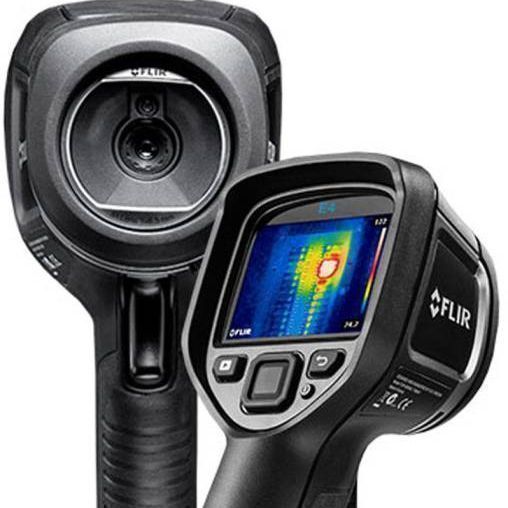

FLIR E4, E5, E6, E8 with MSX® enhancements
• Display: 3” color LCD
• Onboard 640 x 480 digital camera
• Easy to use and weighs only 1.2 lbs
• 2% accuracy
• File format: Radiometric jpg
• Replaceable lithium-ion battery with 4 hours of battery life
• Point measurement mode
• Simultaneous storage of IR/Visual/MSX images
• Picture-in-picture images (E5, E6 and E8)
• Field frame measurement modes (E5, E6 and E8)
Each includes a power supply/charger with four plugs, rechargeable battery, FLIR Tools software, USB cable, and hard transport case. The E8 also includes additional batteries and an external battery charger.
FLIR E4
• 4800 pixels (80 x 60)
FLIR E5
• 10,800 pixels (120 x 90)
FLIR E6
• 19,200 pixels (160 x 120)
FLIR E8
• 76,800 pixels (320 x 240)

New proprietary MSX thermal imaging technology makes everyday use affordable
What is MSX?
Multispectral Dynamic Imaging (MSX) makes image interpretation easier - adding visible spectrum definition to IR images by detecting the edges of objects and including that detail in thermal images. Text becomes clearly visible so you can read labels or identifiers in the IR image. This unique capability provides extraordinary thermal detail that immediately highlights and localizes problem locations, eliminating the need to refer back to visual images for details.
