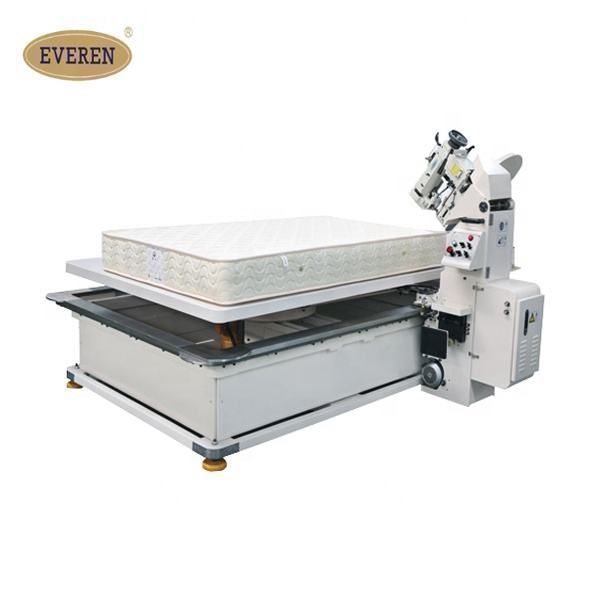

EVEREN Spring Mattress Semi-Automatic Hemming Machine
- 7800.00 set
| State of health: | new | port: | Guangzhou/Shenzhen, China |
| Showroom location: | not any | capacity: | 10-20 units/hour |
| place of origin; place of origin: | Guangdong, China | table size: | 2000*1600mm |
| Dimensions (L*W*H): | 2620*2200*1620mm | Core components: | Programmable Controllers |
| brand: | everon | Packaging Details: | Wooden box packing size: packing one: 2140*1950*800mm (3.34cbm), gross weight: 600KGS. Package 2: 1300*700*700mm (0.64cbm), gross weight: 98KGS. |
| Supply capacity: | 100 sets per month | Applicable industries: | Mattress |
| Mechanical test report: | if | payment terms: | L/C, Western Union, T/T |
| Core component warranty: | 2 years | Marketing Type: | hot product |
| Mattress Thickness: | 30-450mm | Video shipment inspection: | if |
| Warranty: | 1 year | strength: | 1.2kw |
| Lifting range of workbench: | 0-450mm | weight: | 600 |
| Voltage: | 220V/380V,50HZ |

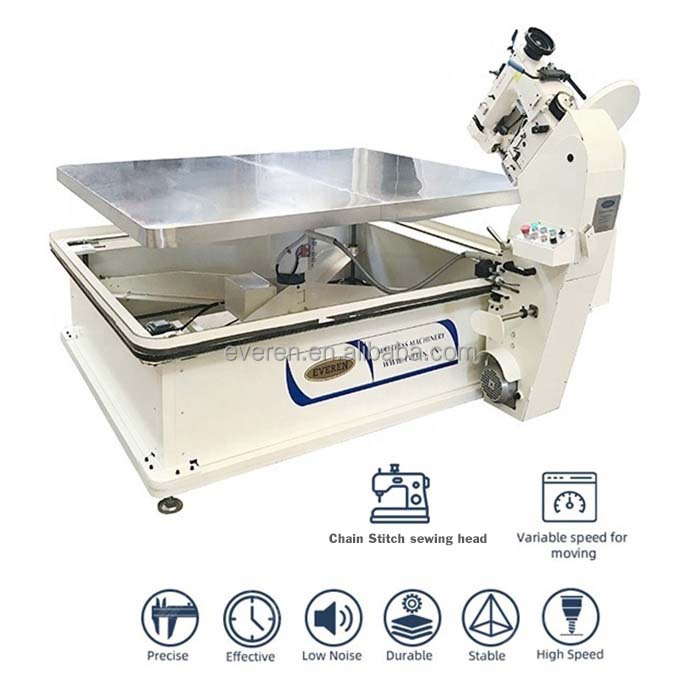

Semi-automatic edge banding machine
contact us! !
This machine is mainly used for spring mattresses.
- Automatic lifting table
- The speed can be set within a certain range and automatically slows down at corners
- Seam head angle can be adjusted as required
- The corners of the mattress can be adjusted as needed
- Automatic sensing device controls the motor clutch, easy to operate
- Use 100m cotton belt (note: can be changed to 200-500m according to customers)
- Speed of sewing, moving boxes, using frequency conversion
(Range: 5~12m/min)
- Motor frequency: 25-60Hz (Note: Usually the motor frequency is 50Hz, and the production capacity is 20 sheets/hour. It can be changed according to the size of the mattress and the proficiency of the operator)
|
product name |
Mattress edge banding machine |
||
|
Model |
EE-WB-3 |
||
|
material thickness |
30-450mm |
||
|
Lifting range of electric motor table |
0-280mm |
||
|
Lifting range of workbench |
10-60mm |
||
|
main motor power |
0.75KW |
||
|
voltage |
220V/380V, 50Hz, 3Ph |
||
|
Lifting motor power |
0.55KW |
||
|
total power |
1.1KW |
||
|
table size |
1280×1830mm |
1600×2000mm |
1800×2000mm |
|
Dimensions |
1900×2450×1620mm |
2220×2620×1620mm |
2420×2620×1620mm |
|
total weight |
680 kg |
780 kg |
880 kg |
If you want to know more, please contact me
