Automatic Mattress Quilting Panel Cutting Machine / Cutting Machine
- 14000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Voltage: | 380V/220V 50HZ/60HZ | width: | 100-2500mm |
| payment terms: | Letter of Credit, Wire Transfer, Paypal | air pressure: | 0.4-0.8Mpa |
| place of origin; place of origin: | Guangdong, China | Core Components Warranty: | 1 year |
| Packaging Details: | Packed in wooden case and plastic film, packing size: 4110X2060X2260mm, gross weight: 2200kgs. | Marketing Type: | normal product |
| Applicable industries: | Hotels, mechanical repair shops, manufacturing plants | port: | Guangzhou/Shenzhen, China |
| Video external inspection: | Not available | brand: | forever |
| Health status: | new | Dimensions (L*W*H): | 4750X2500X2100mm |
| Board length: | 2000mm | weight: | 1500 |
| speed: | 7000 mm/min. | Warranty: | 1 year |
| Supply capacity: | 80 sets per month | Showroom location: | not any |
| Mechanical test report: | Not available | Core components: | engine |
| thickness: | 3-80mm | strength: | 3KW |

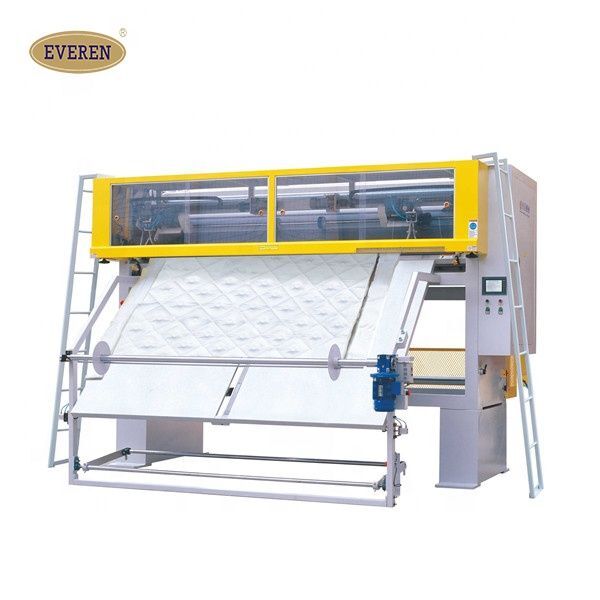

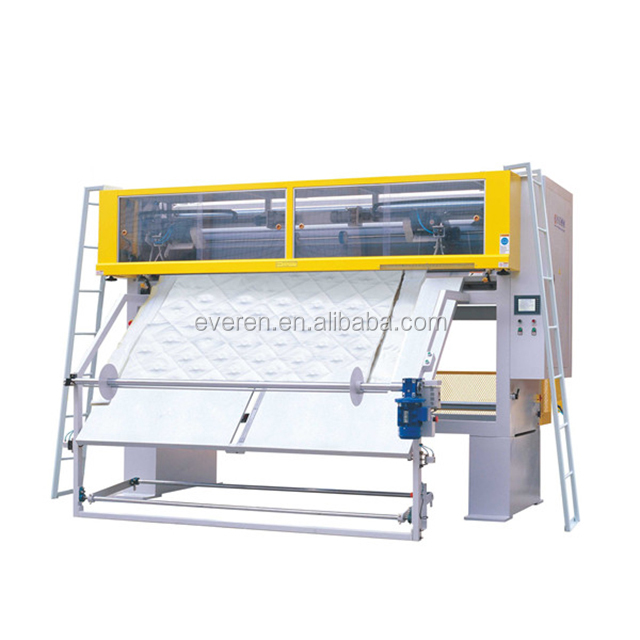

EE-QG-E Automatic Mattress Quilting and Cutting Machine
Product Description
For cross-cutting, edging and trimming of quilted fabrics;
It is usually used with a quilting machine and a rewinding device or alone.
feature:
- Computer Control Panel Cutting Machine
- Designed for use with high-speed quilting machines or their own
- The machine is capable of cutting quilted panels, borders, trimming or material rolling.
- PLC control, touch screen, easy to operate.
- Encoder settings for panel lengths cut to your own size
- Infrared sets the length of the panel, accurately cuts the panel, and operates safely.

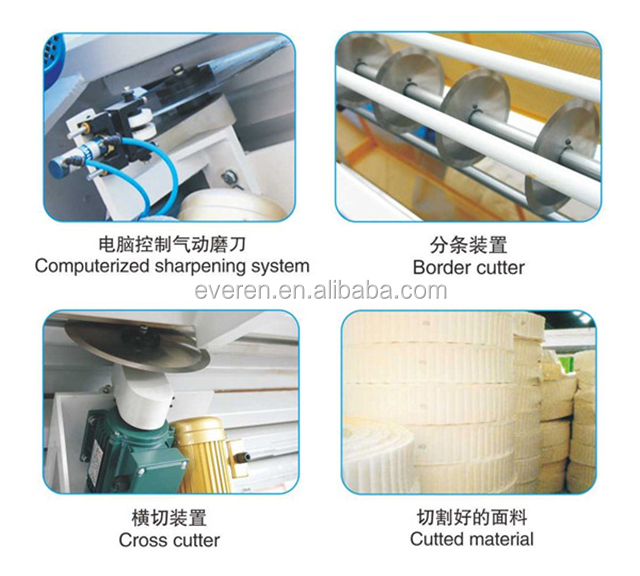

- The pneumatic sharpening device maintains the cutting blade, the pneumatic pressing system and the pneumatic pulling system automatically press and pull the material.
- Reliable boundary feeding and cutting mechanism.
- Automatic table and width adjustable design, precise length.
- Smooth operation, no vibration, low noise and high efficiency.
technical parameter:
|
machine type |
EE-QG-E |
|
Frame size (L×W×H) |
3750×2500×2100mm |
|
weight |
1500kg |
|
board length |
2000mm |
|
thickness |
3-80 mm |
|
width |
100-2500 mm |
|
speed |
7000 mm/min |
|
strength |
3KW |
|
power supply |
380V/50Hz, 220V/60Hz |
|
air pressure |
0.4-0.8MPa |
product description
Packaging and Shipping
Packing size: 4110X2060X2260mm,
Gross weight: 2200kg.
