XCMG XZ320 rock drill water well rig pipeline construction HDD drilling machine

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $40000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISOCE;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Jiangsu China (Mainland);
Condition:	New;	Dimension(LWH):	7100x2300x2500;
Power(W):	140KW;	Usage:	Coal;
Supply Ability:	100 Unit/Units per Month;	Voltage:	380V;
Weight:	10500kg;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Energy & Mining;
Packaging Detail:	Standard packing;	Power Type:	Diesel;
Port:	SHANGHAI;

XCMG XZ320 rock drill water well rig pipeline construction HDD drilling machine

Product Description

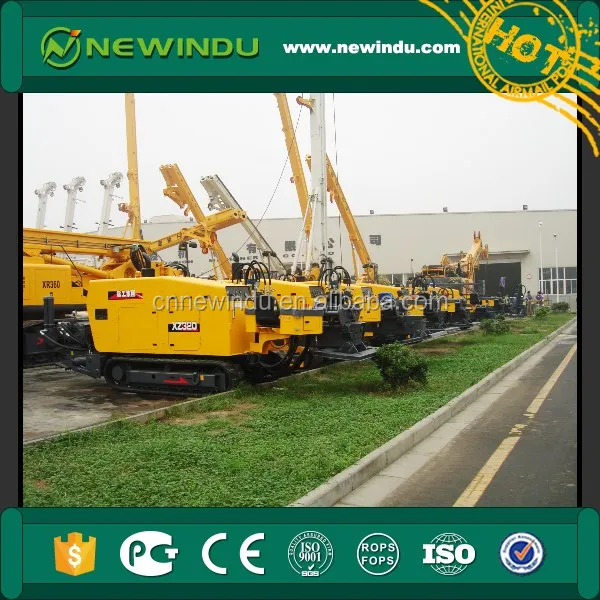

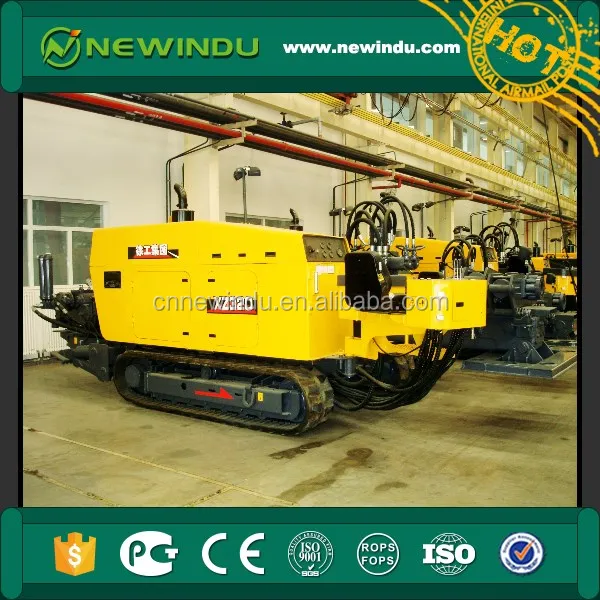

Horizontal Directional Drill(XZ320)
1.Engine---Shangchai(140kw)
2.Max. retract/feed force---320/200kN
3.Weight--10.5t

Introduction of Horizontal Directional Drill(XZ320):

The horizontal directional drill is mainly used for laying and replacing various underground pipelines. The machine features advanced performance and high operation efficiency and comfortable working condition. The key components are purchased globally, and it is the ideal equipment for construction in industries of water supply, coal gas, electric power, telecommunication, heating and oil.

Parameters of Horizontal Directional Drill(XZ320):

Model		XZ320
Engine		Shangchai
Rated power	kW	140
Max.pullback/thrusting	kN	320(400)/200
Spindle torque (max)	N.m	12000
Spindle speed	r/min	0-140
Backreaming diameter	mm	Ø800
Tubing length(single)	m	3
Tubing diameter	mm	Ø73
Entry angle	°	10-20
Mud flow rate (max)	L/min	320
Mud pressure (max)	bar	80
Overall weight	kg	10500
Dimension(LxWxH)	mm	7100×2300×2500
