spherical roller bearings nsk 22205 cakw33 22209 cakw33 22211 cakw33 22218 cakw33 22226 cakw33 22230 cakw33 22234 22236 cakw33

Supplier: Hefei Rowiss Bearing Co., Ltd.
Region: Anhui, China
Contact: Mr Morgan Li
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		Seal type:	Open
Types of:	roller	Material:	Chrome steel GCR15
Applicable industries:	Manufacturing plants, machinery repair shops, energy and mining	quality:	international standard
Supply capacity:	100000 pieces per month	Rows:	double row
feature:	heavy load	hardness:	HRC58-62
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	deliver goods:	1~15 days
brand:	nsk ntn koyo nachi ROWISS or others	product name:	Spherical roller bearing
place of origin; place of origin:	China	sample:	usable

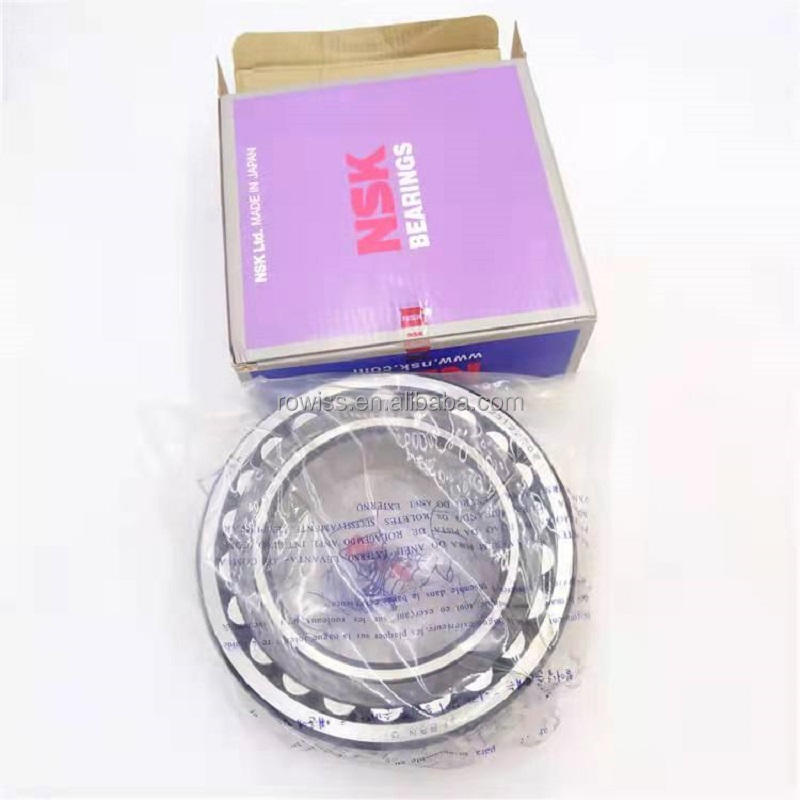

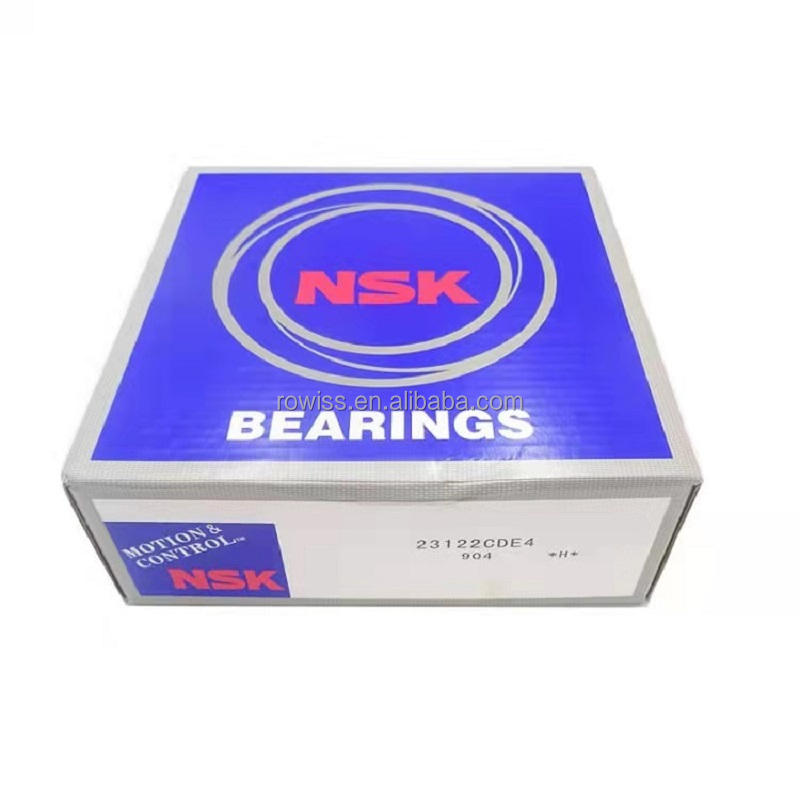

structure:	spherical	Packaging Details:	Packaging can be as follows: 1. Industrial packaging + carton + pallet 2. Single box + carton + pallet 3. Packaging according to customer requirements
Accuracy class:	ABEC1 ABEC3 ABEC5 ABEC7	port:	Guangzhou, Qingdao, Shanghai, Ningbo ports according to customer requirements
Serve:	OEM service. Design service	cage:	Steel cage. Brass cage
Clear:	C0 C2 C3 C4 C5

Zero Risk Commitment

What do we promise? 1. Quality commitment:All bearings are 100% inspected to the same standard and come with a 12 month warranty from the factory. If there is a quality problem, we will compensate according to the actual loss when you submit a third-party report to us (such as SGS and Lloyd's, etc.).2. Delivery commitment:After the order is confirmed, all goods will be delivered on time. If an order will be delayed, a penalty of $100 per day, up to 5% of the total order value, must be enforced.Three, service commitment:All emails will be answered within 1 hour of business hours, inquiries and orders must be processed within 7 hours (8:30AM - 5:30PM, Monday to Friday). If you have any complaints about our service, please send us your email, we are always at your service.

Product Description

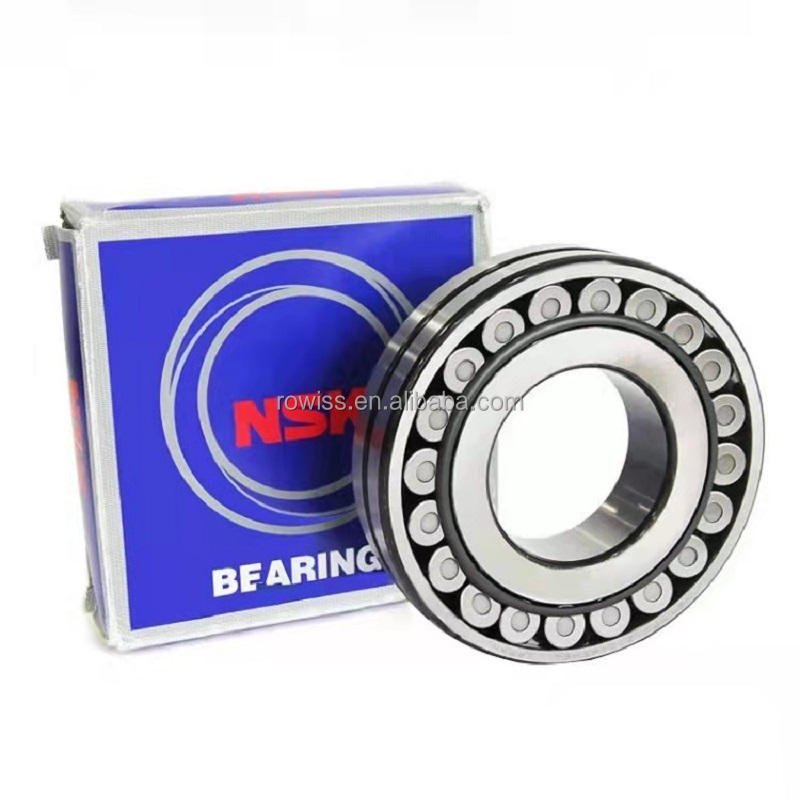

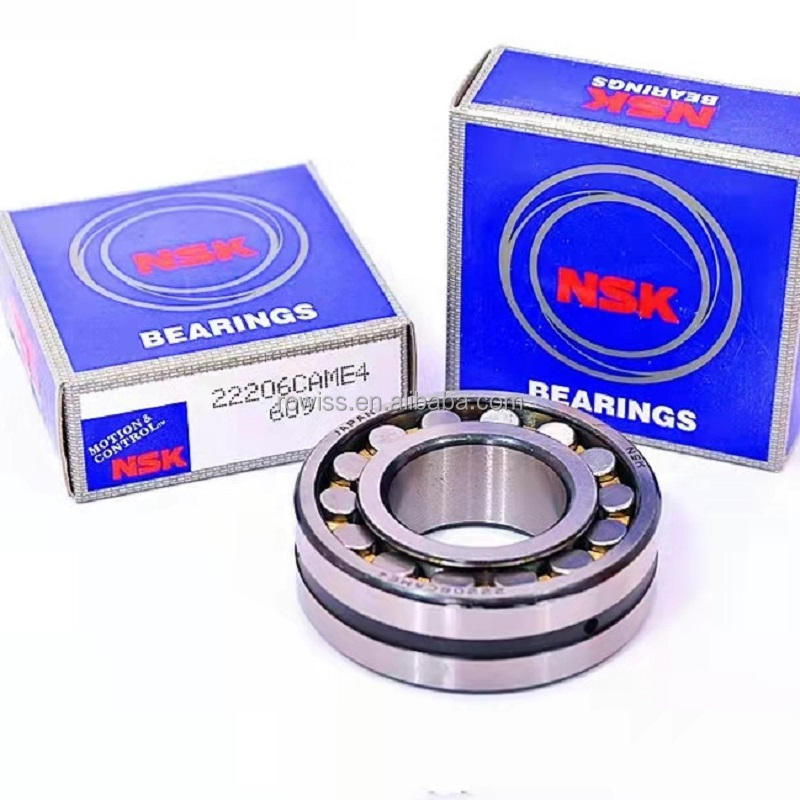

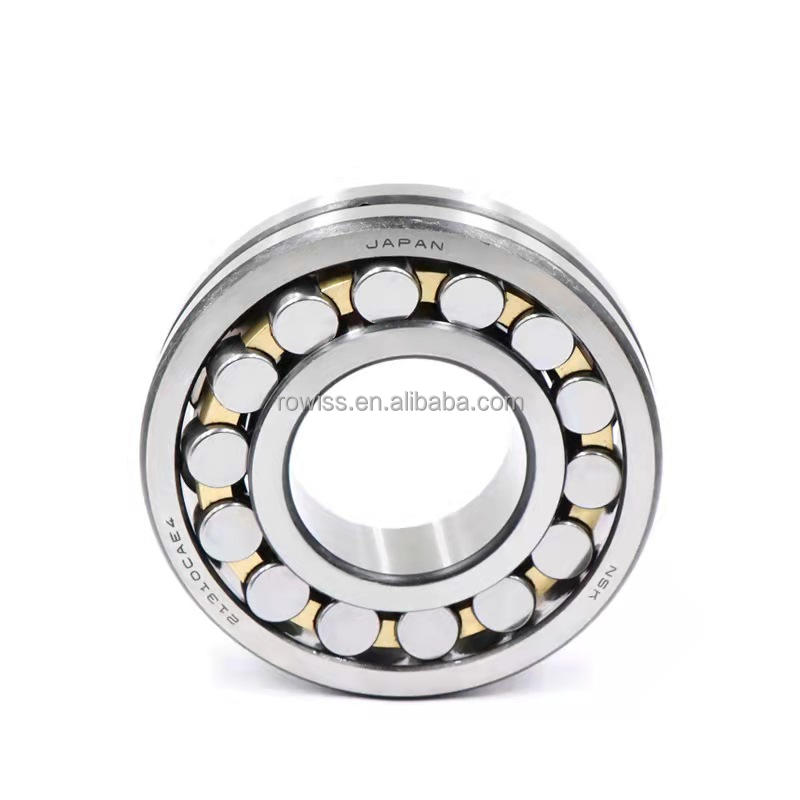

nsk spherical roller bearings 22205 cakw33 22209 cakw33 22211 cakw33 22218 cakw33 22226 cakw33 22230 cakw33 22234 22236 cakw33

Spherical roller bearing

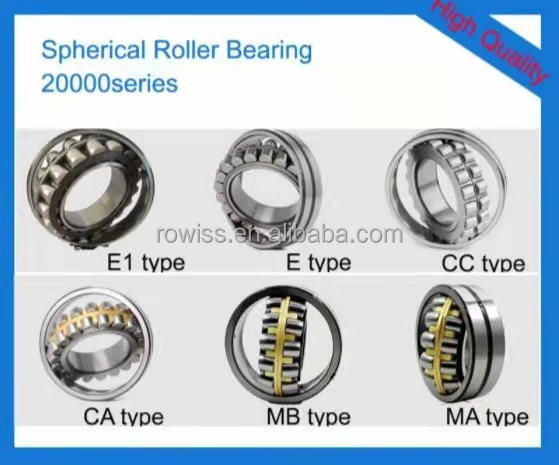

ROWISS spherical roller bearings have two rows of rollers, a common spherical raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This provides them with an attractive combination of design features, making them irreplaceable in many demanding applications. They are self-aligning and therefore insensitive to misalignment of the shaft relative to the housing, as well as shaft deflection or bending.Material:1. Ring material: GCr15, 2. Cage material: steel, brass, polyamide, nylon 3. Roller material: chrome steelstructure:Internal structure and cage material changes C: Symmetrical rollers, stamped steel cages CA: Symmetrical rollers, one-piece brass cages CTN1: Symmetrical rollers, nylon cages E: Third generation design. Improve stress distribution; Provide longer service life than normal design Q: Bronze cage MB: Symmetrical roller, double-piece brass cage EM: Symmetrical roller, special alloy integral cage.External form changes:K: Bearing with tapered bore, taper 1:12 K30: Bearing with tapered bore, taper 1:30 N: Outer ring with snap ring groove W33: Outer ring with 3 lubricating grooves and 3 lubricating holesClear:C0: nominal clearance, destination omitted C2: smaller than nominal clearance C3: larger than C0 clearance C4: larger than C3 clearanceapplication:1. Papermaking machinery, reduction gear, railway vehicle axle, rolling mill, drum gearbox 2. Crusher, vibrating screen, printing machinery, woodworking machinery 3. Various industrial reducers

Specification

thing	value
Types of	roller
structure	spherical
Applicable industry	Manufacturing plants, machine repair shops, construction, energy and mining
brand	nsk ntn koyo nachi ROWISS or others
model	22205 cakw33 22209 cakw33 22211 cakw33 22218 cakw33 22226 cakw33 22230 cakw33 22234 22236 cakw33
Accuracy class	ABEC1 ABEC3 ABEC5 ABEC7
Seal type	Open
Rows	double row
place of origin; place of origin	China
product name	Spherical roller bearing
Material	Chrome steel GCR15
cage	Steel cage. Brass cage
to clear	C0 C2 C3 C4 C5
hardness	HRC58-62
feature	heavy load
quality	international standard
Serve	OEM service. Design service
sample	usable
deliver goods	1~15 days

series	model	Diameter (mm)	Diameter (mm)	B(mm)	series	model	Diameter (mm)	Diameter (mm)	B(mm)
21300 series	21307	35	72	twenty three	22200 series	22205	25	52	18
		21308	40	Post-90s		twenty three		22206	30	62	20
		21309	45	100		25		22207	35	72	twenty three
		21310	50	110		27		22208	40	80	twenty three
		21311	55	120		29		22209	45	85	twenty three
		...	...	...		..		...	...	...	...
23000 series	23020	100	150	37	24000 series	24015	75	115	40
		23022	110	170		45		24018	Post-90s	140	50
		23024	120	180		46		24020	100	150	50
		23028	140	210		53		24024	120	180	60
		23030	150	225		56		24026	130	200	69
		...	...	...		...		...	...	...	...
22300 series	22307	35	80	31	24100 series	24120	100	165	65
		22308	40	Post-90s		33		24122	110	180	69
		22309	45	100		36		24124	120	200	80
		22310	50	110		40		24126	130	210	80
		22311	55	120		43		24128	140	225	85
		...	...	...		...		...	...	...	...

spherical roller bearings nsk 22205 cakw33 22209 cakw33 22211 cakw33 22218 cakw33 22226 cakw33 22230 cakw33 22234 22236 cakw33
