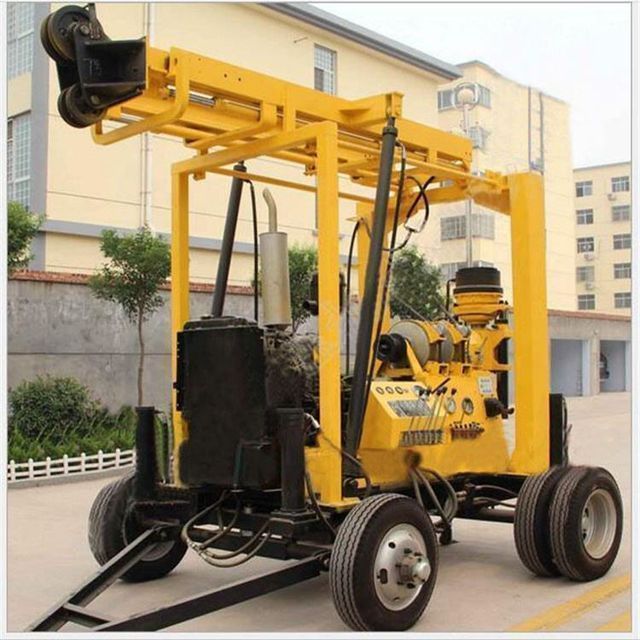

Cheap Drilling Machine Drilling Machine Prices
-
Supplier: Luohe Quality Mechanical Equipment Co., Ltd. -
Region: Henan, China -
Contact: Ms Monique lee -
Price: $2500.00 /set -
Min. Order: 1 set
| Core component warranty: | 1 year | Certification: | International Organization for Standardization |
| Mechanical test report: | if | Warranty: | 1 year |
| Applicable industries: | building materials store | Drilling diameter: | 75-300mm |
| Showroom location: | not any | port: | Qingdao/Shanghai/Guangzhou/Tianjin/Shenzhen |
| place of origin; place of origin: | Henan, China | Vertical shaft capacity: | 6000 kg |
| product name: | driller | Spindle speed: | 29-137 rpm |
| Drum Diameter: | 300 mm | Marketing Type: | 2019 Hot Products |
| engine: | electric engine | usage: | well |
| Main selling points: | competitive price | Voltage: | 380V |
| Drum capacity: | 50 meters | State of health: | new |
| Core components: | engine | weight: | 1600 kg |
| Drilling depth: | 600 meters | Package preview: | |
| Local service location: | Philippines, Thailand | Name: | Multifunctional hydraulic drilling rig |
| Dimensions (L*W*H): | 2500*900*1800 mm | Video shipment inspection: | if |
| Power type: | electric/diesel | Supply capacity: | 300 sets/month drilling machine |
| Packaging Details: | Drilling machine: wooden box packing | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Trade Assurance |
| feature: | High drilling efficiency | brand: | quality |
| Types of: | Core Drilling Rig |
Cheap Drilling Machine Drilling Machine Prices
Drilling machine introduction
Drilling rigs are widely used in water well drilling, geological exploration, building construction exploration, concrete structure hole drilling inspection, river dam construction, subgrade grouting hole drilling direct grouting, centralized ground temperature adjustment construction, etc.
The main features of the drilling machine
- MT-3 is equipped with wheeled traveling device and hydraulic cylinder column, which can be quickly adjusted and maintained in balance.
- The hydraulic feeding mechanism greatly improves the drilling efficiency.
- Drilling rig controlled by hydraulic system.
- The speed level is high, the speed range is reasonable, and the torque is large.
- The main engine reverses in two gears, which can easily cope with sudden changes.
- Advanced structure, reasonable layout, easy maintenance.
- The machine has high power and long feeding distance, which can increase the drilling speed, reduce stuck drill, and ensure safe and efficient operation.
- MT-3 combines pressure gauge and hydraulic gauge together, uses oil flushing and anti-vibration system, the drilling pressure gauge is easy to read, accurate and time-saving.
- The handles are installed together, the layout is reasonable, and the operation is simple and reliable.
Drilling machine specifications
| Drilling depth | 600 meters |
| Drilling diameter | 75-300 mm |
| Hole diameter | 300 mm |
| Port hole diameter | 75mm |
| drill pipe | Φ60 |
| Drilling angle | 60-90 |
| Spindle | |
| Single line lifting speed | 0.5-1.9m/s |
| Wire rope diameter | 12.5mm |
| Single line lifting capacity | 30 kN |
| Drum diameter | 300 mm |
| Drum capacity | 65 meters |
| mud pump | |
| Model | BW-250 |
| shift | 250 l/min |
| work pressure | 80 kg/cm2 |
| Inlet pipe diameter | 76mm |
| Outlet diameter | 51mm |
| gear pump | |
| Double gear oil pump | CBF-F63/25 |
| Forward pressure | 63L/min 20Mpa |
| return pressure | 25 l/min 20 MPa |
| Rig power | |
| diesel engine | 39 kW/2400 rpm |
| electric motor | 22 kW/1470 rpm |
| size | 2500*900*1800 mm |
| weight | 1600 kg |

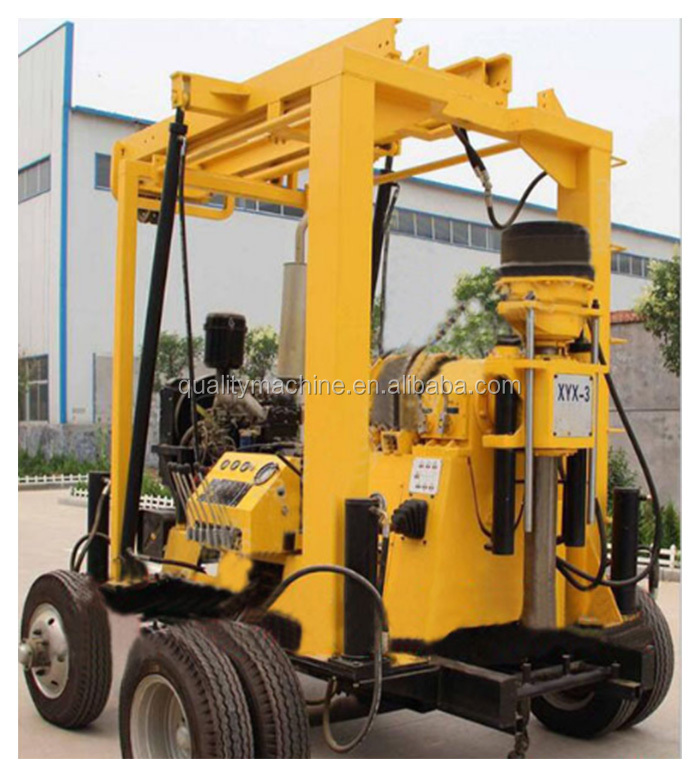

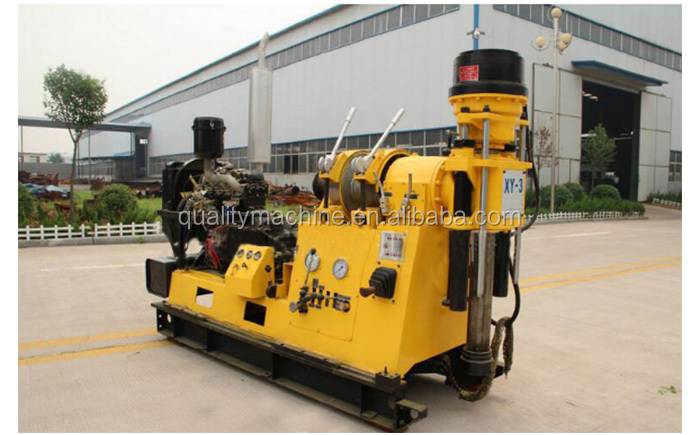

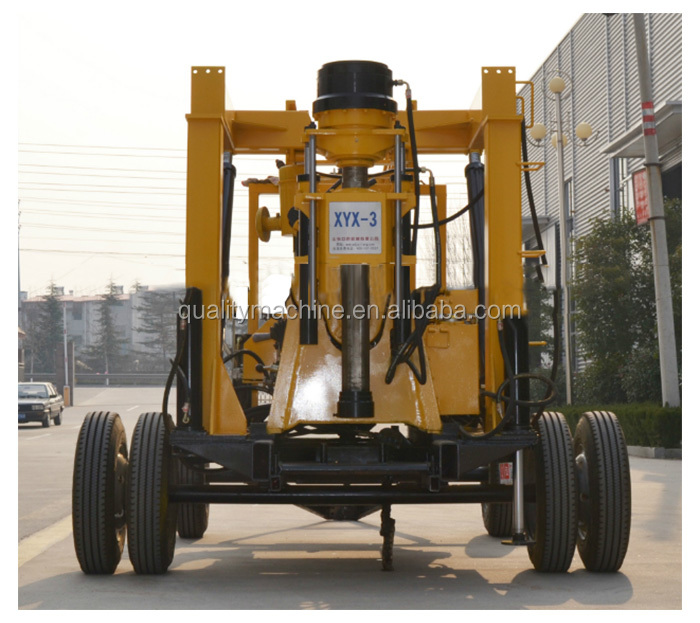

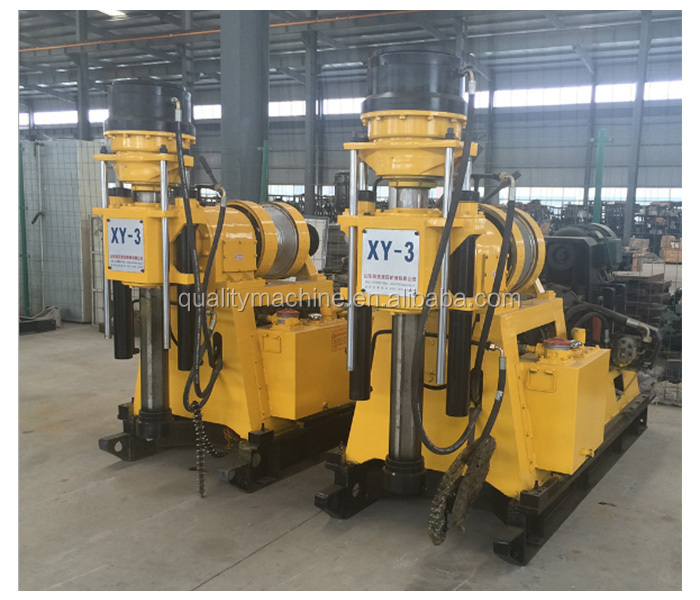

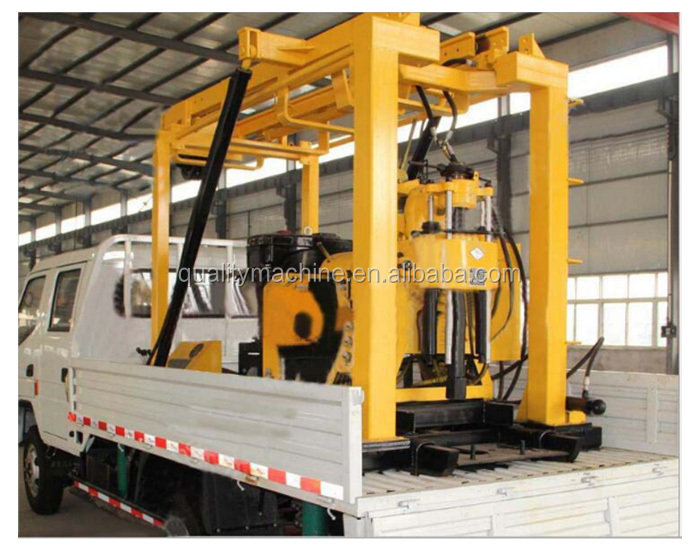

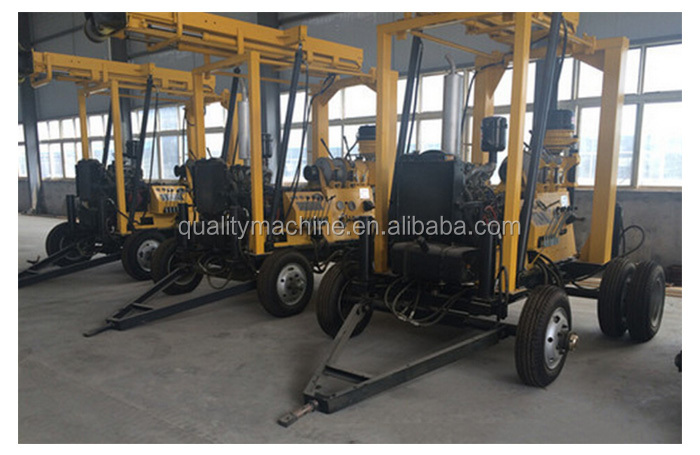

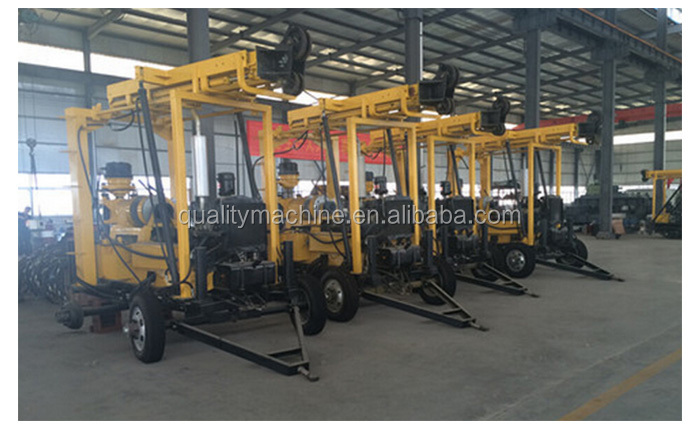

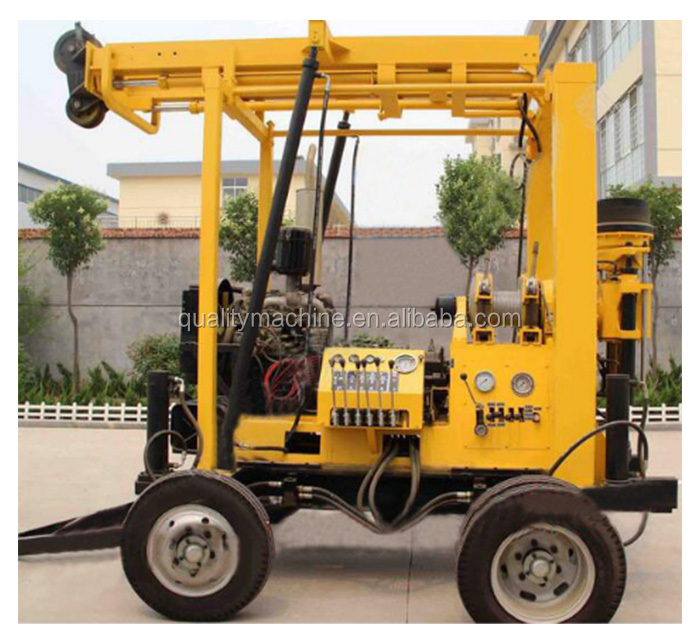

Drilling machine picture
Drilling machine pre-sale service
1. 24 hours online. Your inquiry will be responded quickly by email.
Also can solve all problems with you through any online chat tool (WeChat, Whatsapp, Skype, Viber, QQ, TradeManager)
2. Professional and patient introduction, detailed pictures and working videos to show the machine
Drilling machine sales service
1. Test each machine and check the machine carefully.
2. Send the picture of the machine you ordered, and then pack it in a standard export wooden box after confirming that the machine is ok.
3. Delivery: If by sea. After delivery to seaport. Will tell you the shipment time and arrival time. Finally, all original documents are sent to you by free express.
If by express (DHL, TNT, Fedex, etc.) or by air to your airport, or logistics to your requested warehouse. We will tell you the tracking number after delivery.
Drilling machine after-sales service
1. Free insurance for cargo
2. 24 hours online to solve any problem. Provide you with English manual and technical support, maintenance and installation videos to help you solve problems, or dispatch workers to your factory.
-
