Cold Press Commercial Juicer / Juicer / Fruit and Vegetable Screw Juicer

Supplier: Luohe Quality Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Monique lee
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

strength:	1.5Kw	Warranty:	1 year
Mechanical test report:	if	Function:	Juicer Industry Professional Juicer
Core Components Warranty:	1 year	Name:	extruder
Health status:	new	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Voltage:	220V/380V	Application areas:	Snack Food Factory, Commercial Catering, Fruit Processing Factory, Vegetable Processing Factory, Beverage Factory
Key words:	ketchup production machine	Showroom location:	not any
Packaging Preview:		Local service location:	the Philippines
Main selling point:	easy to operate	place of origin; place of origin:	Henan, Henan, China
Dimensions (LWH):	710230750mm	Packaging Details:	Beer cooler packing: wooden packing, as customer's request
brand:	quality machine	Output product name:	juice
Screw diameter (mm):	260mm fruit juicer	After Warranty Service:	Video technical support, online support, spare parts
Core components:	engine, motor	After-sales service provided:	Free spare parts
Applicable industries:	Food and Beverage Factory, Farm	model:	QT-C0.5,QT-C1,QT-C1.5,QT-C2.5
Supply capacity:	500 sets per month	Material:	304 stainless steel
weight:	80kg	capacity:	1-1.5t/h
application:	fruit and vegetable	product name:	mango pulper
usage:	fruit juicer	port:	Qingdao, Shanghai, Tianjin
Marketing Type:	New Products 2020	Certification:	Chief Executive
Video external inspection:	if	Raw materials:	fruit and vegetable

Cold Press Commercial Juicer / Juicer / Fruit and Vegetable Screw Juicer

Product Description

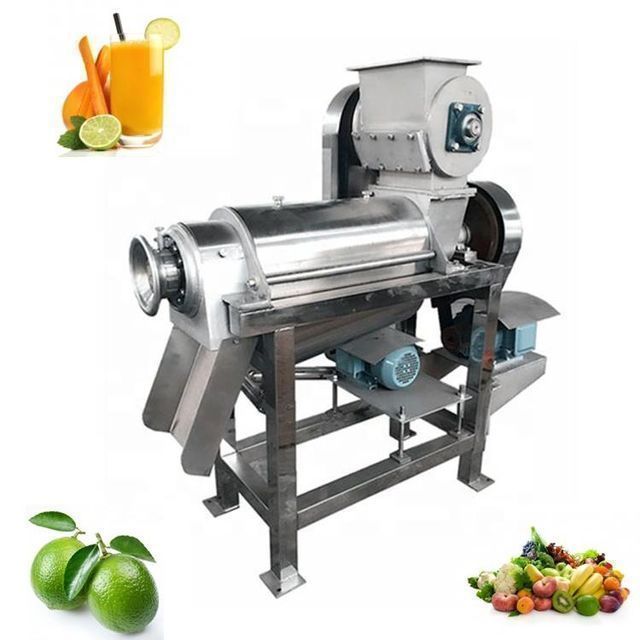

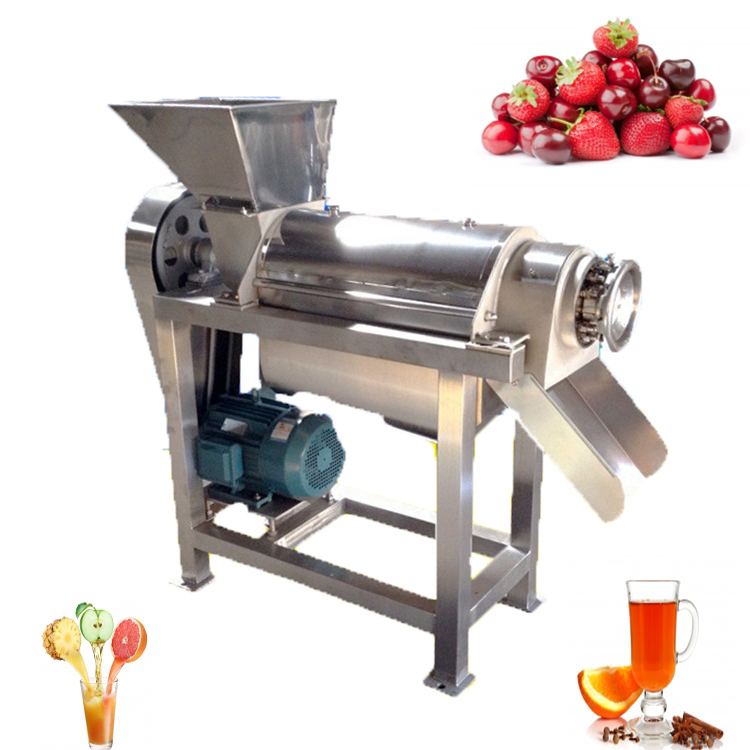

Cold Press Commercial Juicer / Juicer / Fruit and Vegetable Screw Juicer

Juicer structure:

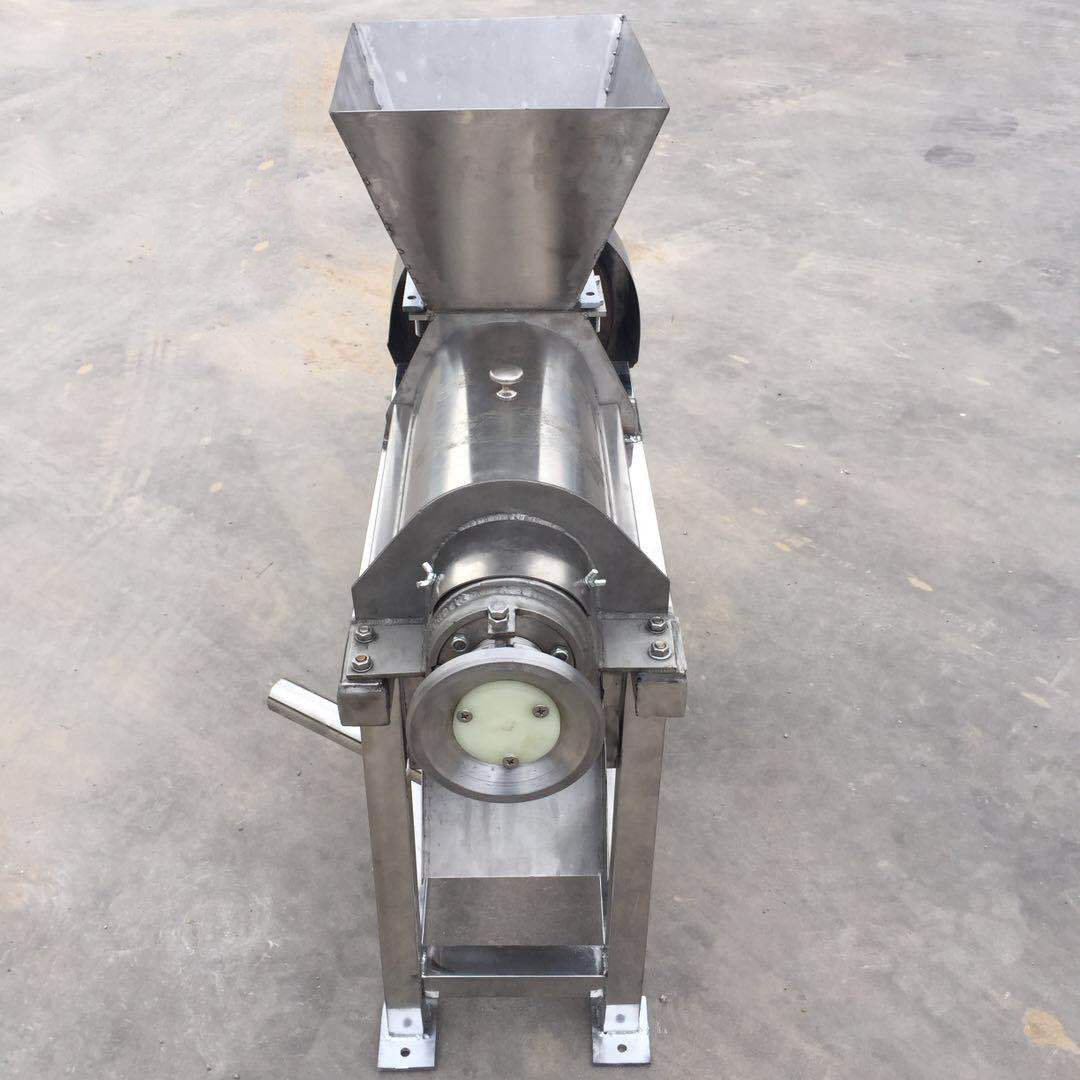

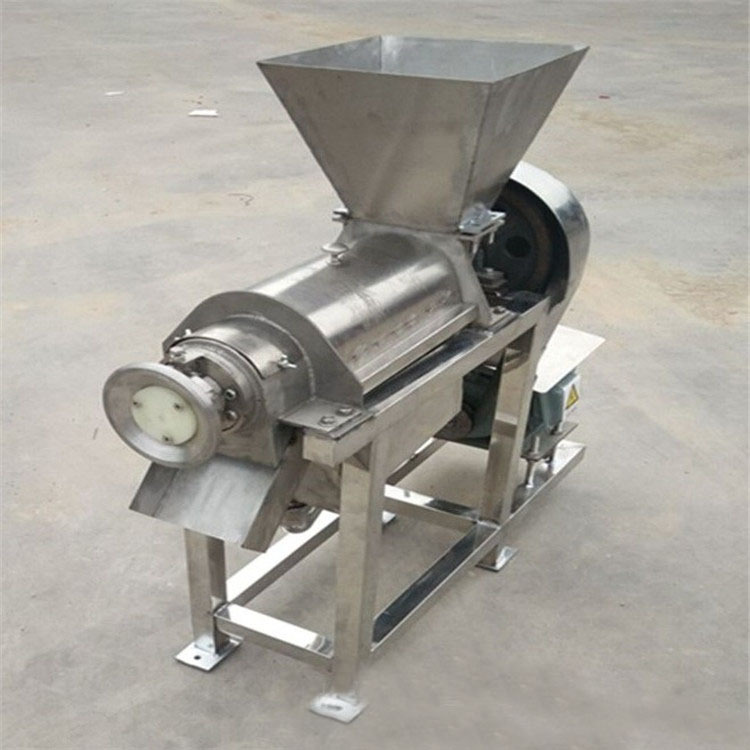

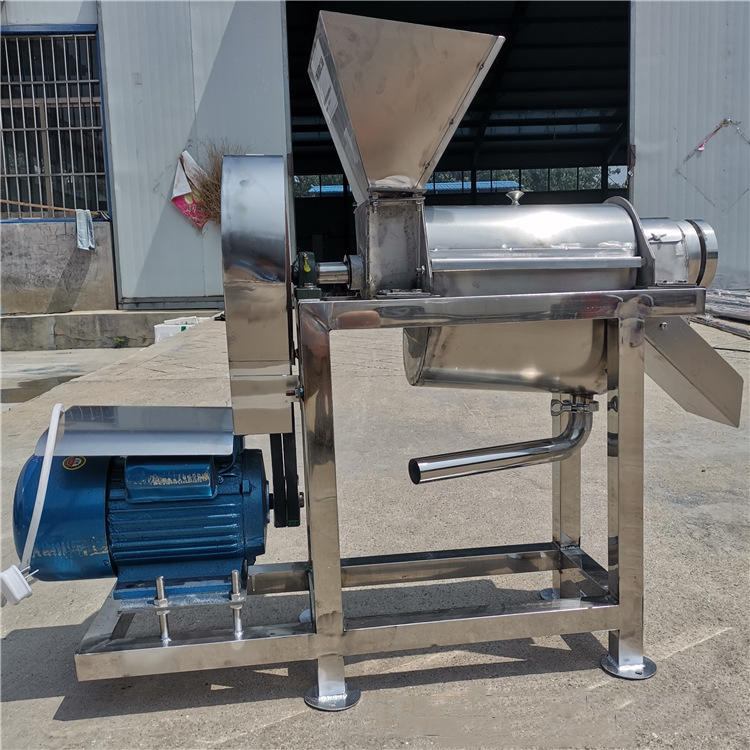

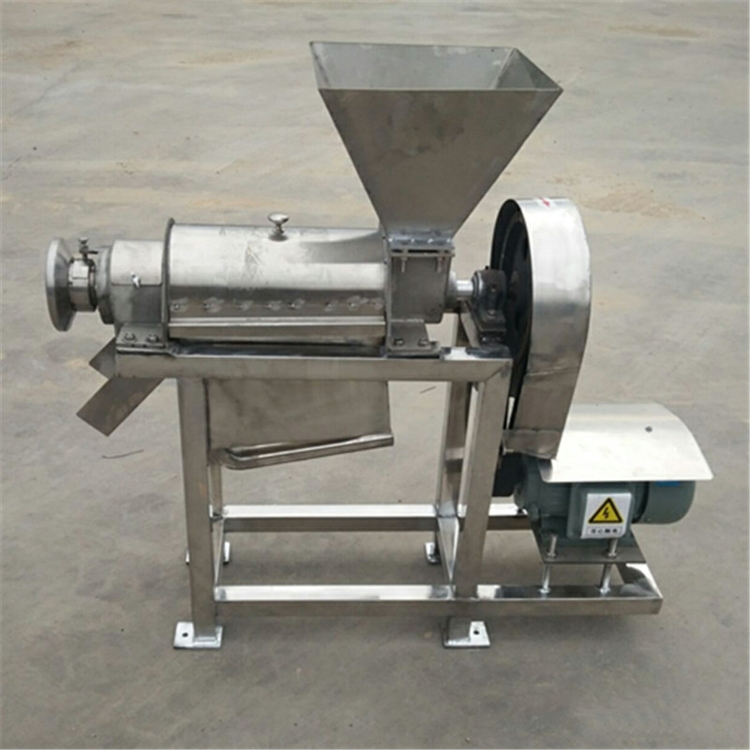

It is composed of front bracket, feed hopper, screw, filter screen, juice container, rear bracket, slag discharge tank and other parts. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw to work through a pair of V-belt pulleys.

Operation and Maintenance:

1. Operation:

After the crusher and the juicer are started and in normal operation, the slag discharge gap between the handwheel and the nut of the juicer should be maximized, and then the gap should be gradually reduced according to the slag discharge situation. After meeting the process requirements, fix the handwheel and nut. During operation, if the crusher does not discharge material, clean it with a slag removal rod.

2. Maintenance:

After each shift, the filter screen must be cleaned with clean water and a brush, and the dregs in the machine must be removed manually. If there are more fibers in fruits and vegetables, the screen should be cleaned again according to the production situation. After pressing, all machines should be washed with hot water.

Product parameters

model	QT-C0.5	QT-C1	QT-C1.5	QT-C2.5
Voltage	380V/50Hz three-phase	380V/50Hz three-phase	380V/50Hz three-phase	380V/50Hz three-phase
strength	1.5Kw	2.2Kw	4kW	5kW
Production	500 kg/h	1000kg/hour	1500 kg/h	2500 kg/h
Material	304 stainless steel	304 stainless steel	304 stainless steel	304 stainless steel
speed	380 rpm	380 rpm	380 rpm	380 rpm
Mesh diameter	0.6mm	0.6mm	0.6mm	0.6mm
aspect	710230750mm	880330900mm	13007001300mm	15407001300mm
weight	80kg	114Kg	240kg	440kg
