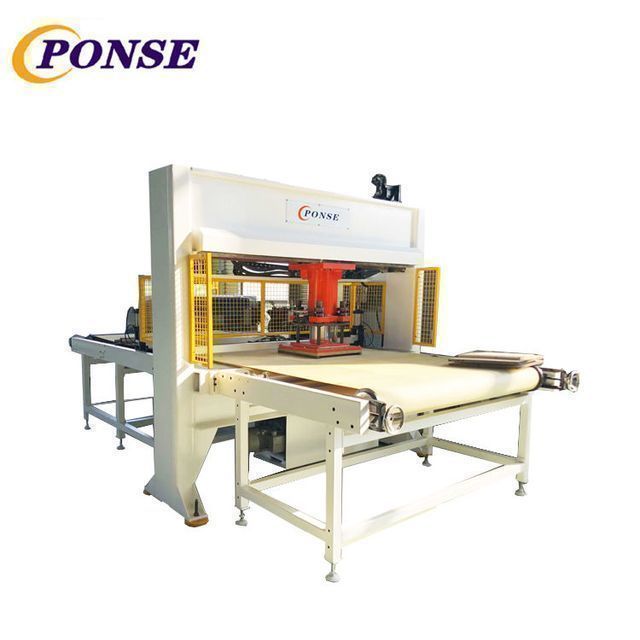

Hydraulic leather shaking head cutting shoe press machine

Supplier: Jiangsu Ponse Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr pang
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	3.62.32.3m	Cutting speed:	0.18 m/s
Warranty:	1 year	Voltage:	380V, 220V, 220V/380V
feature:	to cut	Showroom location:	not any
State of health:	new	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
working desk size:	1600*500mm	Supply capacity:	60 high quality bra sponge cutting machines per month
application:	cutting fabric leather etc.	Stroke adjustment range:	5-130mm
Main selling points:	multifunctional	Core components:	engine
strength:	2.2	Applicable industries:	Hotels, clothing stores, manufacturing plants, machinery repair shops, home use, retail
place of origin; place of origin:	Jiangsu, China	Certification:	CE, ISO9001
Mechanical test report:	if	Name:	Microcomputer Control Bra Sponge Moving Head Cutting Machine
port:	Shanghai	weight:	2.8
Marketing Type:	New Products 2022	Video shipment inspection:	if
brand:	Pons	Maximum scissors:	400KN
Core component warranty:	1 year	Packaging Details:	standard wooden box
Automatic level:	automatic	Production capacity:	10000pcs/day
color:	custom made	Suction cup diameter:	300mm

This machine is suitable for single-layer or multi-layer leather, rubber, plastic, cardboard, fabric, chemical fiber, non-woven fabric and other materials.

1. The steel gantry structure is adopted, which has high strength and no deformation.
2. The cutting head can move horizontally automatically, with excellent operating vision and safe and reliable operation.
3. The punching position after the return trip can be set arbitrarily, reducing unnecessary idle travel and greatly improving work efficiency
4. Adopt special differential oil pressure system, easy to cut, high speed and low noise.
5. Two-handed operation, high safety, simple and convenient.
6. Products with special specifications can be customized.

model	PS/E1-300	PS/E1-300
maximum. cutting force	300KN	400KN
working desk size	1760*500mm	1760*500mm
Cutting head size	500*500mm	500*500mm
Adjustable stroke	10-125mm	10-125mm
cutting speed	0.18 m/s	0.18 m/s
upper and lower work surface	40-200mm	40-200mm
Motor Power	2.2KW	3KW
Auxiliary motor power	0.55KW	0.55KW
Machine size	22007202000mm	24007202000mm
total weight	1600 kg	2100 kg

The automatic ball cutter offers a wide and easily accessible work area suitable for cutting a variety of synthetic materials in roll or sheet form. Moving head presses are versatile die cutting machines designed to die cut a wide variety of materials using small to medium die cutters.

Such as:
Cardboard, paper, textiles, plastics, sponges, leather, rubber, packaging, floor coverings, carpets, fiberglass cloth, cork, etc. Balls, labels, envelopes, paper tubes, clothing, gaskets, plastic novelties, rubber goods, footwear, leather goods, toys, etc.

Jiangsu Pangsi Machinery Co., Ltd. is a high-tech enterprise specializing in the development and manufacture of laminating machines, slitting machines, automotive interior machines, strip cutting machines, pressing machines, and shoe-making complete production lines. Member of Jiangsu Shoe Machinery Chamber of Commerce, "Jiangsu Private Technology Enterprise", "Yancheng High-tech Enterprise", "Yancheng Contract-abiding and Credit-Reliable Enterprise", "Yancheng Metrology Qualified Enterprise", etc. Our products are suitable for processing shoes, bags , leather goods, clothing, hats, wood, toys, car decoration, packaging, stationery, plastic-absorbing polyurethane, etc., are favored at home and abroad. We have a professional service team to provide users with fast and efficient after-sales service.
