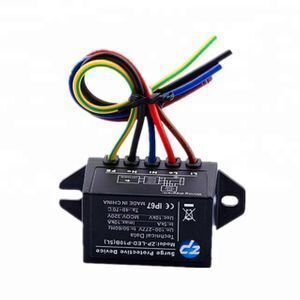

SPD LED-P10B Apply For Outdoor Led Lightning
- 1.00 >=150 pieces
| Port: | Shenzhen,China; | Application: | Power Supply System; |
| Color: | Black; | Output Frequency: | 50Hz/60Hz; |
| Connection Mode: | Series Connection; | Power: | AC; |
| Payment Terms: | L/C,D/A,D/P,T/T; | Product Name: | LED Street Lighting Power Supply Surge Solution ZP-P10B5L; |
| Function: | Protection; | Size: | L79*W43*H32mm; |
| Output Voltage: | 277VAC; | Brand Name: | ZP; |
| Input Voltage: | 100VAC; | Protection Level: | IP67; |
| Output Current: | 5-20KA; | Model Number: | ZP-LED-P10B(5L); |
| Supply Ability: | 10000 Piece/Pieces per Week; | Structure: | WIth all kinds of electronics components; |
| Place of Origin: | Guangdong China (Mainland); | Output Power: | 1000W; |
Part Number | ZP-LED-P10B(5L) |
Rate supply Voltage/Un(VAC) | 100-277V |
Maximum Continuous OperatingVoltage/MCOV/Uc(VAC)1 | 320V |
Rated load current/1L(A) | 5A |
Nominal Discharge Curren/ln(KA)2 | 5KA |
Maxmum Discharge Curren/lmax(kA)3 | 10KA |
Open Circuit Voltage/Uoc(kV) | 10KV |
Voltage Protective level/Up(V)4 | <=1.2KV(L-N,L-G/PE,N-G/PE) |
Wire for terminal | Hose cable(0.75-2.5mm2) |
Connection mode | Series connection |
Power System | TN |
Protection Degree | IP65 |
Ambient Temperature | -40℃~+70℃ |
IEC 61643-11 Test Classification | Test Class 2 and 3 |
EN 61643-11 Type Classification | Type 2and3 |
Q1: How to install?
Answer: the product can be installed inside the lamp or inside the lamppost. The product can reserve the screw mounting hole to facilitate the installation and fixation of the product.
Q2:Do you accept customized order?
Answer: we have a professional R & D team that can provide customized products and services to customers and provide OEM and ODM foundry.
Q3: What's the delievery time?
Answer: our product's production cycle is one week, and its monthly production capacity is about 150 thousand.
Q4:What are the terms of payment?
Answer: the payment method we can accept is payment to the delivery, or 50% deposit in advance, and the remaining 50% payment should be paid before delivery.
Q5:Quality warranty?
Answer: the product warranty period is three years, quality problems occur during the warranty period, and new products are replaced free of charge. The service can be extended to extend the warranty period.
Q6:What mode of transportation?
Answer: we can provide shipping and air transportation according to customer's requirements.
