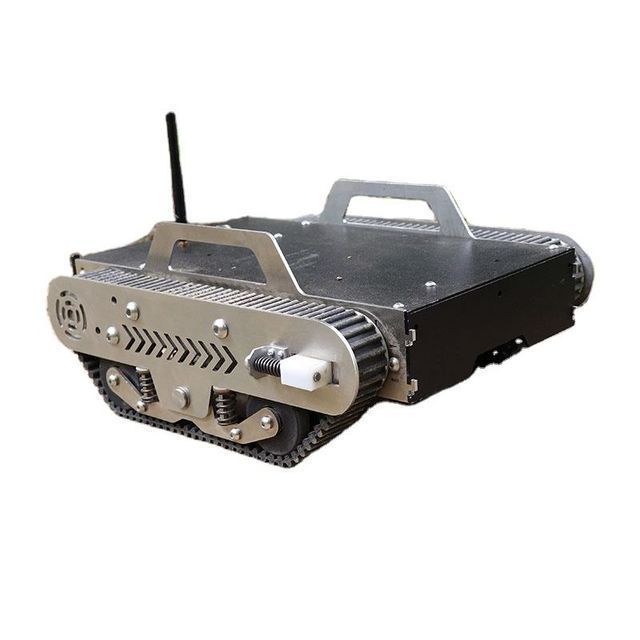

Patrol robot Tins-3 Patrol robot chassis can be equipped with a mechanical arm Exported to Australia CE certificate

Patrol robot Tins-3 Patrol robot chassis can be equipped with a mechanical arm Exported to Australia CE certificate

1.introduce:

The chassis of the mini mobile crawler robot is suitable for racing on various terrains. Through the remote control, the crawler robot is very flexible.

2. Apply:

thisMini Robot ChassisEquipped with rubber tracks, it is suitable for various terrains and can be equipped with cameras orrobotic armFor secondary development. thisRubber Track Robot ChassisEquipped with a camera, it can be used as a SWAT robot for monitoring and tracking. A sort ofTracked robot baseEquippedrobotic armThe robotic arm can be controlled to prevent the operator from working in a dangerous environment.

3. Advantages:

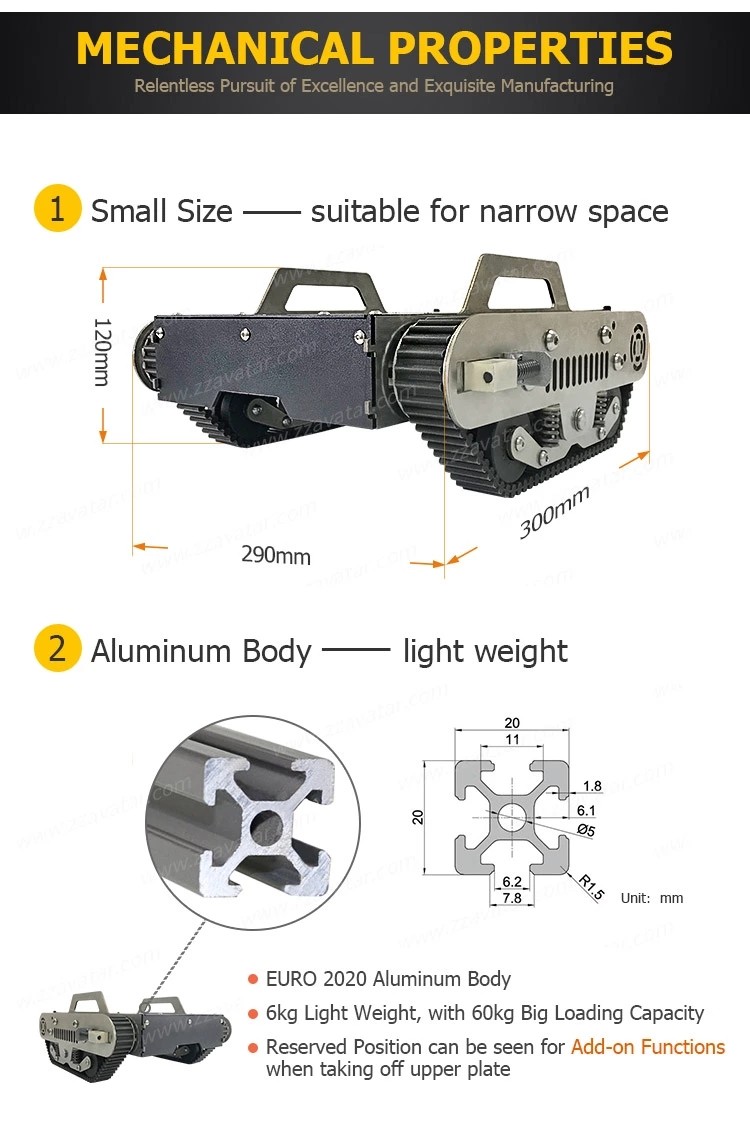

1. Small size of 300*290*120mm, light weight of 6.5kg, and large load capacity of 40kg, especially suitable for operations in narrow spaces.
2. Rubber track: good ground adhesion, all-terrain chassis.

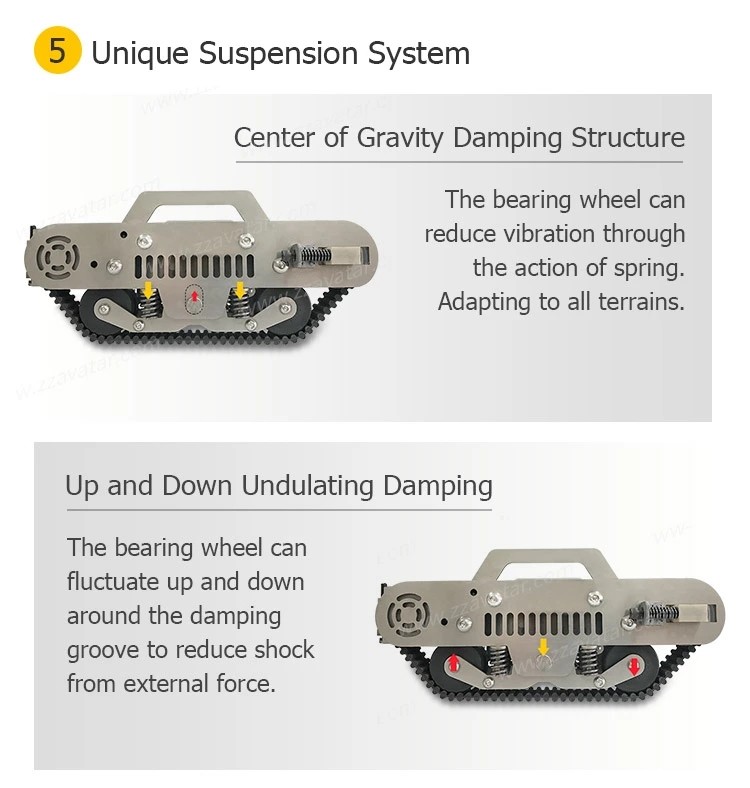

3. Patent suspension system:

1) Up and down swing suspension system.

2) Center of gravity shock-absorbing suspension. Our unique designs.

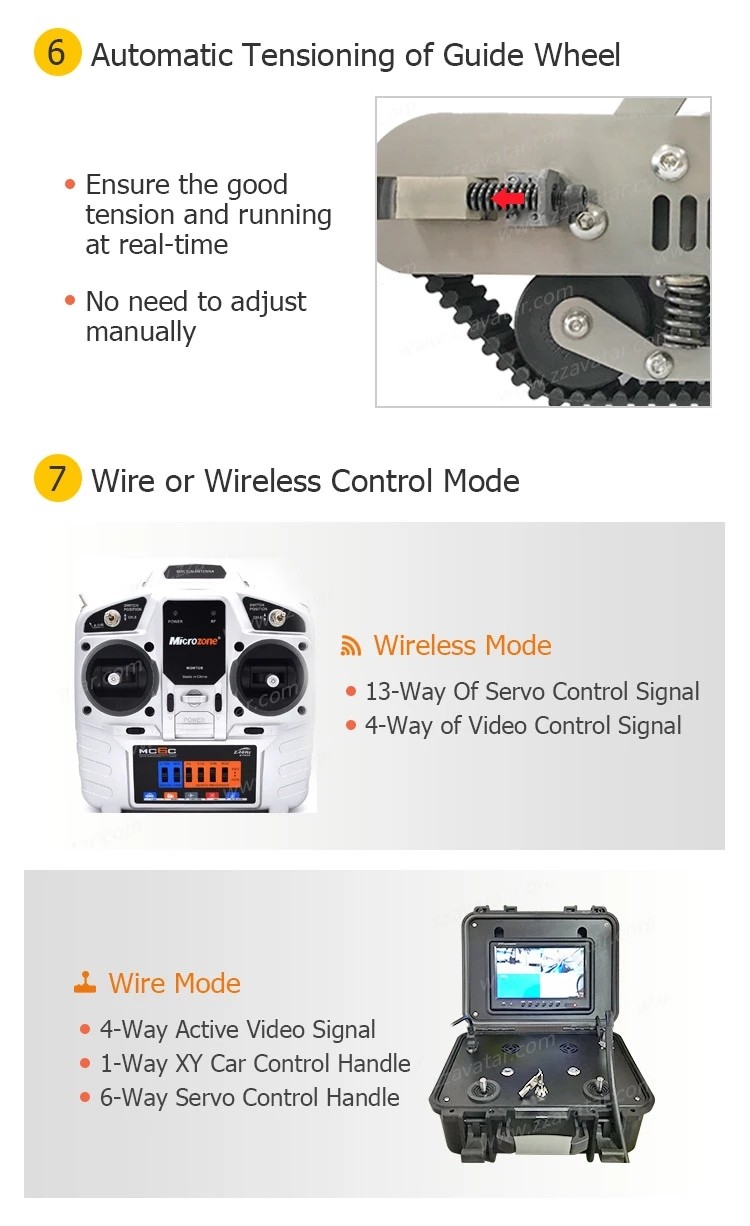

4. Guide wheel: self-tensioning, automatic adjustment, to ensure timely tensioning and operation.

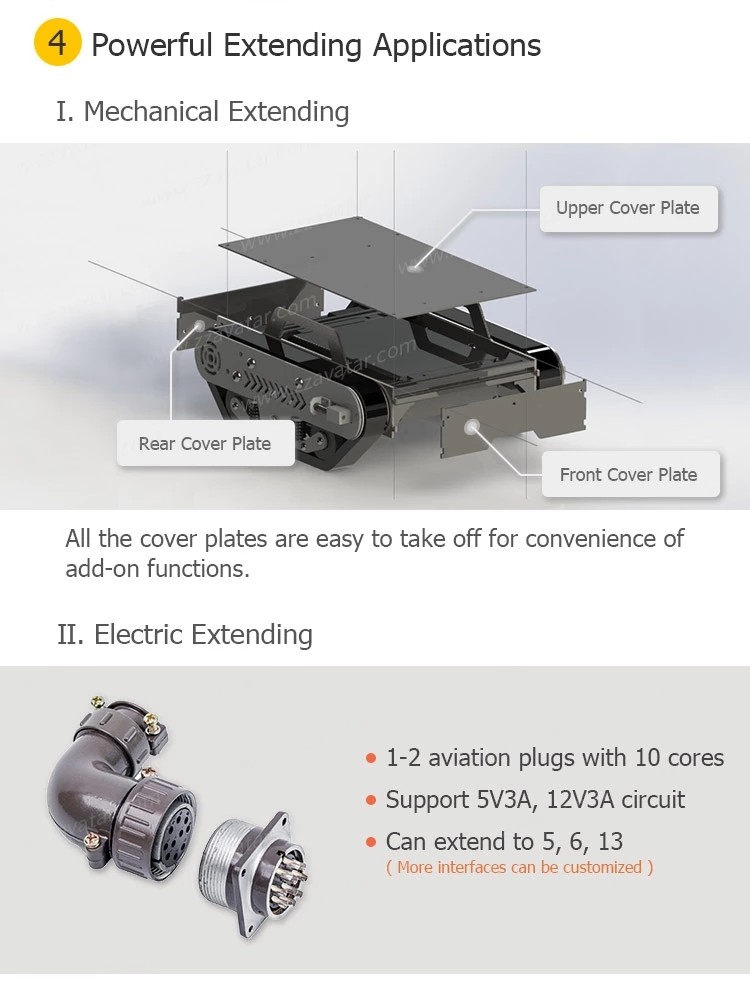

5. Independent automatic control circuit and expansion circuit:

1) Mechanical extension, front/rear/upper cover is detachable, greatly reducing the risk of customization.

2) The 5/6/13 expansion circuit uses 5V3A and 12V3A circuits for electrical expansion.

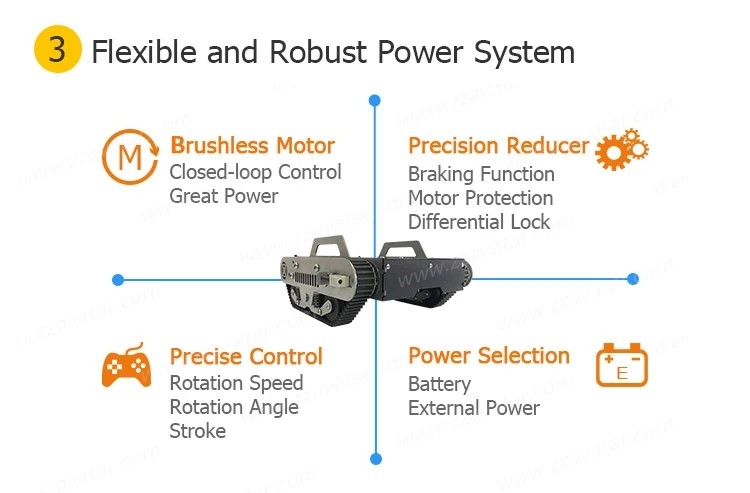

6. Power supply and control:

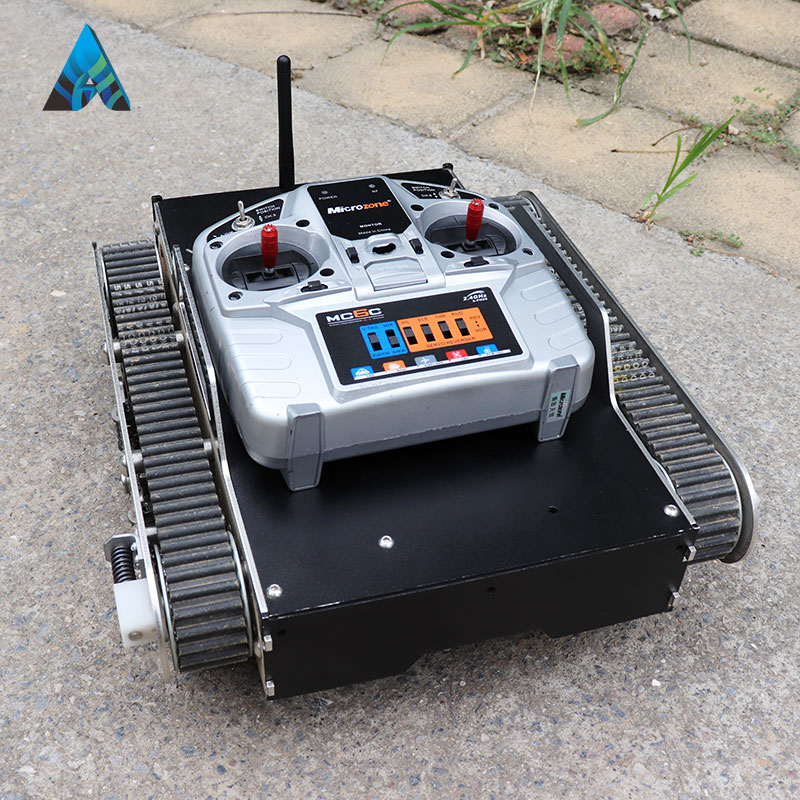

1) Battery and wireless control: support 13 servo control signals and 4 active control signals.

2) Wire control mode: supports 4 active control signals, with 1 XY rod and 6 servo control rods.
7. Optional modules: mapless navigation, location tracking and locking, etc.


4.Specification:

Control Box Specifications

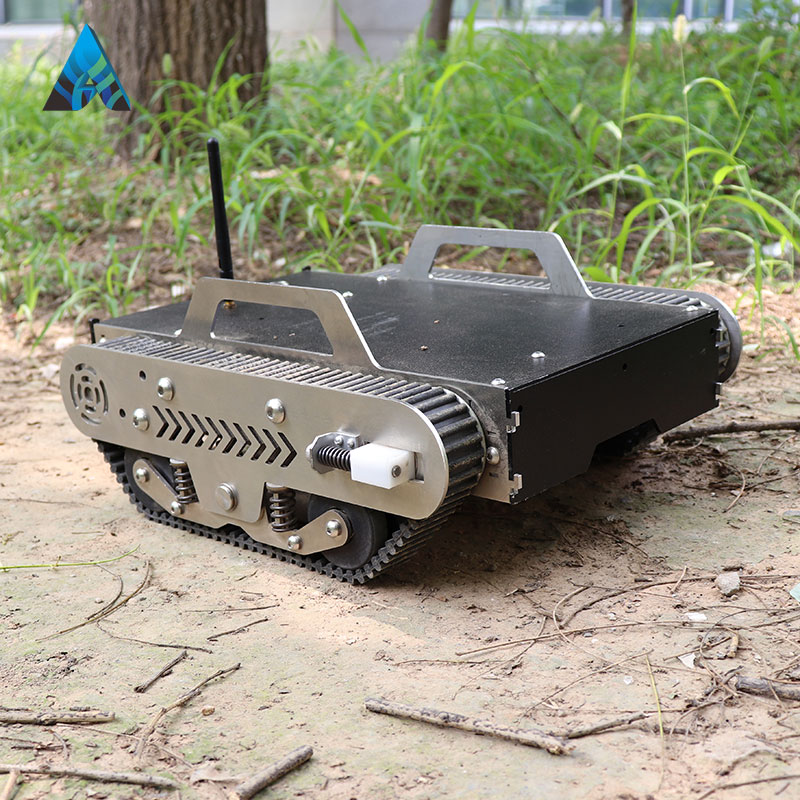

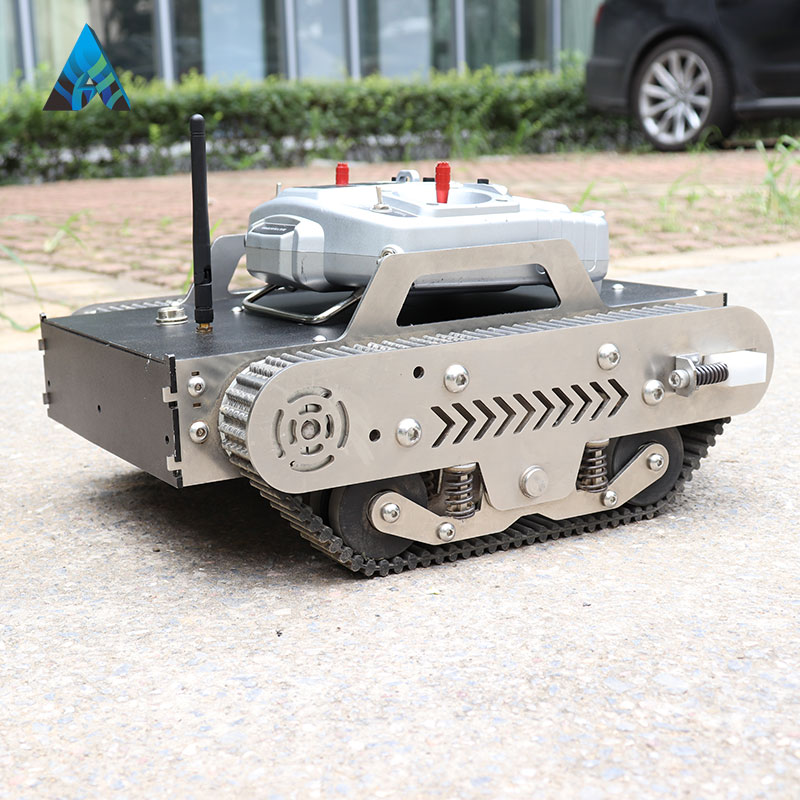

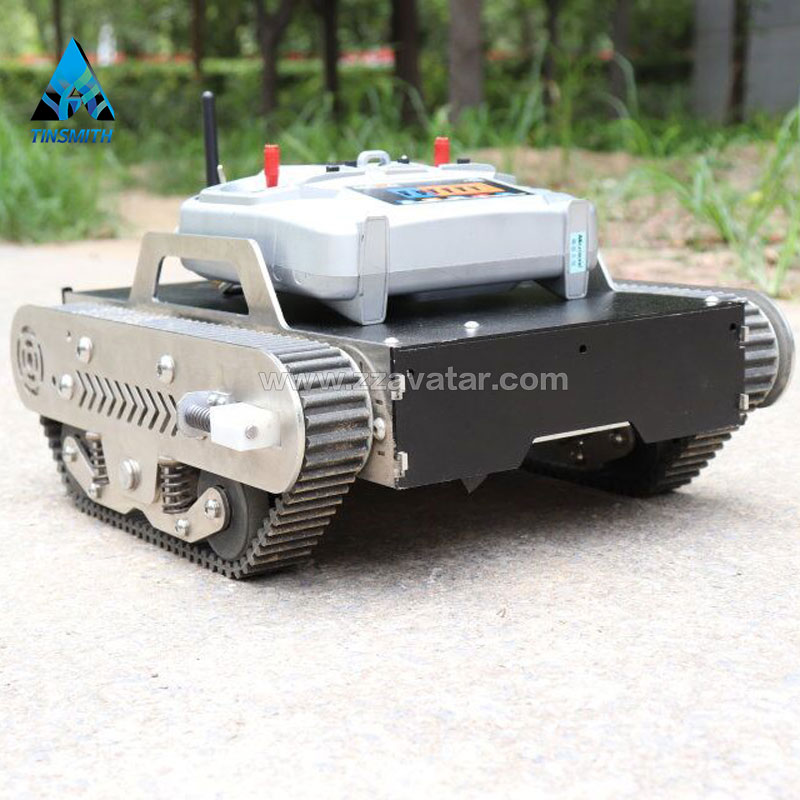

5. Picture display:
