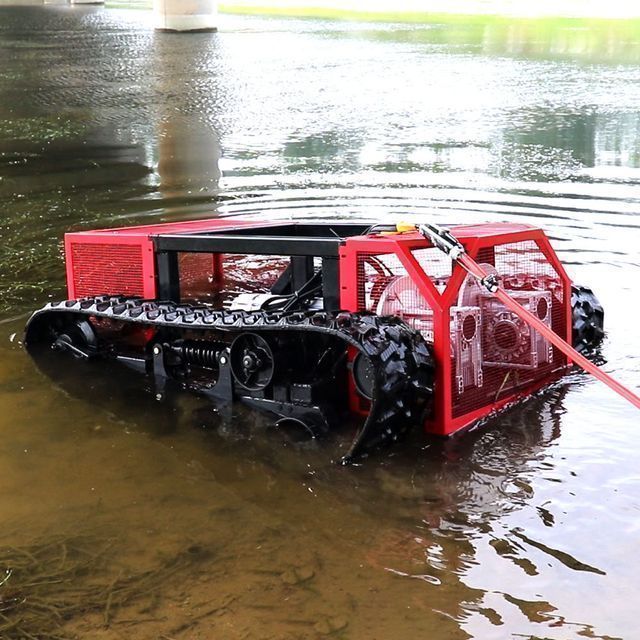

AVA-U13 Matilda Suspension System RC Robotic Chassis for Underwater Dredging

Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Lisa Si
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Applicable industries:	Food and beverage plants, farms, construction works
brand:	Avatar	State of health:	new
Voltage:	380v	0.75-1.5KW*2:	1500 rpm
Packaging Details:	Standard Package for Matilda Suspension System Remote Control Robotic Chassis for Underwater Dredging	Dimensions (LWH):	1220890520mm
Cable control distance:	Standard 50m, maximum 150m	Supply capacity:	200 sets/month underwater robot chassis
After warranty service:	Video technical support, online support, spare parts	Video shipment inspection:	if
payment terms:	L/C, D/P, D/P, T/T	Mechanical test report:	if
strength:	380W	Core component warranty:	1 year
Marketing Type:	New Products 2021	engine:	(0.75-1.5)KW*2
speed:	2.5-4km/h	Showroom location:	not any
Core components:	gear	waterproof:	IP68
After-sales service provided:	Does not provide overseas services	feature:	1220890520mm
Local service location:	not any	port:	Shanghai, Tianjin, Guangzhou, Qingdao
Track width:	130mm	Weight:	Self-respect
Transmission ratio:	1:10-1:40	Maximum underwater depth:	30 meters
2.5-4 km/h:	100-500 nautical miles	application:	underwater work
place of origin; place of origin:	Henan, China

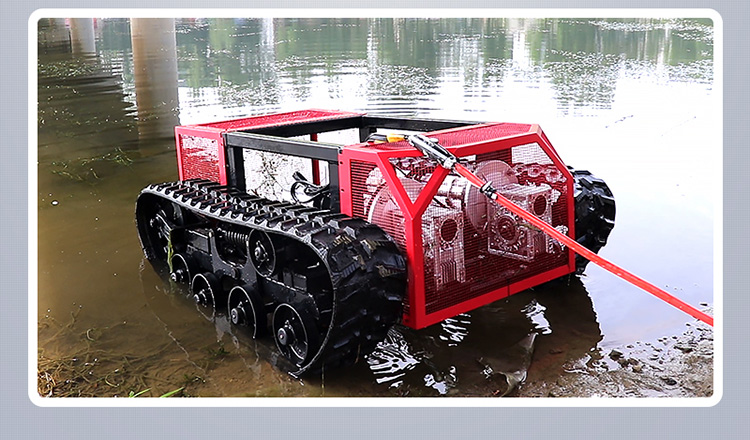

AVA-U13 Matilda Suspension System RC Robotic Chassis for Underwater Dredging

AVA-U13 Application

We also produce custom product applications: underwater dredging robots, winch suction robots, etc.

application:

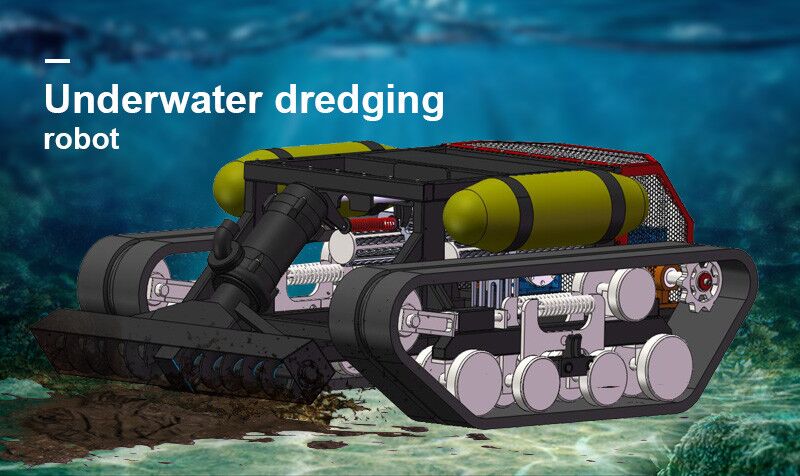

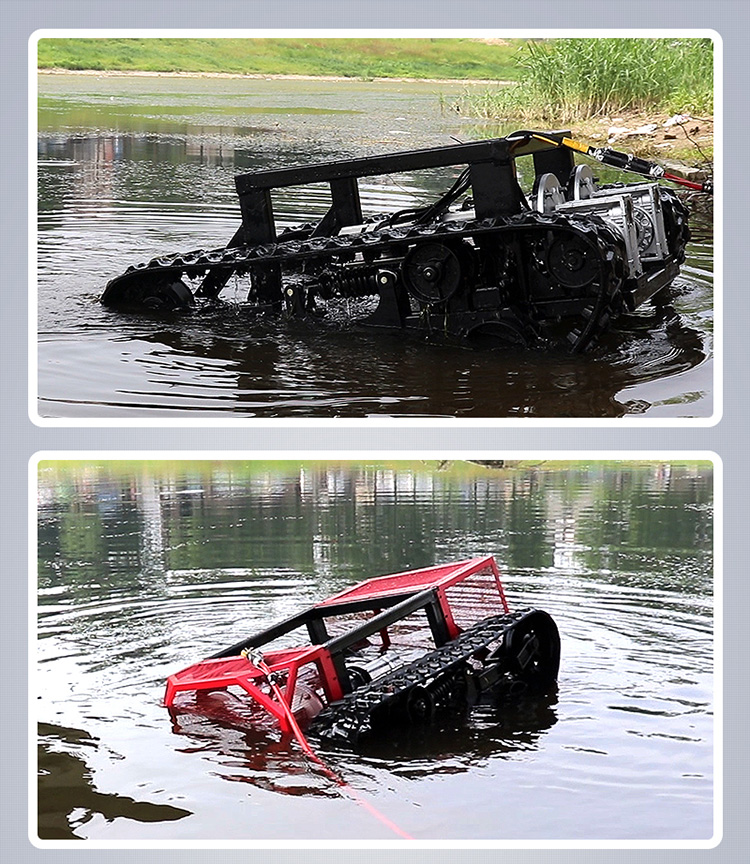

1.Underwater dredging robot: Used to clean up the sludge in breeding ponds and sedimentation ponds.

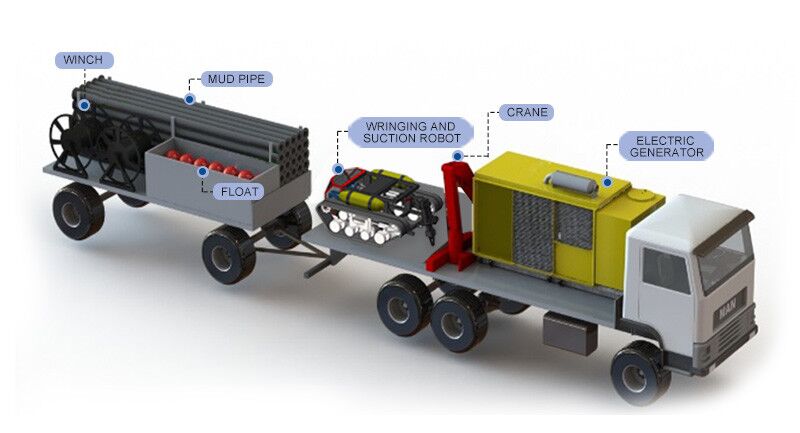

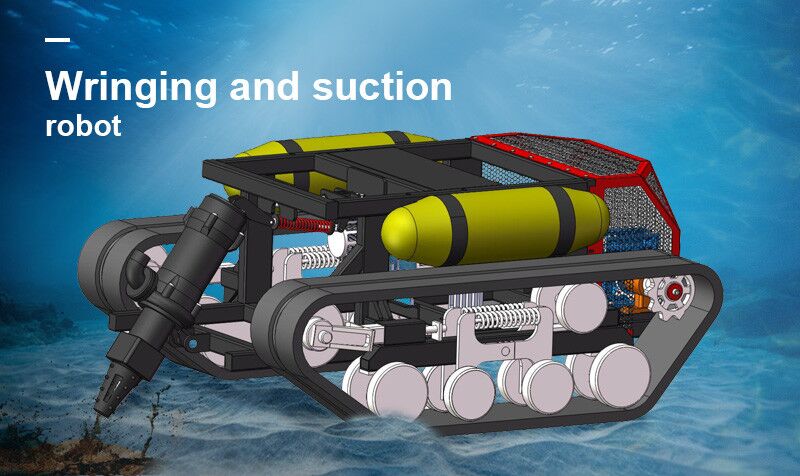

2.Squeeze dry suction robot: Underwater excavation, dredging

3.Harvesting of aquatic products: Mainly used for harvesting aquatic crops such as lotus root, water chestnut, mushroom, etc..

Technical Parameters

Specification:

thing	data	thing	data
size	1220890520mm	speed	2.5-4km/h
Self-respect	120 kg	design load	100-300kg
waterproof	IP68	Rated torque	100-500 nautical miles
track width	130mm	Reducer efficiency	65-85%
transmission ratio	1:10-1:40	suspension system	Matilda
engine	(0.75-1.5KW)*2	climbing ability	≤30° (can climb stairs)
Motor rated speed	1500 rpm	maximum span	620mm

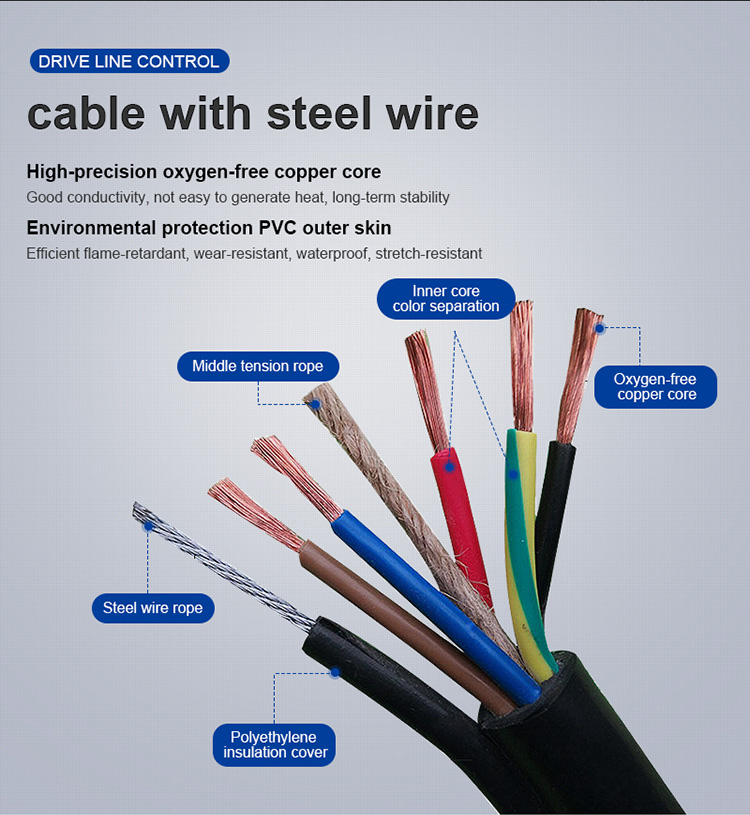

Cable control distance	Standard 50m, maximum 150m	Obstacle clearance	130mm
Maximum underwater depth	30 meters	power supply	generator or domestic electricity

Product Description

introduce:

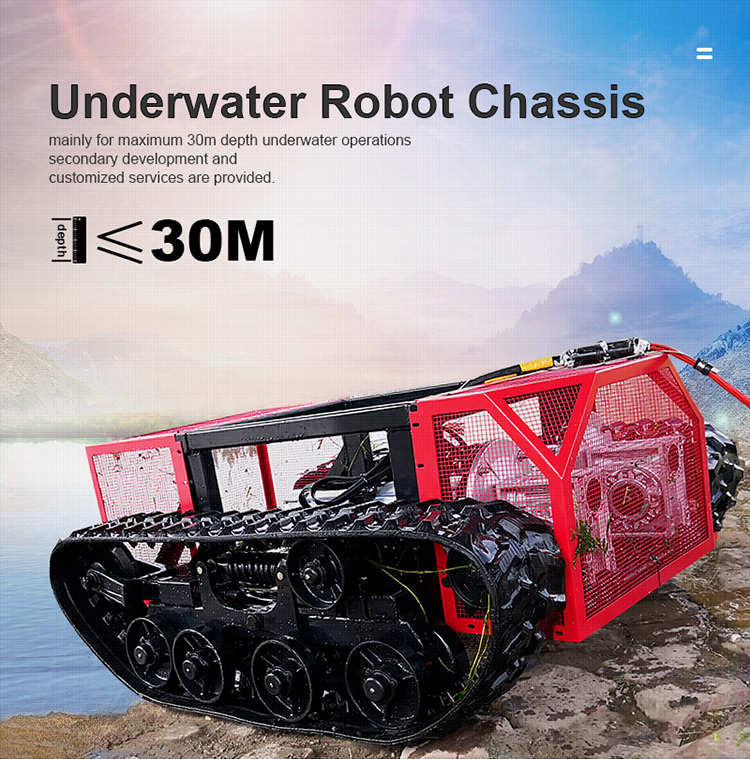

it usesgenerator or domestic electricity,mainly forMaximum depth 30mUnderwater operations, secondary development and customized servicessupply.

unique features

feature:

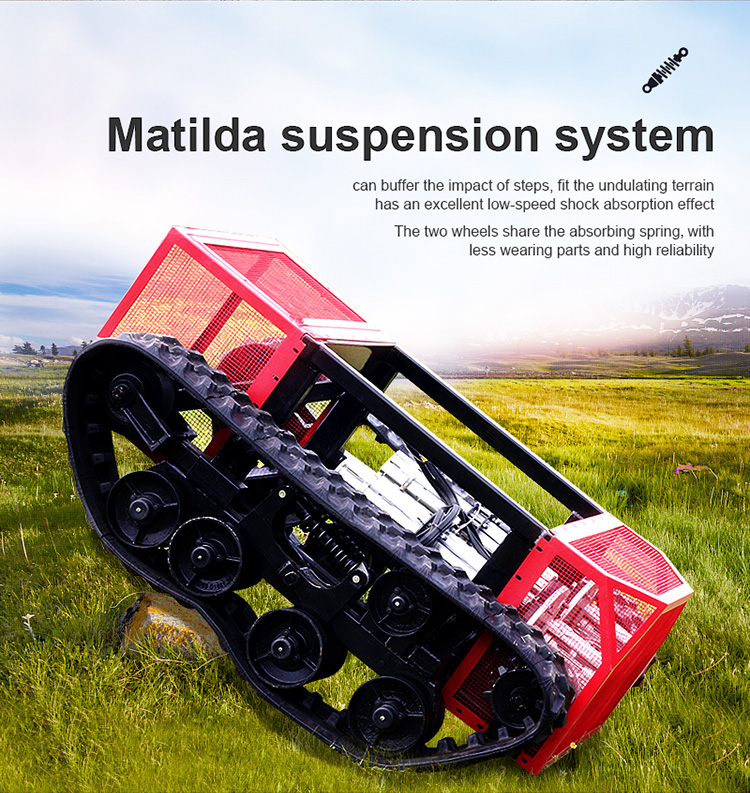

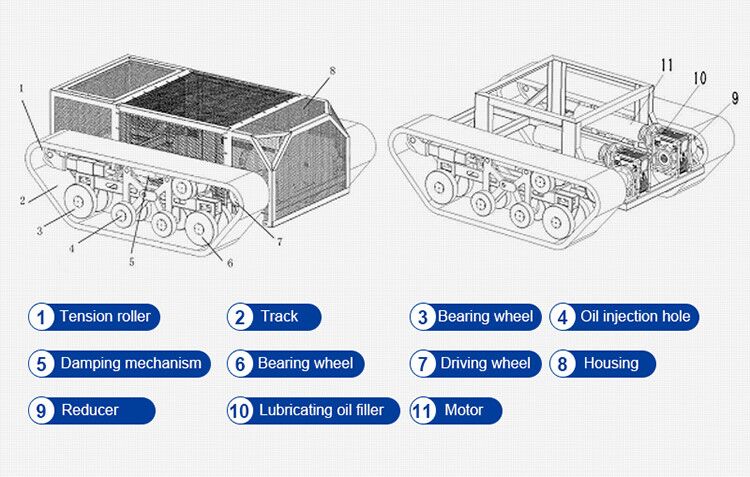

1. Matilda suspension system can buffer the impact of steps, adapt to undulating terrain, and has excellent low-speed shock absorption effect. The two wheels share the shock absorbing spring, andwear lesspartwithhigh reliability.

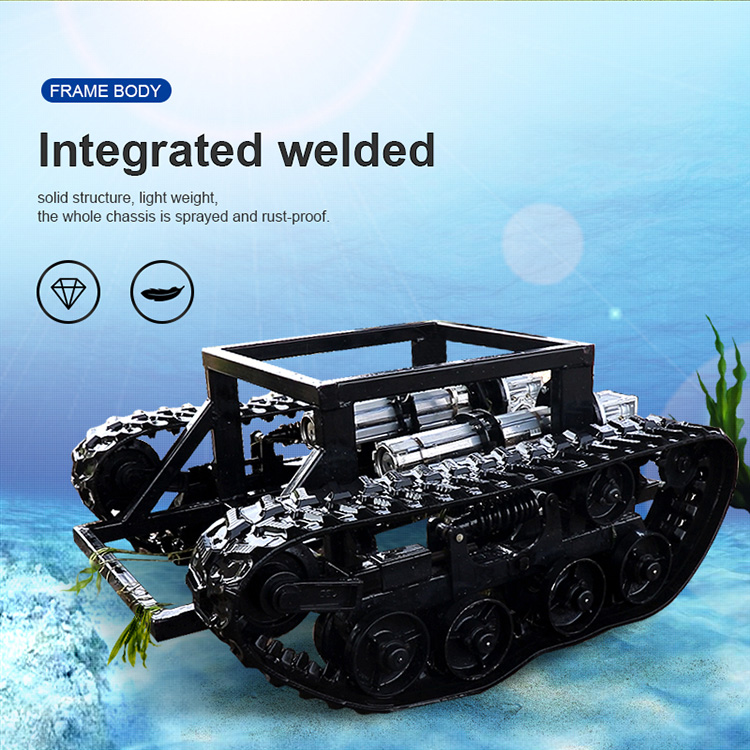

2. One-piece welded frameBody, sturdy construction,Lightweight, overallchassisAnti-rust spray.

3. The power transmission parts are oil-filled and waterproof, long-term reliable, and can withstand a water depth of 30 meters.

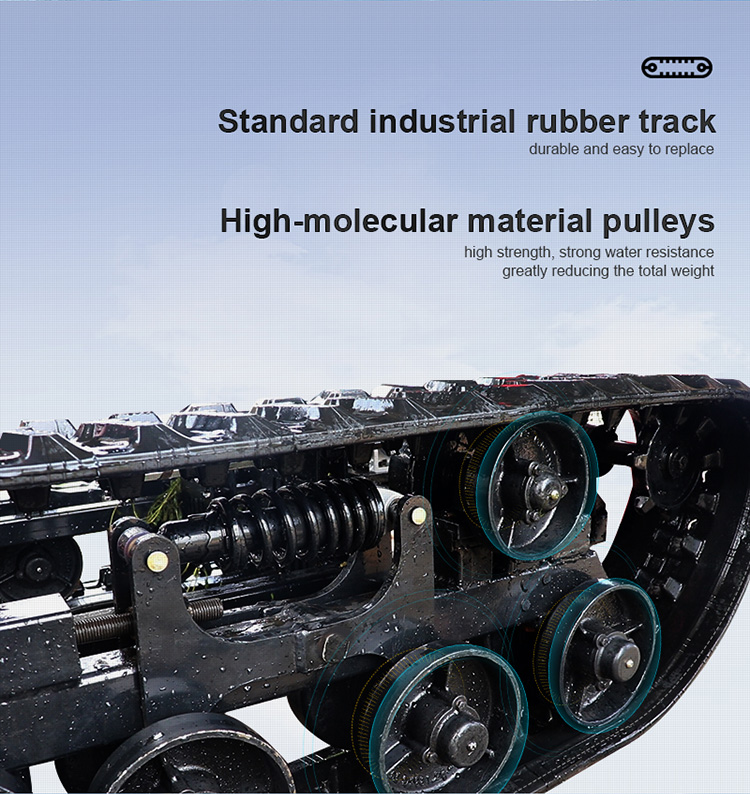

4. Standard industrial rubber track, durable and easy to replace

5. Polymer material pulley (molecular weight greater than 5 million), high strength, strong water resistance,Greatly reduced overall weight.

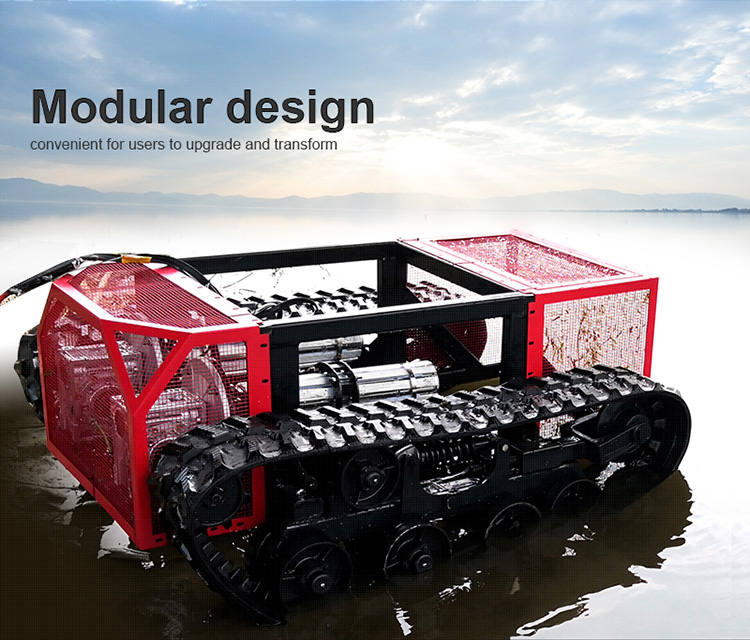

6. Modular design, convenient for users to upgrade and transform.

7. Power system:dynamoeitherCivilian power.

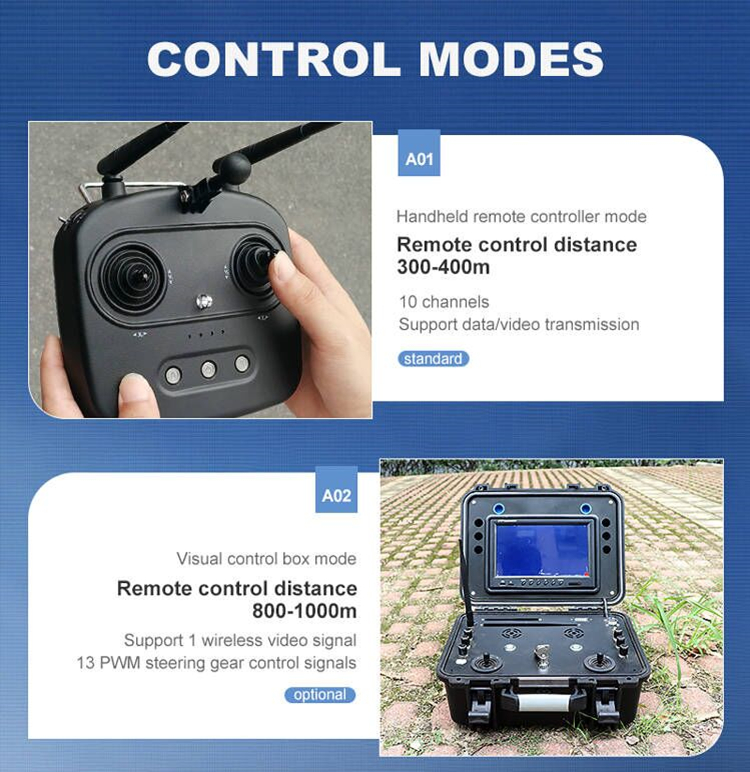

8. 2 control modes are optional:

(1) Handheld remote control + ordinary control box mode: No secondary development is required, or only support remote control receivers with reserved control channel PWM signals, and do not support video and voice channels.

(2) Visual control box mode: 4-channel wired video signal, 13-channel PWM steering gear control signal, underwater equipment expansion can be customized and developed.

feature
control characteristics	control method	Velocity control (PV), position control (PP), IP, CSP, CSV, CST
	support motor	Waterproof AC torque motor
	Vehicle Control Accuracy	±0.1m
	Speed regulation accuracy	±0.05m/s
Communication Interface	RS-485	Standard ModBus protocol
	can be opened	Standard CanOpen protocol, CiA301/402
	ether cat	Do not
encoder type	encoder port	2500P/R
	ambient temperature	-20°C—50°C, use with derating above 40°C
	high	30 meters underwater, use with derating above 1000 meters
	vibration	Less than 0.5G (4.9m/s2), less than 10Hz
	Storage temperature	-40℃—70℃
