Well power supply DR-30-24 30w 24v din
-
Supplier: Hangzhou Nuohan Electronics Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Ron Zhu -
Price: $6.00 /piece -
Min. Order: 1 piece
Product details
| Warranty: | 3 years | DR-30-24: | rail power supply |
| Output Power: | 36W | Function: | Can be mounted on DIN rail TS-35/7.5 or 15 |
| Operating temperature: | -20℃~+70℃ | Packaging Details: | Each meanwell din rail power supply DR-30-24 will be packaged in a neutral box. Packing weight: 0.27Kg; 48pcs/14Kg/1.02CUFT |
| feature: | Isolation class II | efficiency: | 83% |
| Output frequency: | 47~63Hz | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| brand: | meaning is | model: | DR-30-24 |
| aspect: | 78*93*56mm(W*H*D) | The output voltage: | 24V |
| Safeguard: | Short circuit/overload/overvoltage/overtemperature | Output current: | 1.5A |
| place of origin; place of origin: | Jiangsu, China | Input voltage: | 85 ~ 264VAC 120 ~ 370VDC |
| Certification: | TUV/CB/CE/EMC | port: | Shanghai or Shenzhen |
| Supply capacity: | 70000 pieces per month | Package: | 0.27kg; 48pcs/14Kg/1.02CUFT |

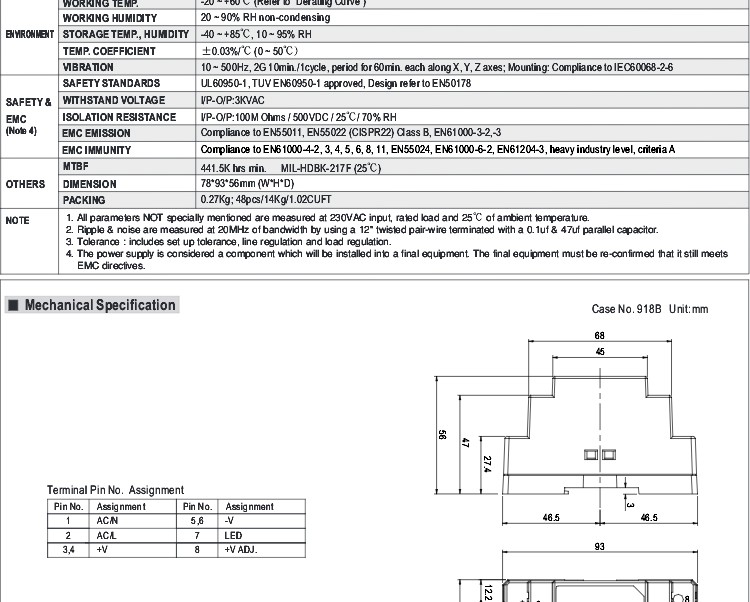

Specification
| Card | kindness | enter | 85 ~ 264VAC 120 ~ 370VDC |
| Model | DR-30-24 | Warranty | 3 years |
| output |
24V 1.5A 36W |
Certificate | CB FCC CE TUV EMC ROHS |
DR-30-5 DR-30-12 DR-30-15 DR-30-24
