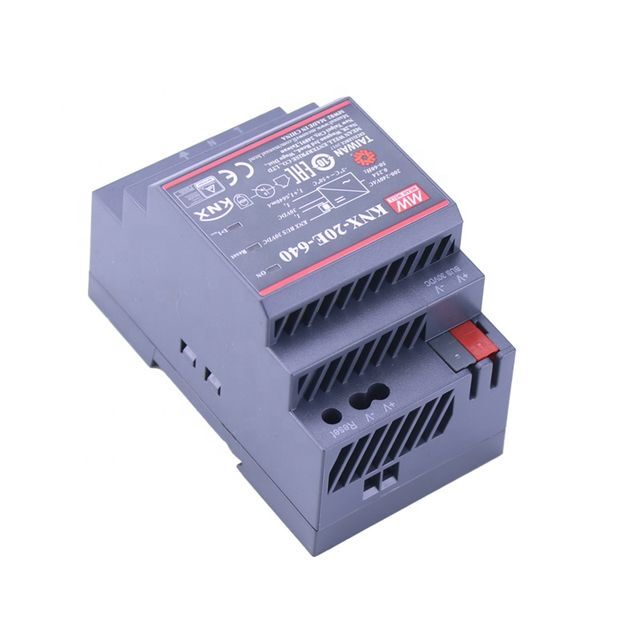

KNX-20E-640 30VDC/640mA EIB/KNX well power supply with built-in choke
- 15.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Protect: | Short circuit, overload, over voltage, over temperature | Supply capacity: | 70,000 pieces per month |
| Output Power: | 19.2W | Operating temperature: | -30 ~ +70℃ (refer to "Derating Curve") |
| KNX-20E-640: | 640mA 19.2W | Input voltage: | 180 ~ 264VAC 254 ~ 370VDC |
| Packaging Details: | 0.215kg 60psc/13.9kg 0.97curt | model: | KNX-20E-640 |
| The output voltage: | 48V | Output frequency: | 47~63Hz |
| efficiency: | 86% | Output current: | 640 mA |
| port: | Shanghai or Shenzhen | aspect: | 52.5*90*54.5mm (W*H*D) |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal | Package: | 0.215kg 60psc/13.9kg 0.97cuft |
| Warranty: | 3 years | brand: | I'm sorry |
Our strength

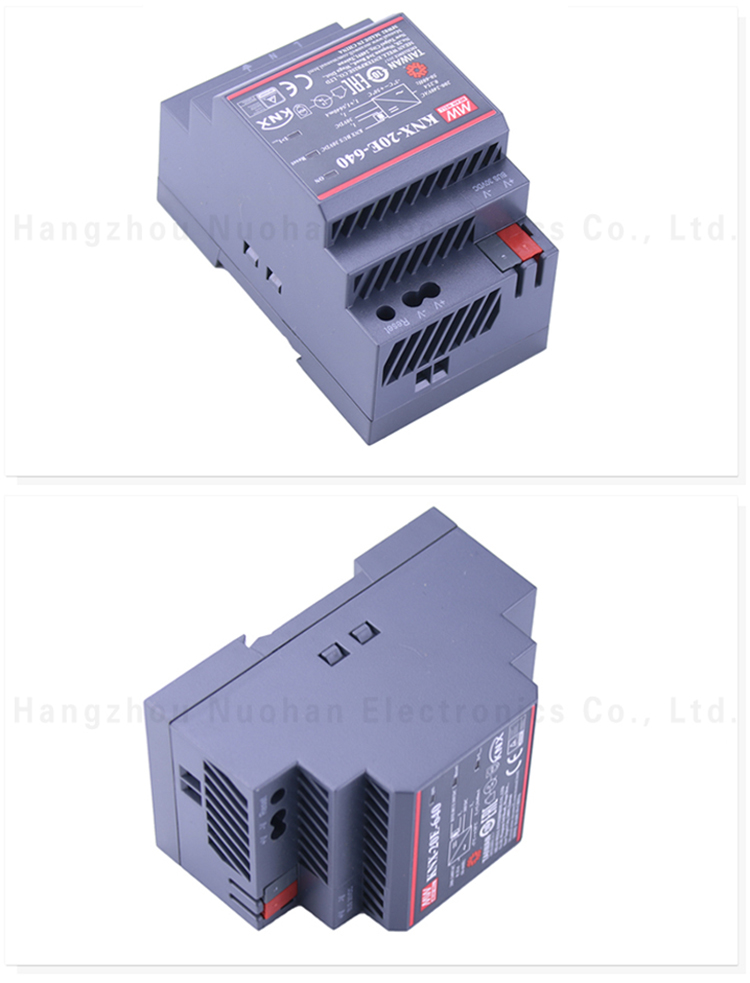

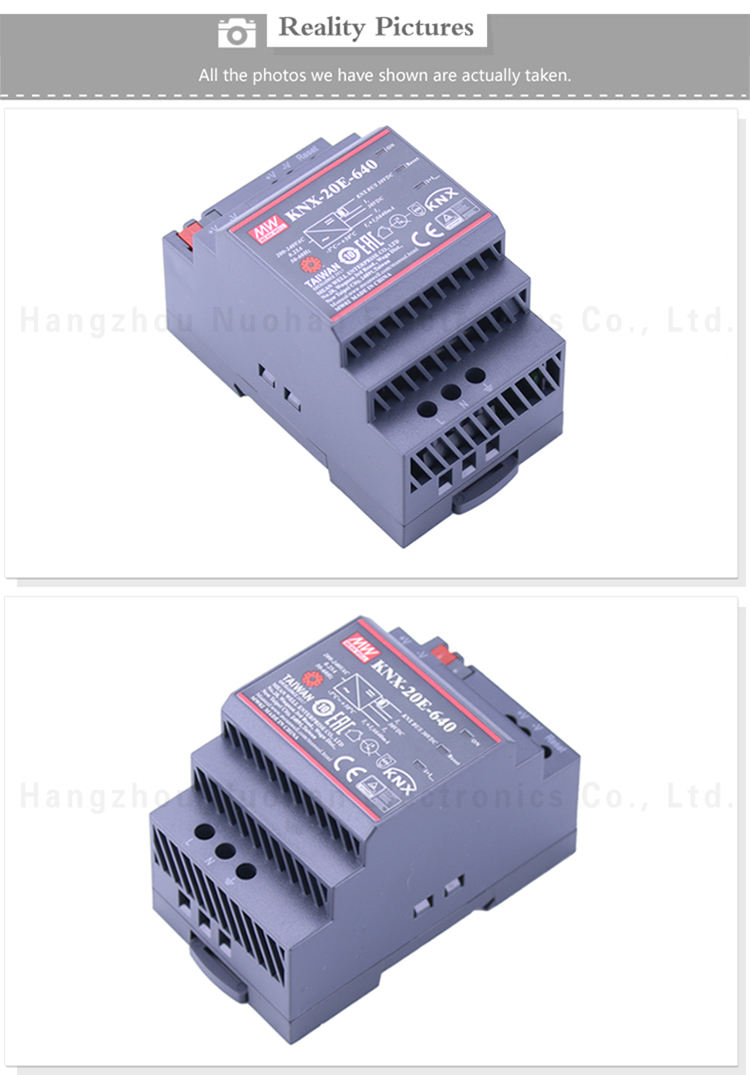

Product Image

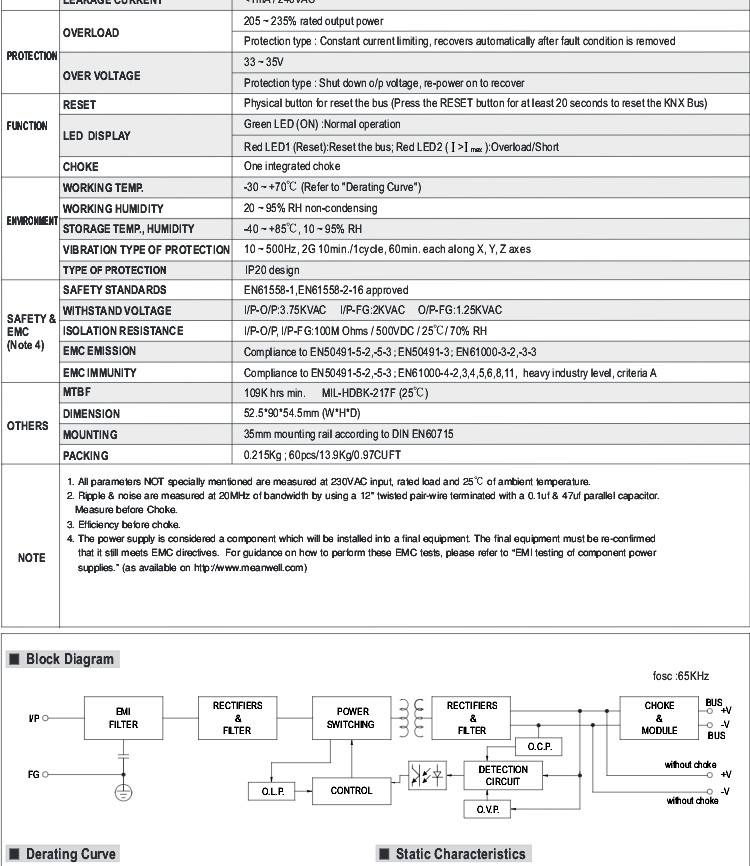

Specification
| Card | I'm sorry | enter | 180 ~ 264VAC 254 ~ 370VDC |
| Model | KNX-20E-640 | Warranty | 3 years |
| output | 19.2W 640mA | Certificate | CE TUV EMC ROHS |
trade assurance
