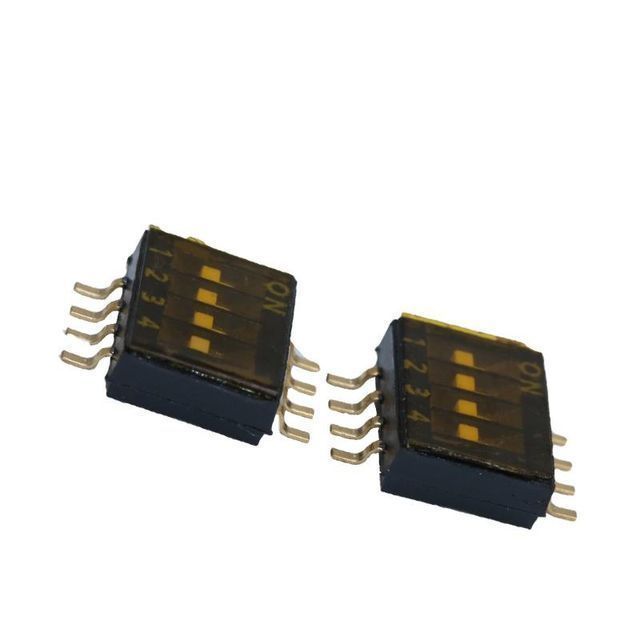

CHA -SHP SMD SMT Three-Hole Immersion Switch Tru-Hole Gold Plated
- 0.20 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | Western Union, T/T, MoneyGram, PayPal | port: | Hong Kong, Shenzhen |
| color: | step back | asphalt: | 1.27 |
| stroke: | 1.0mm | place of origin; place of origin: | Guangdong, China |
| Certification: | Do not | brand: | check |
| Supply capacity: | 8,000,000 pieces per month Alloy Copper, Gold Plated CHA -CDM CDH SMD SMT Tru-Hole Tri-Sta | terminal: | through hole piano |
| Electrical life: | 2000 cycles minimum | Packaging Details: | Packaging Details: Export Standard Packaging for Wholesale DIP Switches Delivery Details: Strictly Follow Order Confirmation Wholesale DIP Switches Alloy Copper, Gold Plated CHA -CDM CDH SMD SMT Tru-Hole Three-State DIP Switches |
| Name: | SHP series DIP switch | Operating force: | 400g~1000g |
| Operating temperature: | 25℃~+70 | maximum. current: | 25mA |
| pack: | integrated circuit tube | model: | SHP series |
| maximum. Voltage: | 24V DC | score: | 25mA 24V DC |
CHA -CDM CDH SMD SMT Tru-Hole 3-State DIP Switch Gold Plated

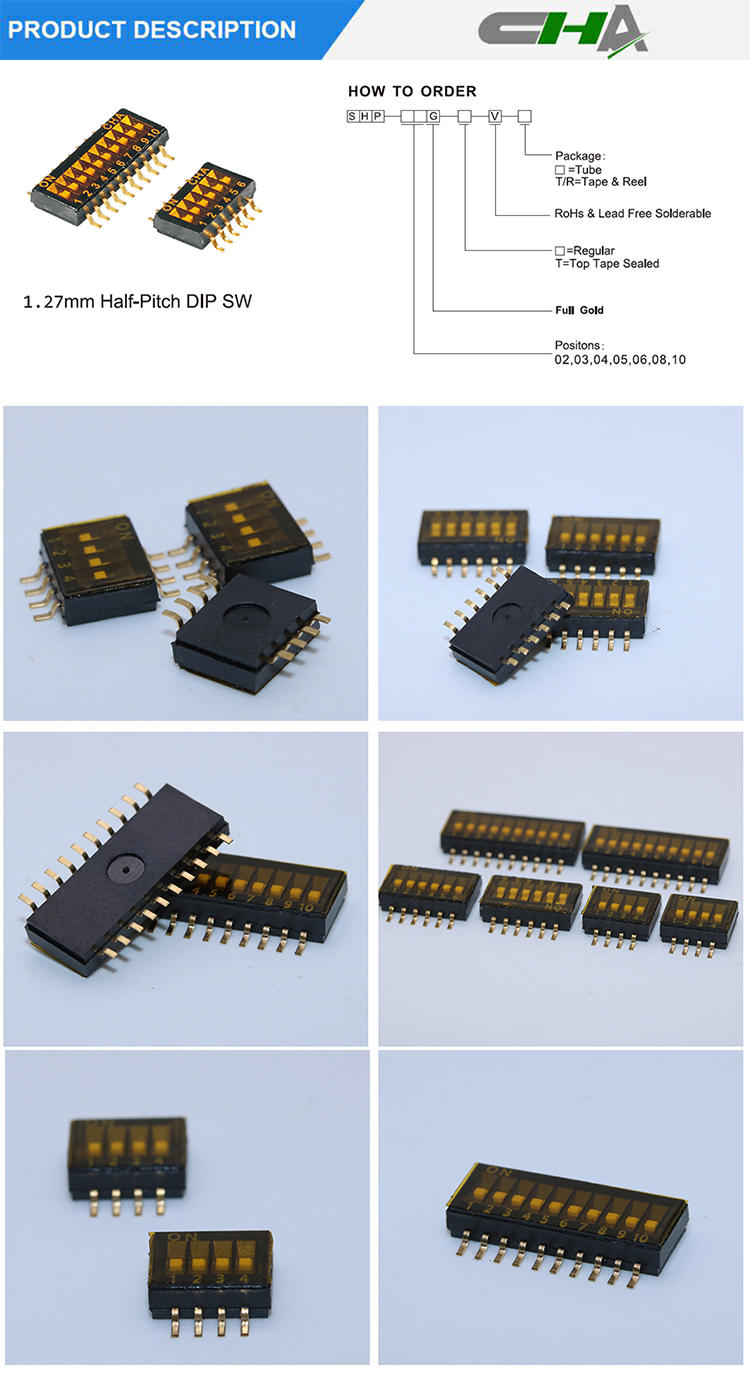

Product Description
Specification
SHP series DIP switch | ||
Specification | ||
Contact Rating: | 25 mA @ 24 VDC (switching) 100 mA @ 50 VDC (non-switching) | |
initial: | 50mΩ max | |
After death: | 100mΩ max | |
Insulation resistance: | 100mΩ max at 100 VDC | |
Dielectric strength: | 300 VAC for 60 seconds | |
switched capacitor | 5pF max at 1MHz | |
Operating temperature: | -30°C to +85°C | |
Storage temperature: | -40°C to +85°C | |
Machining | ||
Operating force: | Maximum 500gf | |
Mechanical life: | 1000 cycle operation | |
Resistance to soldering | 270℃±5℃ for 10 seconds | |
