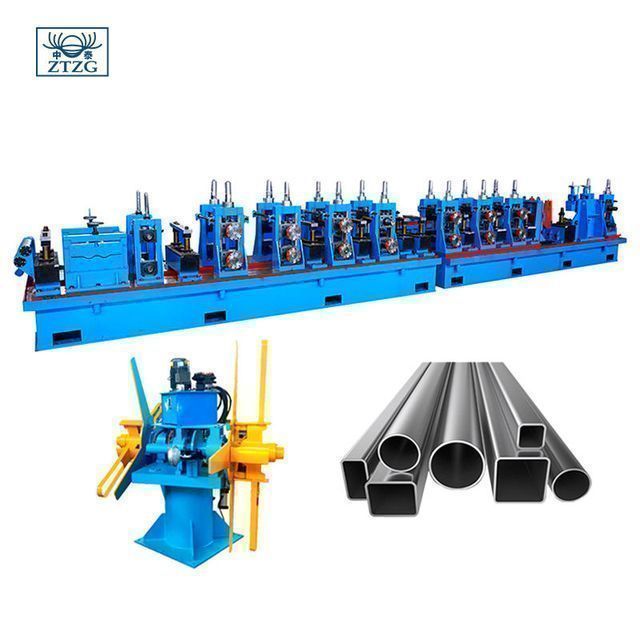

ZTZG welded pipe production line metal pipe forming manufacturing machine square round steel pipe making machine

Supplier: Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Region: Hebei, China
Contact: Mr Peter Shi
Price: $30000.00 / 1 - 1 sets
$20000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Key words:	high accuracy	Pipeline application:	Metallurgy, construction, transportation, vehicles and other industries
Packaging Details:	Usually we choose 40ft container. Each part of the mill is secured with fixed cables, with wires attached to the top and bottom of the container. roller,	Advantage:	high productivity
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal	Production capacity:	20-65m/min
type:	Tube machine	feature:	automatic
Supply capacity:	Annual output of 20 welded pipe production line steel pipe forming machines	Package preview:
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Core component warranty:	1 year
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, farms, home use, construction, energy and mining	Health status:	new
Warranty:	1 year	Showroom location:	Turkey, Italy, Vietnam, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Morocco, South Korea, Chile, Colombia, Algeria, Sri Lanka, South Africa, Kazakhstan, Ukraine, Uzbekistan, Japan
Pipe material:	carbon steel, carbon steel	Mechanical test report:	if
Pipe shape:	round, square, rectangular	Voltage:	380V/220V
port:	Newport	Certification:	ISO, European Union
weight:	70000 kg	brand:	BYZGR
application:	Energy supply tube	After-sales service provided:	Engineers available to service machinery overseas
place of origin; place of origin:	Hebei china	Dimensions (LWH):	78*6 meters
strength:	480 kW	Main selling points:	high accuracy
Welding type:	high frequency welding	Marketing Type:	New Products 2020
technology:	ZTF, Direct Square to Square (DSS) technology, Circle to Square	Video shipment inspection:	if

machine description

ZTZG welded pipe production line metal pipe forming manufacturing machine square round steel pipe making machine

High Frequency (HF) Longitudinal WeldingPipe production line/Tube machine/Tube Mill / Tube MillDesigned for the production of welded pipes with an outer diameter of 8mm to 165mm and a maximum wall thickness of 6.0mm, as well as corresponding square and rectangular pipes.

Product parameters
Product & Output	round tube	8mm-165mm Thickness: 0.3mm-6.0mm
		Rectangular tube	6mm×6mm -130mm×130mm Thickness: 0.3mm-5.0mm
		length	6m-12m length tolerance: ±3mm
		Production speed	20-120m/min
		production capacity	30,000 tons/year
consume	Mill installed capacity	220 kW
		line area	85m(length)×7m(width)
		Worker	6-8 workers
raw material	carbon steel coil	Carbon steel coil Q235B (ASTM GR D, σs 230) & high strength steel or higher
		width	25mm-520mm Thickness: 0.3mm-22.0mm
		Coil No.	580-700mm
		Coil outer diameter	Maximum 1800mm
		Coil weight	25.0 tons
