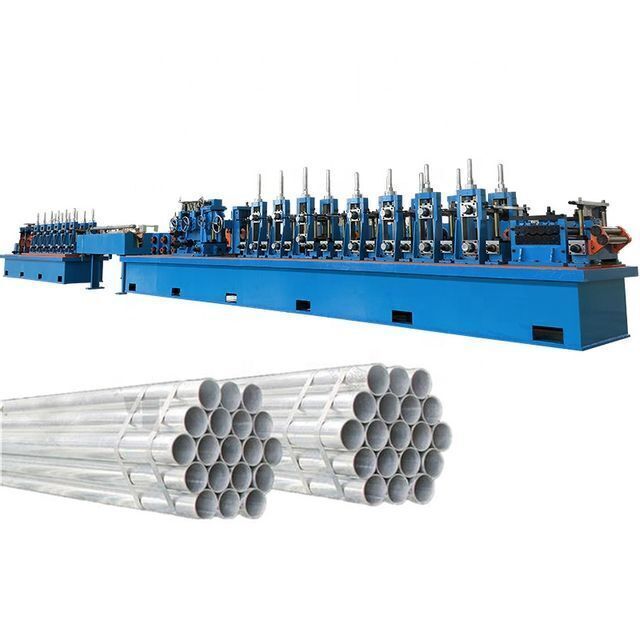

Black Steel Tube Production Line Round Square Pipe Making Machine Rectangular ERW Pipe Mill

Supplier: Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Region: Hebei, China
Contact: Mr Peter Shi
Price: $80000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Pipe application:	Fluid tube/Support tube/Decorative tube;	Product name:	Steel Tube Mill;
Key Selling Points:	Long Service Life;	Application:	Energy Supply Pipe;
Square/Rectangular pipe size:	15 mm15 mm - 40 mm40 mm;	Usage:	Industrial Areas;
After Warranty Service:	Video technical support,Online support;	Payment Terms:	L/C,T/T;
Pipe thickness:	0.8 mm-2.0 mm;	Weight:	20000;
Raw material:	Black Steel;	Certification:	ISO9001:2008;
Strip width:	25mm-2261mm;	Pipe shape:	Round/Square/Rectangular;
Warranty:	1 Year;	Place of Origin:	Hebei, China (Mainland);
Pipe diameter:	20 mm-50 mm;	Showroom Location:	Egypt,Russia,Colombia;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Production Capacity:	20-120m/min;
Machinery Test Report:	Provided;	Pipe Material:	Carbon Steel;
Port:	Xingang, Tianjin;	Brand Name:	ZTZG;
Package Preview:	;	Video outgoing-inspection:	Provided;
Core Components:	PLC,Engine,Gearbox,Motor;	Condition:	New;
Pipe raw material:	Various kinds of steel strips and plates;	Warranty of core components:	1 Year;
Applicable Industries:	Manufacturing Plant,steel pipe manufacturer;	Power:	220/380/415/420/440V;
Local Service Location:	Egypt,Russia,Colombia;	Type:	Pipe Production Line;
Packaging Detail:	Standard export packing;	Marketing Type:	New Product 2020;

Products Description

Product Parameter
Product&yield	Round Pipe	8mm-720mm Thickness:0.3mm-22.0mm
		Square & rectangle tube	6mm×6mm -600mm×600mm Thickness:0.3mm-22.0mm
		Length	6m-12m Length Tolerance: ±3mm
		Production Speed	20-120 m/min
		Production capacity	80,000ton/year
Consumption	Mill installed capacity	140-1200kw
		Line Area	85m(length) ×7m (width)
		worker	6-8 workers
Raw Material	Carbon Steel coil	Carbon steel coil Q235B(ASTM GR·D,σs 230)
		Width	25mm-2200mm Thickness: 0.3mm-22.0mm
		Coil ID	580-700mm
		Coil OD	Max 1800mm
		Coil Weight	25.0t

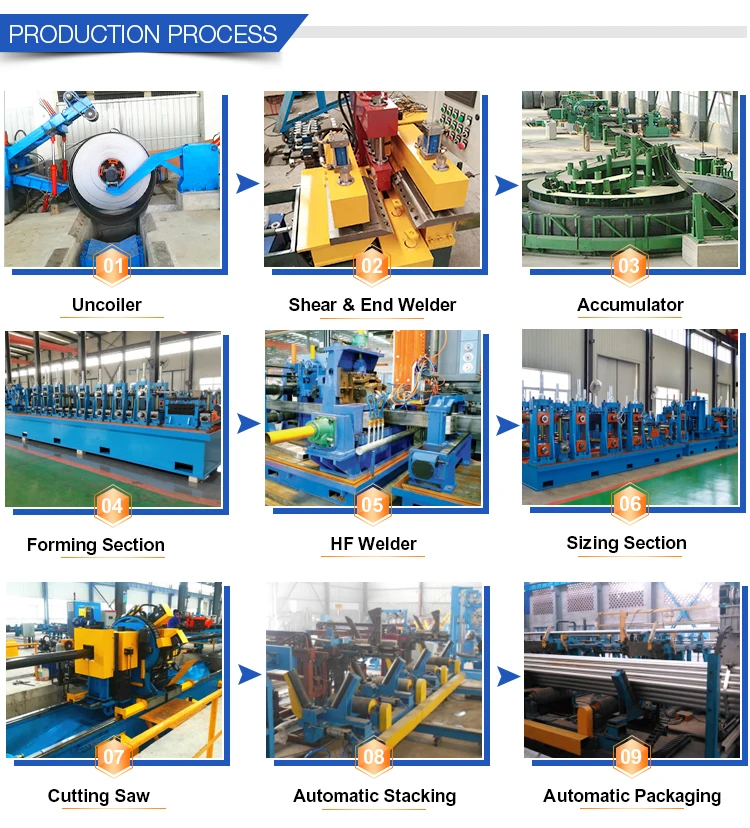

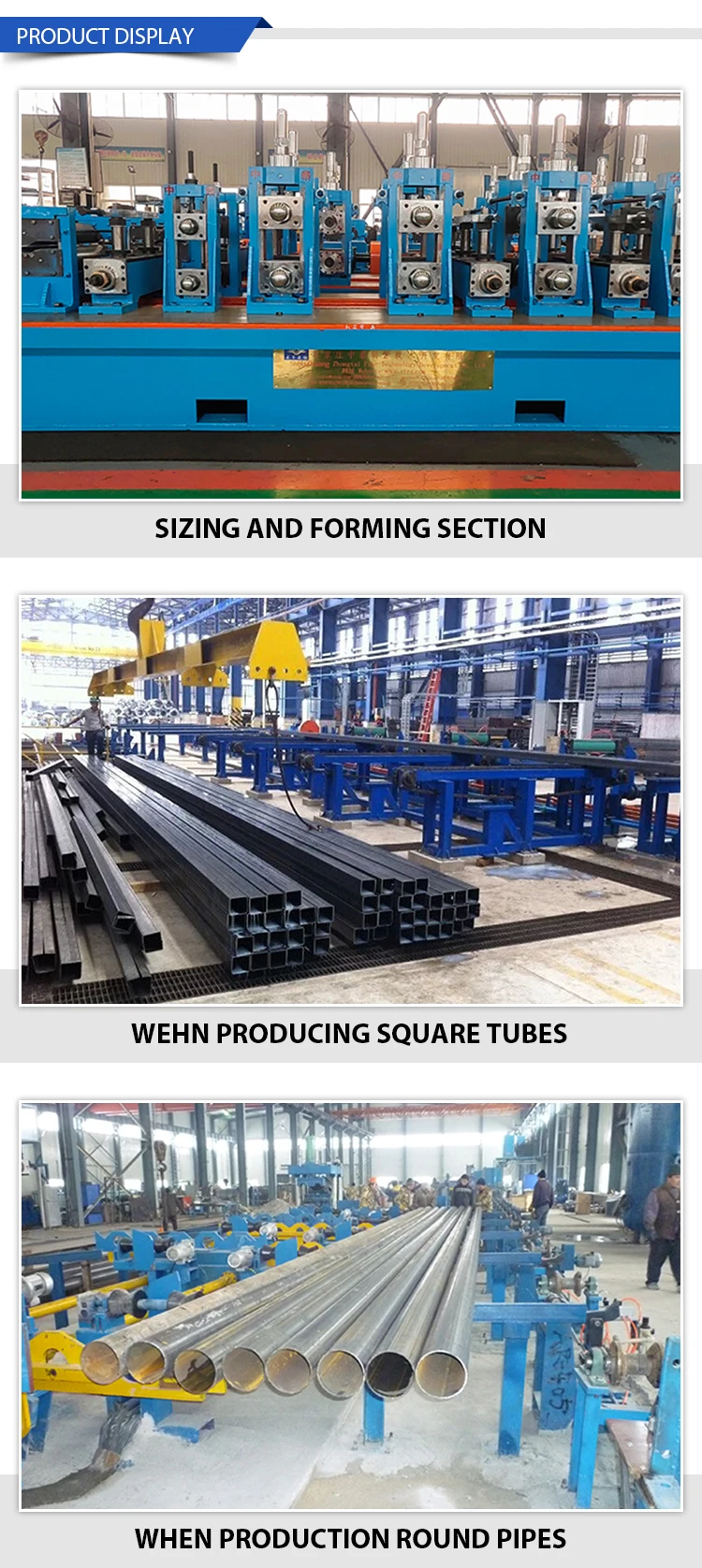

Production Line

Successful Cases

Recommend Products

Company Profie

Certifications

FAQ

Q: Are you manufacturer?
A: Yes, we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Mouds). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1) Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2) Every shaft will be inspected for the centering jumpiness.
(3) Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.

Model List
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW20	Ф8-Ф20	6x6-15x15	0.3-1.5	120
ERW32	Ф10-Ф32	10x10-25x25	0.5-2.0	120
ERW50	Ф20-Ф50	15x15-40x40	0.8-3.0	120
ERW76	Ф32-Ф76	25x25-60x60	1.2-4.0	120
ERW89	Ф42-Ф89	35x35-70x70	1.5-4.5	110
ERW114	Ф48-Ф114	40x40-90x90	1.5-4.5	65
ERW140	Ф60-Ф140	50x50-110x110	2.0-5.0	60
ERW165	Ф76-Ф165	60x60-130x130	2.0-6.0	50
ERW219	Ф89-Ф219	70x70-170x170	2.0-8.0	50
ERW273	Ф114-Ф273	90x90-210x210	3.0-10.0	45
ERW325	Ф140-Ф325	110x110-250x250	4.0-12.7	40
ERW377	Ф165-Ф377	130x130-280x280	4.0-14.0	35
ERW406	Ф219-Ф406	170x170-330x330	6.0-16.0	30
ERW508	Ф273-Ф508	210x210-400x400	6.0-18.0	25
ERW660	Ф325-Ф660	250x250-500x500	6.0-20.0	20
ERW720	Ф355-Ф720	300x300-600x600	6.0-22.0	20
