New product 540L laboratory Dry Equipment Chamber drying machine

Supplier: Dry Cabinet
Region: Jiangsu, China
Contact: Ms. Jane Zhou
Price: $1900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	laboratory Processing;	Material:	SUS 304;
Inner size:	W555mmD640mmH1315mm;	Place of Origin:	Jiangsu China (Mainland);
Deviation:	humidity ±3%RH temperature ±1℃;	Display:	LED display;
Name:	drying machine;	Voltage:	110V/220V;
Port:	Shanghai/Ningbo;	Power(W):	42W;
Capacity:	540L;	Warranty:	3 years;
After-sales Service Provided:	Field installation, commissioning and training;	Certification:	ISO9001;
Brand Name:	GRD;	Color:	home using in white/anti-static in blue gray;
Humidity control range:	1%RH-60%RH;	Payment Terms:	L/C,T/T,Western Union;
Shelves:	3 pieces;	Condition:	New;
Weight:	120KG;	Key word:	dry equipment 110v;
Type:	Dry Cabinet;	Supply Ability:	999 Set/Sets per Month dry equipment 110v;
Packaging Detail:	GZN540 SUS304 Dessicator Drying Chamber In Laboratory Dry Equipment 110v plywood case or honeycomb carton case.;	Dimension(LWH):	W720mmD690mmH1485mm;

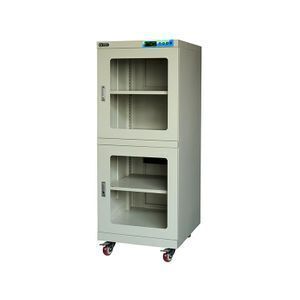

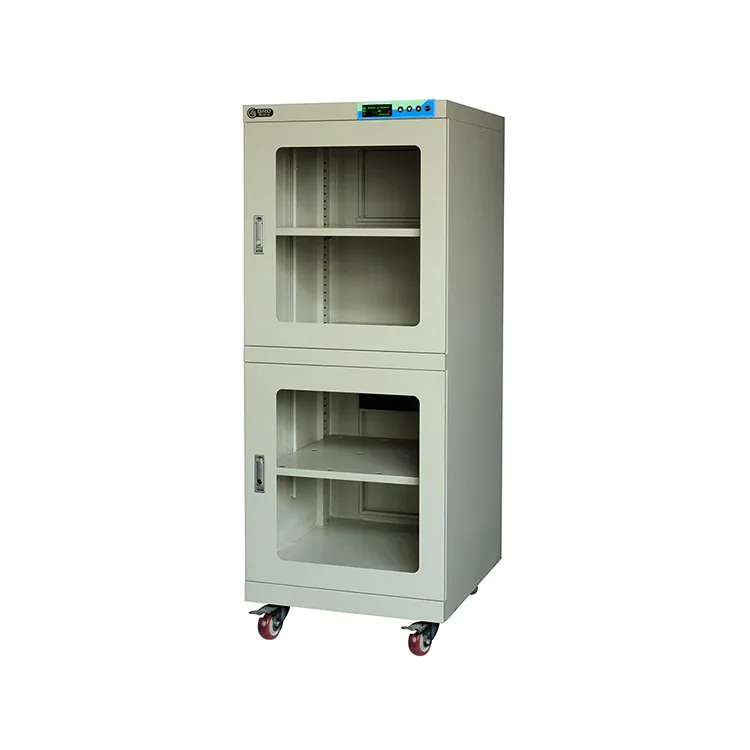

New product 540L laboratory Dry Equipment Chamber drying machine

Product Description

Product Information

About our product

• 1.2mm SUS304 for body cabinet(the material can be custom made), 5.0mm tempered glass windows.Imported US HONEYWELL humidity sensor,the biggest word humidity sensors manufacturer with min error around ±3%RH .
• Steady humidity provider with the humidity controlled range 1%-60%RH.(adjustable and can be custom made)
• LED display design,temperature and humidity displayed alone and all the working status can be displayed at the some time,easily for trouble shorting with temperature display range RT-99℃.
• 4 movable wheels,2 of them with brake,4 supporters for fixing,lockable zinc alloy handle with coded lock.Inner LED head lamp,convenient for accessing items.
• 3 adjustable shelves with the bearings of 50kg/shelf.
• Power saving design,double N2 regulators with Ø 6mm gas inlet(can be custom made).The big regulator gas control range around 20-40L/min;The small regulator gas control range around 0.3L/min.They will work automatically by turns according to the inner current RH value.
• Small nitrogen generator N2 homemade with 15L/min nitrogen and the pure of N2 99.9%
• Super low voltage design for safety and modular design for the units,can be easily and fast replaced when broken.
• Intelligent automatic memory function,no need to reset after power off and continue to dehumidifier though chemical material even if accident power off.
• Durable design with 8-10 years servicing life.

Functions and applications

1)Anti-fading,anti-miler and anti-corrosion for your favorites such as antique,jewelry,rare metals,photographs,VCD,drawings,photographic equipment etc.
2)Anti-aging,antioxidant and anti ESD for electronic components such as SMT,IC,CSP,BGA,TQFP,TSOP,LSI,LCD,CCD etc.
3)Dehumidify for seeds,chemicals,powder and medicines.
Our products are widely used in industrial electronic components shortage,lab sample shortage for scientific research,Universities and military,seed and medicine shortage.

ITEM	New product 540L laboratory Dry Equipment Chamber drying machine
MODEL	GRD540B

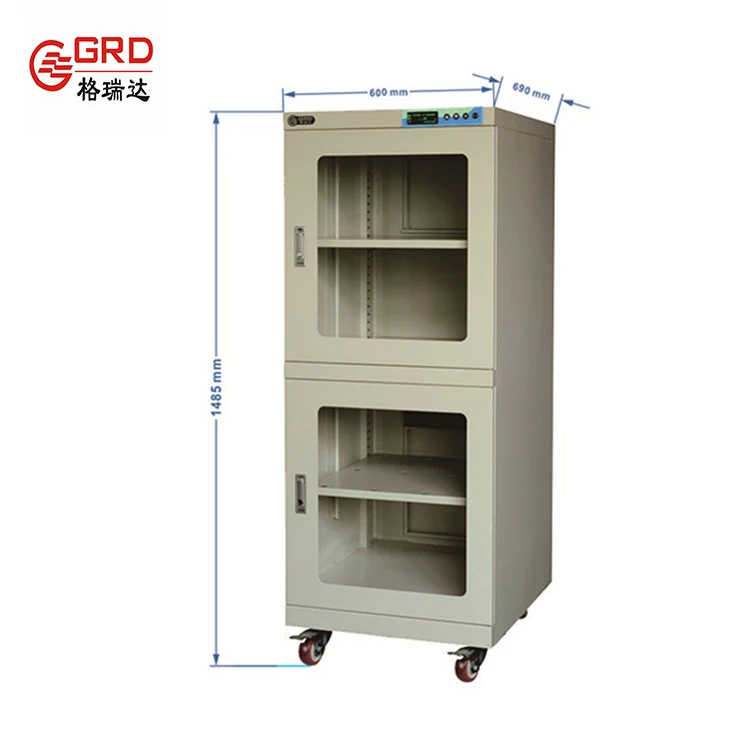

Outer size	*W720mmD690mmH1485mm*
Inner size	*W555mmD640mmH1315mm*
Capacity	540L
RH range	1%RH-60%RH
Deviation	humidity ±3%RH temperature ±1℃
Pieces of door	2 PCS
Shelves	3 PCS
Shelves bearing	50KG/per shelf
Display	LED
Power	42W
Voltage	110V/220V 50HZ/60HZ can be customized according to your request
Color	Home using in white/anti-static in blue gray(the color can be chosen as your request)
Selective accessories	Inner head light;RS485;microcomputer programmable;stainless cabinet body and shelves;alarm system;
Packaged size	*W770mmD800mmH1650mm*
Packaged weight	230KG

Recommended RH value for various moisture-sensitive items

Condition(RH%)	Storage items
50%RH-40%RH	Tape, disk, VCD, camera, camera, lens, projector,Telescope, photographs, musical instrument, microscope, film, slides,Digital camera, tape, ancient calligraphy and painting, watercolor painting, oil painting, stamps,Coin, antique, CD. LD, photo album, mechanical drawing, advertising design, fur and industrial design etc.
40%RH-20%RH	Precision instruments, electrical and electronic products, measuring tool, precision molds, semiconductor products, capacitor, tungsten wire, battery, optical film and instruments, printed circuit boards, sensors, charger, optical lens etc.
25%RH-15%RH	Lab medicinal materials, chemical powder, sample, filter, models, seed, pollen, dry flower, tea, coffee, seaweed products, spices, dry food etc.
15%RH-1%RH	Special chemicals, precision electronic components,BGA,VCD,IC
