Small electric roller compacted concrete machine for garden
- 590.00 unit
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| place of origin; place of origin: | Shandong China | Applicable industries: | construction project |
| Packaging Details: | export standard packaging | Video shipment inspection: | if |
| Warranty: | 1 year | size: | small |
| brand: | highway | Core component warranty: | 1 year |
| Weight (kg): | 85 | Mechanical test report: | if |
| Core components: | motor | operate: | simple |
| Marketing Type: | normal product | Showroom location: | Canada, United Kingdom, United States, Italy, France, Germany, Pakistan, Russia, Australia |
| Health status: | new |
Product overview
Electric Concrete Curb Machine
The Electric Concrete Curb Machine is a 3-wheel self-propelled machine that makes curbs up to 5.8 inches. widely
Choose from 3 different mold styles. Powered by a 550 Watt, 3/4 HP electric motor that runs at 1,700 RPM.
Choose from 3 different mold styles. Powered by a 550 Watt, 3/4 HP electric motor that runs at 1,700 RPM.
List of functions
* 5.8 inches. working width
* 3 different curb styles
* 550 Watt, 3/4 HP electric motor
* 1,700 rpm
* 17 1/8"L x 9 3/8"W Cement Hopper
* 3 different curb styles
* 550 Watt, 3/4 HP electric motor
* 1,700 rpm
* 17 1/8"L x 9 3/8"W Cement Hopper
* Includes 3 molds and 4 trowels
* Rolls on 9 inches. x 3 1/2 in. pneumatic tire
* 5.4 feet. power cable
* assembly required
* Overall 42"L x 19"W x 34"H
* Rolls on 9 inches. x 3 1/2 in. pneumatic tire
* 5.4 feet. power cable
* assembly required
* Overall 42"L x 19"W x 34"H
product specification
Do not | thing | data |
1 | electrical requirements | 120V 60 Hz/220V 50 Hz |
2 | Amperage | 5.5 (start)/3.2 (no load) |
3 | motor | 3/4 hp; 1730 rpm |
4 | switch | 2 position (on/off) side |
5 | power cable | 5 1/2 feet (1.5 meters) long |
6 | power plug | tripod, grounded |
7 | wheel type | Pneumatic/9" Diameter x 3.5" Wide/30 PSI Inflatable |
8 | concrete hopper opening | 17-1/8"43.5cm L x 9-3/8"23.8cm W |
9 | Dimensions | LxWxH: 107x48x86cm (42” x 19” x 34”) |
10 | weight | 187 lbs. 85 kg |

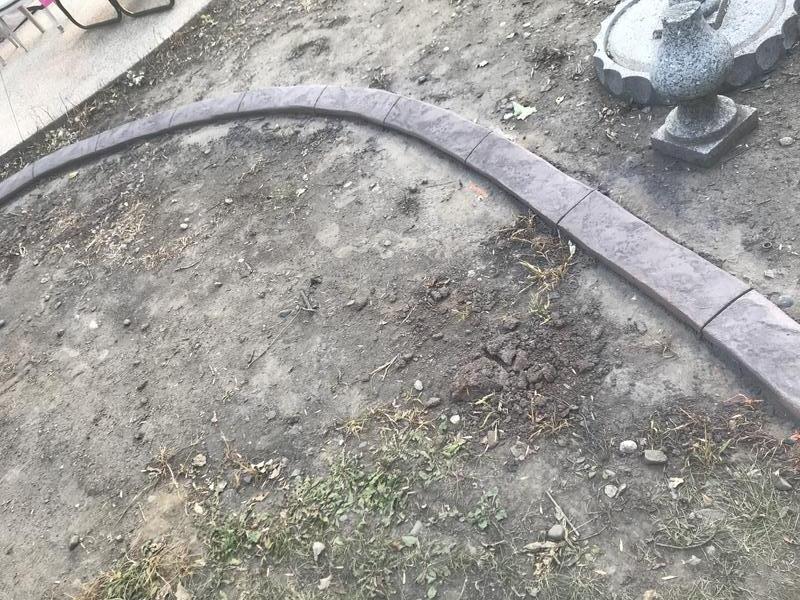

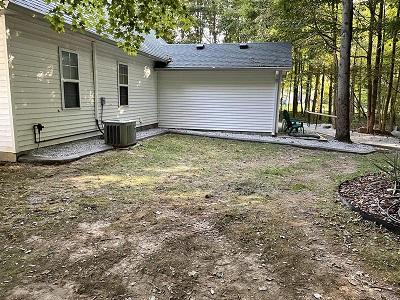

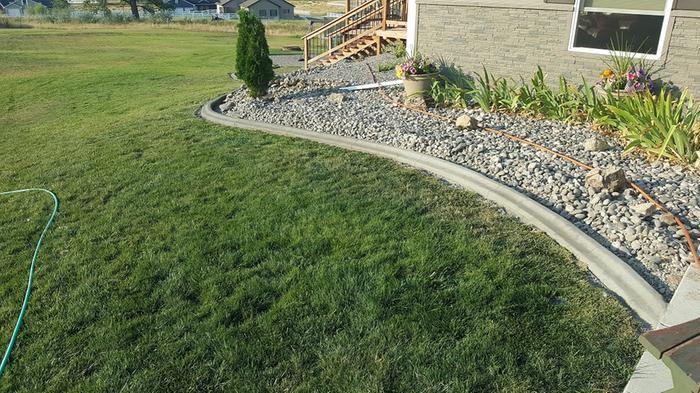

successful project
American project
canada project
Russian project
