High Quality GB Standard Plastic Split CD Core Spool Short Lead Time Transformer Core Spool With Aggressive Price

Supplier: Wuxi Weibang Transformer Manufacture Co., Ltd.
Region: Jiangsu, China
Contact: Mr Lucien Kong
Price: $0.10 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Number of coils:	Autotransformer	color:	custom made
delivery time:	7~15 days	standard:	Chinese national standard
port:	Shanghai Port	Coil structure:	ring
Recyclability:	usable	usage:	musical instrument
Certification:	Insulation flame retardant	brand:	WB core
model:	Split Core Bobien	stage:	single
Supply capacity:	1,000,000 pieces per month	Process:	mold injection
product name:	National standard plastic split CD core skeleton	Product MOQ:	10 pieces
Material properties:	Nylon 66	place of origin; place of origin:	Jiangsu, China
payment terms:	L/C, T/T	application:	Transformer Choke Inductance
Package preview:		Packaging Details:	Each piece will be packed in standard export pallet with PE protective film

Product Description

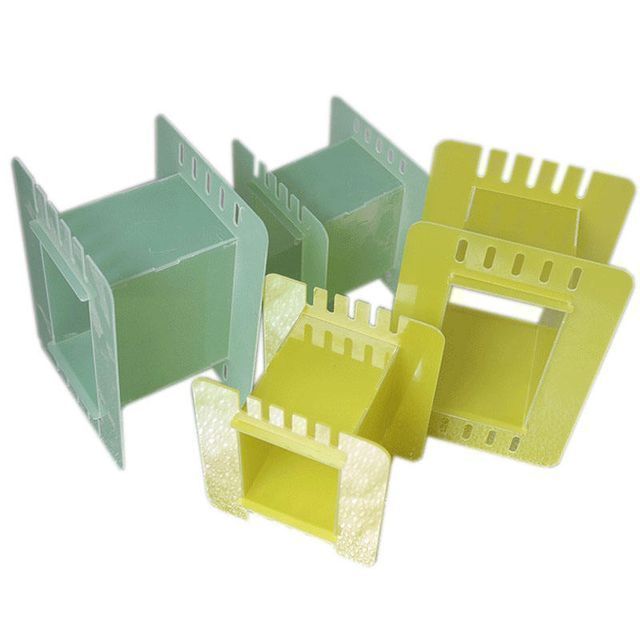

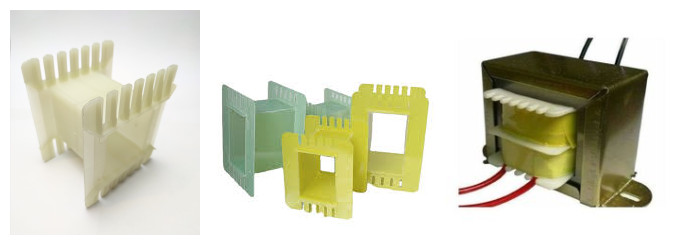

CD transformer bobbins are dimensionally matched to our wire wound split cores

Standard CD cores have spare transformer bobbins to shorten TOD

High-quality PA66 skeleton to ensure product insulation and environmental protection

product description

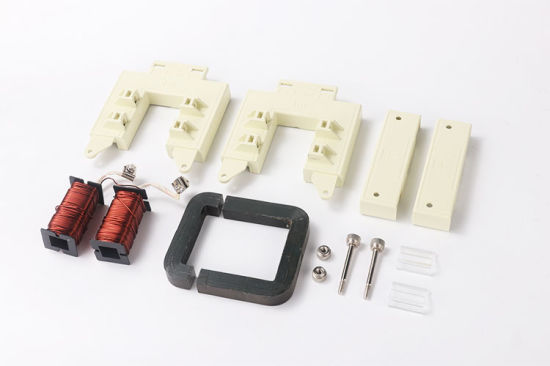

Standard electrical steel bobbins wound around C core (European standard) and CD core (Chinese GB standard)

To meet the needs of the electrical and electronic industry in the manufacture of transformers, chokes, reactors and magnetic amplifiers, Wuxi Weibang produces a variety of tape-wound C-core (CD core) bobbins

Spools are produced in four standard ranges - China, UK, Continental Europe and US - all of which are available in a variety of electrical specifications. Cores covered by these standard ranges are available with short lead times.

Non-standard electrical steel around C core (CD core) Bobbin

Spools can be manufactured in physical dimensions outside the standard range for a particular application. However, where feasible, it is advantageous to use a standard range to gain price and delivery advantages.

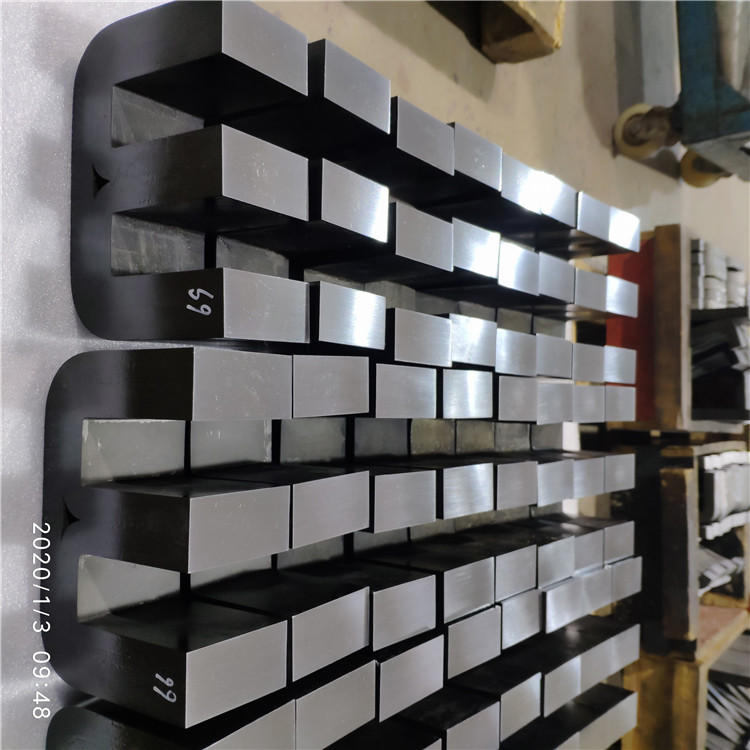

Tape wound core (CD core) national standard (MM) electrical steel strip wound core

application information

Strip Wound C Core or CD Core Bobbin is widely used in split transformers as a soft magnetic core. Electrical silicon steel has a high saturation magnetic flux density above 2T, which is very suitable for low-grade and high-load split transformers, and nanocrystalline is more suitable for higher-grade applications.

technology

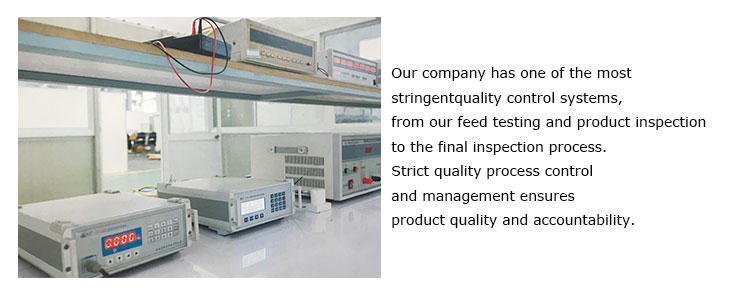

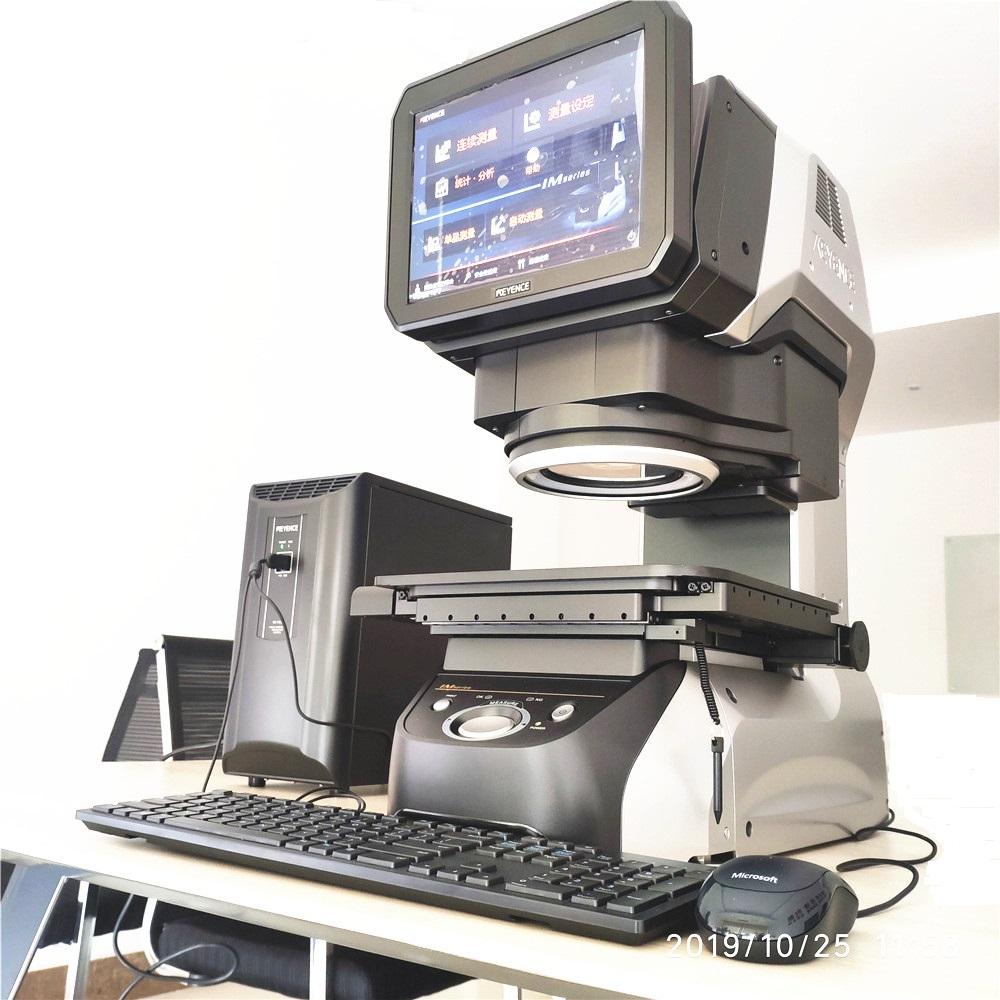

Precision Measuring Instruments

Before and during production, we have to measure the size and electromagnetic specifications of the iron core.

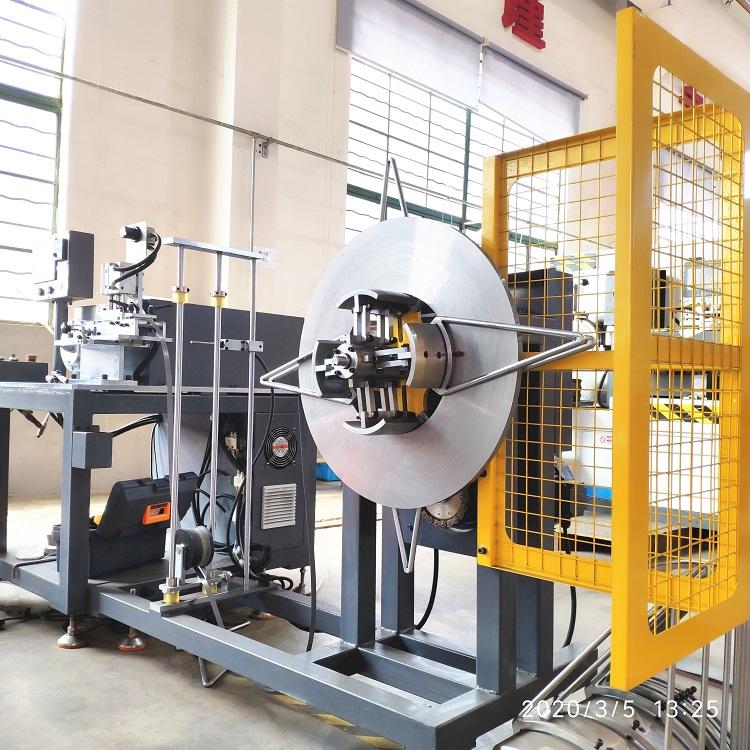

Automatic winding machine

Wellborn is always looking for innovative ways to improve production efficiency and working conditions.

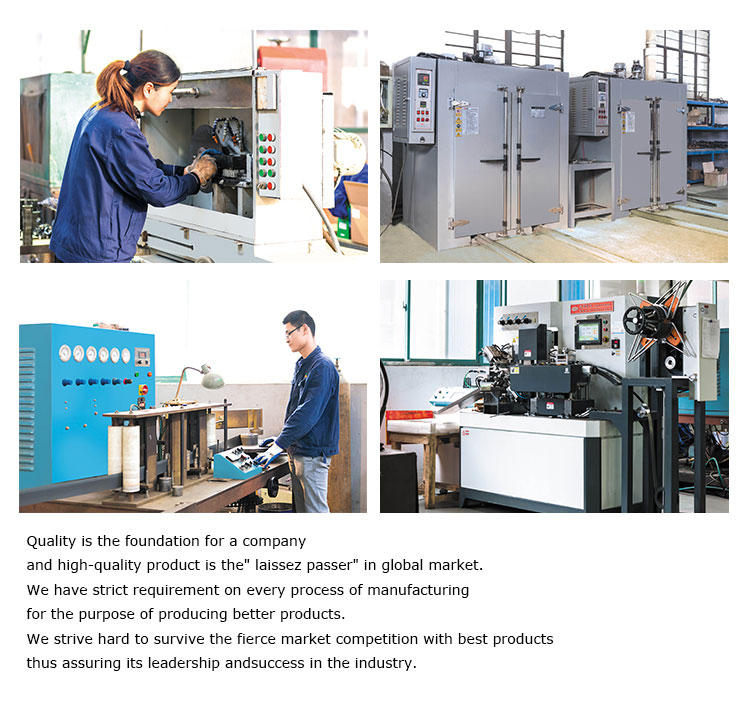

Quality Management System

All products are subject to strict quality control, all surfaces are clean and smooth, ensuring the lowest power loss in transformers, chokes, reactors and magnetic amplifiers

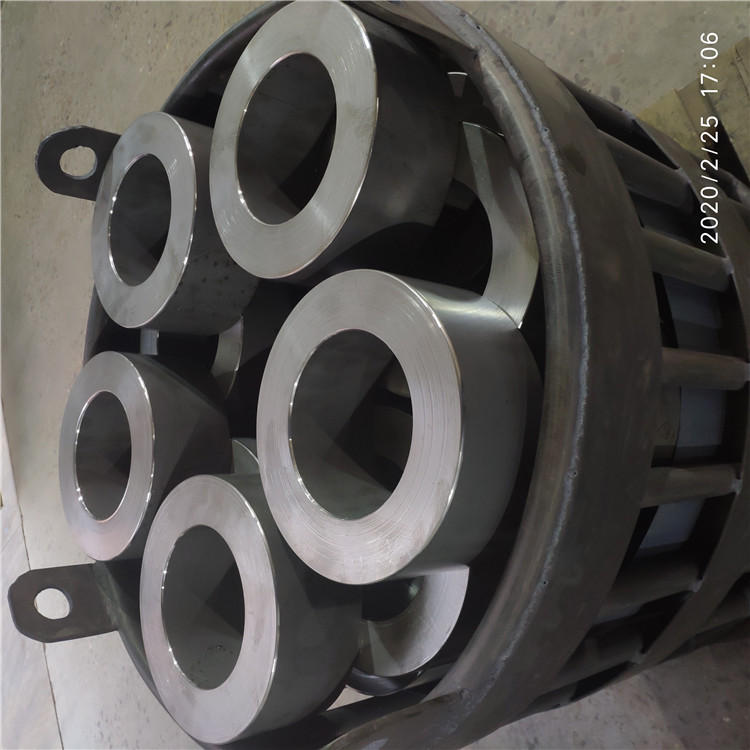

vacuum annealing

Ribbon wound cores made of electrical steel or nanocrystalline can be vacuum annealed for better performance.
