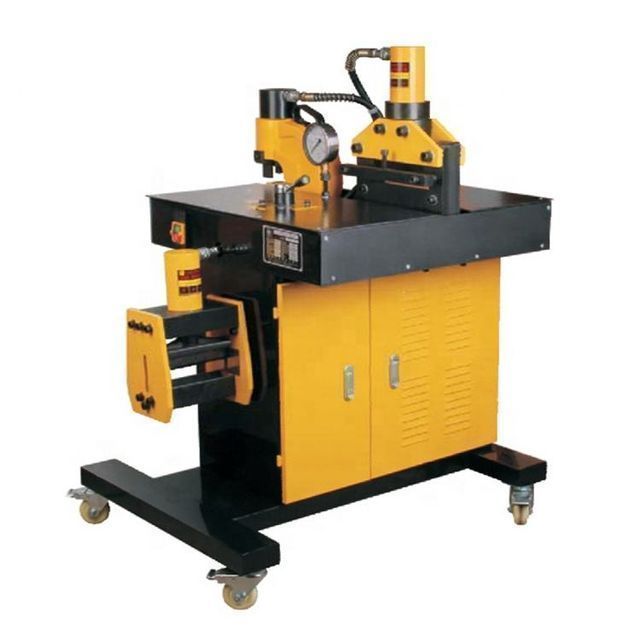

Copper and aluminum cutting, bending and punching three-in-one busbar processing machine

Supplier: Taizhou Haoxin Electric Power Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr Simon Zhou
Price: $1015.00 /set
Min. Order: 1 set

Click here to contact

Product details

Bending force:	16 tons	payment terms:	L/C, Western Union, T/T, MoneyGram
port:	Shanghai	Pressing force:	31 tons
After-sales service provided:	online support	maximum. Thickness (mm):	10 mm
application:	Copper and aluminum busbar processing	Rated oil pressure:	700 kgf/cm2
Mechanical test report:	Not available	Warranty:	1 year
After warranty service:	online support	Health status:	new
CNC or not:	normal	color:	as photo or customized
Main selling points:	high accuracy	Cutting force:	20 tons
Package preview:		Applicable industries:	Retail, Construction Engineering, Mechanical Repair Shops, Power Construction
Dimensions (LWH):	770X760X1280 meters	maximum. Width (mm):	150 mm
weight:	170 kg	Marketing Type:	normal product
Core component warranty:	1 year	Core components:	cutting, punching, bending
Local service location:	not any	Video shipment inspection:	Not available
Function:	cutting, bending, punching	Bending ability:	150mmx10mm
product name:	Cutting, bending and punching three-in-one busbar processing machine	Voltage:	220V
place of origin; place of origin:	Jiangsu, China	Certificate:	International Organization for Standardization
brand:	Haoxin	Packaging Details:	Plywood shell or according to requirements for copper and aluminum cutting bending punching three-in-one busbar processing machine
Showroom location:	not any	Supply capacity:	500 sets per month
Weight (kg):	170

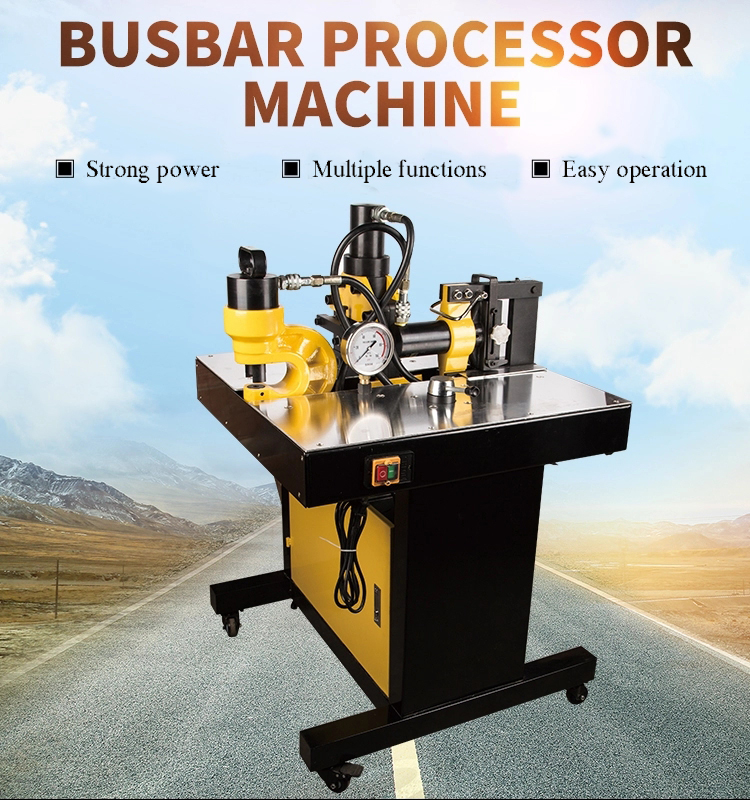

Copper and aluminum cutting, bending and punching three-in-one busbar processing machine

Product Description

application:

This processor is suitable for making large-scale electric cabinets, power distribution cabinets, switch cabinets and construction sites of power transmission and distribution construction projects. and many more

feature:

1. This machine provides the efficiency and guarantee of safety requirements and the design of supporting equipment.

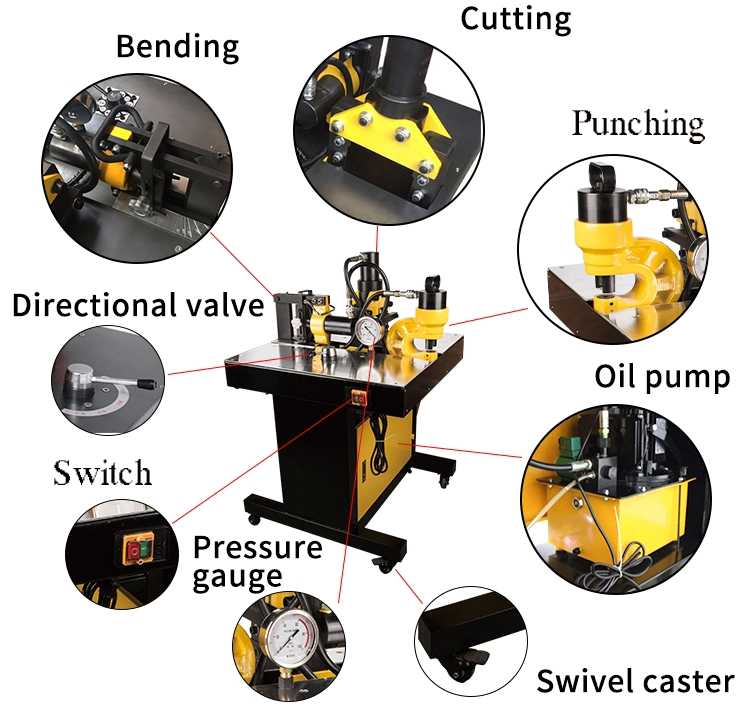

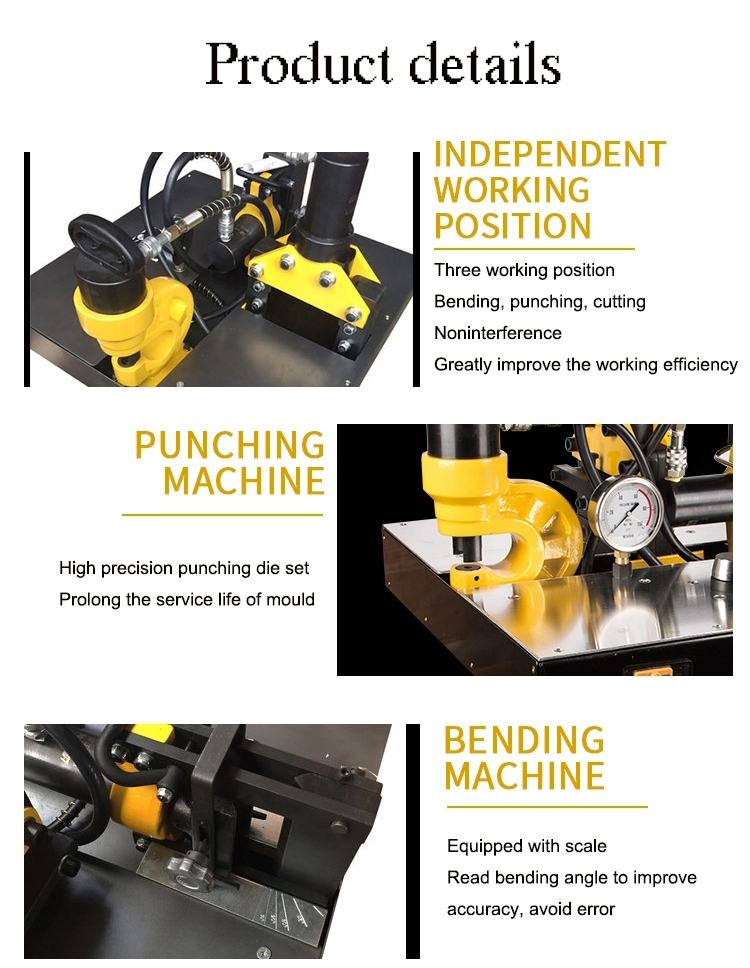

2. This machine has functions of bending, cutting and punching.

3. There is no burr in the punching hole, the cutting surface is smooth, and the cutting angle is accurate. It facilitates puick and repeated batching.

4. High flexibility, small size, high power, high production capacity and high work efficiency.
5. Safe and firm foot switch controls oil inlet and outlet. Low noise, harmless treatment.
6. The finished product is beautiful and will not pollute the environment.

Product parameters

Copper and aluminum cutting, bending and punching three-in-one busbar processing machine

thing	Product number	VHB-150
Specific parameters	Function	Cutting, punching, flat bending
	Voltage	220V/50Hz
	Busbar knife export force	20 tons
	cutting capacity	150mm×10mm (copper rod/aluminum rod)
	Punch export force	31 tons
	Hole throat depth	95mm
	Maximum punching thickness	10mm
	Standard matching punching die	Φ10.5/Φ13.8/Φ17.5/Φ20.5mm
	Bending machine outlet force	16 tons
	Bending ability	150mm×10mm
	weight	170 kg
	Package dimensions	770mm×760mm×1280m
