Busbar punching bending cutting machine HB-150W three-in-one hydraulic automatic busbar processing machine

Supplier: Hailin Industrial And Development (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Haicable Tools
Price: $150.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	High Caber	Core component warranty:	1 year
type:	Hydraulic cutting bending punching tool	pack:	wooden box
model:	HB-150W	payment terms:	L/C, T/T, MoneyGram
Mechanical test report:	if	port:	Shanghai
Core components:	engine, pump	Video outbound inspection:	if
Whether CNC:	normal	Weight (kg):	175
Applicable industries:	construction project	Material:	other
Marketing Type:	normal product	After-sales service provided:	online support
size:	9006601220mm	maximum. Width (mm):	10 mm
weight:	170 kg	Origin:	CN;SHG, Shanghai, China
application:	Cutting, bending and punching copper/aluminum busbar	Warranty:	1 year
Showroom location:	not any	Health status:	new
Main selling points:	easy to operate	Function:	cutting, bending, punching
maximum. Thickness (mm):	12mm	Packaging Details:	wooden box
Supply capacity:	1000 perches per month

Honeyfriends:

Welcome to browse our products:

Haicable's easy-to-operate hydraulic busbar bender at a competitive price.

Product Description

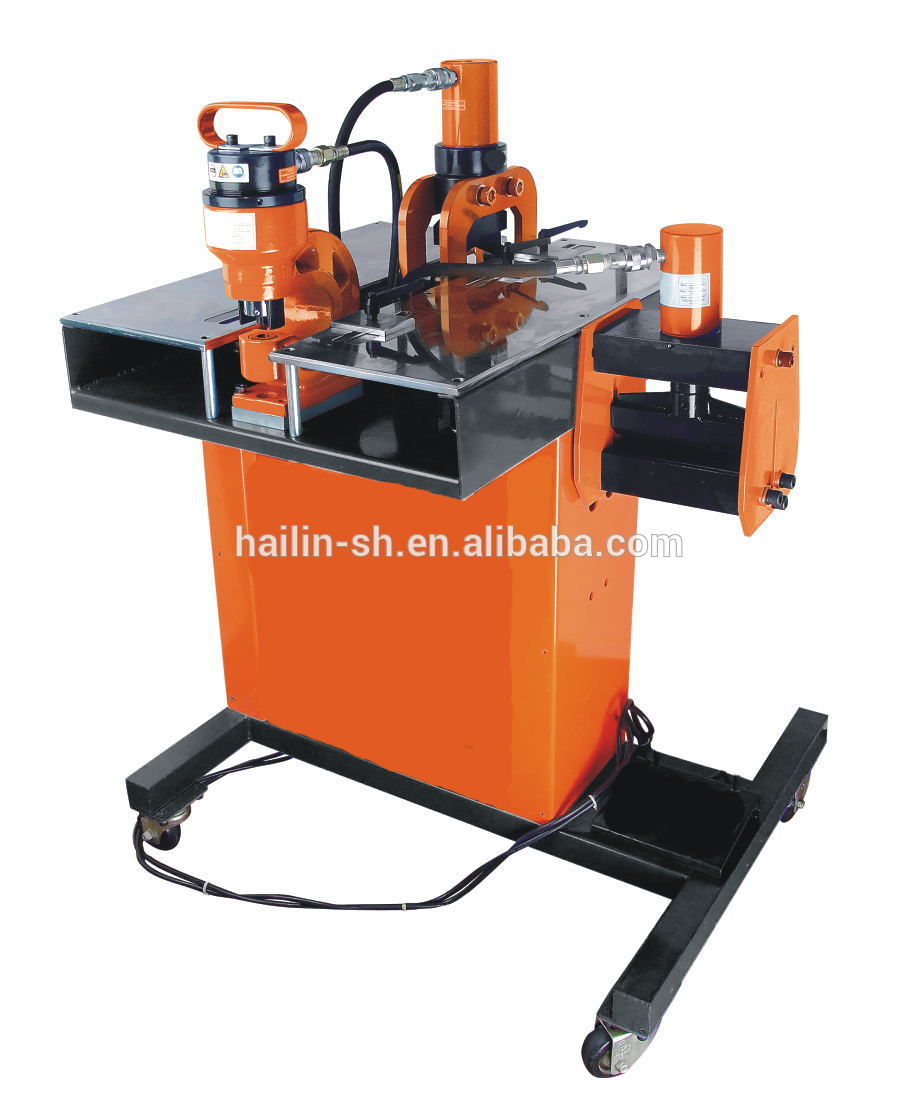

Three-in-one hydraulic busbar tool HB-150W

Features: SI

• single action

*3 in 1 cutting, bending and punching busbar

* The frame is strong and durable, and the structure is strong

* High quality cutting, bending and punching with short cycle times

*Built-in safety system, high operating safety

* With the help of hydraulic power, the operation is simple and fast.

*Includes: CB-150D, CH-60, CWC-150 and EHP-63A

parameter:

Model	HB-150W
cutting capacity	150*10mm
punching capacity	Ø11.1mm-Ø20.6mm Thickness 10mm
maximum bending capacity	150*10mm
strength	220V/50Hz
preset pressure	700 kg/cm²(10000psi)
punching mold	Ø11.1mm Ø14.3mm Ø17.5mm Ø20.6mm (round mold)
size	9006601220mm
weight	170 kg

application:

The bus bar is mainly used for switch cabinets, distribution boxes and electrical operations, national grid construction, underground cable construction, building construction, etc.

our service:

We have a professional technical team to meet your new product development.

We will be your eyes when producing, which means we will send production pictures every step of the way.

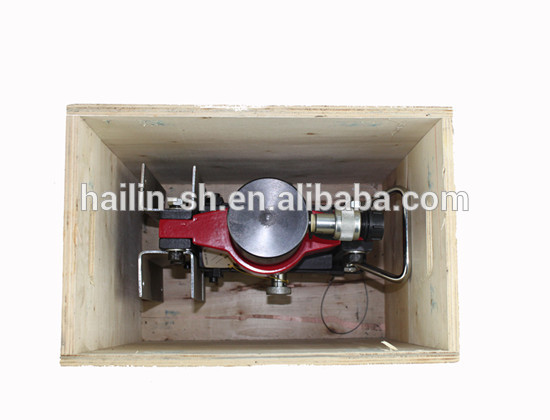

Packaging and Shipping
