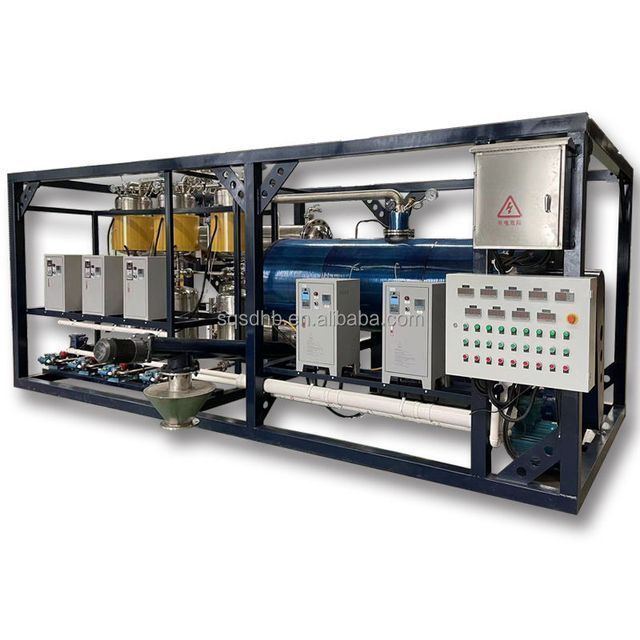

Fully continuous pyrolysis machine 20 tons of plastic waste in fuel oil processing plant
- 10000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Core components: | PLC, engine, bearing, gearbox, motor, gear, water pump | Warranty: | 1 year |
| Marketing Type: | New Products 2020 | strength: | 13KW-130KW |
| Raw materials: | Waste tires & waste plastics & sludge & heavy oil | Model: | 2800*8000 |
| Steel: | Q345R&SS316L/304SS | cooling system: | water cooling |
| Weight (kg): | 40000 kg | payment terms: | L/C, T/T |
| Showroom location: | Germany, Russia, Romania | Video shipment inspection: | if |
| place of origin; place of origin: | Henan, China | Main selling points: | automatic |
| Heating fuel: | Fuel & Exhaust Gas/Electric Heating | Machine name: | Waste tire pyrolysis plant pyrolysis machine |
| Package preview: | brand: | Seddon | |
| port: | Lianyungang/Qingdao | Core component warranty: | 1 year |
| Health status: | new | Applicable industries: | Manufacturing plants, energy and mining, other |
| Supply capacity: | 300 sets per year | Packaging Details: | It depends on machine size: usually 1*20GP or two 40HQ / one 40HC or one 20GP* one 40FR and one 40HQ |
| Equipment capacity: | 10kg- 2 tons/hour | Finished goods: | Fuel Oil & Carbon Black & Wire & Exhaust Gas |
| Reactor thickness: | 16MM/18MM | Mechanical test report: | if |
Product Description
Our company is committed to the design and manufacture of fully continuous pyrolysis equipment/manual (batch) model pyrolysis equipment/batch model transformation into fully continuous pyrolysis equipment.
| thing | Continuous pyrolysis equipment | ||
| Model | SD-1200 | SD-1800 | SD-2200 |
| capacity | 1 metric ton/hour | 1.5 metric tons/hour | 2 metric tons/hour |
| strength | 65 kW | 90kw | 130kw |
| job type | continuously | ||
| Reactor type | Multiple reactors (depending on raw material) | ||
| turn around | chain drive | ||
| cooling system | Water cooling/antifreeze | ||
| Reactor material | Q245R/Q345R/CRMOV/304SS/310SS/316SS | ||
| heating method | Electric heating/oil/gas heating | ||
| raw material | Waste plastic/rubber/tyre/aluminum/oil sludge | ||
| output | |||
| thing | Manual (batch) model pyrolysis unit | |
| Specification | SD-2200*6000 | |
| SD-2200*6600 | ||
| SD-2600*6600 | ||
| SD-2800*6000 | ||
| SD-2800*6600 | ||
| SD 2800*8000 | ||
| raw material | Q245R/Q345R/CRMOV/304SS/316SS/310SS | |
| Steel thickness | 14MM/16MM/18MM/20MM | |
| strength | 18KW-35KW | |
| Floor area | 300-400 square meters | |
| Worker | 3-4 people | |
| loading method | Hydraulic feeder | |
| heating method | Fuel/gas/electric heating method | |
Final products after pyrolysis:
| raw material | Final product | |||
| Waste rubber/tire | Fuel 40%-45% | Carbohydrates 30%-40% | 10%-15% steel | 10%-15% gas |
| waste plastic | Fuel oil 20%-80% | Carbon coke 40%-50% | 10%-15% steel | 10%-15% gas |
| Fuel oil: can be sold to ceramic factories, glass factories, brick factories for burning as energy | ||||
| Carbon coke: It can be used for industrial carbon coke N550, N330, or as an additive for shoes, covers, etc. | ||||
| Steel: Recyclable for use in steel mills | ||||
| Gas: It can be recovered by the machine itself to heat and save energy, or compressed and stored by our gas compression system. | ||||
About us Company introduction
Certifications of our company: ISO, CE, SGS, TUV.
