8000-12000va automatic voltage regulator hot sale Products from Quzhou Sanyuan Huineng Electronic Co., Ltd.

Product Details

The output voltage:	220V±10% 50/60Hz	usage:	SVC
Packaging Details:	Standard export packaging (customizable)	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
place of origin; place of origin:	Zhejiang, China	Package preview:
Input voltage:	AC 130V270V, 45/60/95-280VA	strength:	8000/10000/12000VA

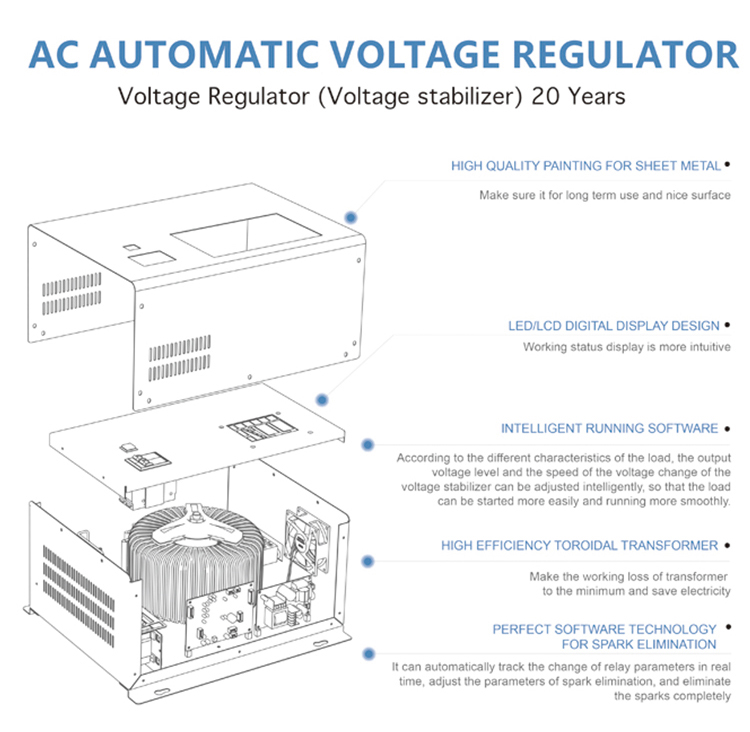

brand:	Bulldog	technology:	Relay control + toroidal transformer, efficiency >97%
Supply capacity:	4000 pieces per month	Control type:	relay
color:	customizable	model:	TMB/45/60/95(8000-12KVA)
Current type:	air conditioner	Protect:	Overvoltage (246V±4V); overload; high temperature; short circuit
delay:	Short delay: 3-5 seconds Long delay: 3-7 minutes	Display type:	LED digital display
product name:	TMB/45/60/95(8000-12KVA)	port:	Ningbo, Shanghai, Dalian, Shenzhen, etc.
stage:	three phase

Product Description

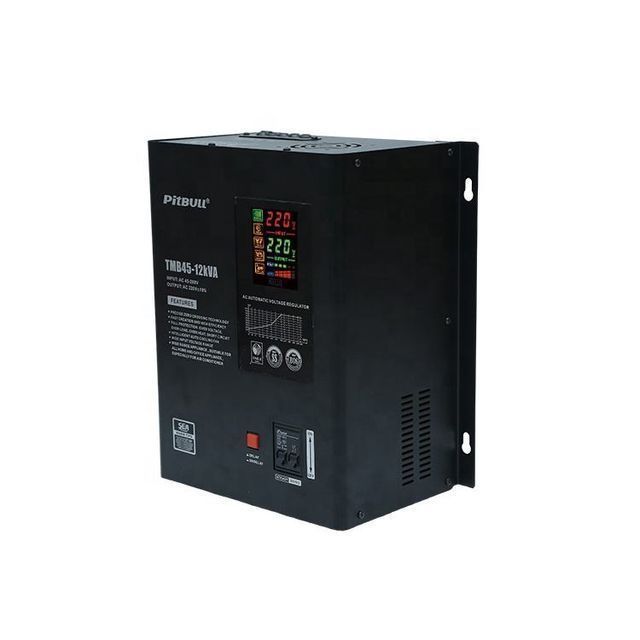

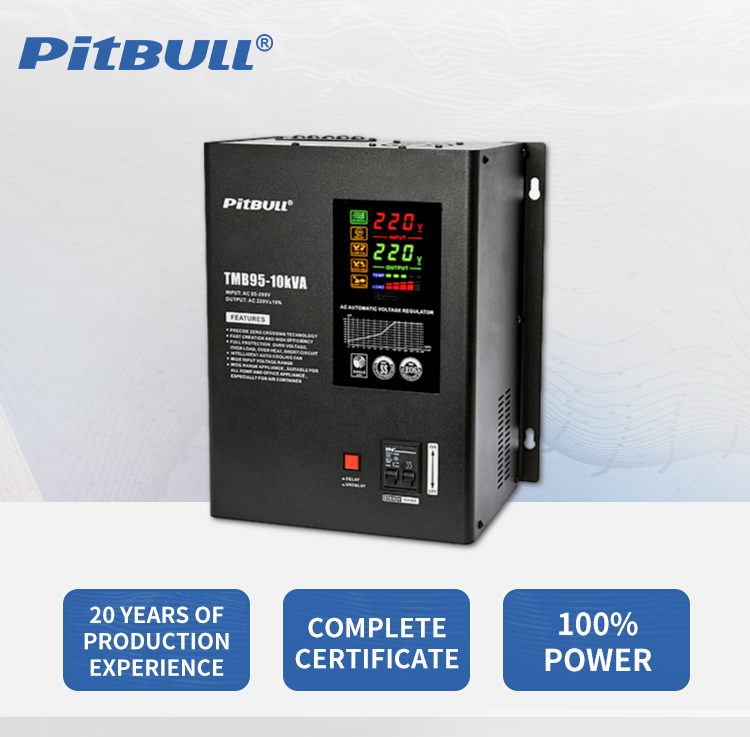

Model	TMB (8000VA-12kW)	TMB45 (8000VA-12kVA)	TMB60(8000VA-12kVA)	TMB95(8000VA-12kVA)
Input voltage	AC 130V270V	AC 45V280V	AC 60V-280V	AC 95V-280V
Output range	AC220V±10% 50/60HZ
delay	Short delay: 3-5 seconds Long delay: 3-7 minutes

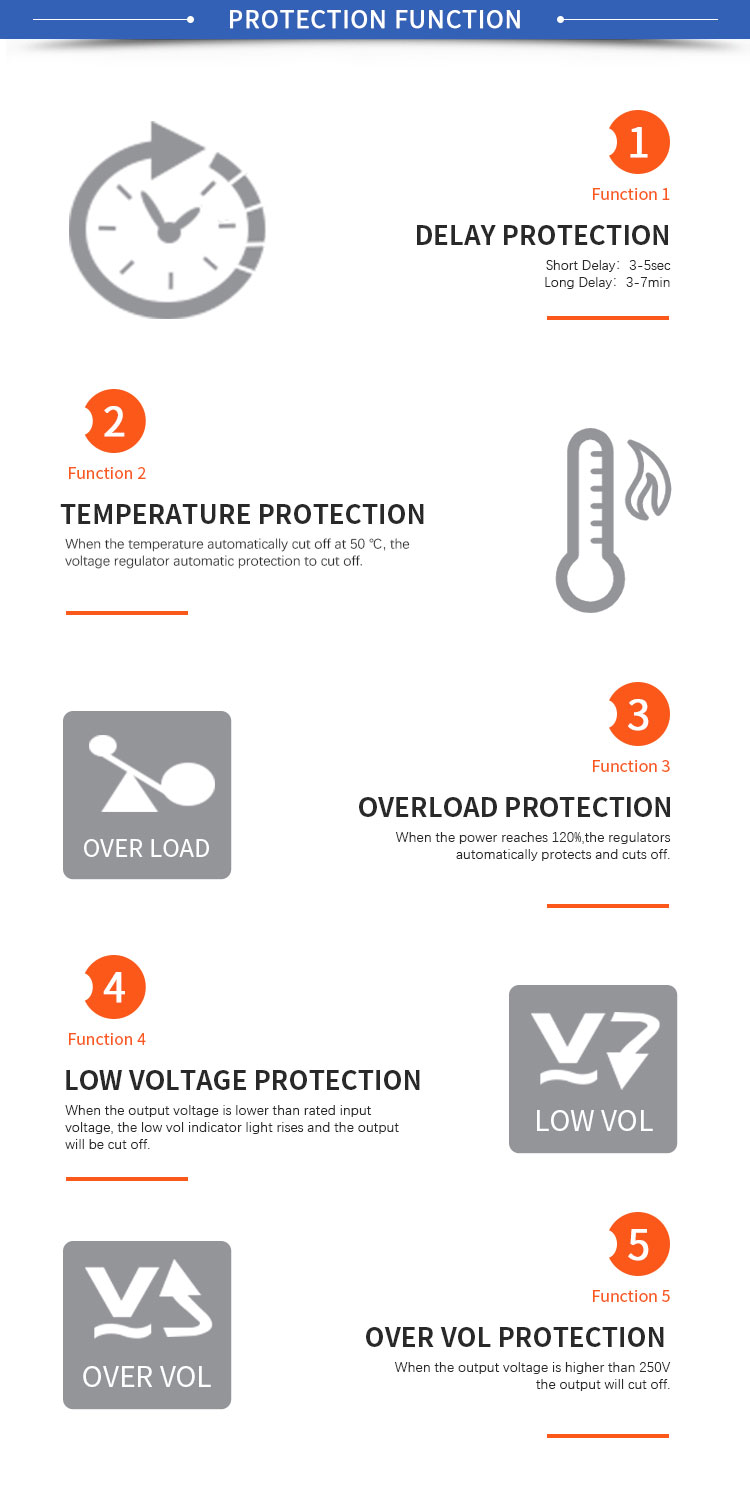

Protect	Overvoltage (246V±4V), overload, high temperature, short circuit
strength	8000VA	10000VA	12000VA
feature	This type of product is a 220V automatic voltage stabilizer, which can be desktop or wall-mounted. Adopting LED digital display design, it has the characteristics of stable operation, fast voltage regulation speed and wide voltage regulation range.
application	Widely used in various industries, small office equipment, refrigerators, electric fans, computers, water pumps, air conditioners and other household appliances.
power factor	≥0.9	≥0.9	≥0.9	≥0.9
control	4 relays	7 relays	6 relays	5 relays
Digital Display	Display input and output voltage, Over\Low Voltage, Overload, delay, temperature	Display input and output voltage, Over\Low Voltage, Overload, delay, temperature	Display input and output voltage, Over\Low Voltage, Overload, delay, temperature	Display input and output voltage, Over\Low Voltage, Overload, delay, temperature
temperature protection	Yes	Yes	Yes	Yes
Short circuit & overload	Air switch/(fuse: 500-2000va)	Air switch/(fuse: 500-2000va)	Air switch/(fuse: 500-2000va)	Air switch/(fuse: 500-2000va)
cooling method	Fan/Vent	Fan/Vent	Fan/Vent	Fan/Vent
efficiency	Air conditioning 97%	Air conditioning 97%	Air conditioning 97%	Air conditioning 97%
temperature	.-20°~55°C	.-20°~55°C	.-20°~55°C	.-20°~55°C
humidity	<90	<90	<90	<90
