China Supplier Dryer Cylinder of Paper Machine

Product details
Maximum Design Pressure:0.75 Mpa(3660mm);Port:Qingdao;
Packaging Detail:Sea worthy Wooden Pallet Packaging.;Supply Ability:40 Set/Sets per Month Dryer Cylinder of Paper Machine;
Brand Name:SUN HONG;Maximum Working Pressure:0.68 Mpa(3660mm);
Payment Terms:L/C,T/T;Material:Cast iron+alloy;
Place of Origin:Jiangsu China (Mainland);Shell Length:1000mm--8000mm;
Maximum pressure roll load:90kg/cm;Saturated steam temperature:163.8 .C(3660mm);
Shell Thickness:42-50mm;Hydrostatic Test Pressure:1.5 Mpa(3660mm);
Cylinder Diameter:1400mm--3660mm;
Our Company

WORKSHOP

Product Description

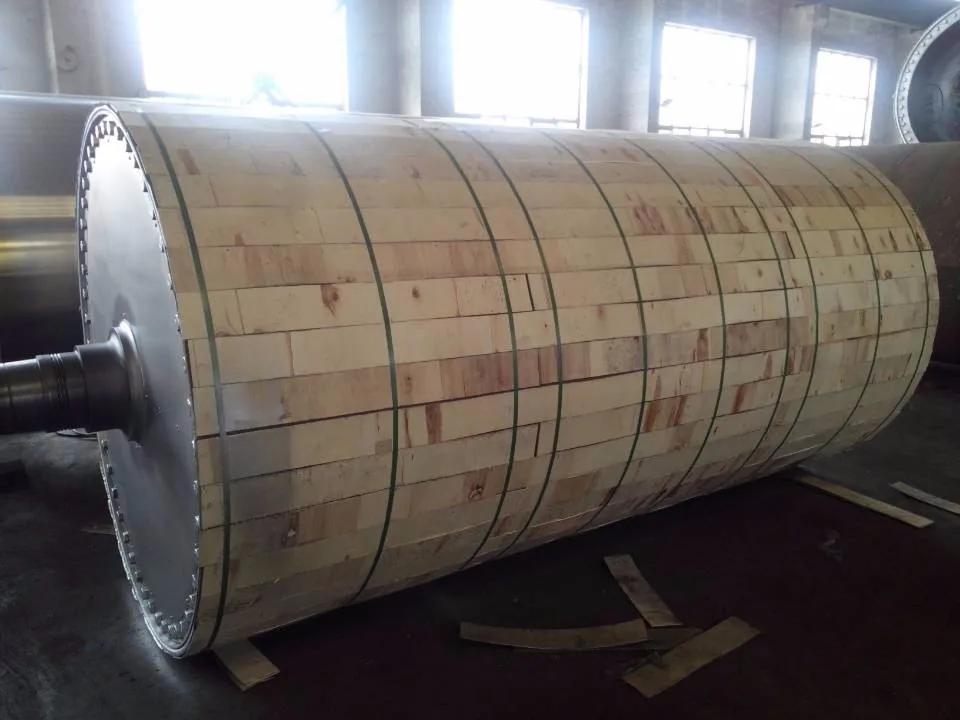

Cylinder dryer , heads and journals are made of special cast iron. Separate journals are bolted onto the dryer heads, Dryer shells are ground on the outside and turned on the inside, while all dryer journals with steam or condensate pipes have insulation sleeves. The inner surface have grooves for the stationary siphons, the front side ends of all dryers contain manholes.
The main parts of cylinder dryer include: shell,dryer bars,syphon, manhole cover, shell head, spherical roller bearing, steam joint ,etc.

The heat energy for paper drying comes from steam as it condenses inside the dryer cylinders. The type of heat is referred to as latent heat.Steam always condenses at the saturation temperature as defined by the pressure in the system,steam is usually transported at a temperature considerably above the saturation level to prevent condensation within pipe lines.


Diameter
Design Pressure Mpa
Material
Hardness
Width
Shell Thickness
Roughness
Working speed
1500
0.3-0.8
HT250-300
190-240
350-10000
25-32
0.2-0.4
200-1200
1800
0.3-0.8
HT250-300
190-240
350-10000
28-36
0.2-0.4
200-1200
2000
0.3-0.8
HT250-300
190-240
1350-5000
30-40
0.2-0.4
200-1200
2500
0.3-0.8
HT250-300
190-240
1350-5000
32-47
0.2-0.4
200-500
3000
0.3-0.8
HT250-300
190-240
1350-5000
37-56
0.2-0.4
200-600
3660
0.3-0.8
HT250-300
190-240
1350-5000
40-65
0.2-0.4
200-1200
3680
0.3-0.8
HT250-300
190-240
1350-5000
as required
0.2-0.4
200-1200
≤1500
0.3-0.5
HT200-250
190-240
1350-5000
18-27
0.2-0.4
200-1200

Dryer Cylinder Casting Workshop

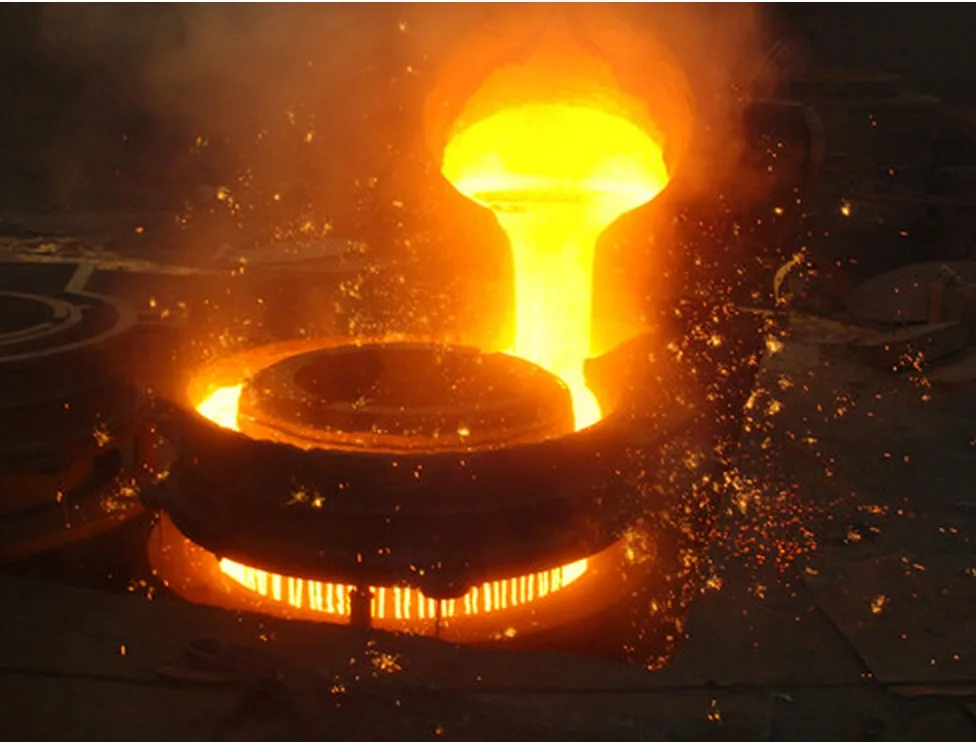

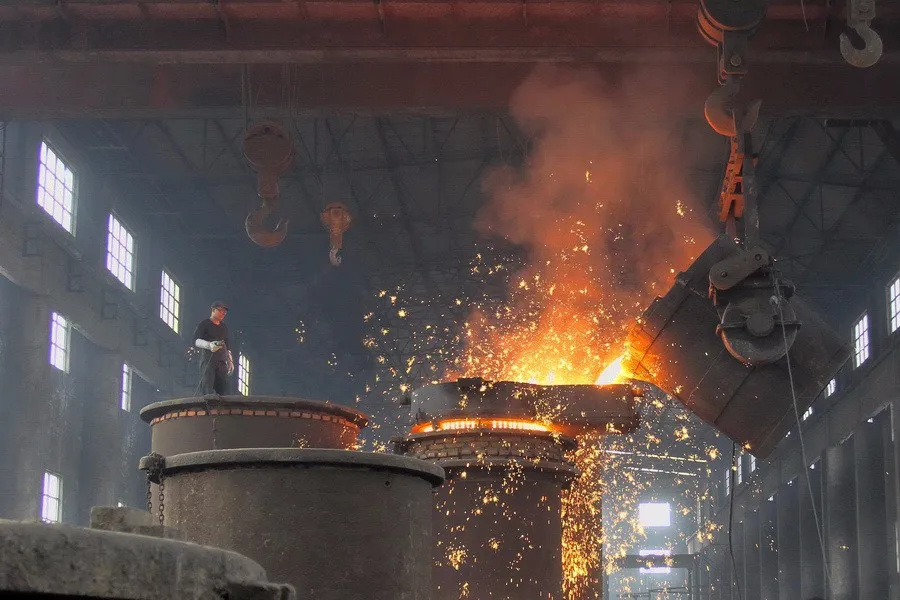

Hot blast Cupola(3T/h,8T/h)and medium frequency furnace (10)duplex melting .

Dryer Cylinder Casting Workshop

The resin sand production line with capacity of 20T/h.

The spectrum analyzer guarantees  the quality of your products.

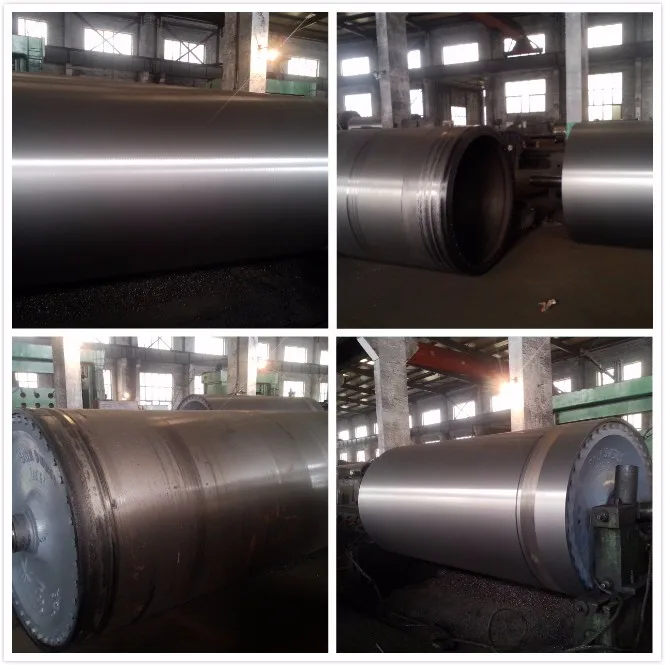

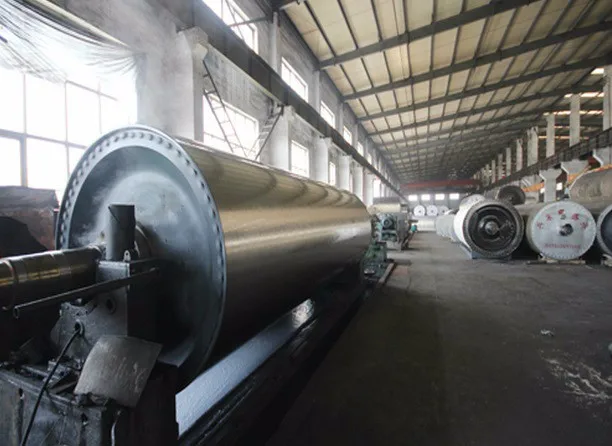

Dryer Cylinder Machining Workshop

More than 40 sets of jumbo machine tools for turning,milling,shaver,grinding,drilling.

Dryer Cylinder Machining Workshop

Maximum Diameter of dryer cylinder : 4000mm

Maximum length of workpiece :12000mm

Maximum balancing capacity : 50tons.

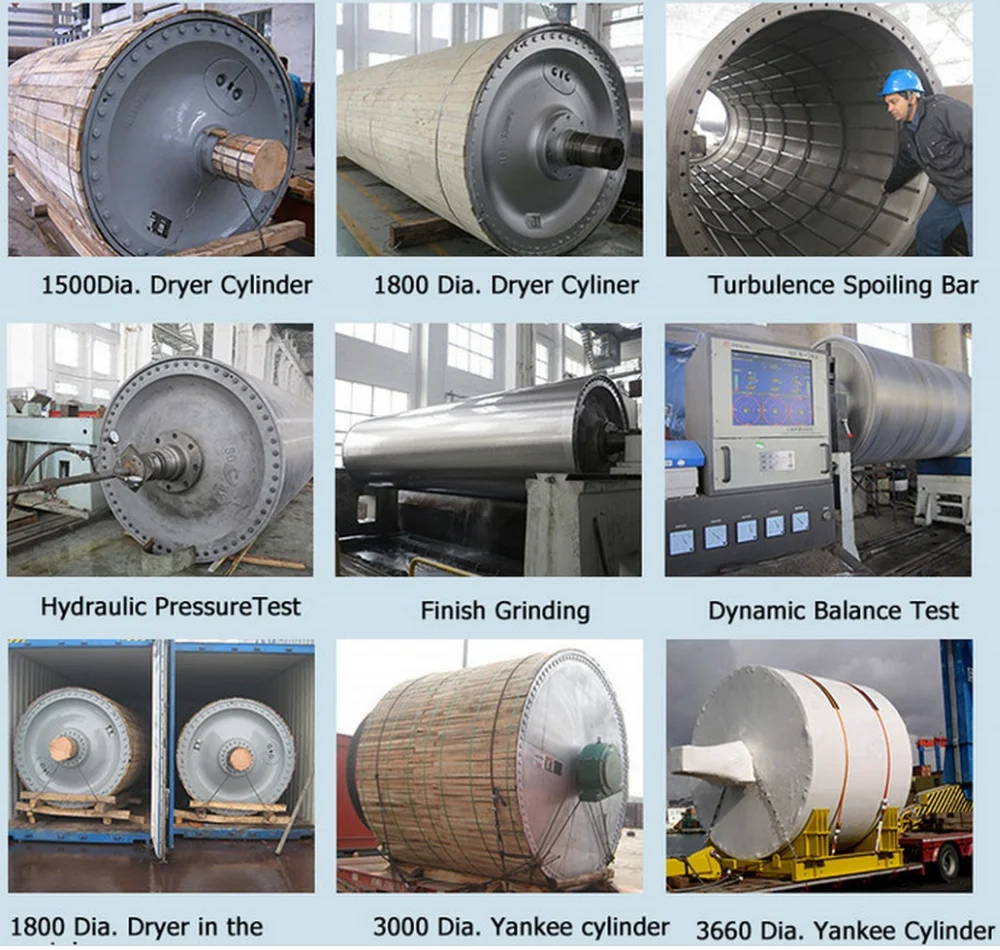

Detailed Images

DRYER CYLINDER TEST

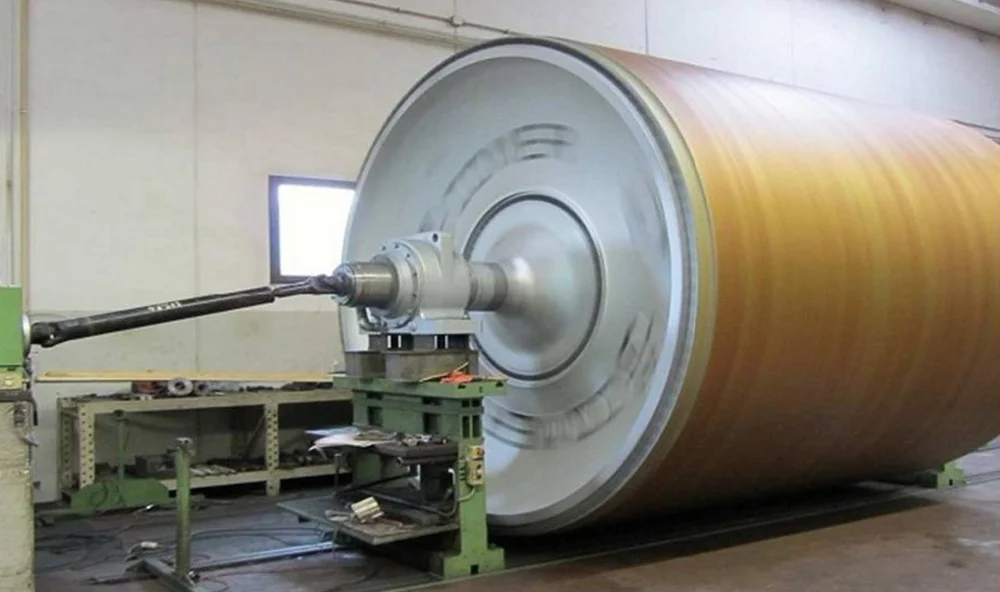

Dynamic balancing test before packing .

 DRYER CYLINDER TEST

Hydraulic test

After assembling we make hydraulic test .

The pressure of hydraulic test twice of normal working pressure.

DRYER CYLINDER CHECK

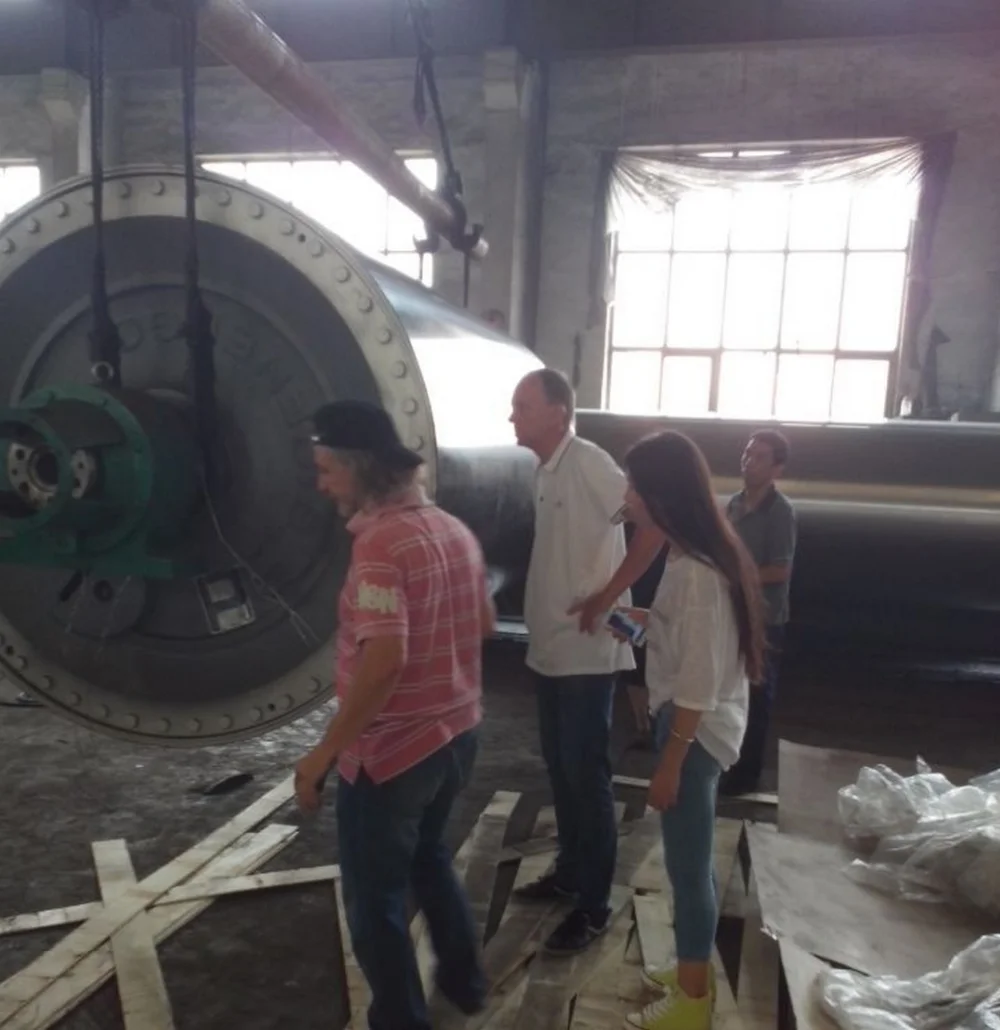

Before shipping ,we will arrange clients visiting .

Checking the Dryer cylinder ,surface and  report for every cylinder.

Certifications
Packing & Delivery
Packaging Details
Weight
2 T



Packaging Details
Wooden strips outside of the body with bubble film inside.
Exporting to Europe ,the wooden box will be fumigated.We can pack it according to customers special request.

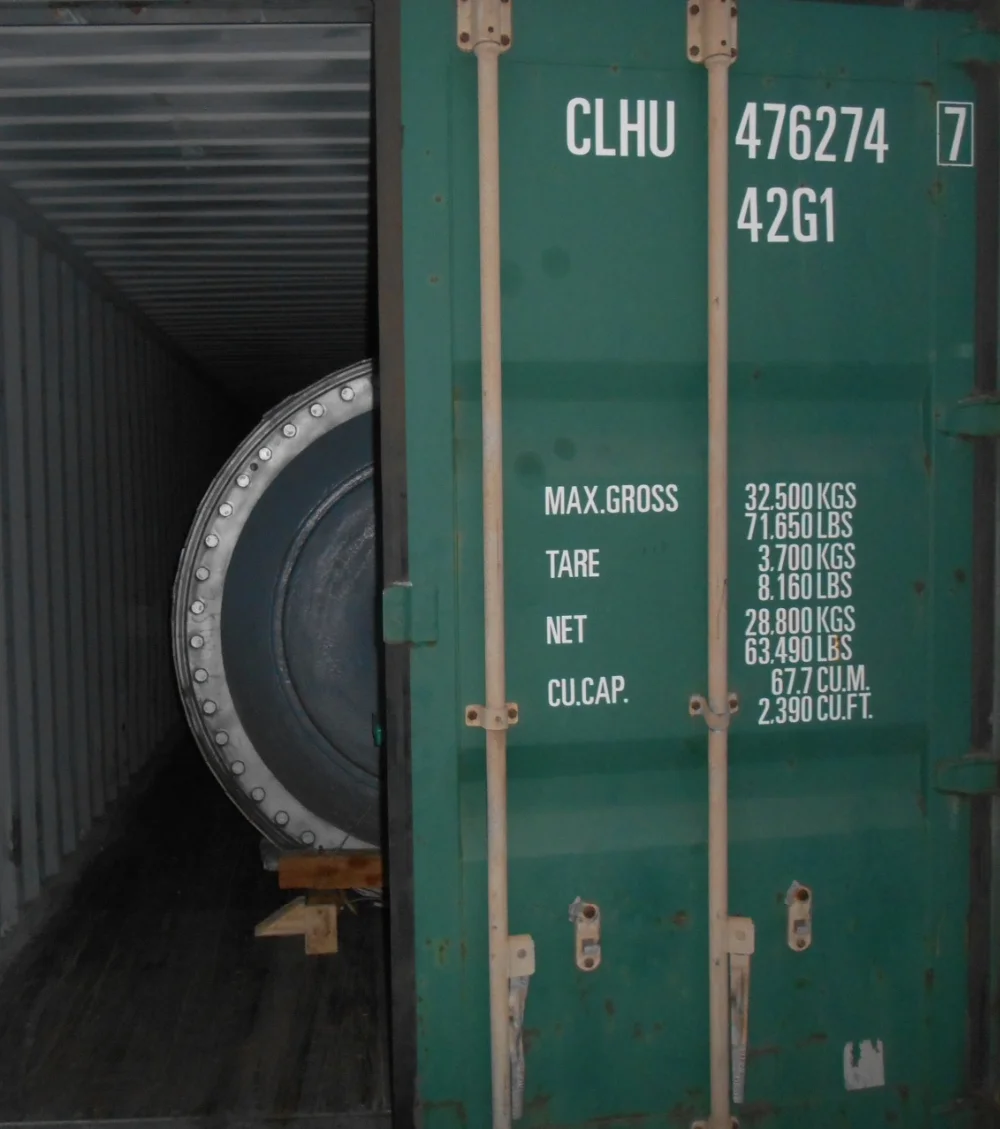

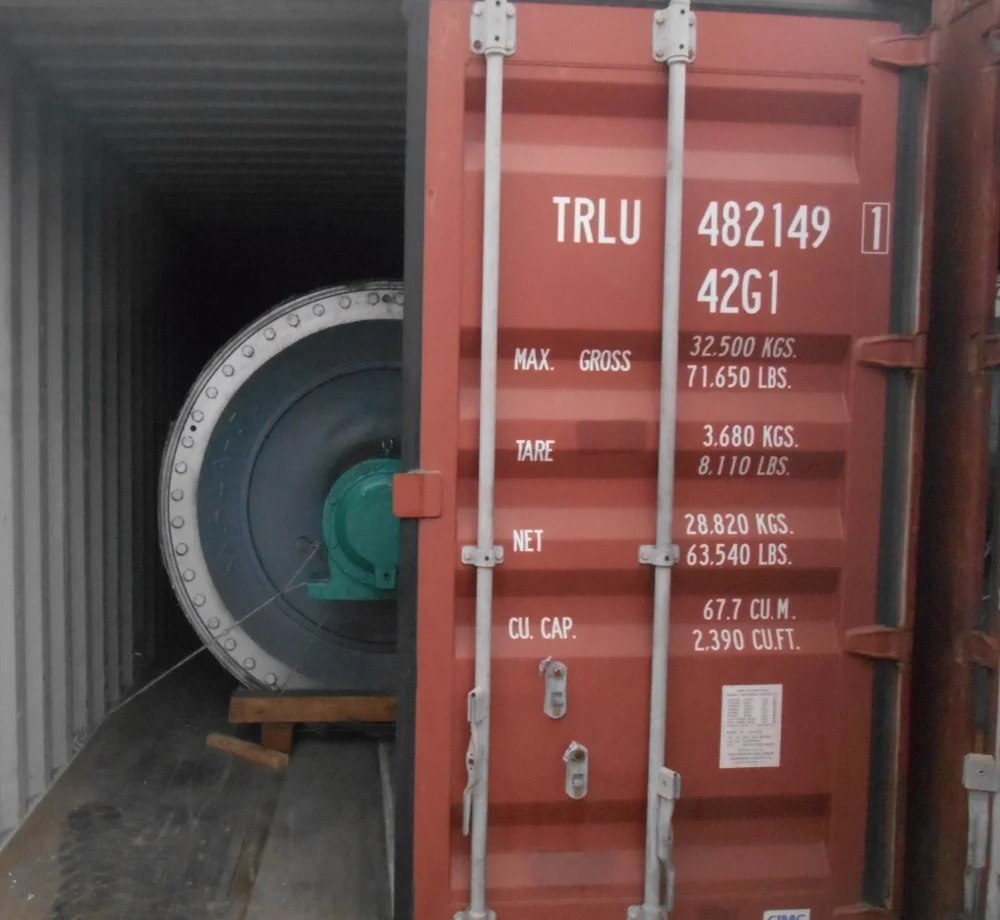

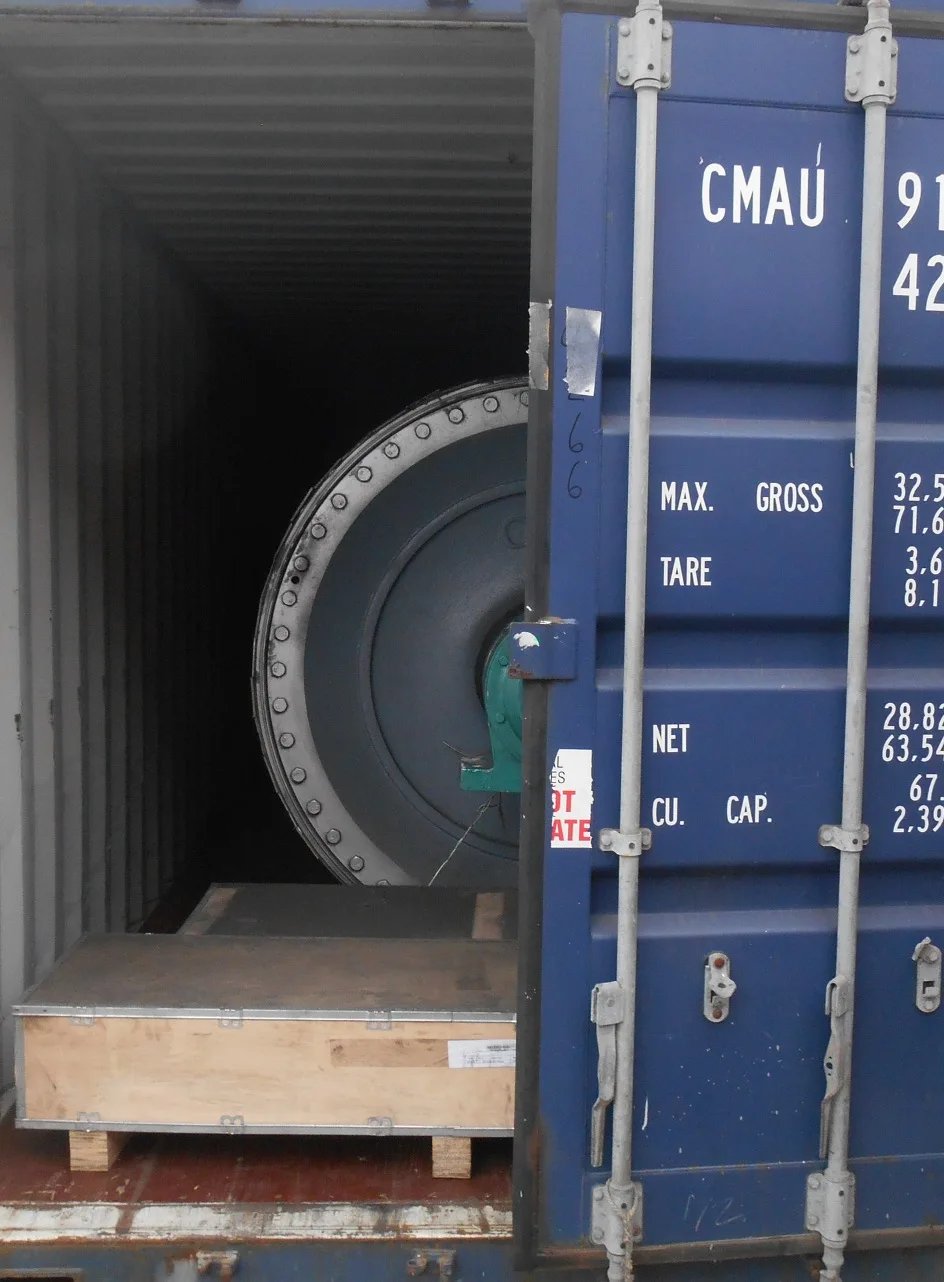

When loading into the container.

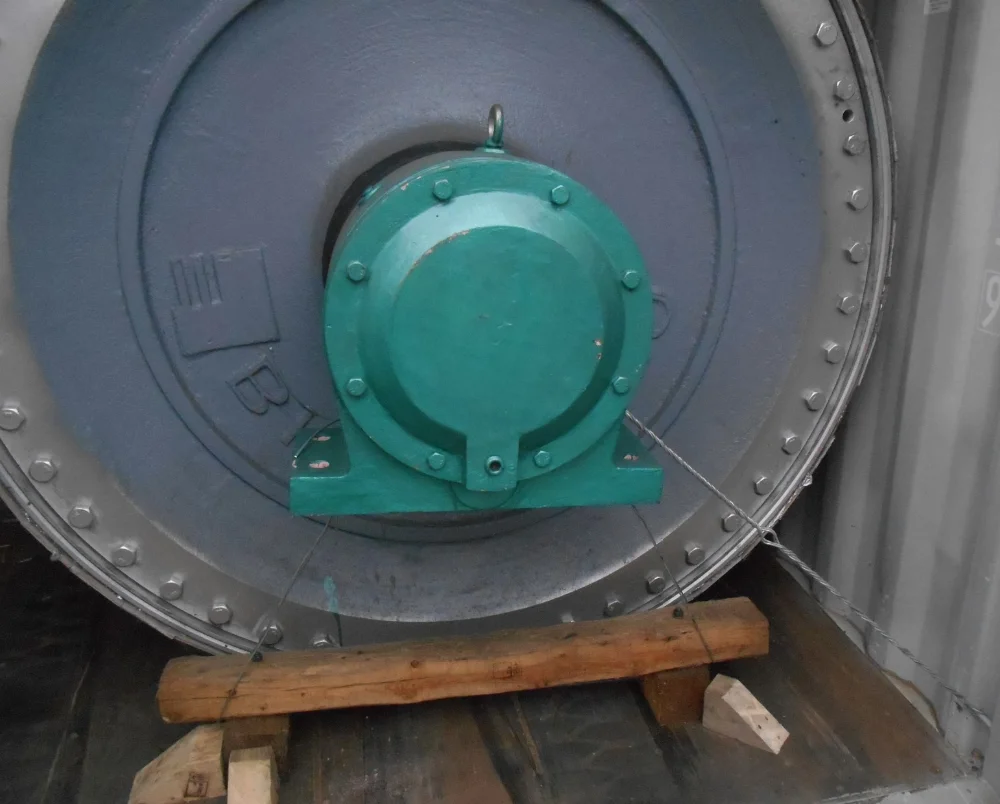

Every dryer cylinder collocated with a wooden pallet ,each cylinder is fixed to the pallet by iron wire .
Iron wire fix the cylinder to the container to keep balance during the shipping .

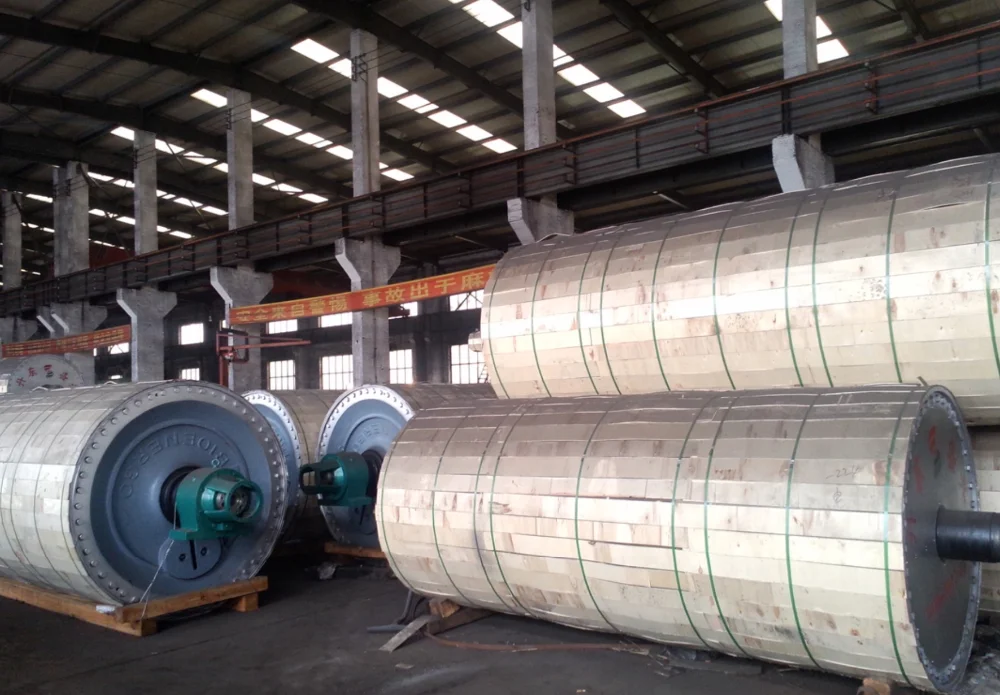

Dryer cylinders are fully equipped and are ready heading for the port.
