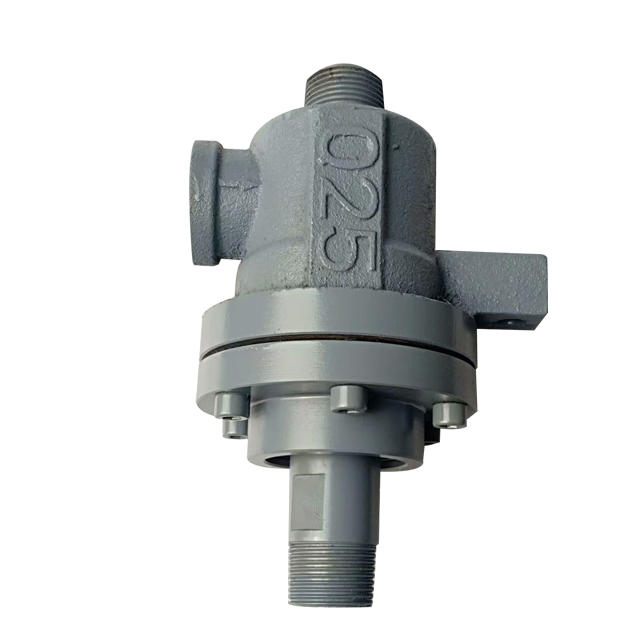

High temperature cast iron 200rpm hot oil steam rotary joint for corrugator

Supplier: Shanghai Fengya Industrial Co., Ltd.
Region: Shanghai, China
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

application:	corrugator	Health status:	new
maximum. pressure:	2.0MPa	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	1000 pieces per month	Package preview:
Material:	cast iron	shape:	reduce
Marketing Type:	normal product	type:	spread
Packaging Details:	carton	pack:	Carton
MOQ:	1	Video shipment inspection:	not available
Showroom location:	not any	Weight (kg):	4
Process:	casting	Warranty:	3 months
Mechanical test report:	not available	port:	Shanghai
custom made:	OEM, design and manufacture	Origin:	China Shanghai
product name:	Steam swivel joint	Applicable industries:	Manufacturing plants, printing plants, construction works
brand:	wind and cloud

Product overview

Single side machine steam rotary joint

The FY rotary joint has a spherical sealing structure and a self-supporting external compensation design. Relying on the spring to push the housing to move backward in the axial direction, compensating for seal wear, and completing the sealing isolation between the internal medium and the external air. Therefore, reasonable installation and regular maintenance are required to ensure the use of the product in the equipment

List of functions

* Double support self-lubricating

* Convex spherical seal

* Good sealing performance and long service life

* Easy maintenance

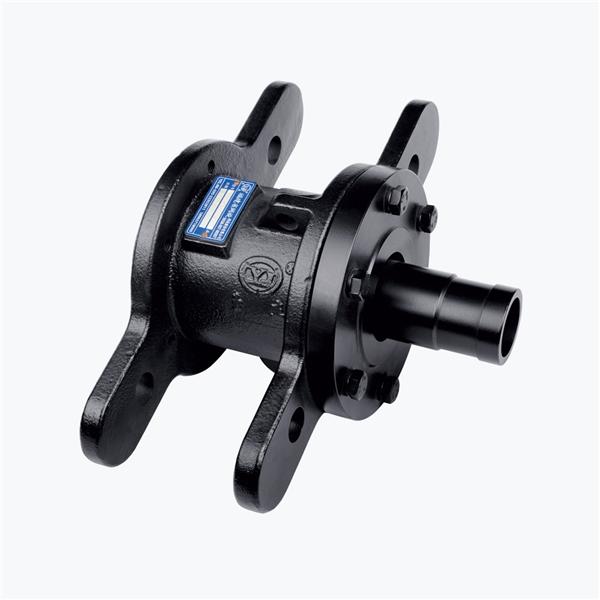

Rotary joint

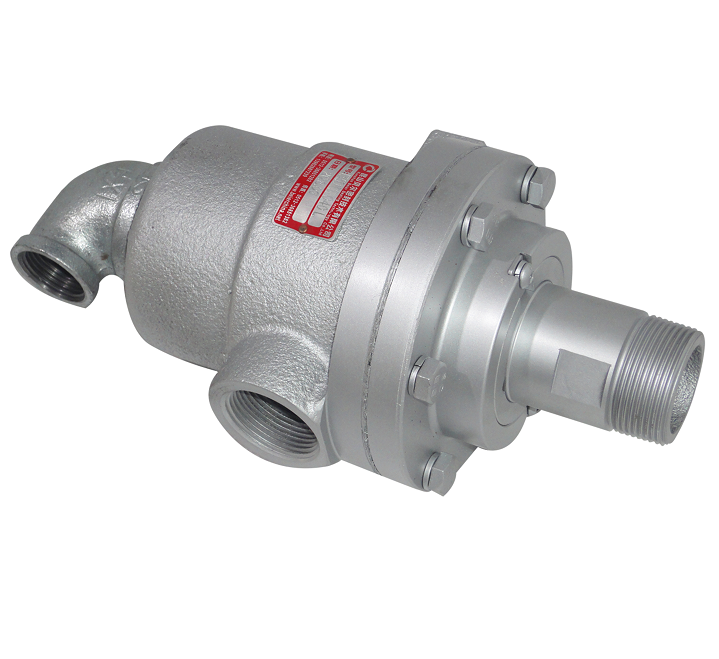

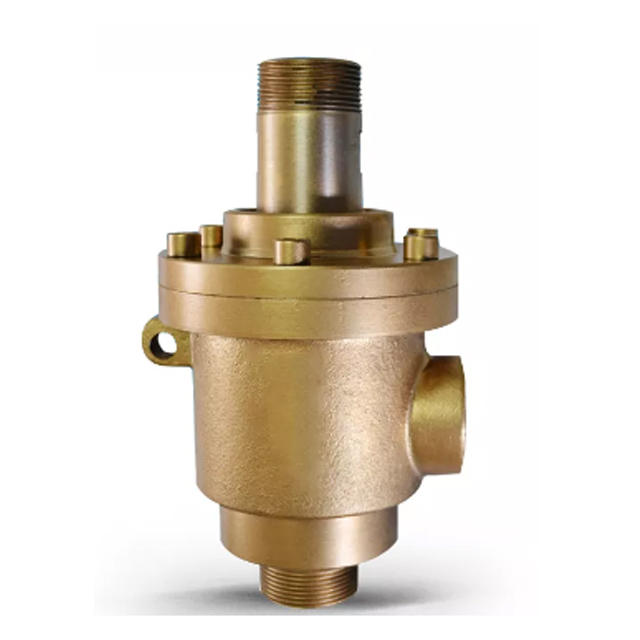

Steam swivel joint

Single side machine rotary joint

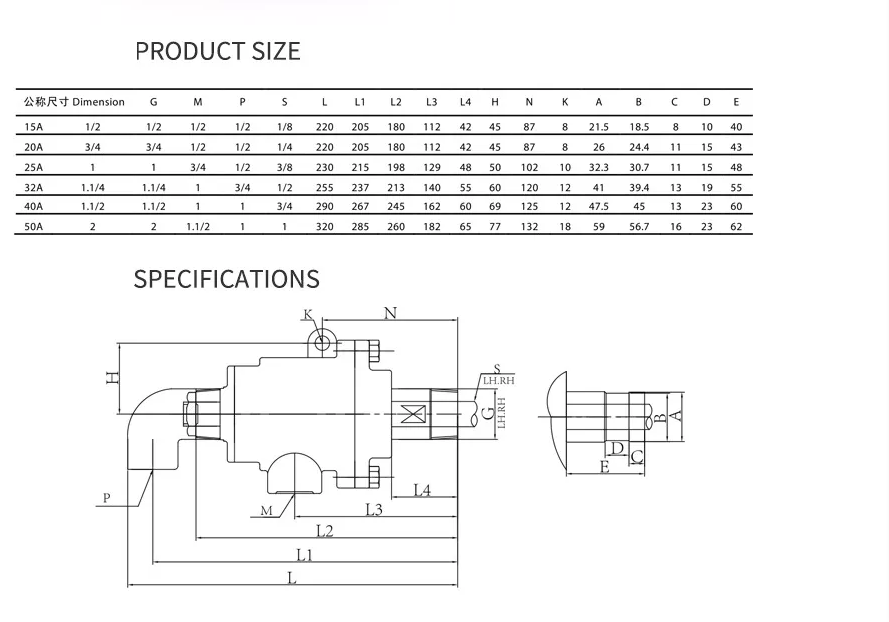

product specification

Product Category:	High temperature rotary joint for hot oil
connect:	Flanged (JIS/GB) or threaded (BSPP BSPT NPT NPS)
Moderate:	hot oil/steam
Maximum temperature:	350°C
Maximum speed:	300 rpm
greatest pressure:	18 bar
Body:	nickel plated
Warranty:	12 months

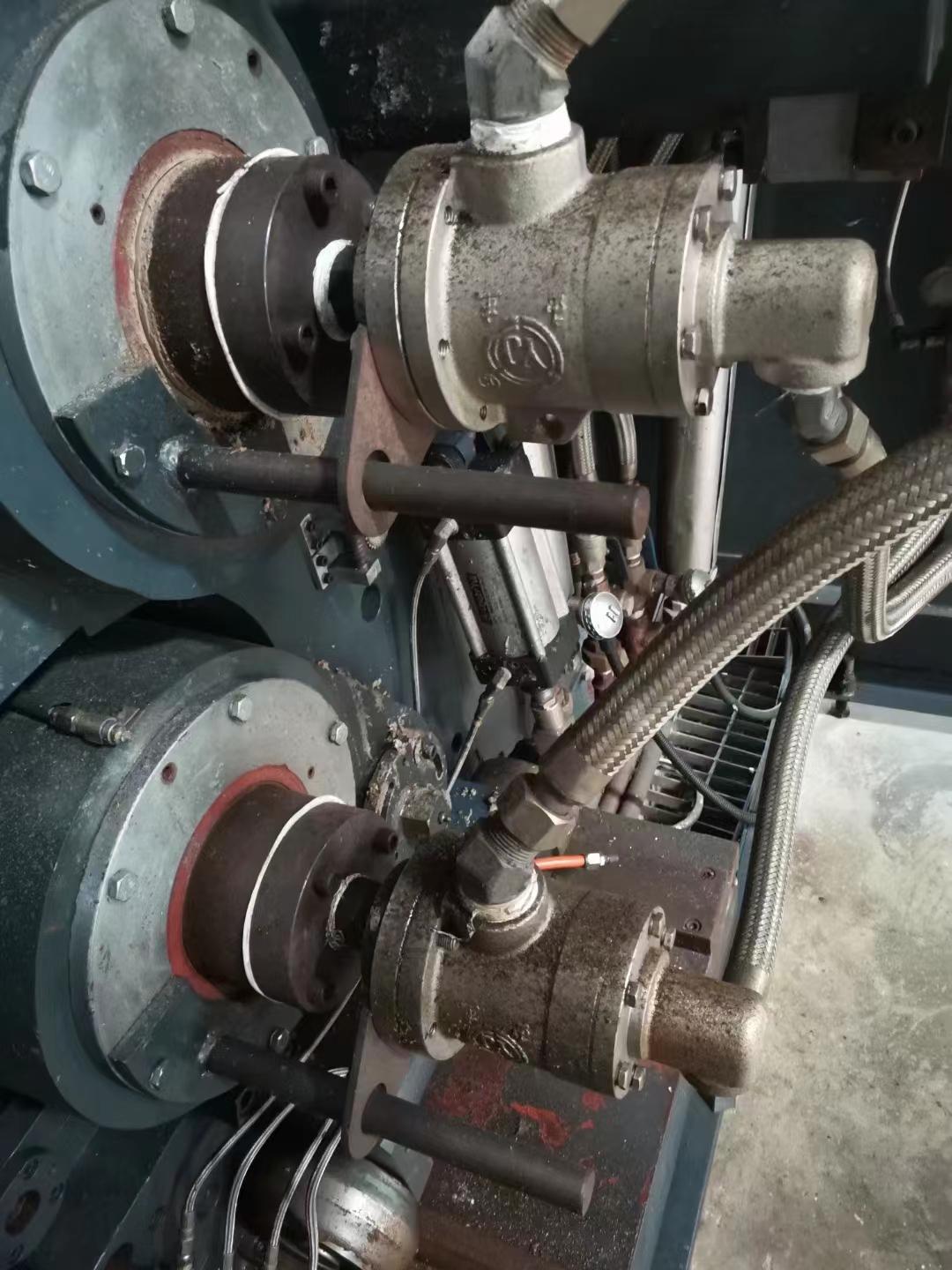

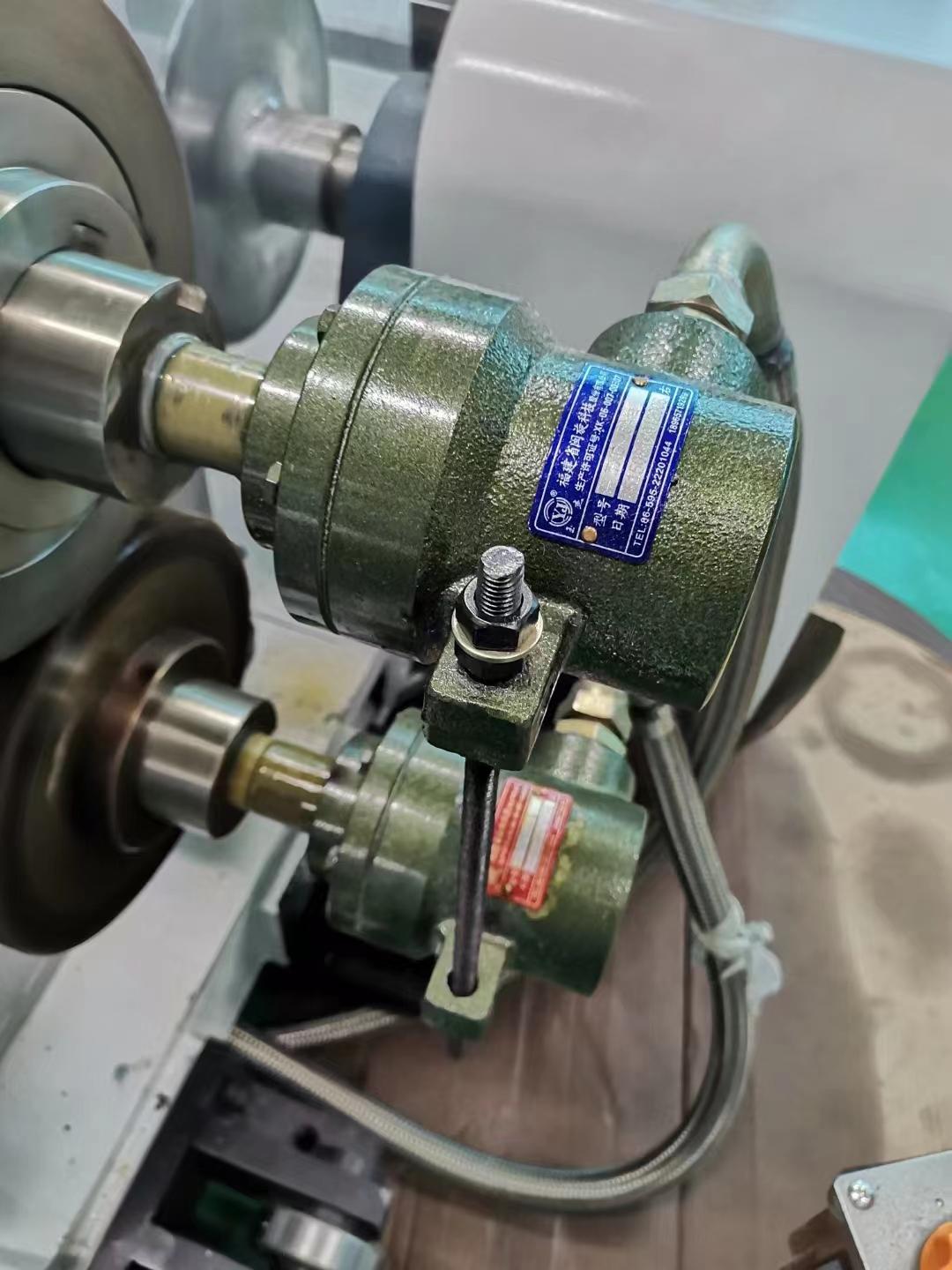

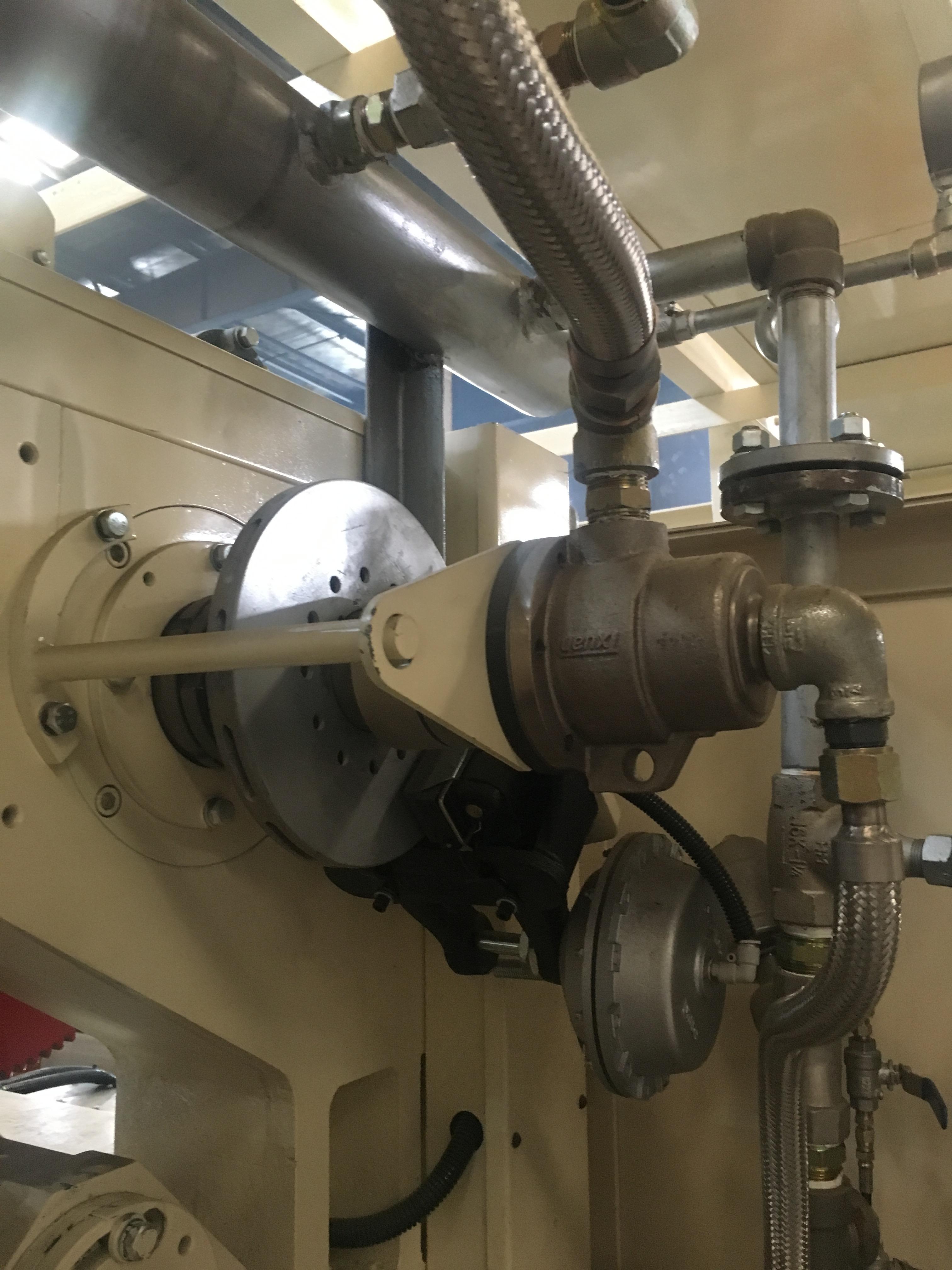

successful project
