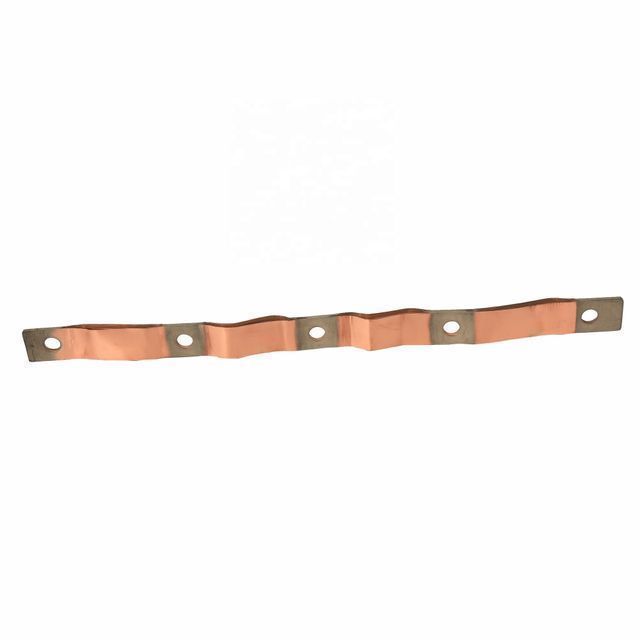

Flexible copper bars for capacitors in Wuxi factory

Supplier: Wuxi Aston Electric Co., Ltd.
Region: Jiangsu, China
Contact: Mr guoping yu
Price: $5.00 / 1 - 99 pieces
$3.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Cross section:	20-200mm2	application:	for electrical connection
port:	Shanghai	Name:	Ground copper bar
Packaging Details:	Plastic box	plating:	bare or tinned
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Single layer copper foil thickness:	0.03mm, 0.05mm, 0.10mm, 0.15mm, 0.20mm, ..
Material:	C11000 Copper	Package preview:
type:	Busbar Copper Strip	Supply capacity:	200 pieces per day

02mm pressure soldering copper laminated flexible connector

Pressure welding is to laminate copper foil together, using molecular diffusion welding,Formed by high current heating and pressure welding. Butt welding.
Copper foil: 0.05mm to 0.3mm thick.
The contact surface can be tin-plated or silver-plated according to user requirements.
Bonding Instructions
In order to ensure the smoothness of the contact surface,

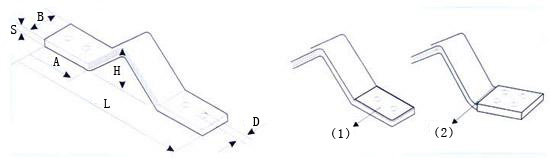

When A is greater than 90mm and B is greater than 60mm, the contact surface bonding copper plate (1mm thick) pressure welding process is used. See Figure (1) scheme.
When A is greater than 140mm and B is greater than 130mm, the brazing process is shown in Figure (2).
technical parameter
See table below.
The width, length and number of drilling holes not listed in the table below can be processed according to user requirements.
The allowable carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connection

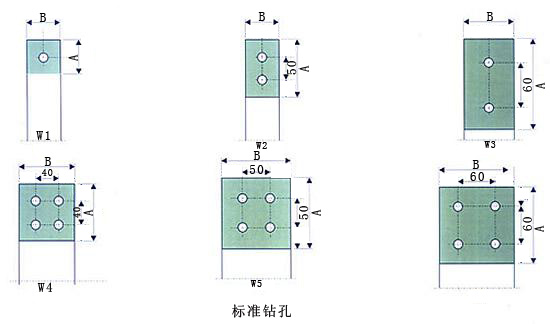

Specification	cross-sectional area square millimeter	One mm	Second mm	small mm	large mm	h mm	hole D mm	standard drilling	intercepted rainfall One
PWR 200/180/40	200	50	40	5	180	40	13	W1	600
PWR 200/230/40	200	50	40	5	230	40	13	W1	800
PWR 320/230/40	320	50	40	8	230	43	13	W1	800
PWR 400/230/40	400	50	40	10	230	45	13	W1	900
PWR 250/250/50	250	60	50	5	250	45	13	W1	700
PWR 400/250/50	400	60	50	8	250	48 years old	13	W1	950
PWR 500/250/50	500	60	50	10	250	50	13	W1	1100
PWR 480/300/60	480	Post-90s	60	8	300	70	13	W2	1100
PWR 600/300/60	600	Post-90s	60	10	300	70	13	W2	1200
PWR 640/300/80	640	Post-90s	80	8	300	70	13	W4	1350
PWR 800/350/100	800	Post-90s	80	10	300	70	13	W4	1500
PWR 960/300/80	960	Post-90s	80	12	300	70	13	W4	1700
PWR 800/350/100	800	110	100	8	300	80	13	W5	1550
PWR 1000/350/100	1000	110	100	10	350	80	13	W5	1800
PWR 1200/350/100	1200	110	100	12	350	80	13	W5	1900
PWR 1200/400/120	1200	130	120	10	400	80	13	W7	2000
PWR 1440/400/120	1440	130	120	12	400	80	13	W7	2200
