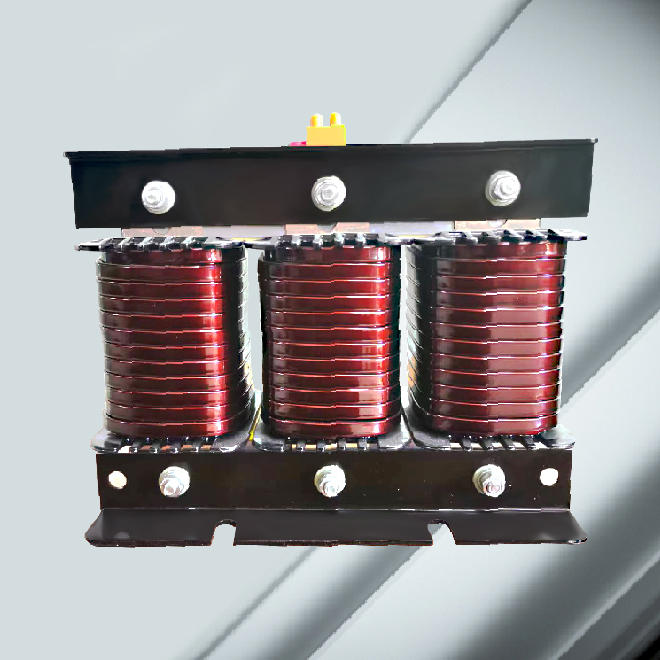

Best Reactor Price Three Phase 7% AC Input Harmonic Filter Asian Market Automatic Reactor
- 48.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

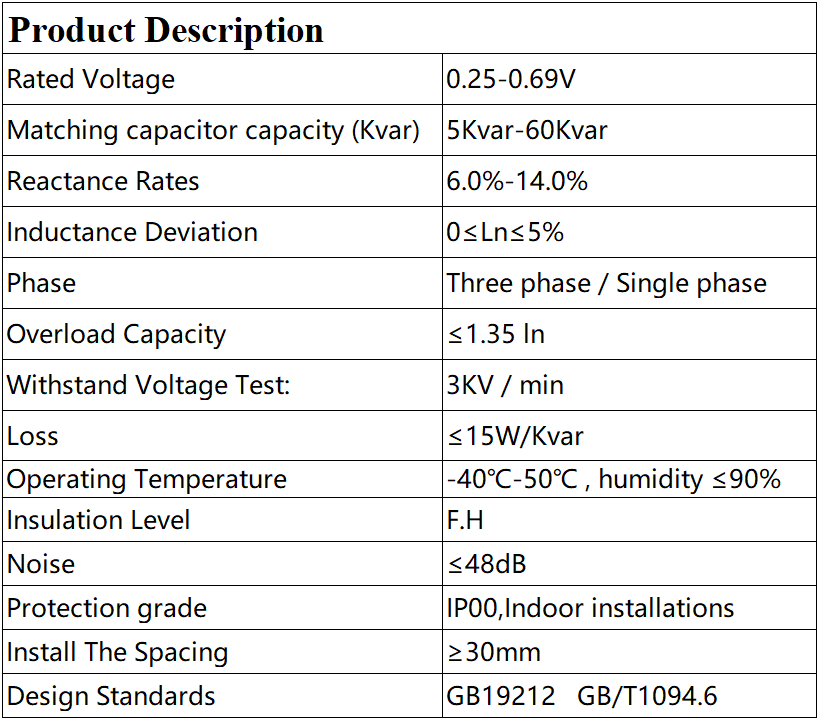

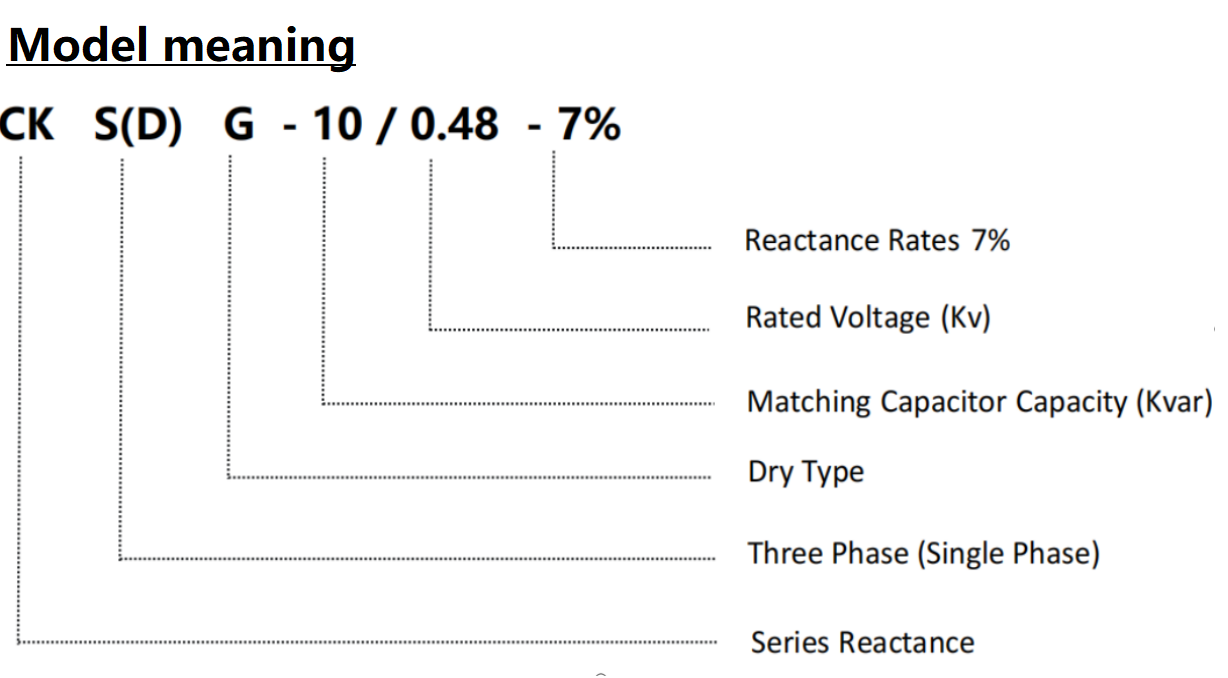

| brand: | Huirong | model: | QMLHCKSG-0.48-10-3/7% |
| capacity: | 10 | Operating temperature: | -40°C - +50°C, Humidity≤90% |
| Protection class: | IP00, indoor installation | Packaging Details: | wooden box |
| Supply capacity: | 5000 pieces per month | stage: | three-phase/single-phase |
| Rated voltage: | 0.48KV | design standards: | GB19212/GB/T1094.6 |
| place of origin; place of origin: | Guangdong, China | Package preview: | |
| payment terms: | wire transfer | Style name: | AC reactor |
| Rated current: | 12 | Insulation class: | frequency hopping |
| noise: | ≤48dB | Reactance rate: | 6.0%-14% |
| Matching capacitor capacity: | 5kw-60kw | Overload capacity: | ≤1.35 lbs |
| port: | Shenzhen |
Product Description
250v 450v AC low voltage capacitor harmonic filter reactor
1. Filter reactors are divided into three-phase and single-phase, all of which are iron core dry type.

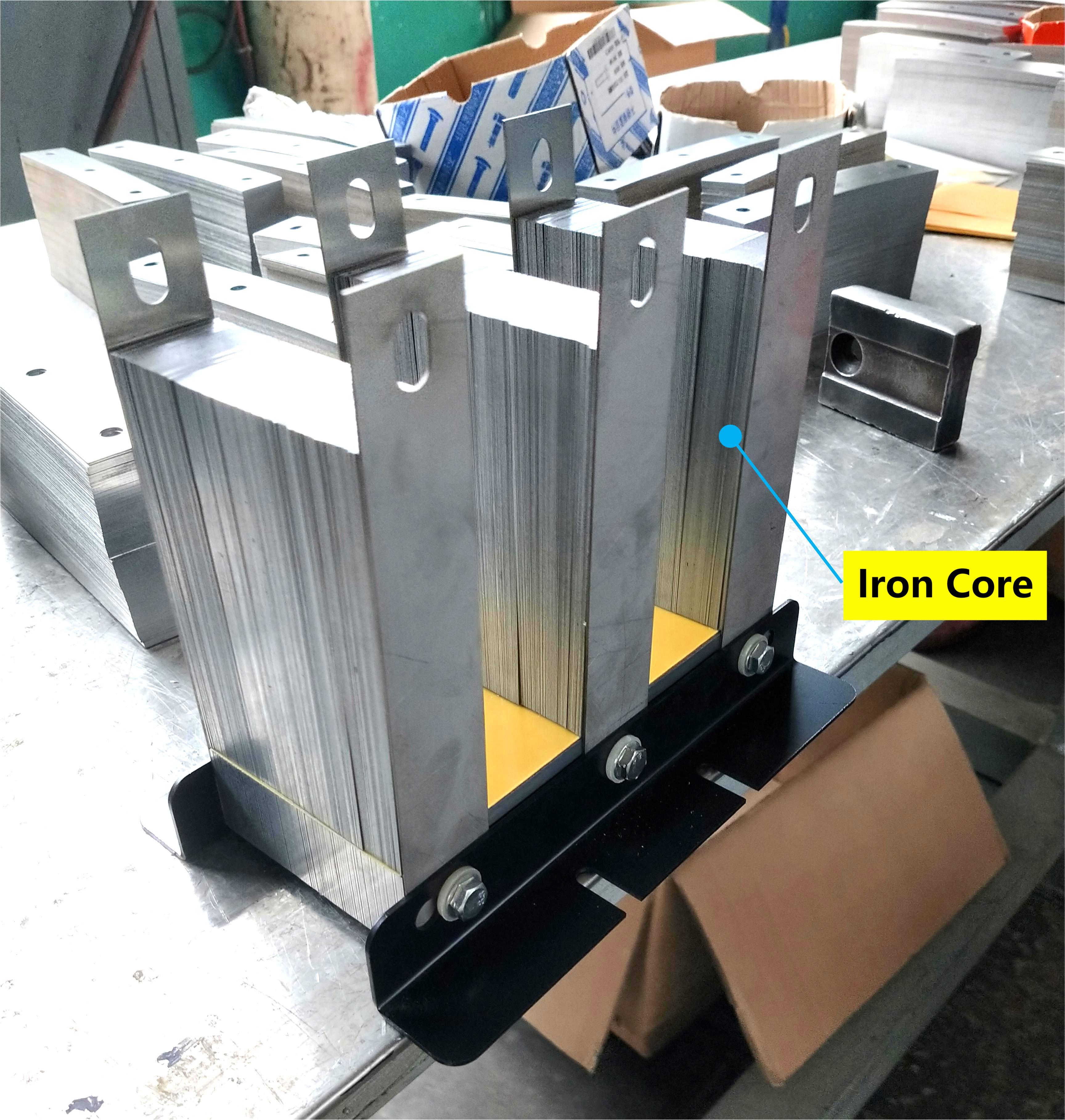

2. The iron core is made of low-loss high-quality cold-rolled oriented silicon steel. The iron core column is divided into uniform sections, with multiple air gaps. Does not change during operation.

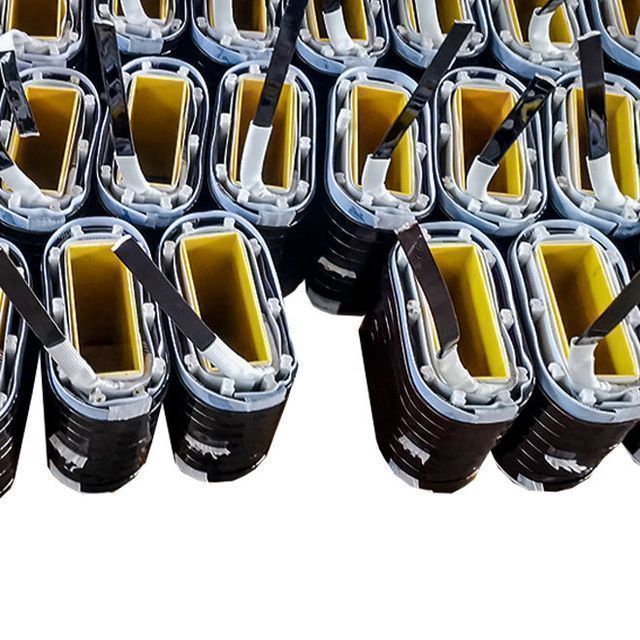

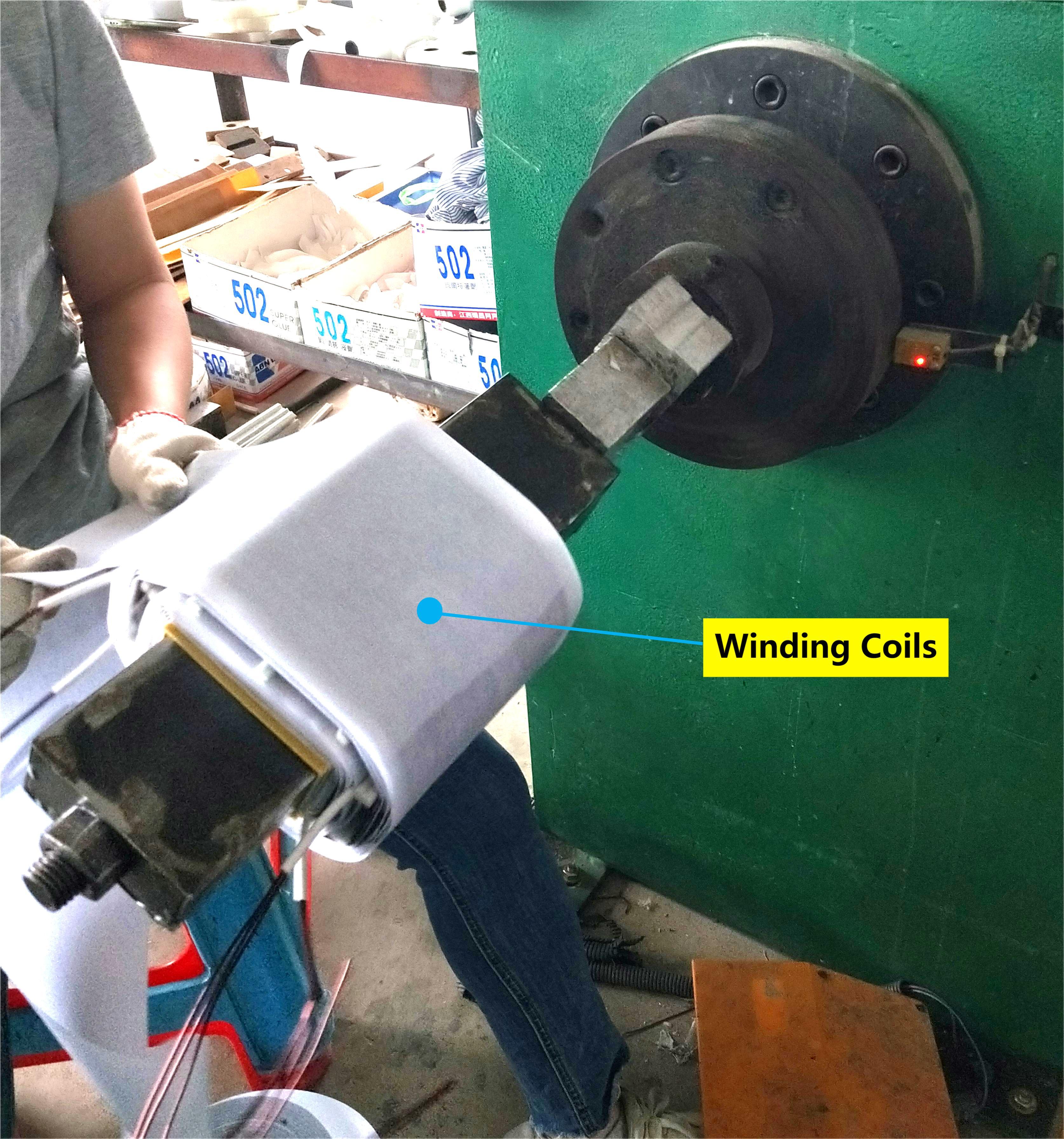

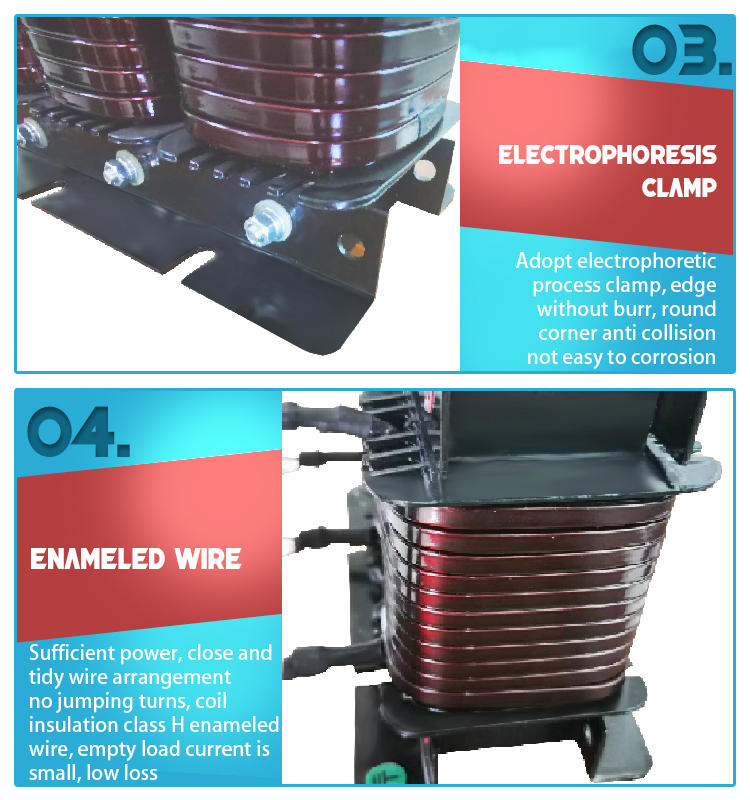

3. The coil adopts H-level or C-level enamelled flat copper wire, which is arranged tightly and evenly.

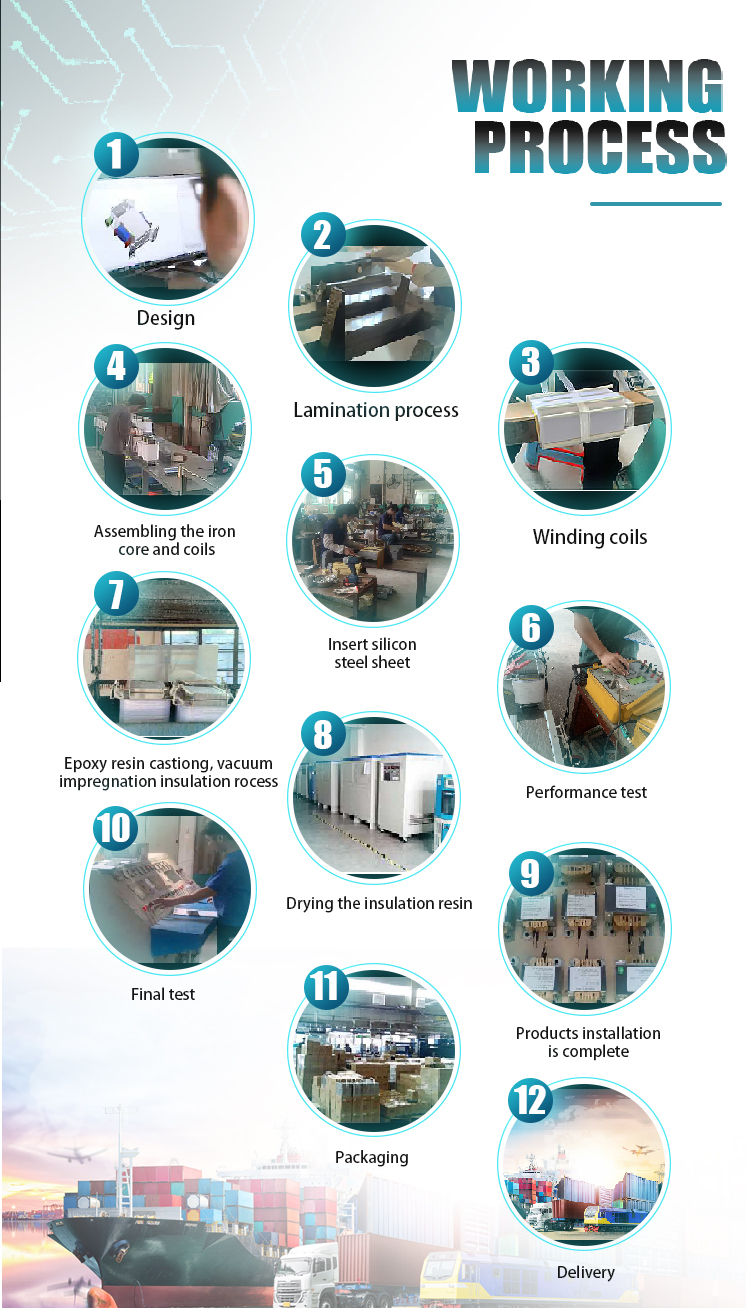

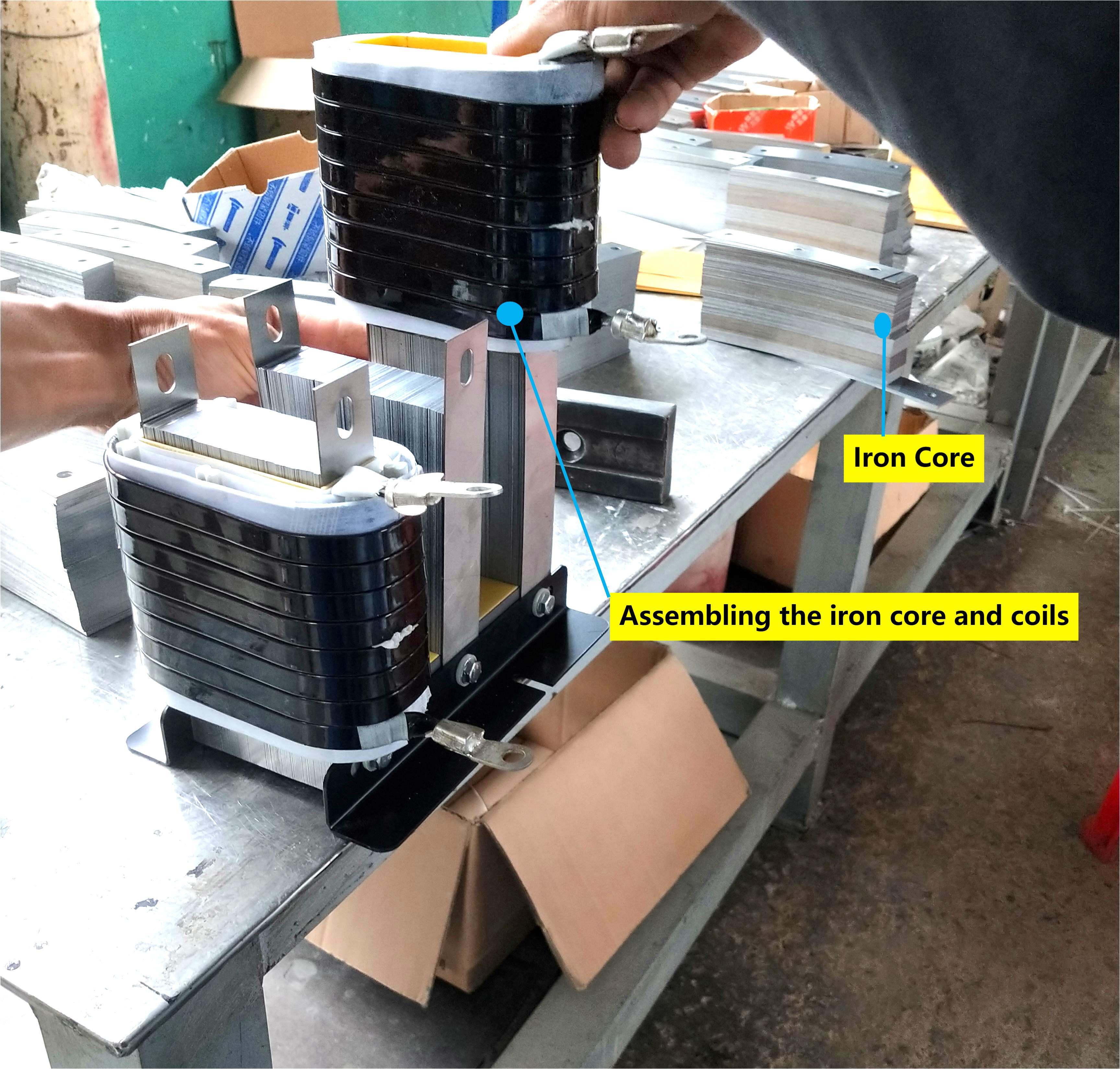

4. The reactor coil and the iron core are assembled into a whole, and the reactor coil and the iron core are firmly combined by using H-level impregnating paint pre-drying → vacuum pre-painting → heat-drying curing process.
5. The jigs and fasteners of the reactor are made of non-magnetic materials to ensure that the reactor has a high quality factor and a good filtering effect;

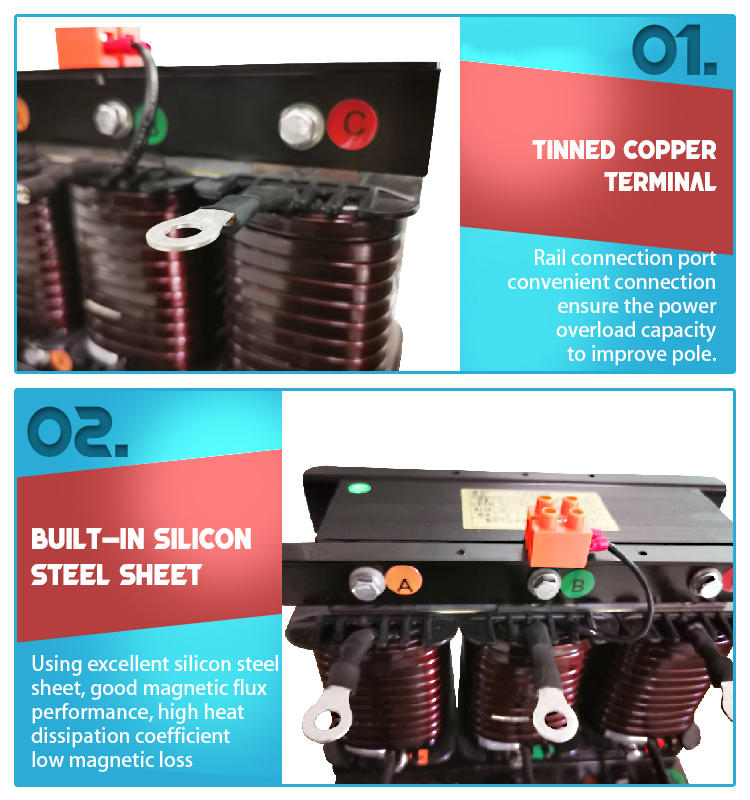

6. The exposed part is anti-corrosion treated, and the lead-out terminals are tinned copper tube terminals.
More technologies, inquire now!☚ ☚ ☜ ☜
More technologies, inquire now!☚ ☚ ☜ ☜

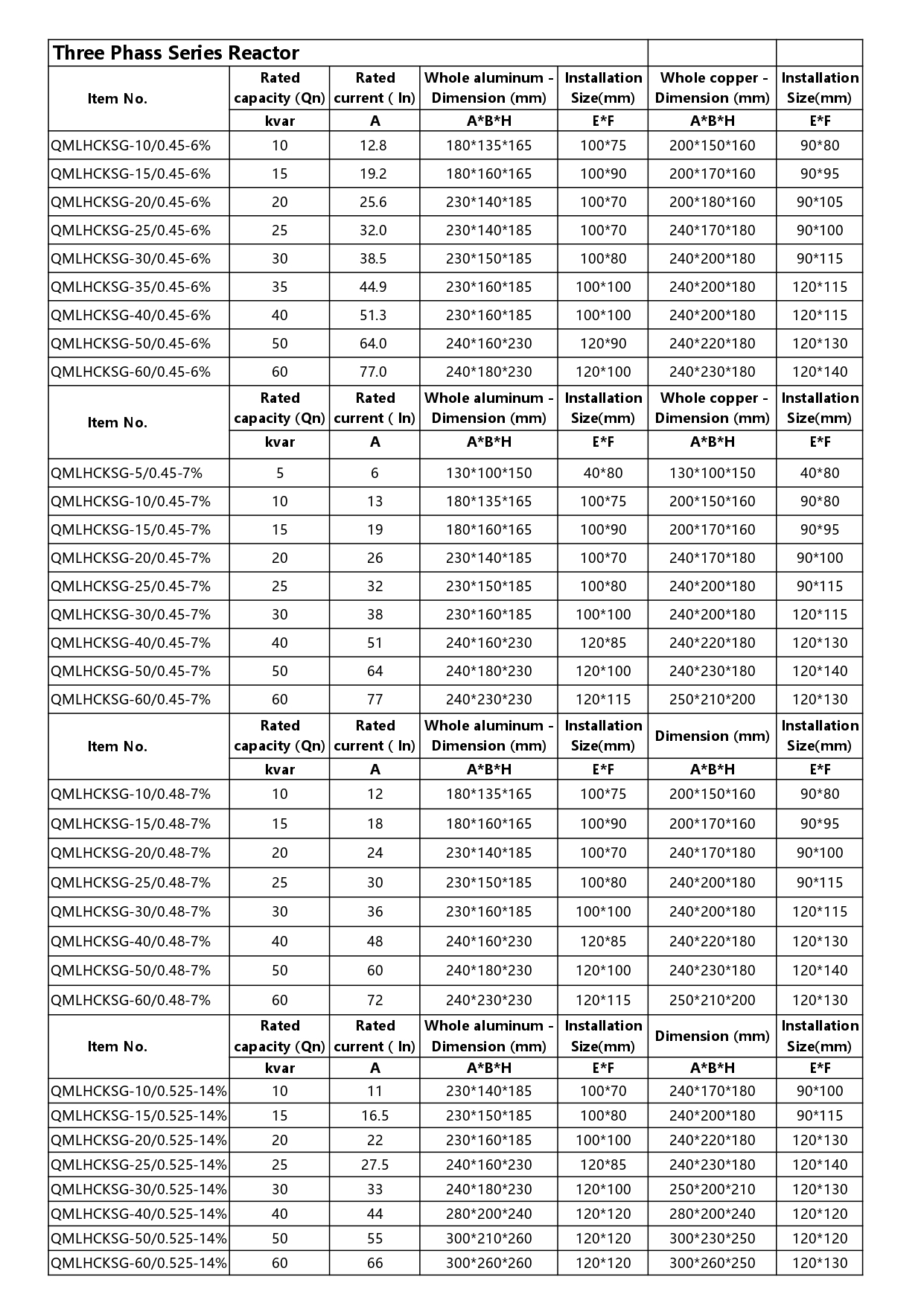

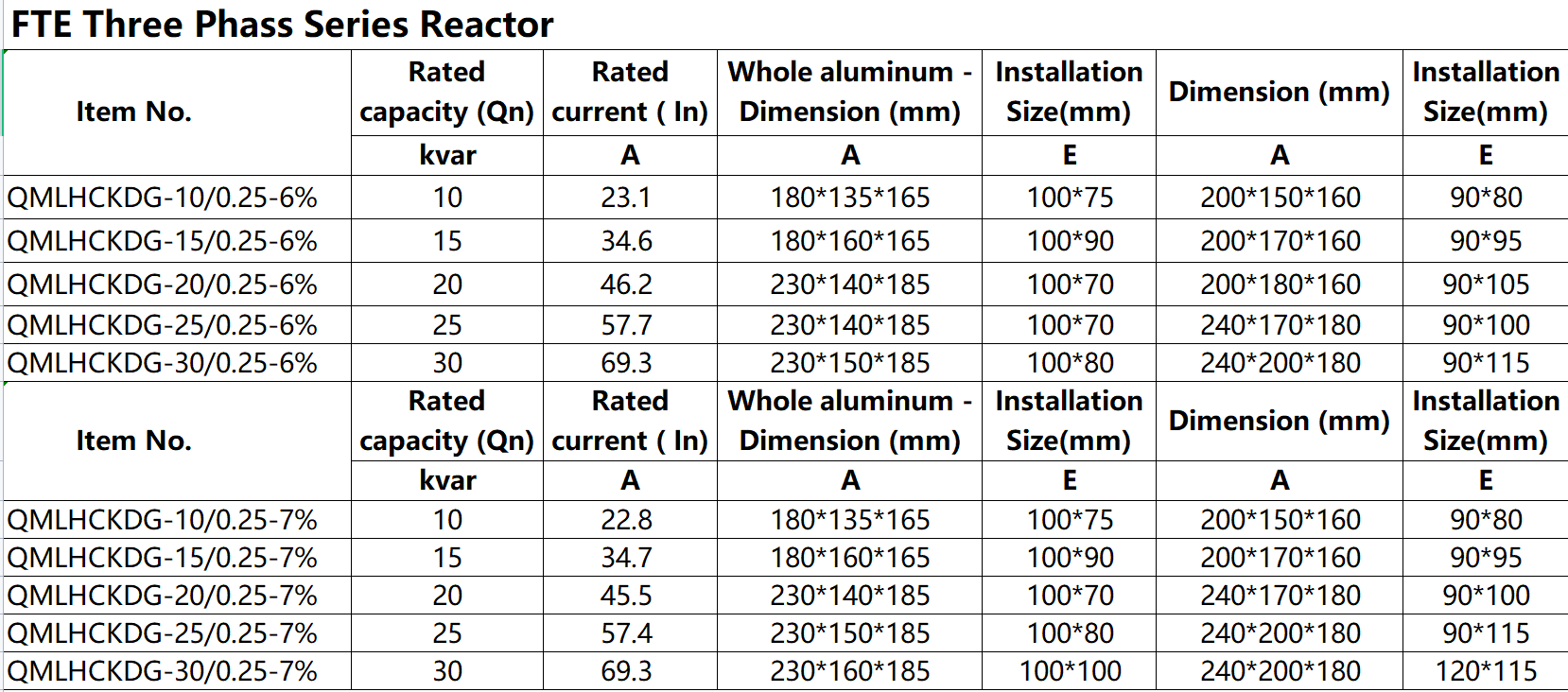

Specification
