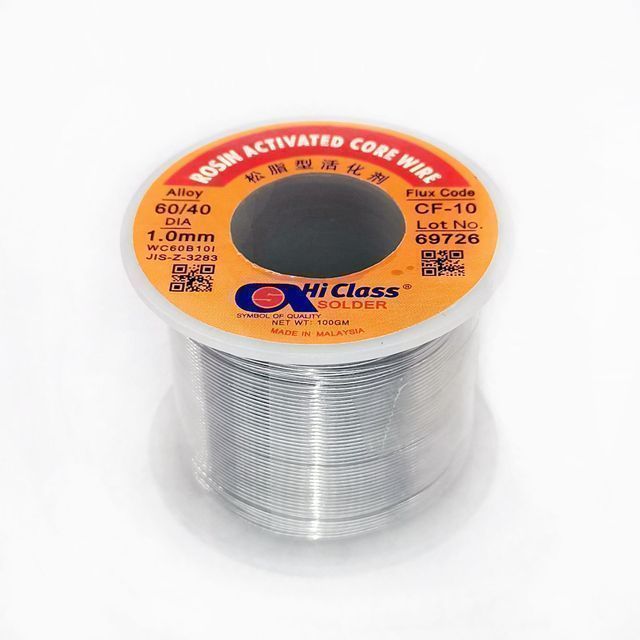

Hiclass solder wire 0.5mm 0.8mm 1.0mm 100g tin flux rosin active flux cored wire 60/40 SN60 Pb40 same Asahi quality

Supplier: Guangzhou Kai Land Electronic Co., Ltd.
Region: Guangdong, China
Price: $2.10 / 100 - 499 rolls
$2.05 / 500 - 999 rolls
$2.00 / >=1000 rolls
Min. Order: 100 rolls

Click here to contact

Product details

product name:	Hiclass solder wire	Flux content:	2.2%
feature:	Excellent welding performance	diameter:	0.5mm 0.8mm 1.0mm 1.2mm 2.0mm
Package preview:		payment terms:	Western Union, T/T
Customization support:	OEM,ODM,OBM	place of origin; place of origin:	Guangdong, China
brand:	high grade	Material:	tin
weight:	100 g	Melting point:	183 to 191°C
model:	H60100	port:	Guangzhou
application:	electronic product

Specification

Hot sale, production of high-quality solder wire soft solder wire low melting point tin solder wire Sn45Pb55 solder wire. Contains 45% tin and 55% lead. This is a low cost solder wire that can be used for many types of soldering such as manual soldering stations, component lead soldering, PCB repair, etc. Our solder wire diameters are available from 0.18~3.0mm. And there are no-clean solder wire and water-soluble solder wire type solder wire. There are also flux cored solder wire/acid cored solder wire/solid solder wire.

Product Description

cutting edge technology

Low melting point, good activity, high insulation resistance. High welding speeds help reduce thermal shock to components and reduce operator welding time.

fresh ingredients

High-purity tin ingot raw material + electrolytic lead and special process are used. Our solder wire can maintain high soldering speed with less residue, good wetting, excellent thermal and electrical conductivity. (Left) Fresh Raw Materials.jpg

Safe and reliable

Excellent oxidation resistance, wettability and swelling to avoid bridging and solder protrusion. The high-efficiency oxide film can also form a protective film on the surface of the solder joints to reduce the oxidation reaction and keep the solder joints bright.

Model	melting point	density	main application
Sn63Pb37	183°C	8.4	Suitable for high-precision PCB, such as: communication electronics, microelectronics, aerospace, etc.
Sn60Pb40	190°C	8.5
Sn55Pb45	203°C	8.7
Sn50Pb50	216°C	8.9	Some common electronic products, such as: home appliances, electrical instruments, hardware, etc.
Sn45Pb55	227°C	9.1
Sn40Pb60	238°C	9.3	Low requirement PCB, such as: radiator, lamp tube, cable connector, etc.
Sn35Pb65	247°C	9.5
Sn30Pb70	255°C	9.7
Sn25Pb75	266°C	9.9
Sn99.3Cu0.7	227°C	7.4	High-end Electronics
